DF-10A




DF-10A surface-to-surface cruise missile




DF-10A cruise missile surface-to-surface technical data sheet specifications pictures information description intelligence photos images video identification China Chinese army industry military technology equipment

Description
The DF-10A is a surface-to-surface cruise missile which is a more accurate version of the DF-10 cruise missile. This mobile launch unit of cruise missile was unveiled for the first time to the public during the 3 September 2015 military parade in Beijing to commemorate the 70th Anniversary of the Chinese People's War of Resistance against Japanese Aggression and the World Anti-Fascist War. The Chinese cruise missile program has been under development for decades, and one of the latest and most potent outcome is the DF-10A cruise missile. According military sources, the DF-10 is designed to strike at US carrier battle groups in the Western Pacific.

Variants:
- DF-10: previous version of the DF-10A mobile launch unit of cruise missile.

Technical Data
Back to top
Missile launch unit

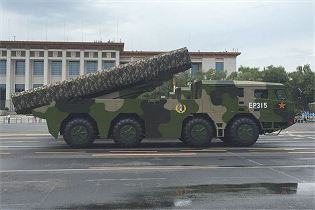

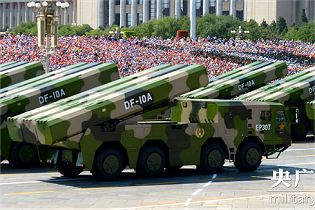

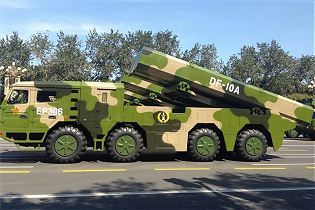

The DF-10A Transporter Erector Launcher (TEL) truck is fitted with a three long launch canisters, of octagonal cross section, mounted on the rear of an 8x8 truck chassis. Compared to the previous version, the DF-10, for the DF-10A, the three missiles are in one alignment.
Missiles
The DF-10A missile has a warhead of 500 kg and can reach a maximum distance from 1,500 km to 2,000 km. Official Chinese media claimed that a single warhead carried by a DF-10A missile can sink a 10,000-ton vessel. Accurate to less than ten meters, the DF-10A could be used by China to strike targets throughout Russia’s Far East and Siberia, flying in under Russian radar defenses and striking critical targets. The new missile DF-10A can identify target in flight and is capable to fly at low altitude before hitting target. The DF-10A missiles use several guidance modes, including satellite navigation, inertial navigation, and terrain following, making it hard to jam or deceive.
Mobility

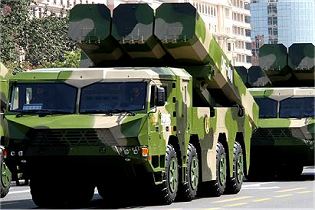

The DF-10A surface-to-surface cruise missile is mounted on a new four-axle truck compared to the DF-10 mobile launcher unit. A crew cabin is located at the front of the truck with two doors on each side, the rear side of the crew cabin is lengthened with what could be a command post to control all the firing operations.
Combat use
The DF-10A Cruise missiles is designed to deliver a large warhead over long distances with an accuracy to less than ten meters. The DF-10A payload can either be a high explosive warhead or submunitions for attacking fighters on runways and tank columns, nuclear warheads and fuel air explosives. Cruise missiles have several advantages over ballistic missiles; they can be updated during flight on battlefield changes, their low flight altitude makes them very stealthy against air defense radars, and fuel efficient turbofan engines allow cruise missiles to be lighter and cheaper than their ballistic counterparts.

Specifications
Back to top
Type
Surface-to-Surface cruise missle
Country users
China
Warhead
500 kg
System reaction time
10 sec.
Armament
Three missiles in individual container ready to fire
Range missile
1,500 km maximum
Guidance system
GLONASS and GPS satellite systems for guidance
Radar and command station
Command and control vehicle
