Ukraine Reinforces Air Defense Network with Converted R-73 Air-to-Air Missiles on US HUMVEE Vehicle.

In response to relentless aerial assaults from Russian forces, Ukraine has unveiled an innovative mobile air defense system that repurposes existing military assets to address critical defense needs. This new system integrates Soviet-era R-73 air-to-air missiles onto U.S.-supplied HMMWV (High Mobility Multipurpose Wheeled Vehicle) platforms, creating a highly mobile and effective solution against aerial threats such as drones and missiles.
Follow Army Recognition on Google News at this link

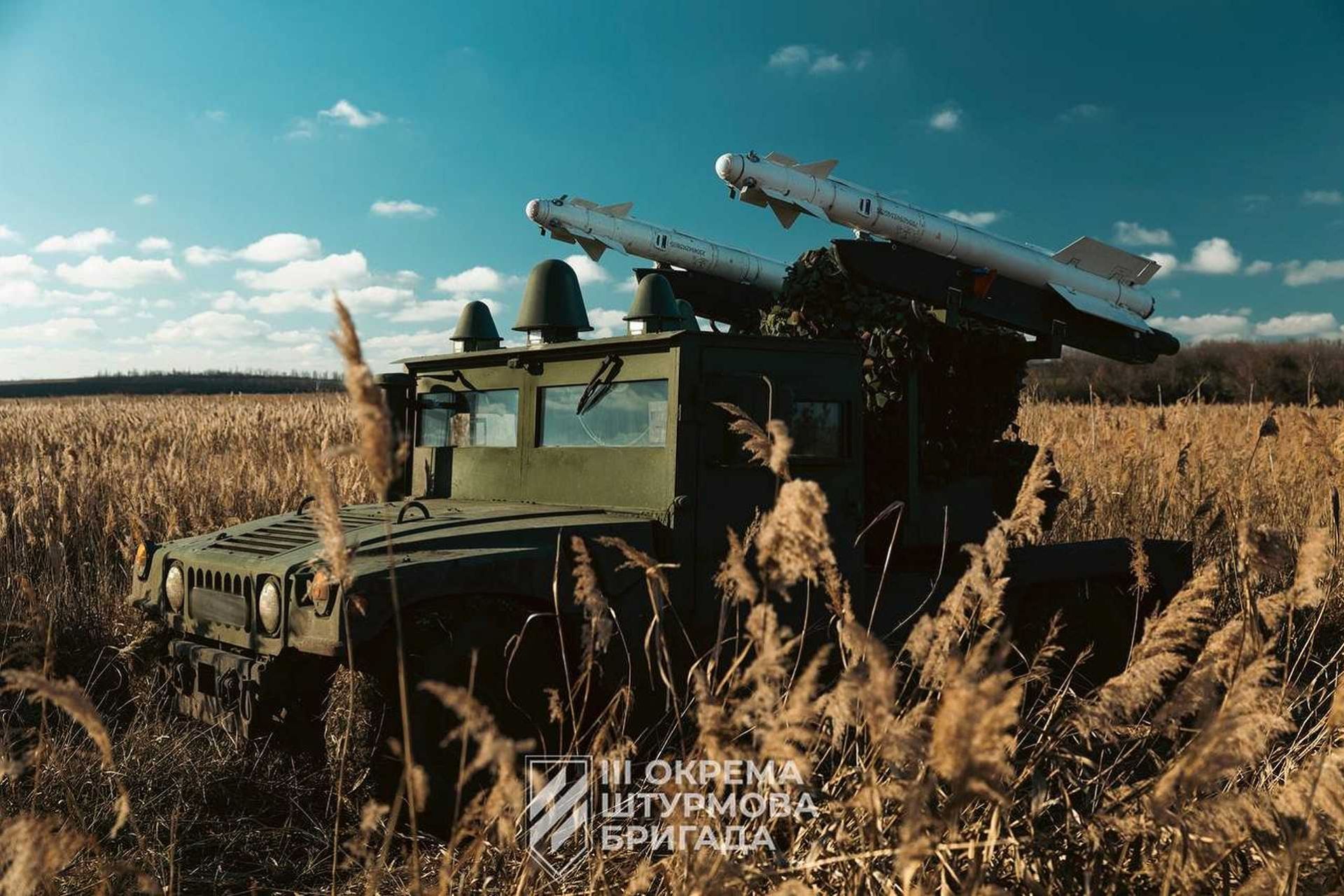

Ukrainian-developed mobile air defense system mounted on a U.S.-supplied HUMVEE 4x4 light tactical vehicle, armed with a pair of repurposed Soviet-era R-73 infrared-guided missiles. (Picture source: Ukraine Armed Forces)

Ukraine's airspace has been persistently targeted by Russian drones, missiles, and other airborne threats, inflicting significant damage on infrastructure and civilian areas. The limited supply of advanced air defense systems from European allies and the United States has compelled Ukraine to seek alternative solutions to bolster its defensive capabilities. The development of this mobile air defense system underscores Ukraine's commitment to protecting its airspace through innovative adaptations of available resources.

The R-73, known by its NATO designation AA-11 Archer, is a short-range, infrared-guided missile originally designed for air-to-air combat. Developed in the late 20th century, it has been a staple armament for various Soviet and Russian fighter aircraft, including the MiG-29 and Su-27. The missile measures approximately 2.9 meters in length, with a diameter of 170 mm and a wingspan of 510 millimeters. It weighs around 105 kg and can reach speeds up to Mach 2.5. Its operational range extends up to 30 km, and it is equipped with a high-explosive fragmentation warhead weighing 7.4 kg.

The R-73 uses infrared homing for guidance, with a seeker capable of detecting targets up to 40 degrees off the missile's centerline. Its thrust-vectoring control system significantly enhances its maneuverability, making it highly effective against agile airborne targets. Additionally, its infrared guidance allows for passive targeting, reducing the chance of detection by enemy radar.

The transformation of the R-73 from an air-to-air missile to a surface-to-air missile involves several technical modifications. Mounting the missile launchers onto HMMWV vehicles provides high mobility, allowing rapid deployment and repositioning in response to evolving threats. Ground-based radar and optical tracking systems are implemented to enable the detection and tracking of aerial targets, compensating for the lack of airborne radar guidance. The missile's firing system is adapted to accommodate ground-based launch parameters, ensuring proper targeting and engagement sequences. Moreover, technical adjustments are made to ensure the missile's seeker head and propulsion system function optimally under ground-launch conditions, considering factors such as launch angles and temperature variations.

The deployment of this mobile air defense system offers multiple strategic advantages. It is cost-effective, leveraging existing missile stockpiles and vehicle platforms, thereby minimizing the financial burden compared to acquiring new systems. The mobility of the HMMWV-based platform allows for quick repositioning to protect critical infrastructure and respond to shifting threat landscapes. By supplementing Ukraine’s existing air defense assets, including legacy systems like the Osa, this innovation enhances the overall coverage and resilience of Ukraine's air defense network.

This initiative exemplifies Ukraine's adaptive approach to modern warfare, blending Western military aid with Soviet-era technology to create effective defenses against sophisticated aerial threats. It also highlights the critical need for continued innovation and resourcefulness in national defense, especially when facing a technologically advanced and persistent adversary.
