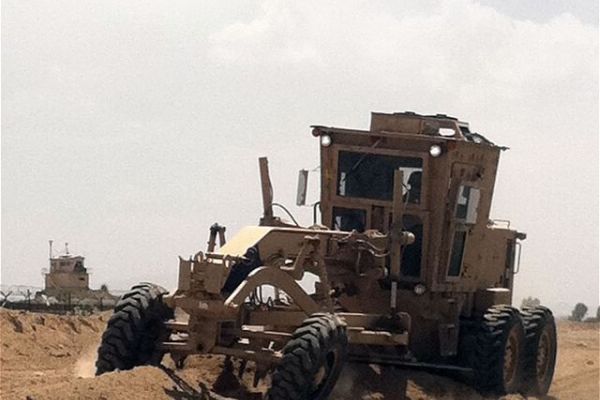

120M Motor Grader MG military engineer vehicle
|
||||||
| a | ||||||
|
||||||
- Details
- Written by: Administrator
- Category: Engineer Vehicles
- Hits: 19878
|
BMR-2 Génie véhicule blindé pour équipe du génie |
||||||
| a | ||||||
|
||||||
- Details
- Written by: Administrator
- Category: Engineer Vehicles
- Hits: 40664
|

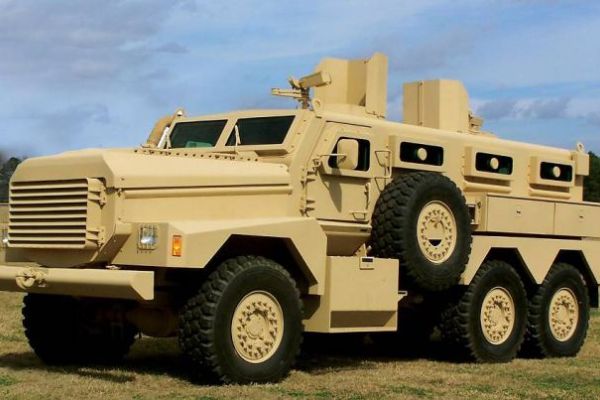

Cougar HEV 6x6 Hardened Engineer Vehicle MRAP
|
||||
| a | ||||
|
||||
- Details
- Written by: Administrator
- Category: Engineer Vehicles
- Hits: 34817
|

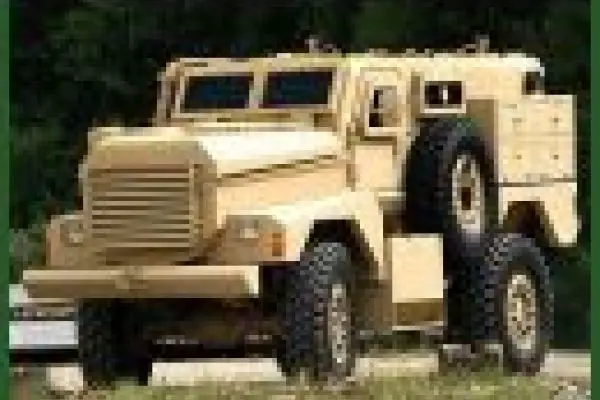

Cougar JERRV 4x4 EOD Joint Explosive Disposal Rapid Response Vehicle
|
||||||
| a | ||||||
|
||||||
- Details
- Written by: Administrator
- Category: Engineer Vehicles
- Hits: 33772
|
IMR Engineer obstacle clearing armoured vehicle
|
||||||
| a | ||||||
|
||||||
- Details
- Written by: Administrator
- Category: Engineer Vehicles
- Hits: 36623
|

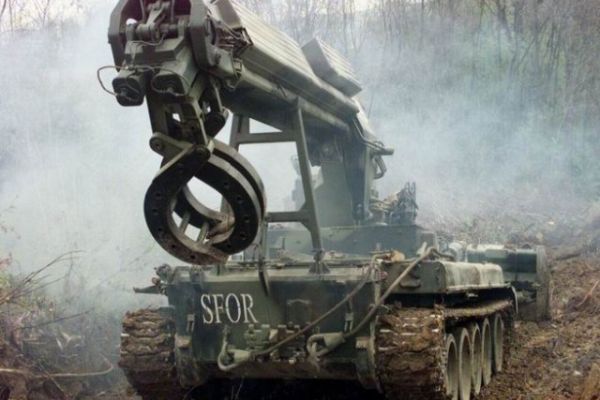

IMR-2 Engineer obstacle clearing tracked armoured vehicle
|
||||
| a | ||||
|
||||
- Details
- Written by: Administrator
- Category: Engineer Vehicles
- Hits: 50157
|

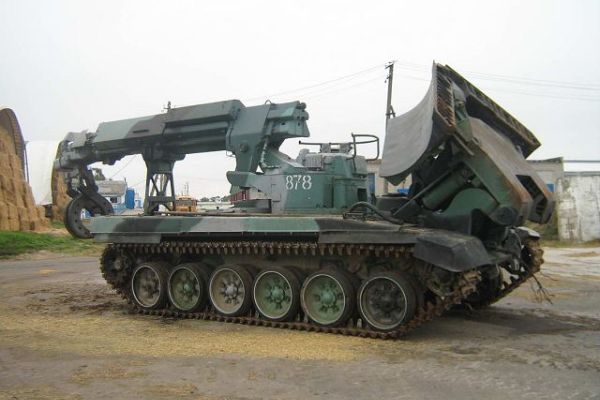

IMR-2M IMR-2M1 Engineer obstacle clearing tracked armoured vehicle
|
||||
| a | ||||
|
||||
- Details
- Written by: Administrator
- Category: Engineer Vehicles
- Hits: 25306
|
IMR-2M2 Engineer obstacle clearing tracked armoured vehicle
|
||||||
| a | ||||||
|
||||||
- Details
- Written by: Administrator
- Category: Engineer Vehicles
- Hits: 32336
|
IMR-2MA Engineer obstacle clearing tracked armoured vehicle
|
||||||
| a | ||||||
|
||||||
- Details
- Written by: Administrator
- Category: Engineer Vehicles
- Hits: 14372

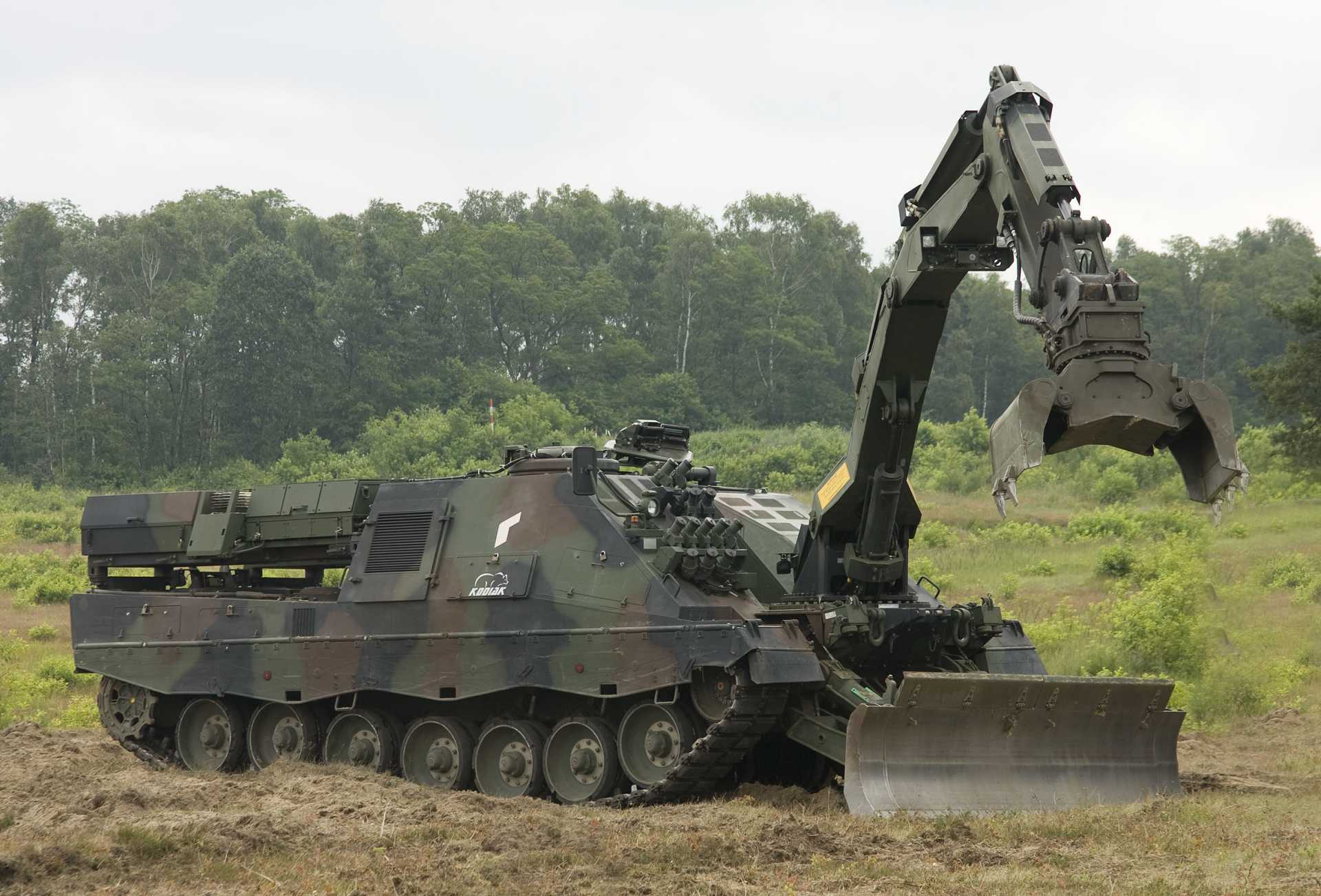

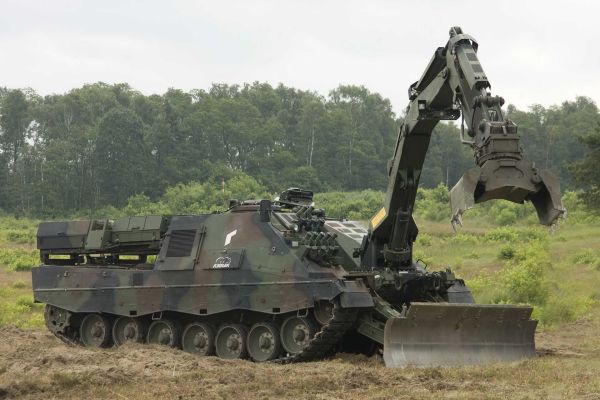

The Kodiak is a tracked engineer armored vehicle based on the chassis of a main battle tank. This vehicle was built following a need for the Army Engineer Corps of a robust, reliable, and cost-effective Armored Engineer Vehicle based on state-of-the-art engineering equipment using a Main Battle Tank (MBT) LEOPARD 2 chassis.
Country users: Germany, Switzerland, Sweden, the Netherlands, and Singapore
Description
The Kodiak is a tracked engineer armored vehicle based on the chassis of a main battle tank. This vehicle was built following a need for the Army Engineer Corps of a robust, reliable and cost-effective armored Engineer Vehicle based on state-of-the-art engineering equipment using an MTB LEOPARD 2 chassis. Rheinmetall Land Systems GmbH and its partner RUAG Land Systems developed and built the armored Engineer Vehicle of the 3rd generation called KODIAK. The first prototype was built in Germany in 2003 and has also been referred to as the armored Engineer Vehicle 3 (AEV 3). The first prototype was put through a series of trials in Germany and then went to Switzerland for extensive user trials. The Kodiak provides combat engineers with a multifunctional tool not unlike the famous "Swiss Army Knife", which includes a hinged excavator, two capstan winches and a tillable dozer blade which can be exchanged for a mine plough. The Kodiak tracked engineer armored vehicle is already in service with the Army of Sweden, Switzerland, and the Netherlands. Thanks to its extensive array of equipment, it can also be deployed in a civil defense or disaster recovery capacity as well as in joint civil-military operations.
Kodial Engineer armored Vehicle variants:
- Sweden: Designated as the Ingenjörbandvagn 120, the Swedish version of the Kodiak is based on six Swedish Army Leopard 2 chassis (Stridsvagn 121). These chassis were upgraded locally to Stridsvagn 122 standard before conversion into the engineering vehicle.
- Singapore: Referred to locally as the L2-AEV, Singapore's Kodiak vehicles are operated by the 38th Battalion, Singapore Combat Engineers (38 SCE).
Technical Data
-
Armament
For its self-protection, the Kodiak is equipped with a remote control weapon station which can be armed with a 12.7 mm machine gun or 40 mm automatic grenade launcher. The weapon station can be equipped with an IR camera, a day/night camera, and a laser range-finder. Two ranks of smoke grenade dischargers are mounted on the right side front of the hull. The Netherlands and Swedish vehicles are fitted with a Kongsberg RCWS (Remote Controlled Weapon Station) armed with a .50 M2 HB MG. The commander of the vehicle operates the weapon station.
-
Design and protection
The Kodiak is based on the chassis of the Leopard 2 main battle tank. The original turret is removed and replaced by a new fully enclosed armour-protected crew compartment with the driver at the front left side, the commander at the right, and one more seat back of the driver position. The Kodiak provides an high level of protection against small arms firing and land mines threats. The crew compartment is divided in two with a space in the center where the excavator is placed in running position. The Kodiak is equipped with a powerful hinged-arm excavator with different excavator tools, a dozer system featuring cutting and tilt angle settings and a double-winch system consisting of two Rotzler 9-ton capstan winches, each provided with a 200m long cable. A dozer blade is mounted at the front of the hull which can be replaced with a mine-breaching plough. By adapting the mine breaching kit to the Kodiak, the vehicle can be used as a mine breaching system. Among other things, this enables the Kodiak to cut through minefields and to erect or dismantle artificial obstacles.
-
Mobility
The Kodiak uses the same chassis as the main battle tank Leopard 2 and is powered by 1,500 HP turbocharged diesel engine which assure outstanding mobility. Torsion bar suspension consists of each side of seven dual rubber-tyred road wheels with the drive sprocket at the rear, idler at the front. Th upper part of the suspension is protected by armour plates. The Kodiak can run at a maximum road speed of 55 km/h with a maximum road range of 550 km.
-
Combat Equipment
Standard equipment of the Kodiak includes nuclear, biological, chemical (NBC) protection system, an integrated mine protection system, and heating and cooling system in the crew compartment. Six cameras provide the two or three-man crew with a panoramic view of the vehicle’s surroundings, enabling them to switch tools and carry out a full range of combat engineering tasks without leaving the safety of the armoured fighting crew compartment.
Specifications
-
Armament
One remote weapon station armed with a 12.7 mm machine gun
-
Country users
Germany, Switzerland, Sweden, the Netherlands, and Singapore
-
Designer Country
Germany and Switzerland
-
Combat Equipment
NBC protection system, heating and cooling system, panoramic cameras, hinged-arm excavator, dozer blade, and capstan winch
-
Crew
3
-
Armor
Protection against the firing of small arms and artillery shell splinters
-
Weight
55,000 kg
-
Speed
55 km/h road speed
-
Range
550 km
-
Dimensions
Length: 10.2 m; Width: 3.54 m; Height: 2.3 m

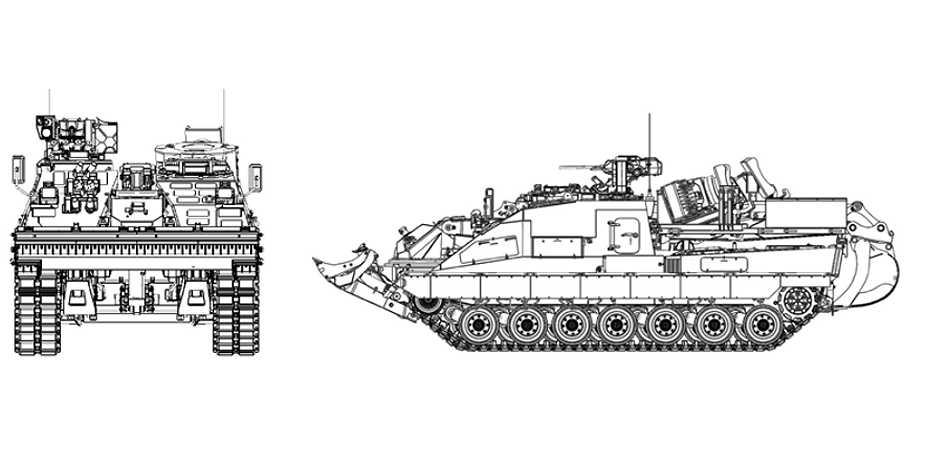

Details View
-
Kodiak Leopard 2 Engineer Tracked Armoured Vehicle Rheinmetall Ruag Germany German Army Defence Industry Front Side View 001
-
Kodiak Leopard 2 Engineer Tracked Armoured Vehicle Rheinmetall Ruag Germany German Army Defence Industry Left Side View 001
-
Kodiak Leopard 2 Engineer Tracked Armoured Vehicle Rheinmetall Ruag Germany German Army Defence Industry Right Side View 001
-
Kodiak Leopard 2 Engineer Tracked Armoured Vehicle Rheinmetall Ruag Germany German Army Defence Industry Rear Side View 001
Photo Gallery
-

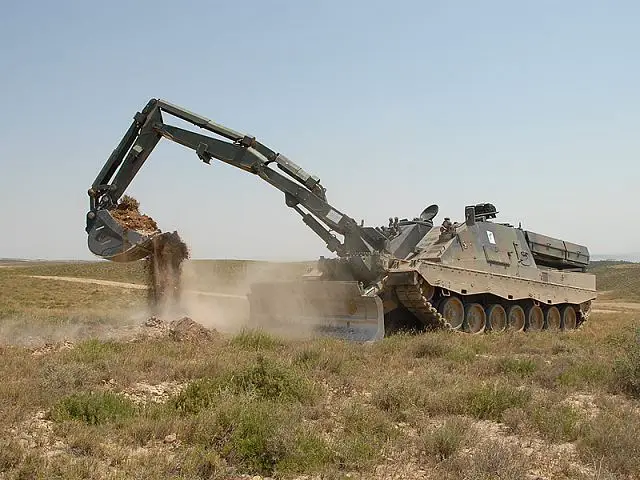

Kodiak Leopard 2 Engineer Tracked Armoured Vehicle Rheinmetall Ruag Germany German Army Defence Industry 009
-

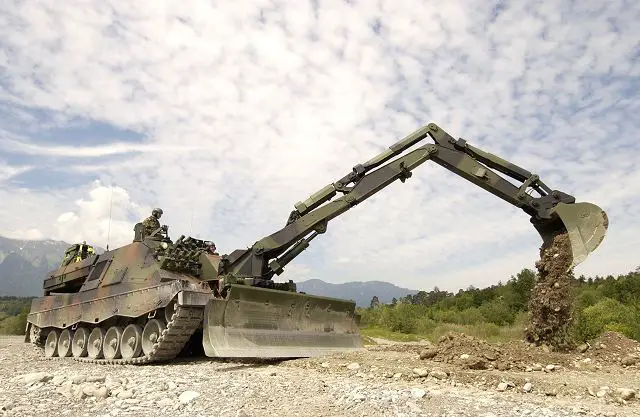

Kodiak Leopard 2 Engineer Tracked Armoured Vehicle Rheinmetall Ruag Germany German Army Defence Industry 010
-

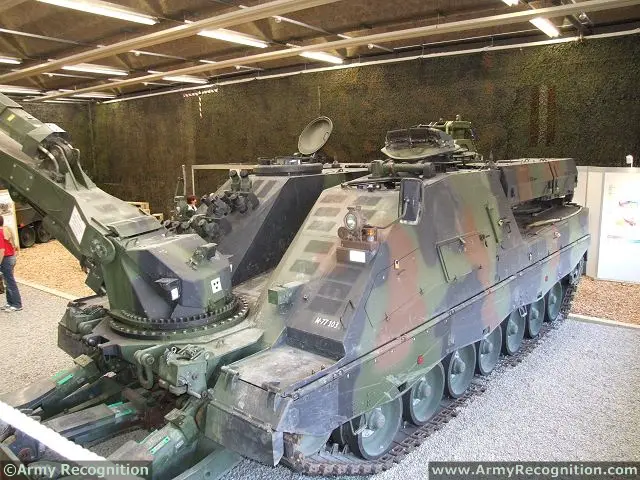

Kodiak Leopard 2 Engineer Tracked Armoured Vehicle Rheinmetall Ruag Germany German Army Defence Industry 011
-

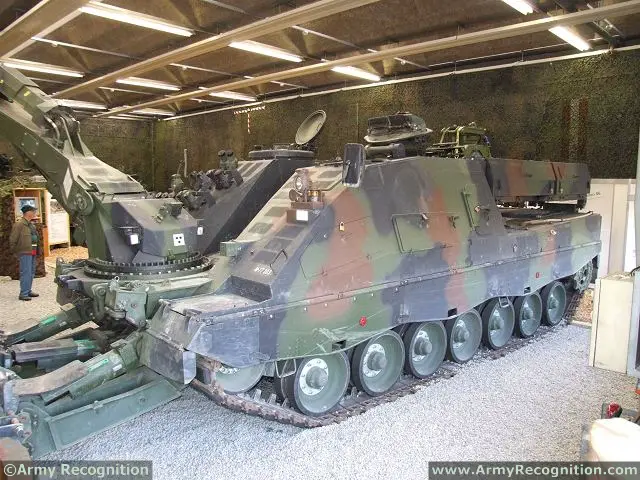

Kodiak Leopard 2 Engineer Tracked Armoured Vehicle Rheinmetall Ruag Germany German Army Defence Industry 012
-

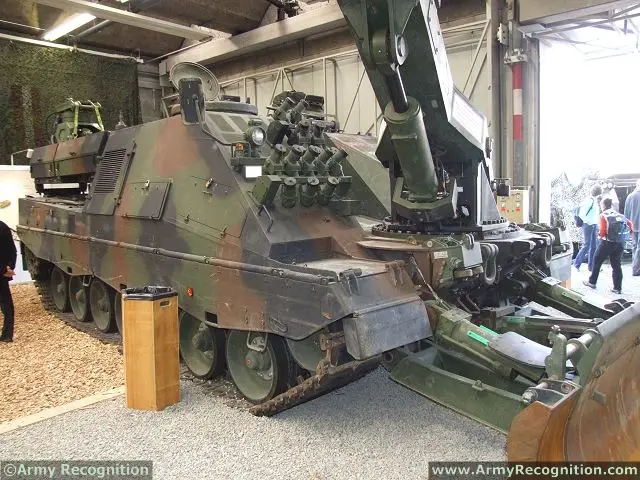

Kodiak Leopard 2 Engineer Tracked Armoured Vehicle Rheinmetall Ruag Germany German Army Defence Industry 013
-

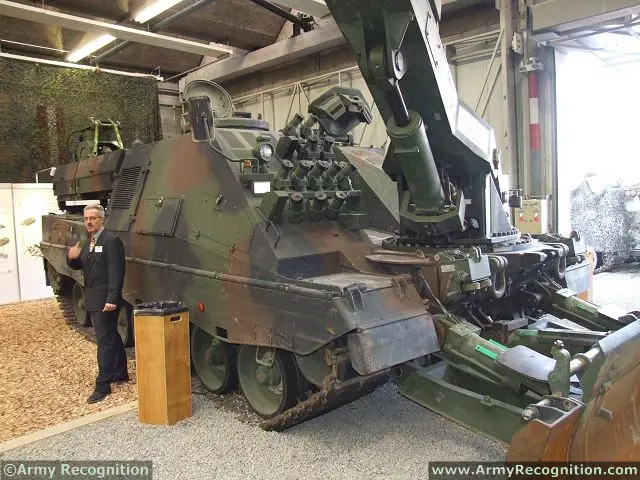

Kodiak Leopard 2 Engineer Tracked Armoured Vehicle Rheinmetall Ruag Germany German Army Defence Industry 014
-

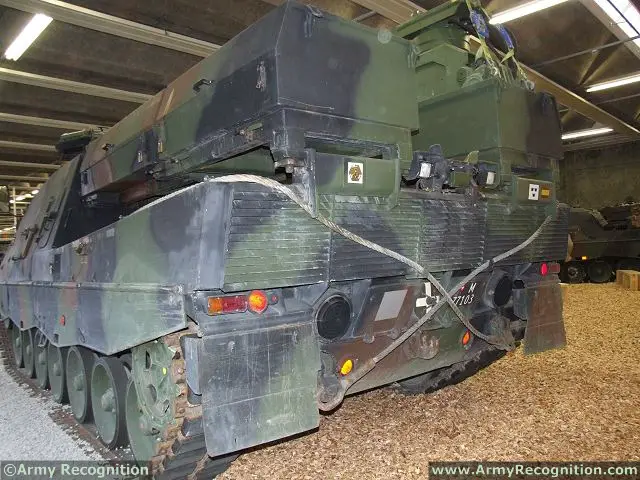

Kodiak Leopard 2 Engineer Tracked Armoured Vehicle Rheinmetall Ruag Germany German Army Defence Industry 015
-

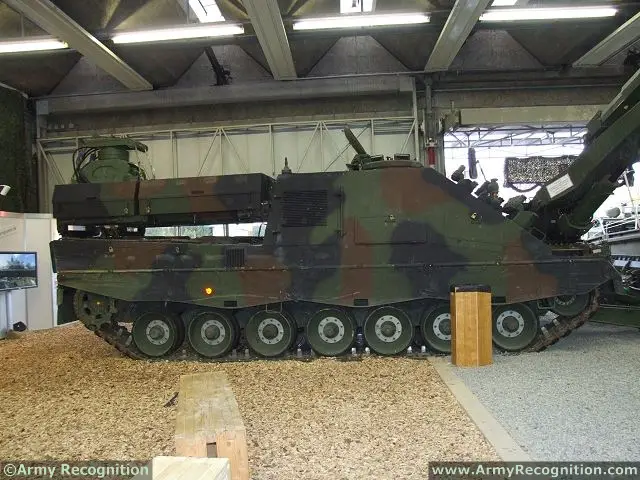

Kodiak Leopard 2 Engineer Tracked Armoured Vehicle Rheinmetall Ruag Germany German Army Defence Industry 016
-

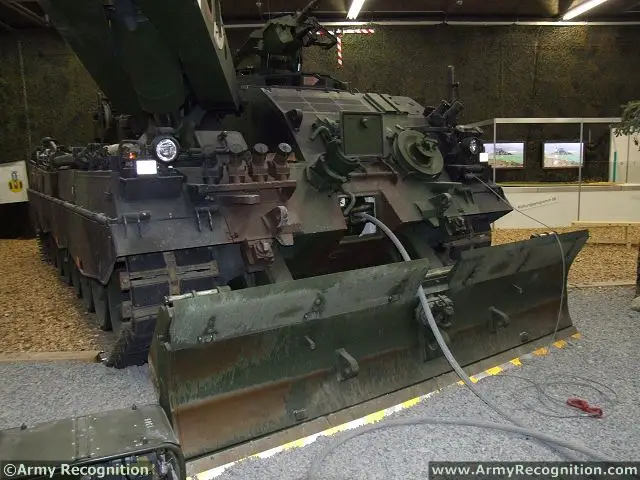

Kodiak Leopard 2 Engineer Tracked Armoured Vehicle Rheinmetall Ruag Germany German Army Defence Industry 017
-

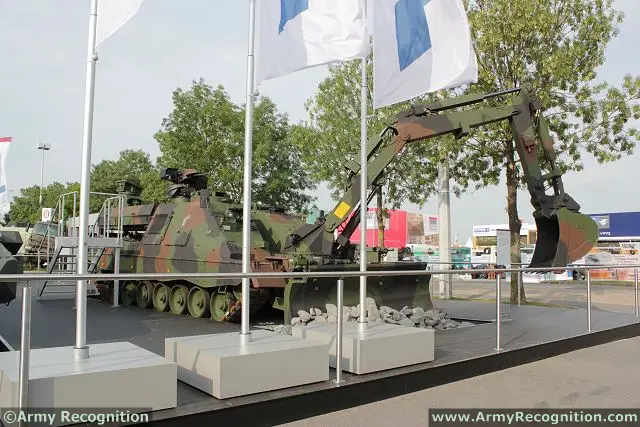

Kodiak Leopard 2 Engineer Tracked Armoured Vehicle Rheinmetall Ruag Germany German Army Defence Industry 018
-

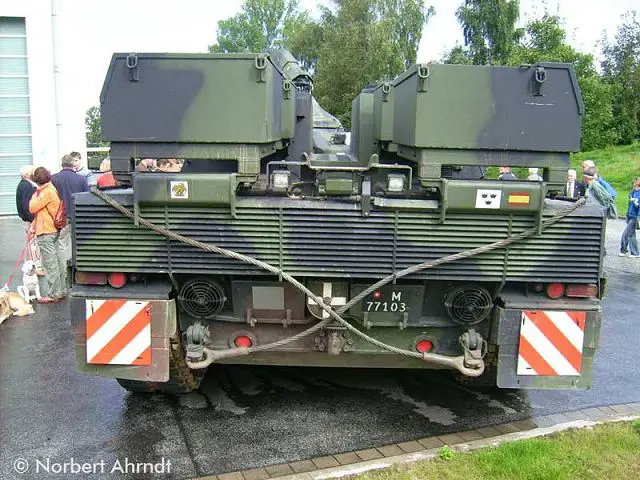

Kodiak Leopard 2 Engineer Tracked Armoured Vehicle Rheinmetall Ruag Germany German Army Defence Industry 019
-

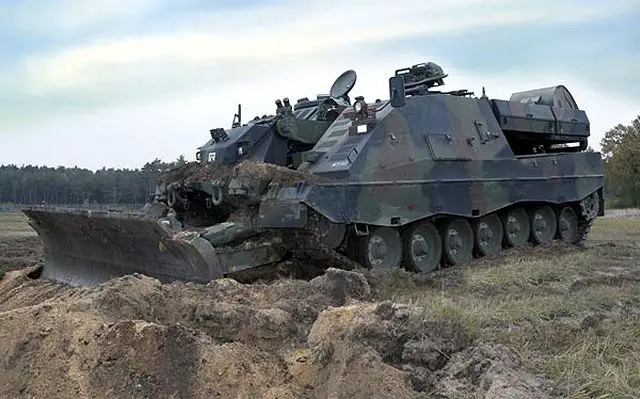

Kodiak Leopard 2 Engineer Tracked Armoured Vehicle Rheinmetall Ruag Germany German Army Defence Industry 020
-

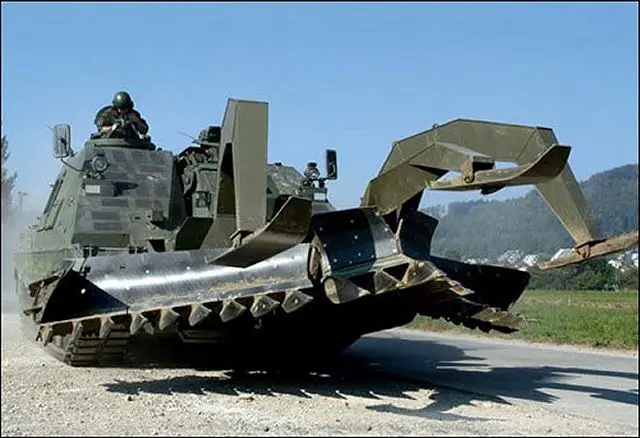

Kodiak Leopard 2 Engineer Tracked Armoured Vehicle Rheinmetall Ruag Germany German Army Defence Industry 021
More Products
- Details
- Written by: Administrator
- Category: Engineer Vehicles
- Hits: 23301
|

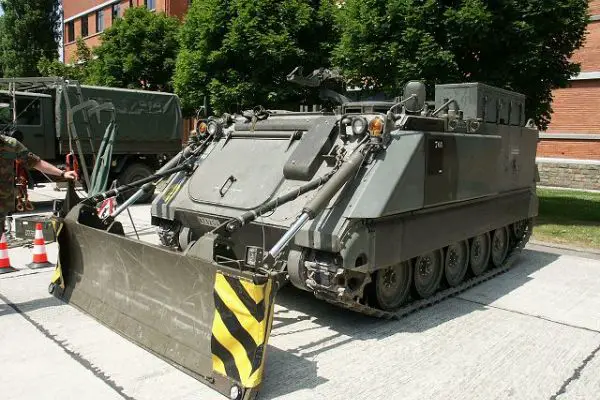

M113 Génie Véhicule blindé génie de combat |
||||||
| a | ||||||
|
||||||
- Details
- Written by: Administrator
- Category: Engineer Vehicles
- Hits: 24495
|

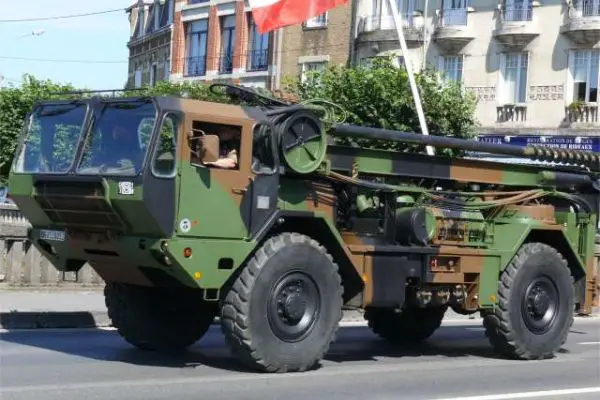

MFRD véhicule de génie
|
||||||
