Details
Category: Anti-tank missiles
Hits: 40309

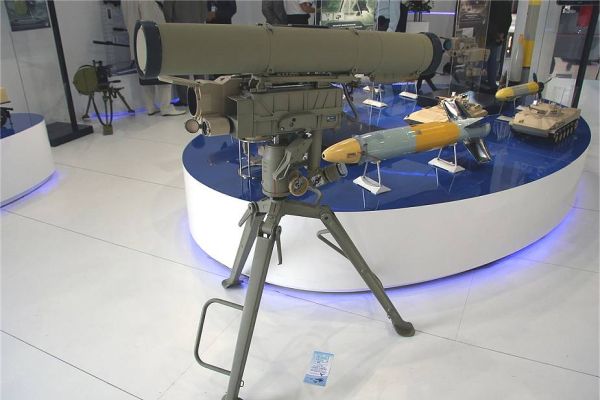

The Kornet, Russian designation 9M133, NATO reporting name AT-14 Spriggan, export designation Kornet-E, is a Russian anti-tank missile (ATGM). The Kornet-E anti-tank missile is designed and manufactured by the Russian Company KBP Instrument Design Bureau.

Country users : Algeria, Armenia, Azerbaijan, Bahrain, Eritrea, Ethiopia, Greece, India, Iran (Islamic Republic of), Iraq, Ivory Coast, Jordan, Kuwait, Libya, Morocco, Namibia, North Korea (Democratic People's Republic of Korea), Pakistan, Peru, Qatar, Russian Federation, Saudi Arabia, Sudan, Syria, Turkey, Uganda, Hamas, Hezbollah

Description

The Kornet, Russian designation 9M133, NATO reporting name AT-14 Spriggan, export designation Kornet-E, is a Russian anti-tank missile (ATGM). The Kornet-E anti-tank missile is designed and manufactured by the Russian Company KBP Instrument Design Bureau. The Kornet-E is designed to defeat current and future ERA-equipped tanks, lightly armored vehicles, fortifications, and low-flying air targets in electronic and jamming environments at any time of day and night in any weather conditions. The Kornet-E system comprises combat assets, maintenance facilities, and training aids. The Kornet-E system is a powerful defense and assault weapon of motorized units of land forces. Kornet-E missiles do not require maintenance during their operations and storage. Test equipment is provided to keep the launcher and the thermal sight in serviceable condition. The training aids of the system include a field trainer and a computer-aided indoor trainer.

Kornet  variants:

  • 9M133-1 (Kornet/Kornet-E):
  • 9M133M-2 (Kornet-M/Kornet-EM)
  • 9M133F-1 (Kornet/Kornet-E)
  • 9M133F-2 (Kornet-M/Kornet-EM)
  • 9M133F-3 (Kornet-M/Kornet-EM)

Technical Data

  • Missiles

    The 9M133-1 missile with a tandem HEAT warhead can penetrate 1,000 to 1,200 mm of armor and defeat all modern and future tanks provided with add-on and built-in explosive reactive armor, as well as pierce reinforced concrete structures 3 to 3.5 m thick.
    The 9M133F-1 missile with a high explosive thermobaric warhead has a large casualty radius of blast wave and high temperature of explosion products. It is intended to defeat extended soft-skinned and lightly armored targets and unsheltered and bunkered manpower.
    The 9M133M-2 is a long-range variant of the Kornet with an improved tandem HEAT warhead, which has a maximum range of 8.0 km.
    The 9M133FM-2 is a variant of the 9M133M-2 missile with a thermobaric warhead.
    The 9M133FM-3 is a variant of the 9M133M-2 missile with a lighter HE-Frag warhead in exchange which has a maximum firing range of 10 km range.

  • launcher unit

    The Kornet-E system includes the 9P163-1 ground launcher with the 1P45-1 sight-tracker, highly precise mechanical drives and the launch mechanism, the 1PN79-1 thermal sight, and the missiles 9M133-1 and 9M133F-1 kept in launching transporting containers.
    There is also the launcher 9P163-2 launcher designed to be mounted on a wheeled or tracked combat vehicle. The 9P163-2 launcher comprises a ring mount with four guided missiles,, a 1P45-1 sight-tracker, a 1PN79-1 thermal sight, an electronic module, and an operator’s station. A storage rack for five missiles is arranged separately. The principle of laser beam missile guidance allows mobile fire with the line of sight stabilized, which is implemented in the Kiver single-seat combat module and in the BMP-2.

  • Features

    The missile launcher is fitted with a thermal imaging system, to facilitate effective operations under low visibility, day and night. The Kornet-E system stands out owing to its high immunity to jamming of laser beam guidance channel of the missile under combat conditions.

  • Combat Use

    The Kornet-E system allows the delivery of fire in the prone and kneeling positions from organized and deployed sites, as well as firing from the standing foxhole position. The Kornet-E system is easy to handle and does not require high qualifications of attending personnel. It can be readily mounted on various wheeled and tracked vehicles.
    One of the Kornet-E system versions is an autonomous 9P163-2 launcher mounted on a light carrier and intended to equip mobile fire groups that can rapidly move, deliver fire attacks, and change positions. The Kornet missile is able to penetrate 1100-1300 mm of armor

Specifications

  • Type

    Anti-Tank Guided Missile ATGM

  • Country users

    Algeria, Armenia, Azerbaijan, Bahrain, Eritrea, Ethiopia, Greece, India, Iran (Islamic Republic of), Iraq, Ivory Coast, Jordan, Kuwait, Libya, Morocco, Namibia, North Korea (Democratic People's Republic of Korea), Pakistan, Peru, Qatar, Russian Federation, Saudi Arabia, Sudan, Syria, Turkey, Uganda, Hezbollah, Hamas,

  • Designer Country

    Russia

  • Accesoiries

    Thermal sight 1PN79-1, sight-tracker 1P45-1

  • Crew

    2 -3 soldiers

  • Missiles

    9M133, 9M133-1, 9M133F, 9M133F-1, 9M133M-2,9M133FM-2,9M133FM3

  • Weight ( launcher unit)

    26 kg

  • Armor Penetration

    1,100 to 1,300 mm

  • Warhead

    HEAT (High-Explosive Anti-Tank) and Thermobaric

  • Range

    - by day 100 – 5,500 m
    - by night 100 – 4,500 m
    - Latest version up to 10,000

Details View

  • Kornet E 9 P 163 1 Launcher Anti Tank Guided Missile System Russia Russian KBP 600 001

  • Kornet E 9 P 163 1 Launcher Anti Tank Guided Missile System Russia Russian KBP 640

  • Kornet E 9 P 163 1 Launcher Anti Tank Guided Missile System Russia Russian KBP Left Side View 001

  • Kornet E 9 P 163 1 Launcher Anti Tank Guided Missile System Russia Russian KBP Right Side View 001

Photo Gallery

More Products

Read more: AT-14 Spriggan 9M133 Kornet- E Kornet-EM

Details
Category: Anti-tank missiles
Hits: 16520

The launcher unit 9P163-1 is the portable unit for Kornet-E missile system. This launcher unit can be also mounted to wheeled and tracked combat vehicles.

Country users :

Description

The 9P163-1 is the portable launcher unit for the anti-tank guided missile Kornet-E. The combat assets includes the 9P163-1 launcher unit with the 1P45-1 sight-tracker, highly precise mechanical drives and launch mecanism, the 1PN79-1 thermal sight and the 9M 133-1 or 9M133F-1 missiles. The 9P163-1 launcher unit is easy to handle and does not require high qualification or attending personnel. The system can be also fitted to a various range of wheeled and tracked combat vehicles.

Details View

  • Kornet E 1 PN 79 1 Thermal Sight Launcher Unit Anti Tank Guided Missile System Russia Russian KB Pview 001

  • Kornet E 1 P 45 1 Sight Tracker Launcher Anti Tank Guided Missile System Russia Russian KBP View 001

  • Kornet E 9 P 163 1 Launcher Anti Tank Guided Missile System Russia Russian KBP 600 001

  • Kornet E 9 P 163 1 Launcher Anti Tank Guided Missile System Russia Russian KBP 640

  • Kornet E 9 P 163 1 Launcher Anti Tank Guided Missile System Russia Russian KBP Left Side View 001

Photo Gallery

  • Kornet E 1 P 45 1 Sight Tracker Launcher Anti Tank Guided Missile System Russia Russian KBP 001

  • Kornet E 1 PN 79 1 Thermal Sight Launcher Unit Anti Tank Guided Missile System Russia Russian KBP 001

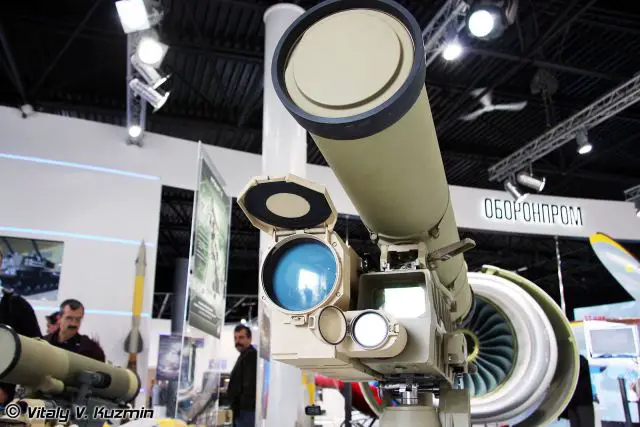

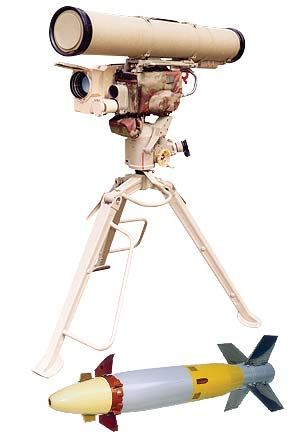

  • Kornet E 9 P 163 1 Launcher Unit Anti Tank Guided Missile System Russia Russian KBP 001

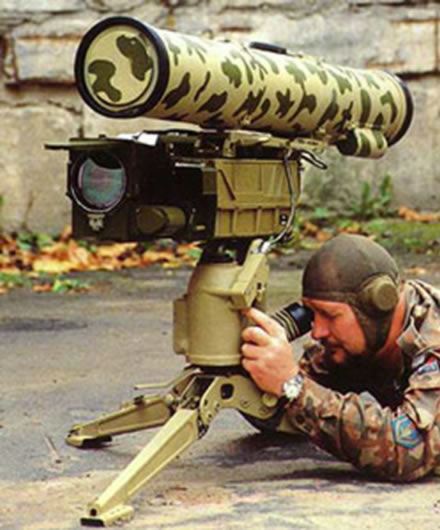

  • Kornet E 9 P 163 1 Launcher Unit Anti Tank Guided Missile System Russia Russian KBP 002

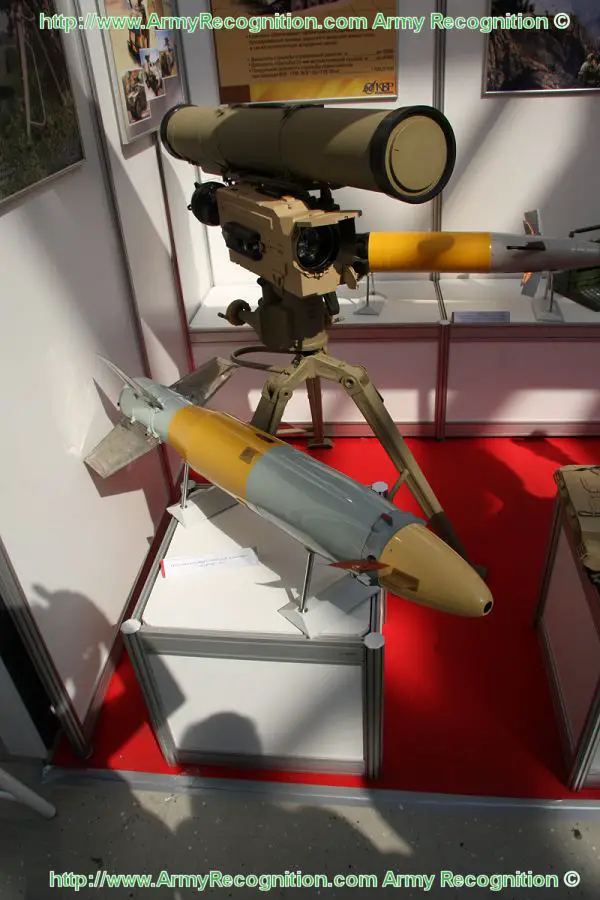

  • Kornet E 9 P 163 1 Launcher Unit Anti Tank Guided Missile System Russia Russian KBP 003

  • Kornet E 9 P 163 1 Launcher Unit Anti Tank Guided Missile System Russia Russian KBP 004

  • Kornet E 9 P 163 1 Launcher Unit Anti Tank Guided Missile System Russia Russian KBP 005

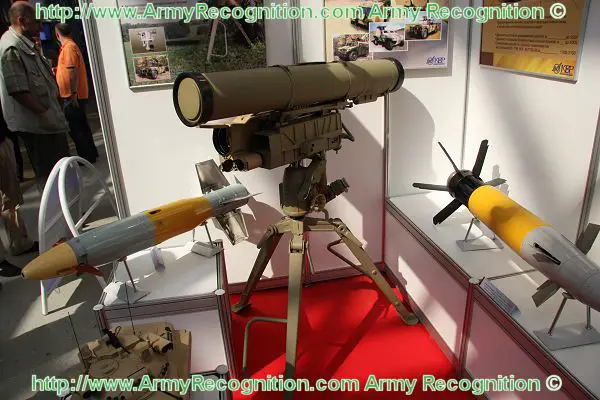

  • Kornet E 9 P 163 1 Launcher Unit Anti Tank Guided Missile System Russia Russian KBP 006

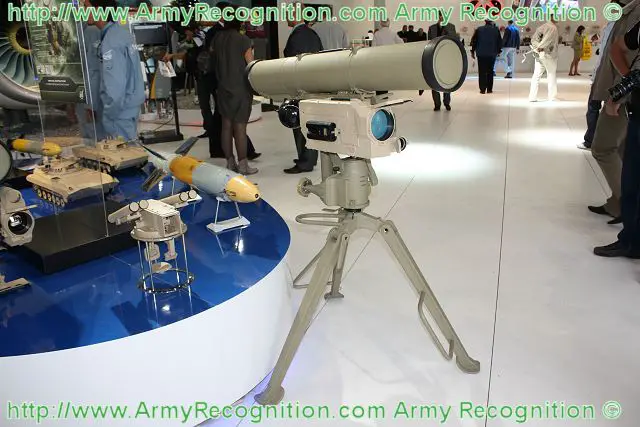

  • Kornet E 9 P 163 1 Launcher Unit Anti Tank Guided Missile System Russia Russian KBP 007

More Products

Read more: 9P163-1 Portable launcher unit Kornet-E

Details
Category: Anti-tank missiles
Hits: 14143

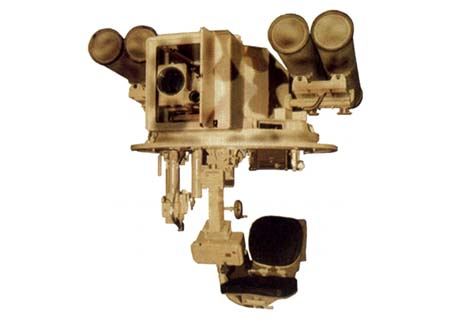

The 9P163-2 is the Kornet-E anti-tank launcher unit which can be fitted to wheeled or tracked combat vehicles.

Country users :
google_ad_client = "pub-4068738923530102"; /* menu_468x15_fiche_technique */ google_ad_slot = "5121188971"; google_ad_width = 468; google_ad_height = 15;

Description

The 9P163-2 is an autonomous launcher unit for the Kornet-E Missile which can be mounted on a light tracked or wheeled combat vehicles and intended to equip mobile fire groups that can rapidly move, deliver fire attacks and change position. The 9P163-2 launcher boasts constant combat readiness: the capability of firing up to four rounds without reloading the launcher, simplified target search and tracking by the use of electromechanical drives and the ability to fire two missiles at one target. The 9P163-2 launcher unit comprises a ring mount with four guided missiles, a 1P45-1 sight-tracker, a 1PN79-1 thermal sight, an electronic module and an operator's station. A storage rack for five missiles is arranged separately.

Rostec on April 14, 2021, published what follows: Today, it is impossible to find a tank that could withstand the Russian ATGM Kornet. This missile system is able to penetrate armored steel with a thickness of more than 1 meter. But there are simply no tanks with such armor. The most advanced version of the system today is Kornet-EM. It has an automatic firing mode, can simultaneously fire at two targets, and is twice as long-range as its basic modification. Kornet-EM is so unique that in addition to ground targets, it can counter surface and air targets, including helicopters, drones, and even attack aircraft. Kornet was developed by the Tula-based Design Bureau of Instrument Engineering named after A.G. Shipunov (part of the High Precision Weapons holding powered by Rostec).

Photo Gallery

  • Kornet E 9 P 163 2 Launcher Unit Anti Tank Guided Missile Military Tracked Wheeled Vehicle Russia Russian KBP 001

  • Kornet E 9 P 163 2 Launcher Unit Anti Tank Guided Missile Military Tracked Wheeled Vehicle Russia Russian KBP 002

  • Kornet E 9 P 163 2 Launcher Unit Anti Tank Guided Missile Military Tracked Wheeled Vehicle Russia Russian KBP 640

  • Kornet EM Anti Tank Guided Missile Russia Russian Defence Industry Military Technology 640

var gaJsHost = (("https:" == document.location.protocol) ? "https://ssl." : "http://www."); document.write(unescape("%3Cscript src='" + gaJsHost + "google-analytics.com/ga.js' type='text/javascript'%3E%3C/script%3E")); var pageTracker = _gat._getTracker("UA-1359270-1"); pageTracker._initData(); pageTracker._trackPageview();

More Products

Read more: 9P163-2 vehicle fitted Kornet-E

Details
Category: Anti-tank missiles
Hits: 60173

The Akeron MP previously named MMP (Missile Moyenne Portée – Medium-Range Missile) is a portable surface-to-surface launcher missile system developed by the Defense Company MBDA. The development of the MMP started in 2009 initiated by the Company MBDA and the mass production began in 2013. MBDA has won a contract from the French army to develop a medium-range missile that could defeat everything from tanks to bunkers to hostile troops in buildings.

Read more: Akeron MP MMP MBDA

Details
Category: Anti-tank missiles
Hits: 58287
AT-3 Sagger 9K11 Malyutka anti-tank missile
a
The AT-3 Sagger (Russian name 9K11 Malyutka) , is a Russian made wire-guided anti-tank missile equipped with a shaped-charge high explosive anti-tank (HEAT) warhead.
a
a


Read more: AT-3 Sagger 9K11 Malyutka

Details
Category: Anti-tank missiles
Hits: 63466
AT-5 Spandrel / 9K113 Konkurs 9M113
a
AT-5 Spandrel 9K113 Konkurs Konkurs-M anti-tank missile technical data sheet specifications information description pictures photos images video intelligence identification Russia Russian Almaz-Antey army defence industry military technology equipment
The 9K113 Konkurs (NATO code AT-5 Spandrel) is Russian-made Semi-automatic command to line of sight (SACLOS) wire-guided anti-tank missile. The missile was designed and developed by the Russian Defense Company KBP (Konstruktorskoe Buro Priborostroeniya).
a



Read more: AT-5 Spandrel / 9K113 Konkurs 9M113

Details
Category: Anti-tank missiles
Hits: 148124

The FGM-148 Javelin is an American-made man-portable anti-tank guided missile and employable fire-and-forget medium-range missile system.

Read more: FGM-148 Javelin

Details
Category: Anti-tank missiles
Hits: 53973
HJ-12 Red Arrow 12 Fire-and-Forget multipurpose missile

HJ-12 Red Arrow 12 anti-tank fire-and-forget multipurpose missile Norinco China Chinese army military equipment 640 001
The Chinese defense industry has now designed and developed a new one-man, fire-and-forget multi-purpose missile system under the name of Red Arrow 12 or HJ-12. The Red Arrow 12 is a state-of-the-art one man-portable, fire-and-forget, multipurpose missile designed and developed by the Chinese Defense Company NORINCO.


Read more: HJ-12 Red Arrow 12

Details
Category: Anti-tank missiles
Hits: 52301
Metis-M1 9K115-2 anti-tank guided missile system

Metis-M1 9K115-2 anti-tank guided missile KBP Russia Russian army defense industry 640 001
The Metis-M1 is a Russian-made ATGM (Anti-Tank Guided Missile) system. "9K115-2" is the Russian designation of the missile system. This missile system is designed and manufactured by the Russian Defense Company KBP Instrument Design Bureau.


Read more: Metis-M1 9K115-2

Details
Category: Anti-tank missiles
Hits: 41338
Milan ADT-ER anti-tank missile - missile antichar
a
MILAN ADT-ER is the lastest development of the combat-proven MILAN weapon system that has already been selected by over 40 customers around the world. The MILAN ADT-ER is a anti-tank weapon system with a range of 3.000 m.
a
a
Technical Data Sheet, description, specifications, information, pictures


Read more: Milan ADT-ER

Details
Category: Anti-tank missiles
Hits: 39353
Milan ADT-ER anti-tank missile - missile antichar
a

Le MILAN ADT-ER est le dernier développement du système d'arme MILAN, qui a déjà été sélectionné par plus de 40 pays dans le monde. Le MILAN ADT-ER est une arme anti-char avec une portée de 3.000 m.
a
a

Fiche technique , description, information, spécifications, photos.


Read more: Milan ADT-ER (FR)

Details
Category: Anti-tank missiles
Hits: 42528

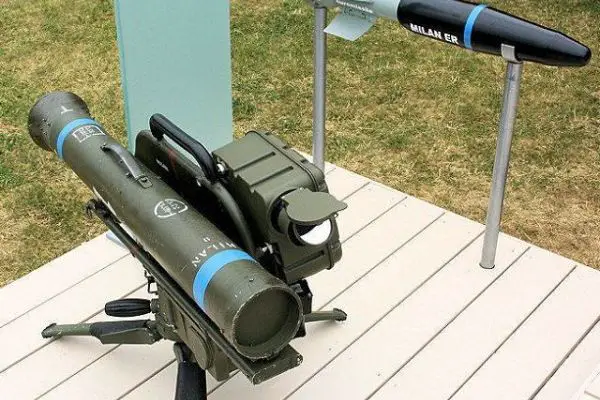

MILAN ER Extended Response Medium Range Weapon System
a
MILAN ER Extended Response medium range weapon system data sheet specifications information description intelligence identification pictures photos images video France French Defence Industry army military technology MBDA close combat operations anti-tank missile
MILAN ER is the latest development of the combat-proven MILAN weapon system that has already been selected by over 40 customers around the world.
a
a
a



Read more: Milan ER
