The IAG Armored Water Cannon anti-riot vehicle is an excellent solution for riot control, firefighting, and for preserving peace and order. It is available in both 4x4 and 6x6 configurations and can hold up to a 14,000-Lt corrosion-free water tank, with high-pressure water jet systems offering a 65m throw range. It also features a water spray system to protect the roof, cabin sides, tire shield, and underbody from various burning objects, Molotov cocktails, or other dangerous liquids and gases.
Country users: Worldwide
Description
The IAG Armored Water Cannon anti-riot vehicle is an excellent solution for riot control, firefighting, and preserving peace and order. It is available in both 4x4 and 6x6 configurations and can hold up to a 14,000 Lt corrosion-free water tank, with high-pressure water jet systems offering a 65m throw range. It also features a water spray system to protect the roof, cabin sides, tire shield, and underbody from various burning objects, Molotov cocktails, or other dangerous liquids and gases. The vehicle body is fully armored to defeat multiple hits from high-power rifles and light machine guns. Key components, such as the engine bay and fuel tank, are also protected by armor enclosures. The mechanical components such as the suspension and braking systems have been designed for superior handling as well as to support the armor and water tank weight. The armored Water Cannon has a maximum seating capacity of up to 5 personnel which is fully customizable with various options including individual bucket seats and jump seats. This vehicle is designed to operate in tropical zones at high temperatures and in a salt-laden, high-humidity atmosphere to provide ease of operation, safety, reliability, and accessibility for repair and maintenance.
IAG Armored Water Cannon variants:
- 4x4 and 6x6 with manual or automatic transmission
Technical Data
-
Anti-Riot Systems

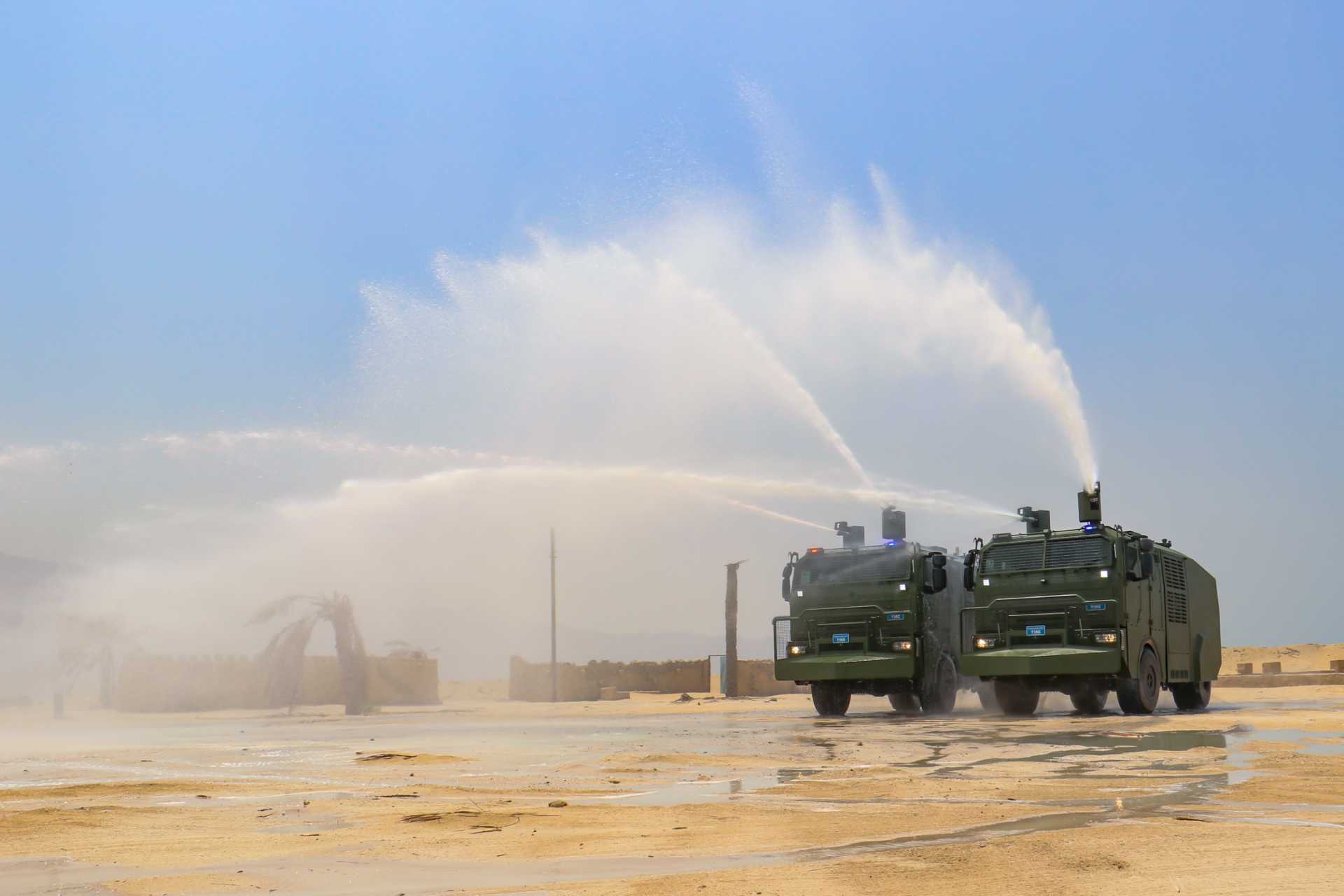

The IAG Armored Water Cannon holds a 14,000 Lt corrosion-free water tank and high-pressure water jet systems, with a 65m throw range. The vehicle also features a water spray system to protect the roof, cabin sides, tire shield, and underbody from various burning objects, Molotov cocktails, or other dangerous liquids and gases. The armored water cannon comes equipped with a state-of-the-art Command Control System that holds an integration of surveillance cameras, night vision capabilities, a PA system with strobe lights, roof monitors, as well as an integrated fire suppression system. IAG’s Armored Water Cannon offers a comfortable, reliable, and efficient solution for matters of crowd control, rioting, and the preservation of peace and order.
-
Design and protection
The IAG Armored Water Cannon is engineered with a fully armored cabin up to CEN B7/NIJ IV and STANAG 4569 Level II, providing complete ballistic, mine-blast, and IED (Improvised Explosive Device) protection. The 360-degree armoring protects the driver and all passengers from ballistic and explosive threats. The vehicle can accommodate up to 6 people. The unique engineering and construction of the armor design utilized in the vehicle allows the weight of the doors to be transmitted directly onto the vehicle structure and distributes weight in such a way as to allow the use of heavy-duty steel door hinge components without the risk of excess stresses. Doors are also protected against external attempts to remove them. In addition to the blast-resistant floor, an internal heavy-duty aluminum checkered floor has been installed for durability and easy cleaning.
-
Mobility
The IAG Armored Water Cannon is powered by a Euro 3-compliant six-cylinder turbocharged diesel engine equipped with an intercooler, delivering a displacement of 12,880 cm³. The powerplant generates a maximum output of 440 horsepower at 1,900 rpm and produces 2,100 Nm of torque over the 900–1,500 rpm operating range, providing strong low-end pulling capability for urban and off-road riot-control operations. To ensure reliable performance in extreme climates, the vehicle is fitted with a reinforced water-cooling system optimized for tropical environments. Air intake filtration is handled by a vertically mounted dry-type air cleaner specifically designed for dusty road and cross-country conditions.
The transmission system consists of a fully automatic gearbox with 16 forward gears and 2 reverse gears, while retaining manual gear selection for enhanced driver control in demanding operational scenarios. Power distribution is managed by a two-speed transfer gearbox equipped with a differential lock, operated via an ADM-controlled switch system to improve traction on difficult terrain. -
Anti-Riot Systems
Standard equipment of IAG Armored Water Cannon includes a central tire inflation system (CTIS), audio entertainment system, roof escape hatch, gun ports, holders, wire mesh grilles, public address system, searchlights, integrated suppression system, 4 Channel DVR system, command control system, air conditioning system.
Specifications
-
Anti-Riot Systems
Water cannon, water spray nozzles, foam spray nozzles, tear gas, and pigment spray nozzles
-
Country users
Worldwide
-
Designer Company
International Armored Group
-
Combat Equipment
Central tire inflation system (CTIS), audio entertainment system, roof escape hatch, gun ports, holders, wire mesh grilles, public address system, searchlights, integrated suppression system, 4 Channel DVR system, command control system, and air conditioning system. Contact the manufacturer for additional accessories.
-
Crew
2 + 4 people
-
Armor
- CEN B6/NIJ III (7.62 x 51mm M80)
- CEN B7/ NIJ IV ( 7.62 x 51 AP)
- STANAG Level I
- STANAG Level II -
Weight
23,000 kg
-
Speed
90 km/h road speed
-
Range
600 km
-
Dimensions
Length: 7.73 m; Width: 3.33 m; Height: 3.5 m
Details View
-
Armored Water Cannon IAG Anti Riot Vehicle UAE Canada Front View 001
-
Armored Water Cannon IAG Anti Riot Vehicle UAE Canada Left Side View 001
-
Armored Water Cannon IAG Anti Riot Vehicle UAE Canada Rear View 001
-
Armored Water Cannon IAG Anti Riot Vehicle UAE Canada Right Side View 001
Photo Gallery
-

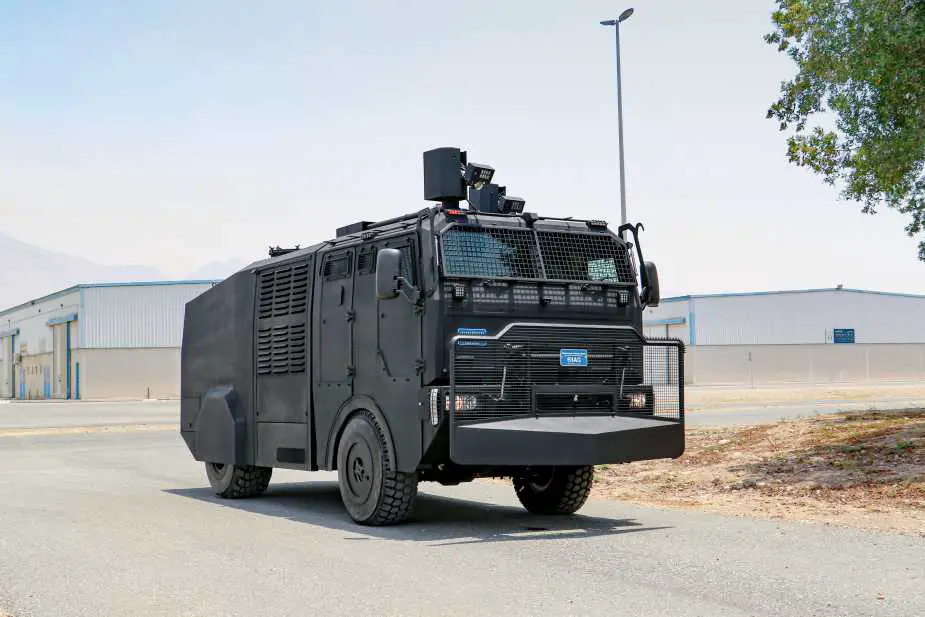

Armored Water Cannon IAG Anti Riot Vehicle UAE Canada 001
-

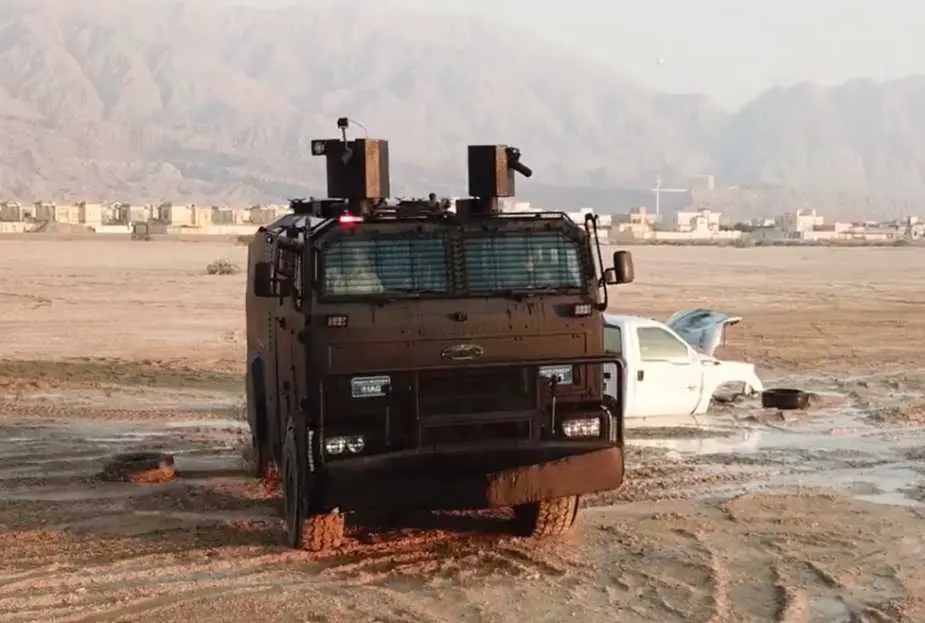

Armored Water Cannon IAG Anti Riot Vehicle UAE Canada 002
-

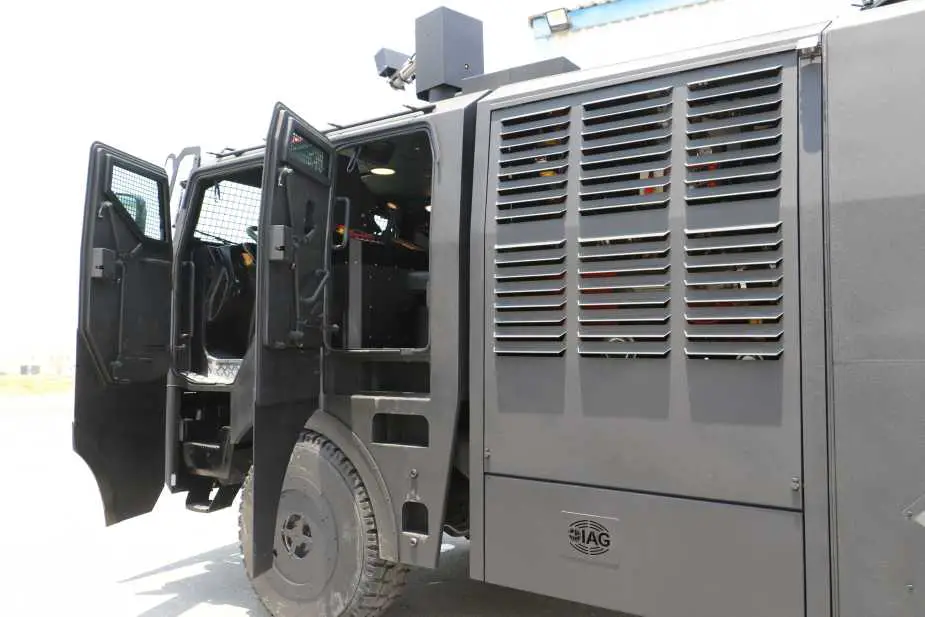

Armored Water Cannon IAG Anti Riot Vehicle UAE Canada 003
-

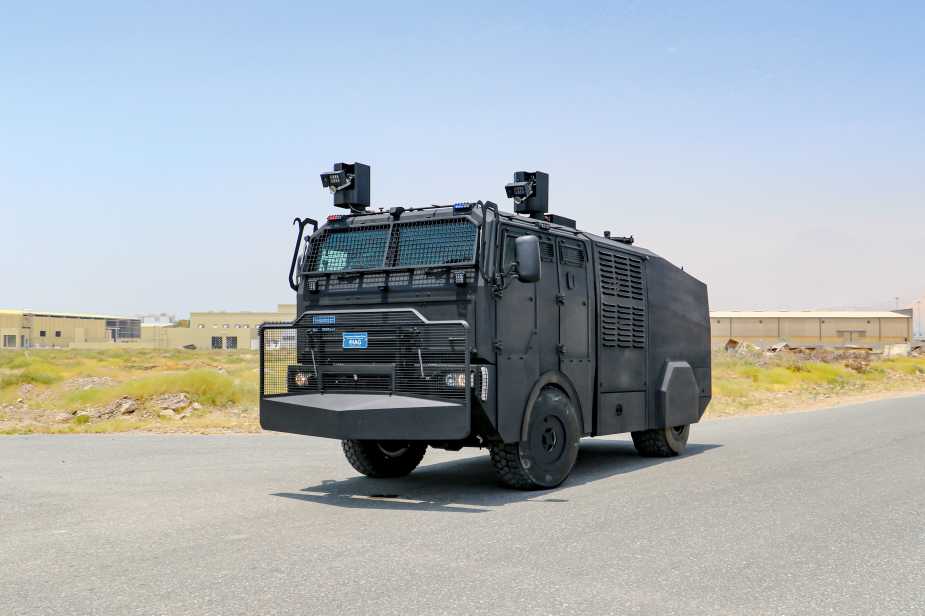

Armored Water Cannon IAG Anti Riot Vehicle UAE Canada 004
-

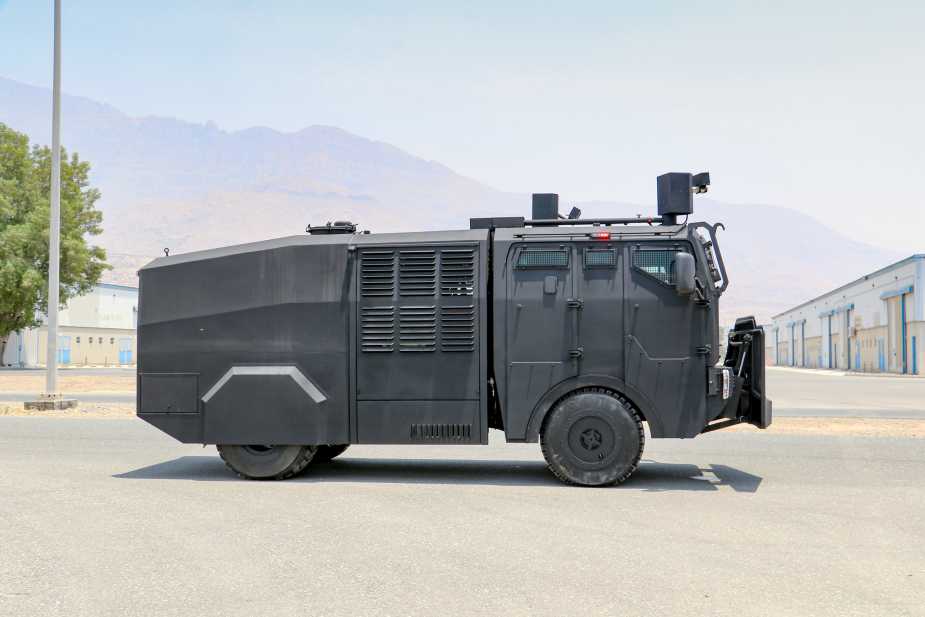

Armored Water Cannon IAG Anti Riot Vehicle UAE Canada 005
-

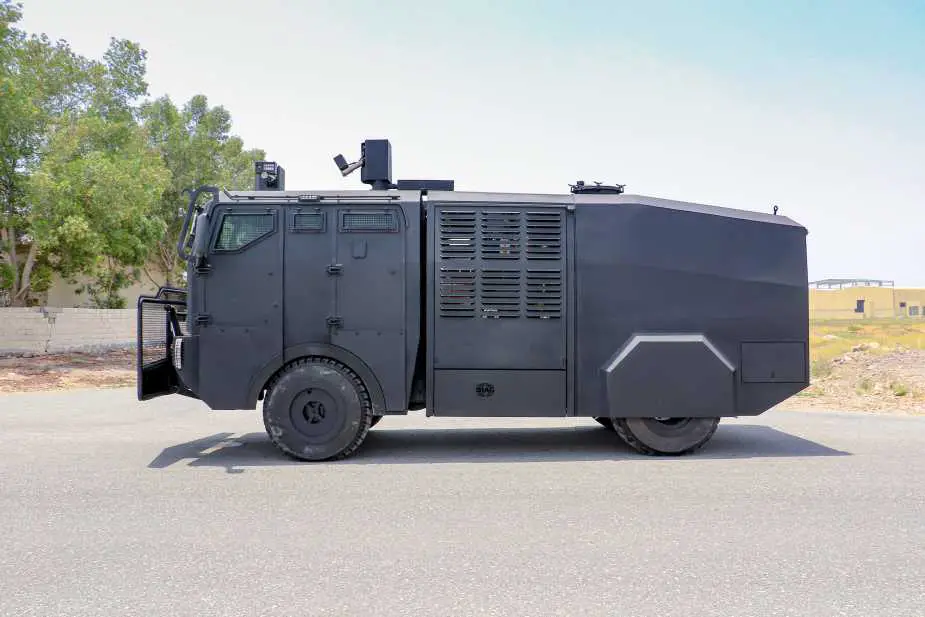

Armored Water Cannon IAG Anti Riot Vehicle UAE Canada 006
-

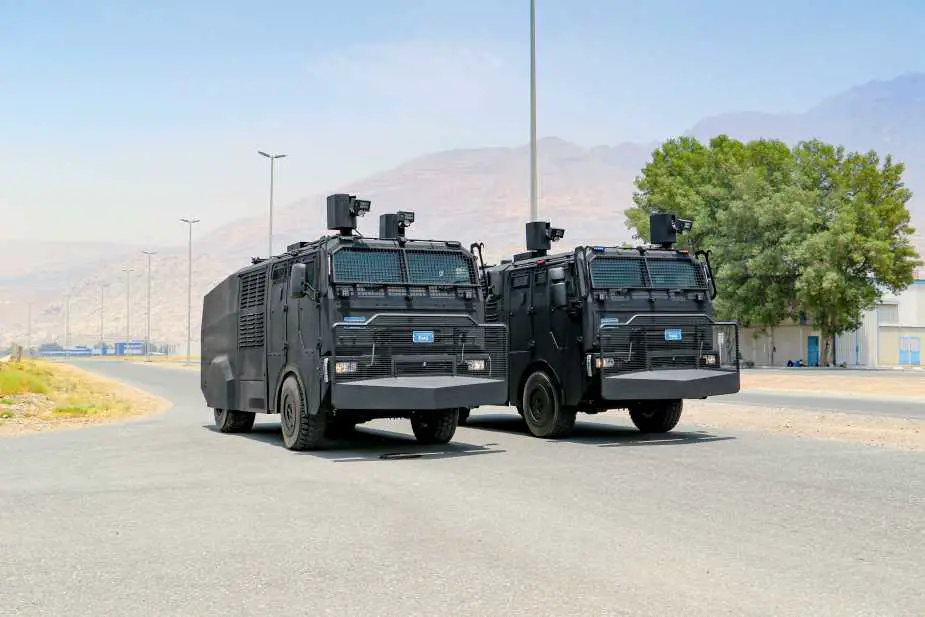

Armored Water Cannon IAG Anti Riot Vehicle UAE Canada 007
-

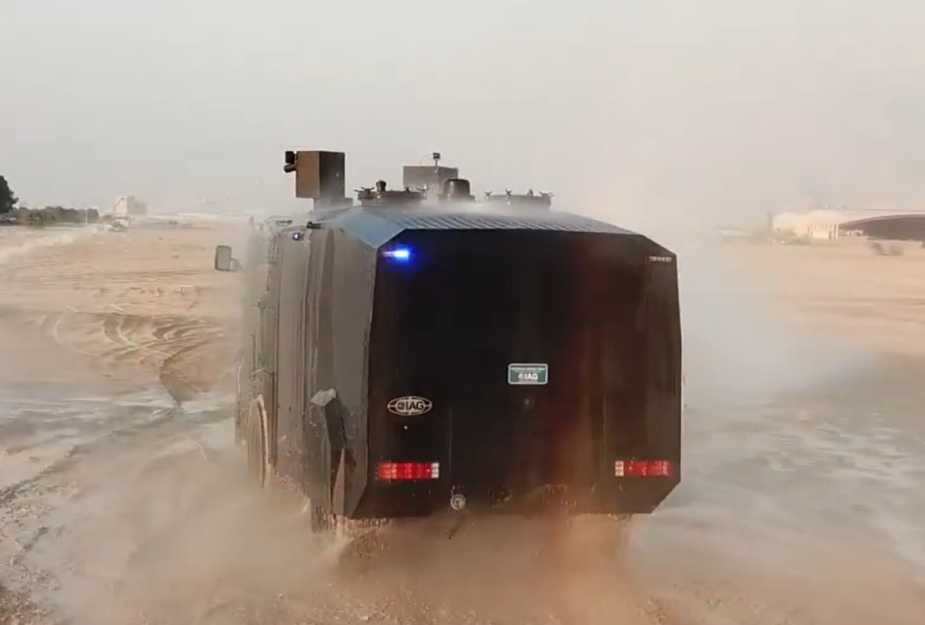

Armored Water Cannon IAG Anti Riot Vehicle UAE Canada 008
-

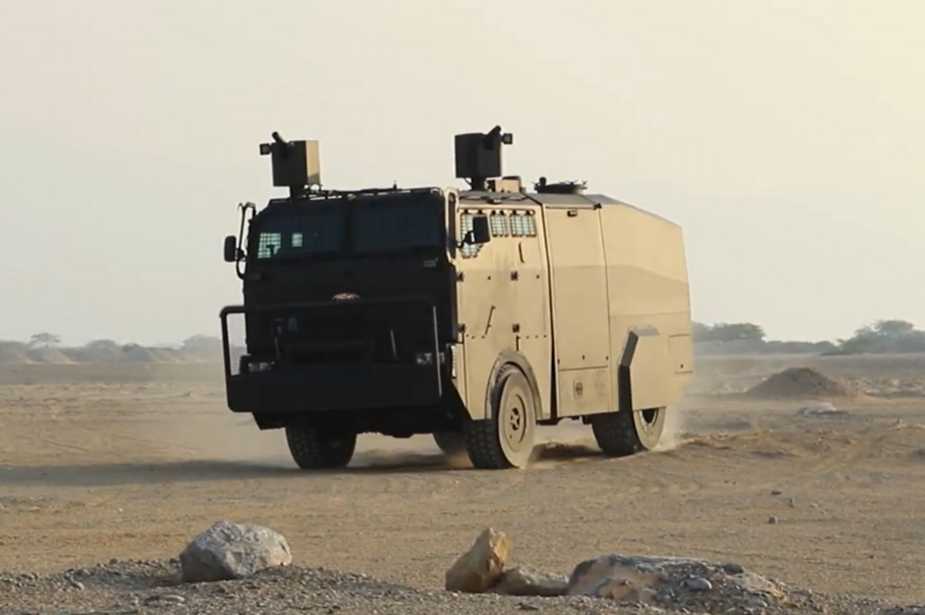

Armored Water Cannon IAG Anti Riot Vehicle UAE Canada 009
