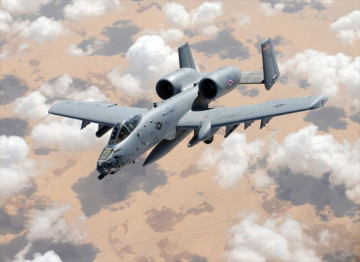

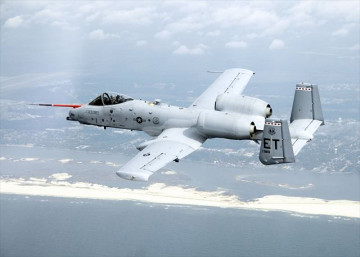

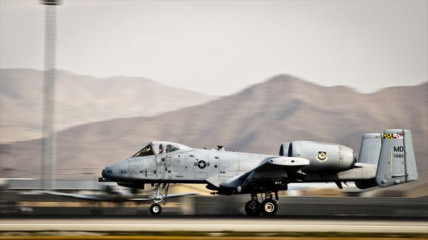

A-10 Thunderbolt II close air support aircraft
|
||||||||||||||||||||||
|
|
||||||||||||||||||||||
 |
||||||||||||||||||||||
|
The Fairchild Republic A-10 Thunderbolt II is an American twin-engine, straight wing jet aircraft developed by Fairchild-Republic in the early 1970s. The A-10 was especialli dsigned to perform close air support missions, including attacking tanks, armored vehicles, and other ground targets with limited air defenses. The first production A-10A was delivered to Davis-Monthan Air Force Base, Ariz., in October 1975. The upgraded A-10C reached initial operation capability in September 2007. Specifically designed for close air support, its combination of large and varied ordnance load, long loiter time, accurate weapons delivery, austere field capability, and survivability has proven invaluable to the United States and its allies. The aircraft has participated in operations Desert Storm, Southern Watch, Provide Comfort, Desert Fox, Noble Anvil, Deny Flight, Deliberate Guard, Allied Force, Enduring Freedom and Iraqi Freedom. The A-10 has received many upgrades over the years. From 1978 onwards, the Pave Penny laser receiver pod was adopted, which receives reflected laser radiation from laser designators for faster and more accurate target identification. The A-10 began receiving an inertial navigation system in 1980. In 2005, the entire A-10 fleet began receiving the Precision Engagement upgrades that include an improved fire control system (FCS), electronic countermeasures (ECM), and smart bomb targeting. Aircraft which received this upgrade are redesignated A-10C; work was to be completed in 2011. In 2007, the A-10 was subject to a service life extension program (SLEP);[28] Boeing was awarded a contract to build as many as 242 A-10 wing sets in June 2007. In 2012, Air Combat Command requested the testing of a 600-gallon external fuel tank which would extend the A-10's loitering time by 45–60 minutes; flight testing of such a tank was conducted in 1997, but did not involve combat evaluation. |
||||||||||||||||||||||
| Main Variants | ||||||||||||||||||||||
|
- A-10A: Single-seat close air support, ground-attack version. (All updated to A-10C)
- OA-10A: A-10As used for airborne forward air control. (All updated to A-10C) - YA-10B Night/Adverse Weather: Two-seat experimental prototype, for work at night and in bad weather. The one YA-10B prototype was converted from an A-10A. - A-10C: A-10As updated under the incremental Precision Engagement (PE) program |
||||||||||||||||||||||
| Technical Data | ||||||||||||||||||||||
 Back menu |
||||||||||||||||||||||
| Design | ||||||||||||||||||||||
|

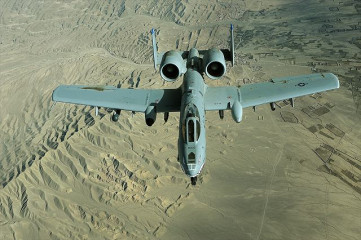

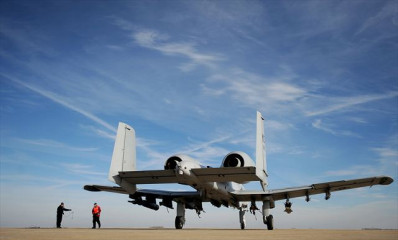

The A-10 has superior maneuverability at low speeds and altitude because of its large wing area, high wing aspect ratio, and large ailerons. The wing also allows short takeoffs and landings, permitting operations from primitive forward airfields near front lines. The aircraft can loiter for extended periods and operate under 1,000 ft (300 m) ceilings with 1.5 mi (2.4 km) visibility. It typically flies at a relatively low speed of 300 knots (350 mph; 560 km/h), which makes it a better platform for the ground-attack role than fast fighter-bombers, which often have difficulty targeting small, slow-moving targets. The leading edge of the wing has a honeycomb structure panel construction, providing strength with minimal weight; similar panels cover the flap shrouds, elevators, rudders and sections of the fins. The skin panels are integral with the stringers and are fabricated using computer-controlled machining. The ailerons are at the far ends of the wings for greater rolling moment and have two distinguishing features: The ailerons are larger than is typical, almost 50 percent of the wingspan, providing improved control even at slow speeds; the aileron is also split, making it a deceleron. The cockpit and parts of the flight-control system are protected by 1,200 lb (540 kg) of titanium aircraft armor, referred to as a "bathtub".The armor has been tested to withstand strikes from 23 mm cannon fire and some strikes from 57 mm rounds. It is made up of titanium plates with thicknesses from 0.5 to 1.5 inches (13 to 38 mm) determined by a study of likely trajectories and deflection angles. The armor makes up almost 6 percent of the aircraft's empty weight. Any interior surface of the tub directly exposed to the pilot is covered by a multi-layer nylon spall shield to protect against shell fragmentation. The front windscreen and canopy are resistant to small arms fire
|
||||||||||||||||||||||
|
Propulsion
|
||||||||||||||||||||||
|

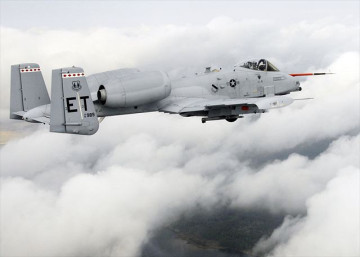

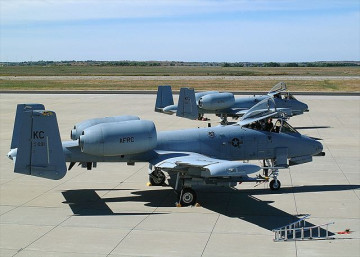

The A-10 Thunderbolt is powered by two TF34-GE-100 engines, supplied by General Electric, each supply 9,065lb thrust. The location of the engines, high on the fuselage, allows the pilot to fly the aircraft fairly easily with one engine inoperable. The A-10 can fflight at a maximum speed of 450 nautical miles per hour (Mach 0.75) with a maximum range of 2580 miles (4,150 km).
|
||||||||||||||||||||||
|
Avionics
|
||||||||||||||||||||||
|
The A-10 Thunderbolt IIs have Night Vision Imaging Systems, or NVIS, goggle compatible single-seat cockpits forward of their wings and a large bubble canopy which provides pilots all-around vision. The A-10 has received many upgrades over the years. In 1978, the aircraft received the Pave Penny laser receiver pod, which sensed reflected laser radiation from a laser designator. Pave Penney has now been discontinued in favor more capable advanced targeting pods. The A-10 began receiving an inertial navigation system in 1980. Later, the Low-Altitude Safety and Targeting Enhancement (LASTE) upgrade provided computerized weapon-aiming equipment, an autopilot, and a ground-collision warning system. In 1999, aircraft began to receive Global Positioning System navigation systems and a new multi-function display. In 2005, the entire A-10 fleet began receiving the Precision Engagement upgrades that include an improved fire control system (FCS), electronic countermeasures (ECM), upgraded cockpit displays, the ability to deliver smart bombs, moving map display, hands on throttle and stick, digital stores management, LITENING and Sniper advanced targeting pod integration, situational awareness data link or SADL, variable message format, or VMF, GPS-guided weapons, and upgraded DC power. The entire A-10 fleet has been Precision Engagement modified and now carries the A-10C designation.
|
||||||||||||||||||||||
| Armament | ||||||||||||||||||||||
|

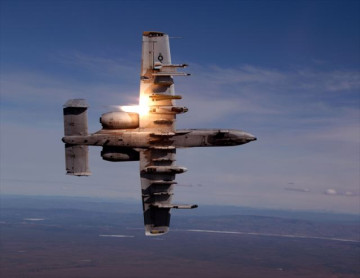

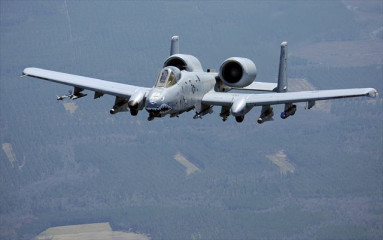

The primary weapons of the A-10 is the 30 mm GAU-8/A Avenger Gatling-type cannon which fires large depleted uranium armor-piercing shells. The gun is loaded by Syn-Tech's linked tube carrier GFU-7/E 30 mm ammunition loading assembly cart. The pilot could switch between two rates of fire: 2,100 or 4,200 rounds per minute. The cannon takes about half a second to come up to speed, so 50 rounds are fired during the first second, 65 or 70 rounds per second thereafter. The gun is accurate enough to place 80 percent of its shots within a 40-foot (12.4 m) diameter circle from 4,000 feet (1,220 m) while in flight. The GAU-8 is optimized for a slant range of 4,000 feet (1,220 m) with the A-10 in a 30 degree dive. The A-10 has 11 stores pylons, providing an external load capacity of 7,260kg. There are three pylons under the fuselage and the loads can be configured to use either the centre-line pylon or the two flanking fuselage pylons.The AGM-65 Maverick air-to-surface missile is a commonly used munition, targeted via electro-optical (TV-guided) or infrared. Other weapons include cluster bombs and Hydra rocket pods. The A-10 is equipped to carry laser-guided bombs. A-10s usually fly with an ALQ-131 ECM pod under one wing and two AIM-9 Sidewinder air-to-air missiles under the other wing for self-defense.
|
||||||||||||||||||||||
| Specifications | ||||||||||||||||||||||
|
||||||||||||||||||||||
 |
||||||||||||||||||||||
|
||||||||||||||||||||||
