The F-16 Block 70 is the most advanced production variant of the F-16 Fighting Falcon, a combat-proven multirole fighter aircraft designed and built by Lockheed Martin, an American defense and aerospace leader. This version incorporates cutting-edge avionics, a new mission computer, advanced radar, and structural improvements, making it highly suitable for contemporary and future operational environments.
Country users: Bahrain, Bulgaria, Greece, Philippines, Qatar, Slovakia, Taiwan, Turkey
Technical Data
-
Design
The F-16 Block 70 maintains the signature layout of the F-16 series, characterized by a single-engine configuration, mid-mounted cropped delta wings, and a frameless bubble canopy providing superior pilot visibility. The aircraft has an overall length of approximately 15 meters, a wingspan of 9.96 meters, and a height of 5 meters. Its aerodynamically refined airframe is constructed with reinforced materials to accommodate a 12,000-flight-hour lifespan, surpassing that of earlier variants.
The aircraft’s internal layout includes a forward fuselage housing the advanced AESA radar and mission avionics, a cockpit fitted with a modernized pilot interface and glass display systems, a center fuselage that accommodates the internal fuel tanks and landing gear, and an aft fuselage integrating the engine and exhaust assembly. The wing design incorporates multiple hardpoints for external stores, and conformal fuel tanks can be added along the fuselage for extended range without occupying weapon pylons.
-
Armament
The F-16 Block 70 is equipped with 11 external hardpoints, offering significant flexibility for multirole operations. These include six underwing pylons, two wingtip rails, two under-fuselage stations, and one centerline station. The aircraft supports a full spectrum of U.S. and NATO-standard munitions.
Standard armament includes the M61A1 20mm Vulcan rotary cannon, mounted internally in the left wing root, with a 511-round capacity. For air combat, the Block 70 carries AIM-9X Sidewinder short-range infrared missiles and AIM-120 AMRAAM beyond-visual-range radar-guided missiles. Air-to-ground ordnance includes JDAM and Paveway precision-guided bombs, GBU-39 Small Diameter Bombs, and AGM-65 Maverick missiles. For stand-off strikes and deep interdiction, it can deploy AGM-158 JASSM cruise missiles and AGM-154 JSOW glide bombs. SEAD missions are supported by AGM-88 HARM anti-radiation missiles, enhancing the aircraft’s role in electronic warfare and defense suppression.
The aircraft can be configured for mixed-role payloads, allowing simultaneous loadouts of air-to-air and air-to-ground weapons, and is compatible with both legacy and new-generation smart munitions.
-
Engine
Powering the F-16 Block 70 is the General Electric F110-GE-132 turbofan engine, providing up to 29,500 pounds of thrust with afterburner. This engine enables exceptional performance, including speeds in excess of Mach 2.0, and high-energy maneuverability in both low- and high-altitude engagements.
The aircraft’s combat radius is approximately 550 kilometers, depending on loadout and mission profile, and its ferry range extends beyond 4,200 kilometers with the use of external fuel tanks. The aircraft has a maximum service ceiling of 50,000 feet and can achieve a rate of climb exceeding 50,000 feet per minute, allowing it to rapidly engage threats across wide operational spaces.
Flight control is managed via a digital quadruplex fly-by-wire system, delivering precise handling and enabling high-g combat maneuvers with minimal pilot workload. The engine’s digital controls also optimize performance and fuel efficiency while reducing maintenance complexity.
-
Avionics and Onboard Equipment
The F-16 Block 70 introduces a comprehensive avionics suite anchored by the Northrop Grumman AN/APG-83 SABR AESA radar. This radar provides high-resolution mapping, simultaneous air and ground target tracking, and advanced electronic counter-countermeasures, enabling operations in both contested and congested electromagnetic environments.
The pilot interface has been overhauled with a large-area color multifunction display, touchscreen controls, and intuitive symbology. The cockpit is compatible with the Joint Helmet-Mounted Cueing System (JHMCS II), which allows pilots to designate and engage targets using line-of-sight aiming. Voice command capabilities and an integrated data bus ensure efficient mission management.
In terms of survivability and electronic warfare, the Block 70 features a digital Radar Warning Receiver (RWR), countermeasure dispensing systems, and advanced electronic countermeasures (ECM). The aircraft is also equipped with the Automatic Ground Collision Avoidance System (Auto-GCAS), a life-saving safety feature that automatically recovers the aircraft from controlled flight into terrain scenarios.
For networked warfare, the F-16 Block 70 includes a Link 16 tactical data link, providing real-time information sharing with allied assets. Its modular mission computer architecture allows easy upgrades, future-proofing the platform for emerging threats and mission sets.

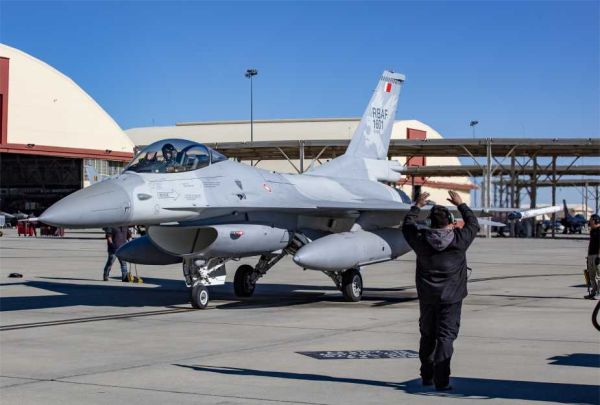

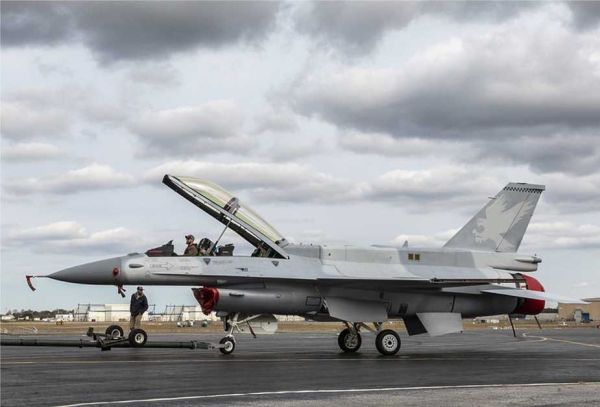

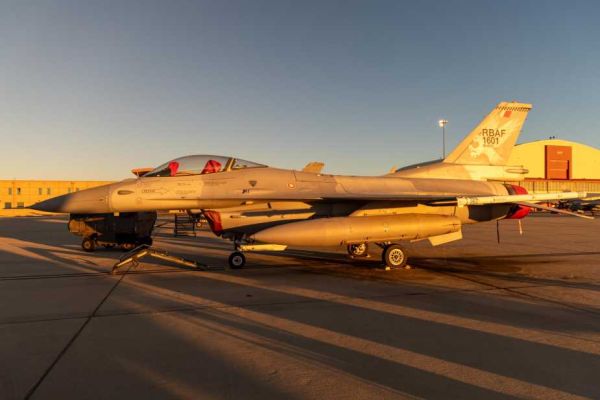

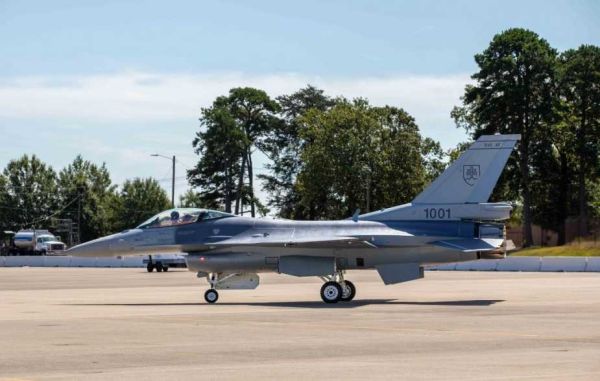

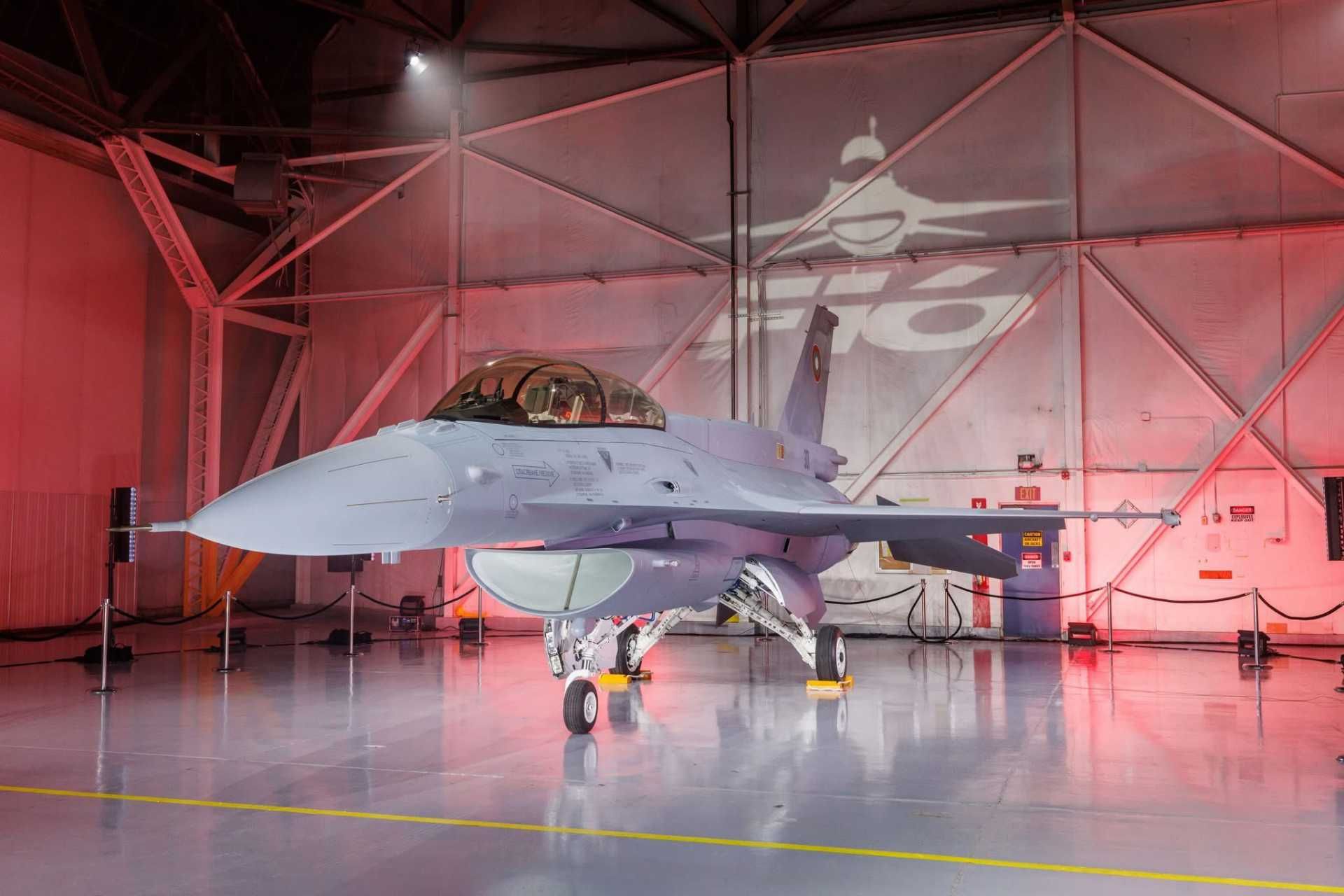

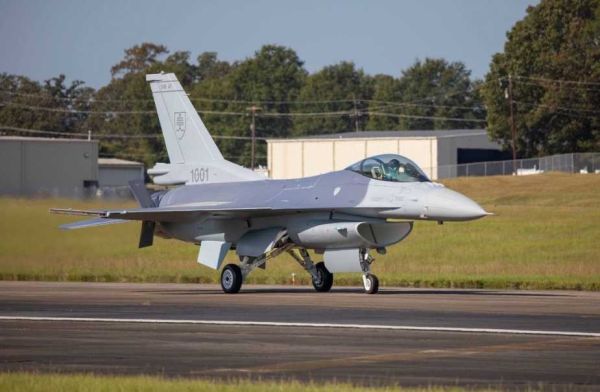

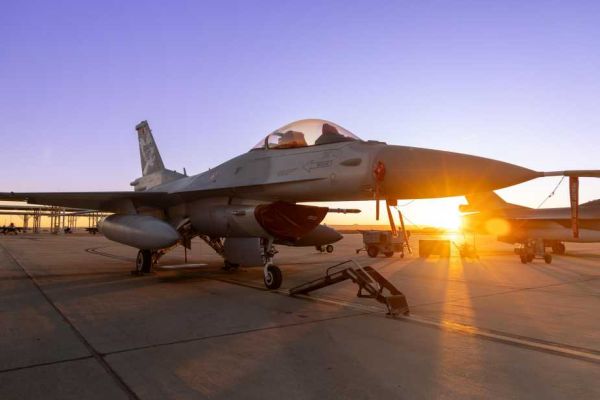

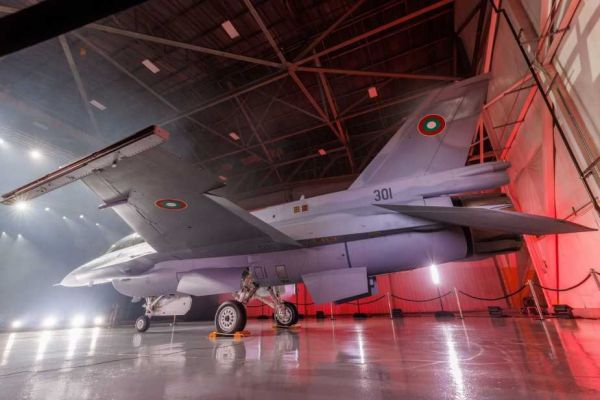

Photo Gallery
