JAS 39 Gripen Saab Multirole fighter aircraft





Gripen JAS 39 A B C D NG Sea multirole fighter aircraft technical data sheet specifications intelligence description information identification pictures photos images video Sweden Swedish Air Force defence industry technology

Description

The JAS 39 Gripen is a single-engine multirole fighter manufactured by the Swedish aerospace company Saab. It was designed to replace the Saab 35 Draken and 37 Viggen in the Swedish Air Force. Gripen is a new generation, multi-role fighter aircraft which uses state-of-the-art technology. It is capable of performing an extensive range of Air-to-Air, Air-to-Surface and reconnaissance missions employing the most modern range of weapons. Gripen is designed to meet the demands of current and future threats, while at the same time meeting strict requirements for flight safety, reliability, training efficiency and low operating costs. The Gripen fighter is in service with a number of air forces: Swedish, Czech Republic and Hungarian Air Forces and has also been ordered by the South African Air Force and the Royal Thai Air Force. The UK Empire Test Pilots’ School (ETPS) is operating Gripen as its advanced fast jet platform for test pilots worldwide. Gripen is NATO compatible and globally interoperable meeting the most demanding operational requirements and has now accumulated well over 100,000 flight hours. A two-seat version of the Gripen, which retains the full operational capability of the single-seater, is also available for tactical weapons training, more specialized missions and type conversion.


Variants

Gripen JAS 39A: First version, which was enter in service with the Swedish Air Force in 1996. modification program has started and 31 of these will be upgraded to C/D standard
Gripen JAS 39A: First version, which was enter in service with the Swedish Air Force in 1996. modification program has started and 31 of these will be upgraded to C/D standard

Gripen JAS 39B: Two-seat version of the A variant.
Gripen JAS 39B: Two-seat version of the A variant.

Gripen JAS 39C:. NATO-compatible version of Gripen with extended capabilities in terms of armament, electronics, etc. This variant can also be refuelled in flight
Gripen JAS 39C:. NATO-compatible version of Gripen with extended capabilities in terms of armament, electronics, etc. This variant can also be refuelled in flight.

Gripen JAS 39D:. Two-seat version of the C variant
Gripen JAS 39D:. Two-seat version of the C variant

Gripen JAS NG/IN:. Gripen NG is a true multi-role fighter aircraft that has the operational range, payload and built-in Net Centric Warfare (NCW) capabilities to meet all roles as defined.
Gripen JAS NG/IN:. Gripen NG is a true multi-role fighter aircraft that has the operational range, payload and built-in Net Centric Warfare (NCW) capabilities to meet all roles as defined.

Sea Gripen:. Saab has already completed detailed design pre-studies for the Sea Gripen in response to earlier interest from Brazi, Indial and other countries. The performance characteristics of the basic Gripen, together with the structural improvements of the Gripen NG should allow the Sea Gripen to fit the Indian requirement. It is capable of operating from carriers at a maximum take-off weight of 16,500 kg and a landing weight (with weapons and fuel) of 3,500 kg. For carrier operations the aircraft is designed to have a service life of 8,000 flight hours, equally split between shipborne and land-based operations.

Technical Data
Back menu
Design
The world’s most agile fighter for close combat. A combination of advanced aerodynamic layout utilizing a combined close-coupled canard – delta configuration and a triplex, digital Fly-By-Wire Flight Control System (FCS) leads to a winning Dog-Fight capability.
Saab ultimately selected a delta wing-canard design with relaxed stability. The configuration provides for a high manoeuvrability along with better takeoff and landing performance. The Gripen also has a low drag, enabling it to fly faster, have increased range, and carry a larger payload. The totally integrated avionics make it a "programmable" aircraft, changing the software can provide for additional mission profiles. The Gripen was designed to provide for a fast sink rate and hard, short landings.
Avionic

A fully integrated avionic mission system operating on five 1553B digital data bus highways. This provides total sensor fusion resulting in enhanced combat capability guaranteeing precision delivery of smart weapons. A combination of low radar, IR and visual signatures, along with the long range PS05 multimode radar and sensor fusion, including world leading new generation weapon integration, ensure a high kill ratio in long range engagements.
The JAS 39 Gripen uses the modern PS-05/A pulse-doppler X-band radar, developed by Ericsson and GEC-Marconi, which is based on the latter's advanced Blue Vixen radar for the Sea Harrier (which inspired the Eurofighter's CAPTOR radar as well). The radar is capable of detecting, locating and identifying targets 120 km (74 mi) away, and automatically tracking multiple targets in the upper and lower spheres, on the ground and sea or in the air, in all weather conditions. It can guide several air to air missiles at beyond visual range to multiple targets simultaneously.

Propulsion
The JAS 39 Gripen is powered by a RM12 Engine supplied by Volvo Aero, is a development of the GE F404 engine from General Electric. A digital engine control system automatically monitors the engine parameters and switches on the back-up systems if required. A condition monitoring system registers the flight data.The JAS 39 The Gripen can fly at a maximum speed of 2,470km/h. The combat radius and ferry range of the aircraft are 800km and 3,200km respectively. Its service ceiling is 15,240m. The aircraft weighs around 5,700kg and its maximum take-off weight is 14,000kg.
Armament
Feedback from recent conflicts has confirmed that operational requirements are changing. Users of airborne platforms have also recognized this trend and are themselves imposing appropriate demands on equipment and systems suppliers. Users no longer want a specific aircraft for each operational role. They require a multi-role platform that is capable of undertaking all roles (Air-to-Air, Air-to-Ground, maritime strike and reconnaissance). Gripen has been developed to meet a wide range of operational requirements which include a variety of missions. The multi-role capability of Gripen and its ability to change roles in the air at the press of a button results in a unique swing-role, multi-mission flexibility.
To fulfill the various missions that Gripen could be asked to undertake, the fighter has a variety of stores integrated and freedom of choice when it comes to the nationality of the weapons supplier. The customer has the choice to match Gripen together with stores from the United States of America, Europe and other regions of the world, or from indigenous suppliers.
The internally mounted 27mm Mauser high-energy gun can operate in an automatic radar-guided aiming mode. The stand-off dispenser is the DWF39 from EADS (formerly DaimlerChrysler Aerospace) and Bofors. The Bofors ARAK 70 rocket pod is cleared for carriage on the Gripen.

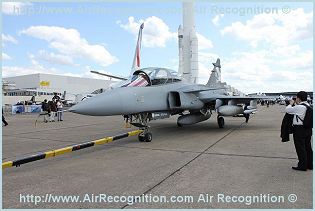

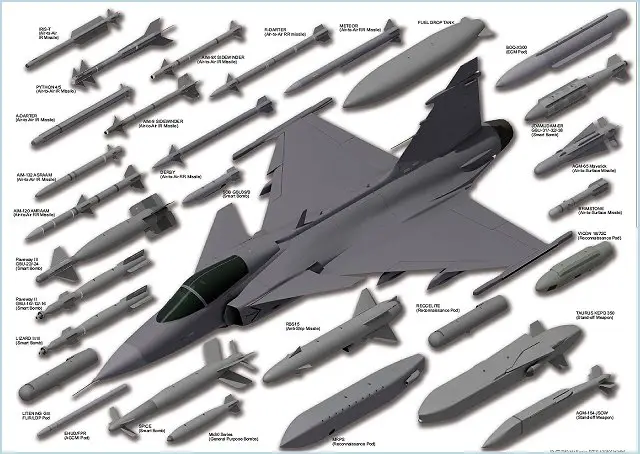

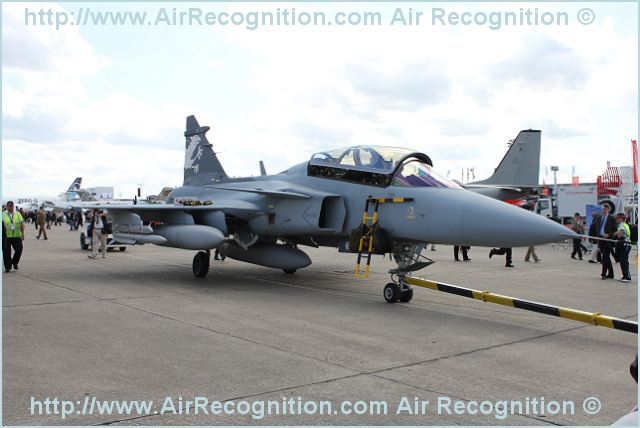

Click here for large picture

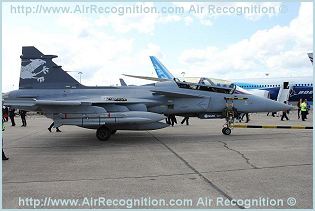

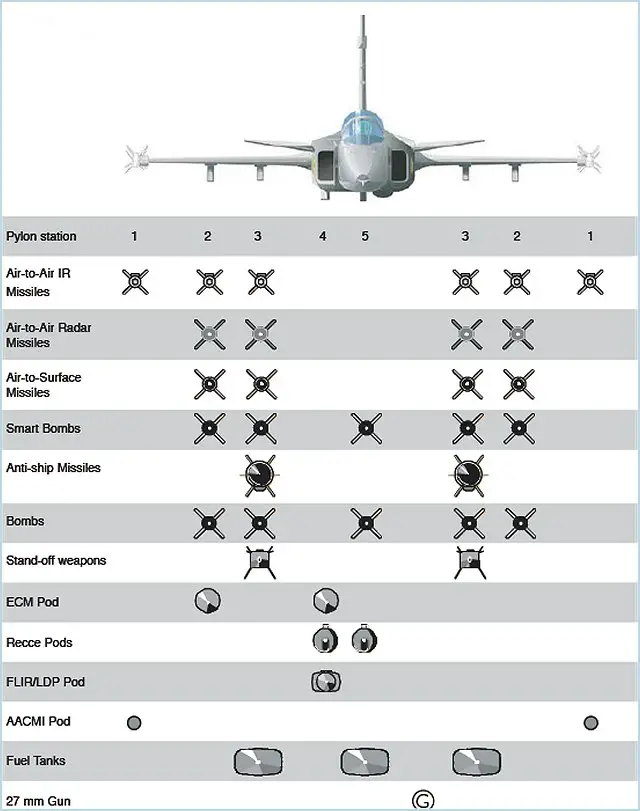

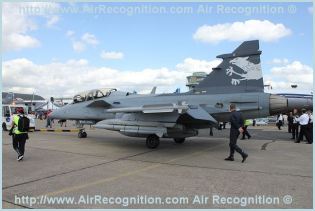

The JAS 39 Gripen is fiited with 8 hardpoints, three on each wing and two under fuselage, which can carry combinations of:
Missiles: 6× Rb.74 (AIM-9) or Rb 98 (IRIS-T), 4× Rb.99 (AIM-120) or MICA, 4× Rb.71 (Skyflash) or Meteor, 4× Rb.75, 2× KEPD.350, or 2× Rbs.15F anti-ship missile.
Bombs: 4× GBU-12 Paveway II laser-guided bomb, 2× Bk.90 cluster bomb, 8× Mark 82 bombs
Gripen JAS 39 A B C D NG Sea multirole fighter aircraft technical data sheet specifications intelligence description information identification pictures photos images video Sweden Swedish Air Force defence industry technology
Accessories
An advanced fully digital cockpit layout with three large colour, Multi-Functional Displays (MFD) and Hands- On-Throttle-And-Stick (HOTAS) provide the pilot with a superior combat advantage.

Specifications
Type
Multi-role fighrter aircraft
Country user
Czech Republic, Hungary, South Africa, Sweden, and Thailand.
Country producer
Sweden
Crew
1 or 2
a
a
Engine
One Volvo Aero RM12 afterburning turbofan
Speed
Maximum speed: 2,200 km/h
Range
3,000 km maximum
a
Weight
14,000 kg maximum takeoff
Avionic
PS-05/A pulse-doppler X-band radar, AESA radar, HMDS Helmet Mounted display System, ADA programming language.

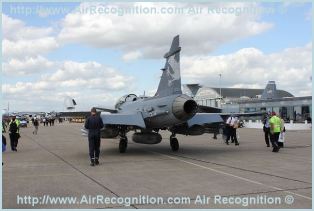

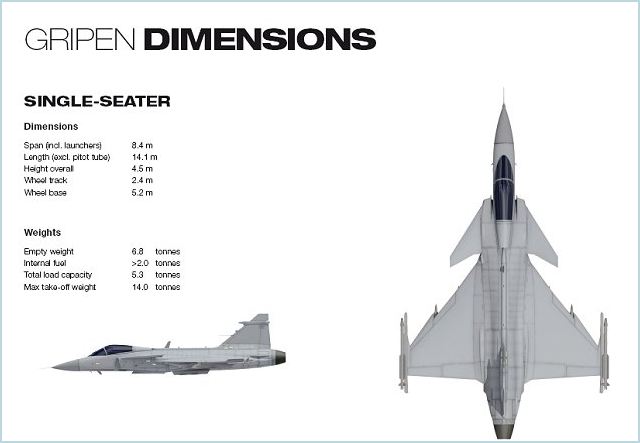

Dimensions
Length: 14.9 m; Wingspan: 8.4 m; Height: 4.5 m
