C-17 Globemaster III Military transport aircraft
|
||||||||||||||||||||||
 |
||||||||||||||||||||||
|
|
||||||||||||||||||||||
|
The Boeing C-17 Globemaster III is a large military transport aircraft. It was developed for the United States Air Force (USAF) from the 1980s to the early 1990s by McDonnell Douglas. The C-17 isa high-wing, 4-engine, T-tailed military-transport aircraft, multi-service transport aircraft for large equipment, supplies and troops directly to small airfields in harsh terrain anywhere in the world day or night. The massive, sturdy, long-haul aircraft tackles distance, destination and heavy, oversized payloads in unpredictable conditions. It has delivered cargo in every worldwide operation since the 1990s. The C-17 Globemaster III is the newest, most flexible cargo aircraft to enter the airlift force. The C-17 is capable of rapid strategic delivery of troops and all types of cargo to main operating bases or directly to forward bases in the deployment area. The aircraft can perform tactical airlift and airdrop missions and can transport litters and ambulatory patients during aeromedical evacuations when required. The inherent flexibility and performance of the C-17 force improve the ability of the total airlift system to fulfill the worldwide air mobility requirements of the United States. |
||||||||||||||||||||||
| Technical Data | ||||||||||||||||||||||
 Back menu |
||||||||||||||||||||||
| Design | ||||||||||||||||||||||
|

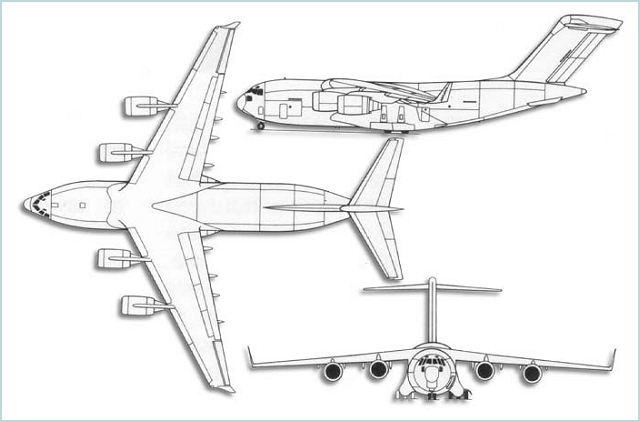

The C-17 is 53 m long and has a wingspan of about 52 m. It can airlift cargo fairly close to a battle area. The size and weight of U.S. mechanized firepower and equipment have grown in recent decades from increased air mobility requirements, particularly for large or heavy non-palletized outsize cargo. The C-17 is designed to operate from runways as short as 1,064 m and as narrow as 27 m. In addition, the C-17 can operate from unpaved, unimproved runways (although with greater chance of damage to the aircraft)
|
||||||||||||||||||||||
| Avionics and combat systems | ||||||||||||||||||||||
|
The digital avionics system has four Honeywell multifunction cathode-ray tube displays, two full-capability HUDs (head-up displays) plus cargo systems. The latest generation of C-17 Globemaster III is equipped with new mission computers and displays, new software for the warning and caution system, provided by Northrop Grumman Navigation Systems. The automatic flight control system is upgraded with BAE Systems CsLEOS real-time operating system is certified for GATM (global air traffic management) system requirements.
|
||||||||||||||||||||||
| Propulsion | ||||||||||||||||||||||
|
The aircraft is powered by four, fully reversible, Federal Aviation Administration-certified F117-PW-100 engines (the military designation for the commercial Pratt & Whitney PW2040), currently used on the Boeing 757. Each engine is rated at 40,440 pounds of thrust. The thrust reversers direct the flow of air upward and forward to avoid ingestion of dust and debris. Maximum use has been made of commercial off-the-shelf equipment, including Air Force-standardized avionics.
|
||||||||||||||||||||||
| Capabilies | ||||||||||||||||||||||
|
The ultimate measure of airlift effectiveness is the ability to rapidly project and sustain an effective combat force close to a potential battle area. Threats to U.S. interests have changed in recent years, and the size and weight of U.S.-mechanized firepower and equipment have grown in response to improved capabilities of potential adversaries. This trend has significantly increased air mobility requirements, particularly in the area of large or heavy outsize cargo. As a result, newer and more flexible airlift aircraft are needed to meet potential armed contingencies, peacekeeping or humanitarian missions worldwide. The C-17 is capable of meeting today's demanding airlift missions.

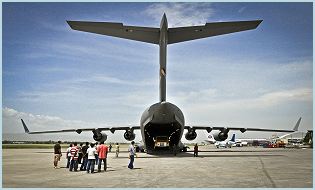

The aircraft is operated by a crew of three (pilot, co-pilot and loadmaster), reducing manpower requirements, risk exposure and long-term operating costs. Cargo is loaded onto the C-17 through a large aft door that accommodates military vehicles and palletized cargo. The C-17 can carry virtually all of the Army's air-transportable equipment. Maximum payload capacity of the C-17 is 170,900 pounds (77,519 kilograms), and its maximum gross takeoff weight is 585,000 pounds (265,352 kilograms). With a payload of 169,000 pounds (76,657 kilograms) and an initial cruise altitude of 28,000 feet (8,534 meters), the C-17 has an unrefueled range of approximately 2,400 nautical miles. Its cruise speed is approximately 450 knots (.74 Mach). The C-17 is designed to airdrop 102 paratroopers and equipment. |
||||||||||||||||||||||
| Specifications | ||||||||||||||||||||||
|
||||||||||||||||||||||
 |
||||||||||||||||||||||
|
||||||||||||||||||||||
