5P85TE Truck with launcher trailer for S-300 PMU2 SA-20B Gargoyle B battery



5P85TE S-300 PMU2 S-300PMU2 launcher unit semi-trailer SA-20B Gargoyle B surface to air defense missile system technical data sheet information description pictures photos images intelligence identification Russian army Russia

 Description  Technical Data  Details view  Pictures gallery

Description

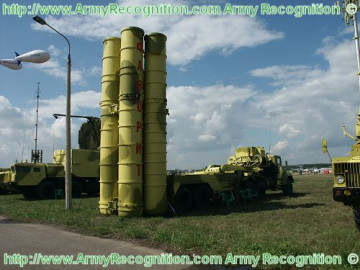

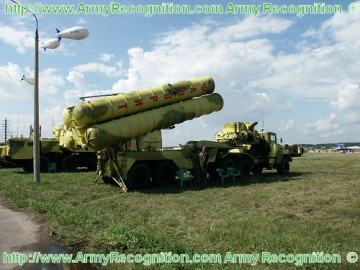

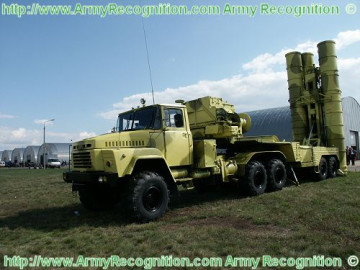

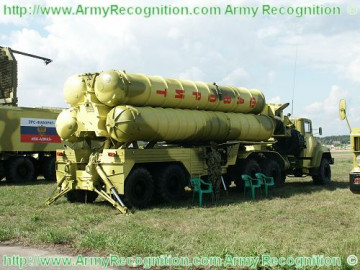

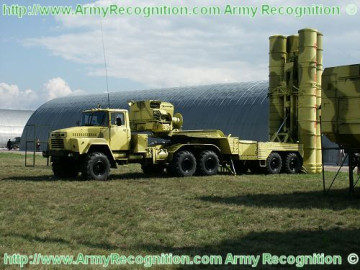

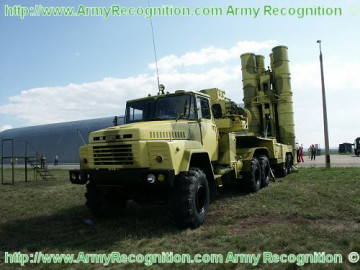

The 5P85TE is the export version of the 5P85T, its an semi-trailer launcher unit for S-300PMU2 Favorit air defense missile system. The 5P85TE is equipped with four paired missiles container-launchers S-300 PMU mounted to the rear of the semi-trailer. The 5P85T is tractor drawn by the heavy truck 6x6 KRAZ-260 or a modified version of the 8x8 truck MAZ-543. The 5P85TE launcher unit can be also used for the S-300 PMU and S-300 PMU1 air defense missile system.


Technical data

Type
Long range surface-to-air missile systems
Armament
Four missiles Fakel 48N6E2 or 48N6E,5V55R, 5V55K in individual container
Country users
Russia, China, Venezuela, Libya, Algeria.
Head
High explosive ; fragmentation
Explosive load

180 kg
a
a
a
a

Weight missile
1.800 kg
Lenght missile
7,5 m
a
Range
3 - 200 km
Guidance system
Command + active radar homing
Radar
Engagement radar 30N6E2, 64N6E2 acquisition radar or ST-68U Tin Shield - 5N66 Clam Sheel 40V6M, supported by a 54K6E2 command post and 83M6E2 command and control system. New option LEMZ 96L6 Cheese Board early warning and acquisition radar
