Self-propelled howitzers.

WMZ322 SH-3 122mm howitzer.

The WMZ322 is a 122mm tracked self-propelled howitzer designed and manufactured by the Chinese Defense Company NORINCOP (North Industries Corporation). First information about this artillery systems was released in 2005, but NORINCO has never published technical details about the product. According some Chinese military sources, the WMZ322 is proposed for the export under the name of SH-3.

Country Users: China, Rwanda

Description

The WMZ322 is a 122mm tracked self-propelled howitzer designed and manufactured by the Chinese Defense Company NORINCOP (North Industries Corporation). First information about this artillery systems was released in 2005, but NORINCO has never published technical details about the product. According some Chinese military sources, the WMZ322 is proposed for the export under the name of SH-3. The WMS322 offers for mobility and fire power thanks to its computerized firing control system. According a pictures released on the website China Military, the WMZ322 is in service with the Chinese armed forces. In November 2017, President Paul Kagame’s office releasing a picture on its Flickr account showing one SH-3 that participated in a military exercise in Rwanda under the code name ‘Hard Punch II’.

WMZ322 SH-3 122mm howitzer variants:

No variants at this time.

Back to top

Technical Data

  • Armament

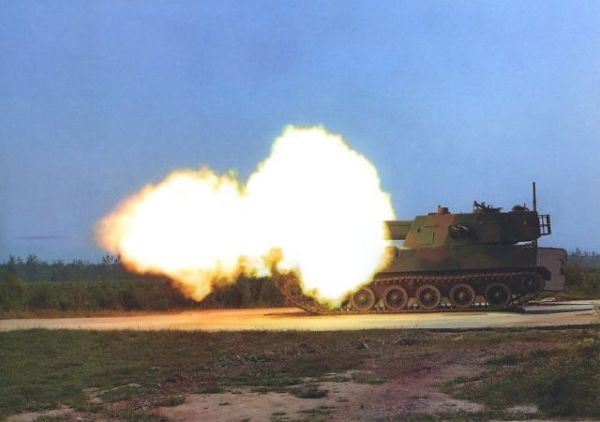

    The WMZ322 / SH-3 is fitted with a turret very similar to the PLZ-89 an older version of Chinese-made 122mm tracked self-propelled howitzer. It use the same type of main armament which consists of one Type 89 122mm 32-calibre howitzer gun barrel developed from the Type 85 122mm towed howitzer, which features the box-shape shield for the recoil-recuperator mechanism mounted above the tube and the multi-baffle muzzle brake. The artillery weapon system is fitted with a semi-automatic loading system offering a rate of fire of 6 to 8 rounds per minute. The main gun has a maximum firing range of 18 km with standard ammunition, 22 km with EFRB (Extend Range Full Bore) and 27 km with RAP (Rocket Assisted Projectiles) ammunition. The vehicle can carry a total of 40 ammunition. A 12.7mm machine gun is mounted on the roof of the turret, at the front hatch commander. There is also four smoke grenade dischargers on each side of the turret.

  • Design and protection

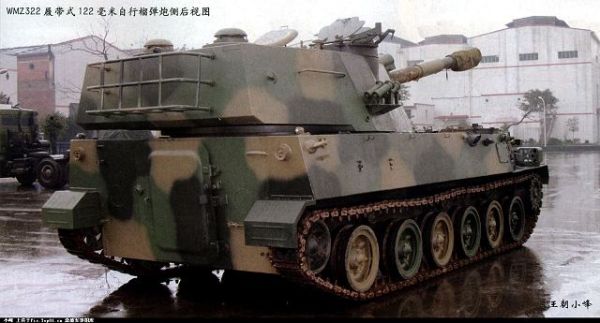

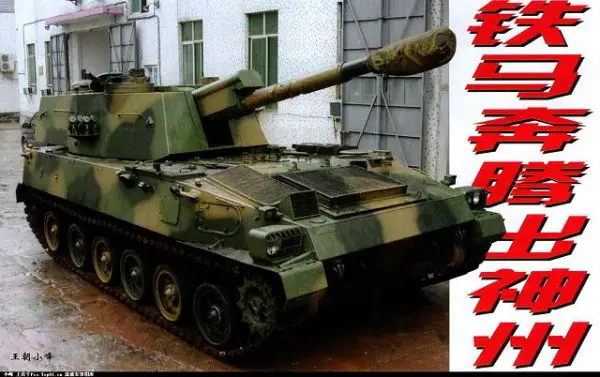

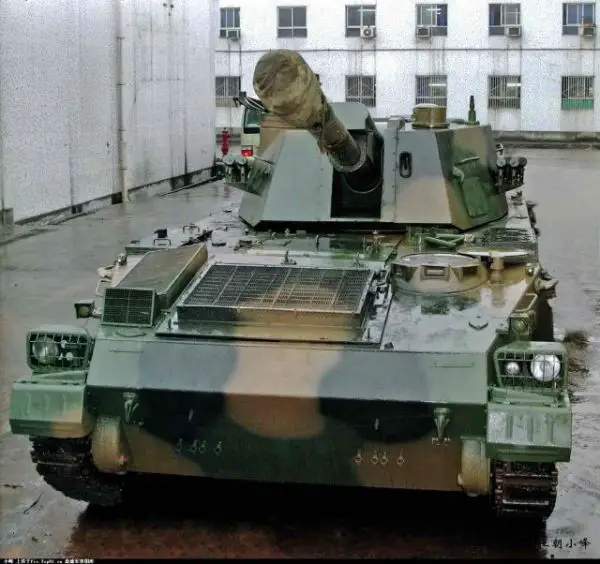

    The layout of the WMZ322 / SH-3 is very similar to the PLZ-89 especially for the turret design but with another suspension. Another feature to identify the WMZ322 is that the driver is located at the front left of the hull while for the PLZ-89, there two hatches, with driver at the same place but with the commander hatch just behind its position. The WMS322 has a crew of five. The turret is mounted at the rear of the hull which has a single door located at the rear. The hull and turret offers protection against firing of small arms caliber and artillery shell splinters.

  • Mobility

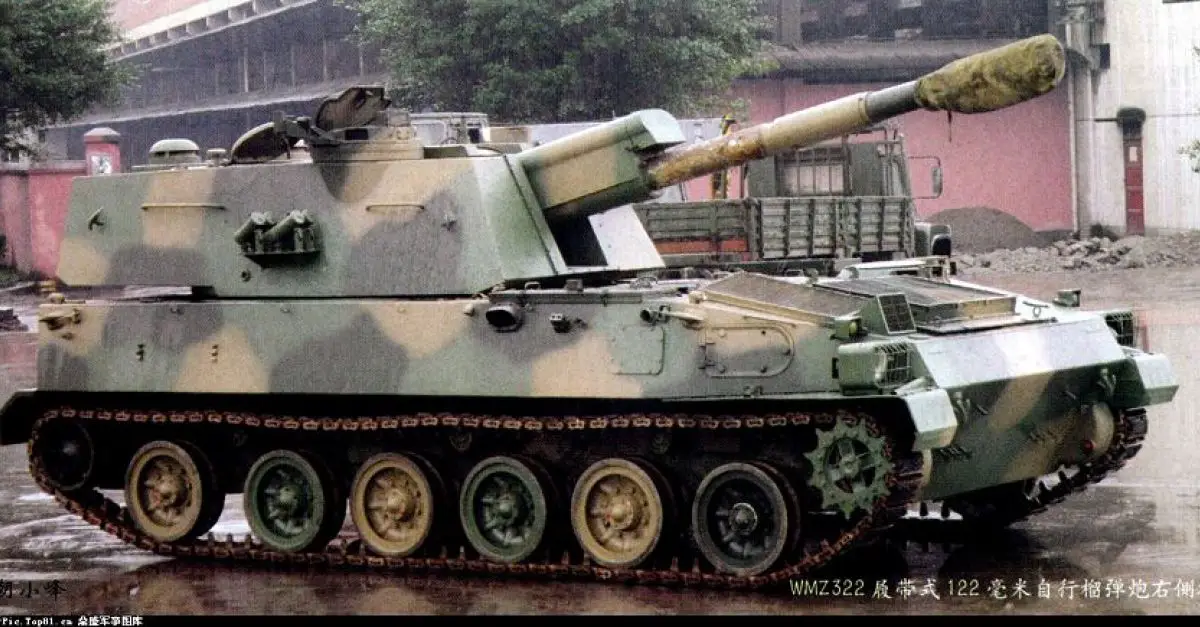

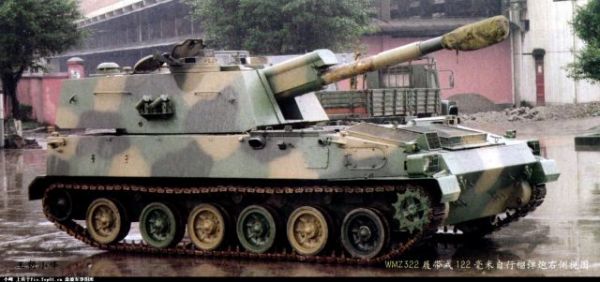

    The WMZ322 / SH-3 is motorized with a BF 8 M 1015 CP water-cooled diesel engine developing 450 hp. based on the German-made DEUTZ 1015 engine. It can run at a maximum road speed of 60 km/h with a maximum cruising range of 500 km. The torsion bar suspension consists on each side of six double rubber-tired road wheels with the drive sprocket at the front, idler at the rear and three track-return rollers.

  • Combat Equipment

    Standard equipment of the WMZ322 / SH-3 includes infrared night vision, meteorological mast, NBC protection system, automatic fire suppression system and GPS positioning system. The WMZ322 is also fitted with an automatic firing control system which includes a digital firing control computer, day/night optical sight and laser range finder mounted on the top of the turret.

Back to top

Specifications

  • Armament

    One 122mm howitzer and one 12.7mm anti-aircraft machine gun

  • Country users

    China, Rwanda

  • Designer Country

    China

  • Combat Equipment

    Automatic firing control system which includes a digital firing control computer, day/night optical sight, laser range finder, infrared night vision, meteorological mast, NBC protection system, automatic fire suppression system and GPS positioning system.

  • Crew

    5

  • Armor

    Protection against the firing of small arms and artillery shell splinters

  • Weight Vehicle

    24,500 kg

  • Speed Vehicle

    60 km/h road speed

  • Range Vehicle

    500 km

  • Dimensions

    Length: 6.66 m; Width: 3.28 m; Height: 2.5 m
