BMP-1KSh

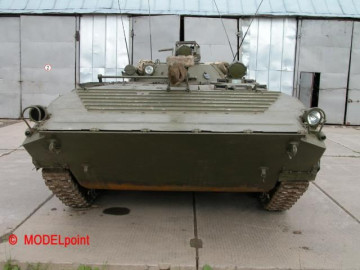

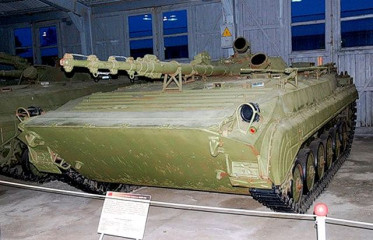

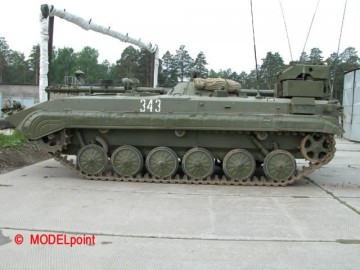

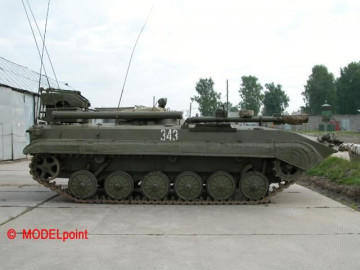

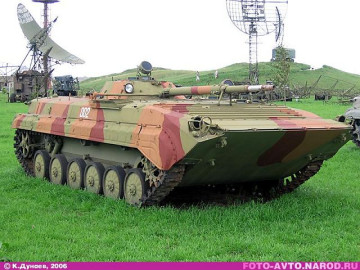

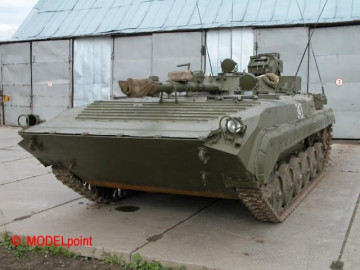

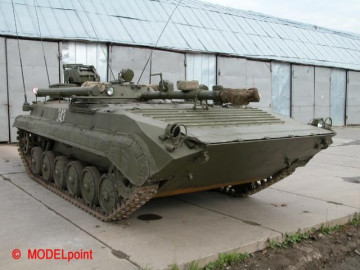

BMP-1KSh Command post and staff armoured vehicle

a
BMP-1KSh command post staff vehicle technical data sheet specifications information description pictures photos images intelligence identification intelligence Russia Russian army defence industry military technology tracked armoured

Description
The BMP-1KSh is a command post and staff armoured vehicle based on the chasiis of the Russian made BMP-1 tracked armoured infantry fighting vehicle. The vehicle was originally designated as BMP M1978. The BMP-1KSh enter in service in the Russian army in 1972, and the serial production began in 1976 at Rubtsovsk engineering plant.The BMP-1KSh is used at the level of motorized rifle regiment.

Variants
- No variants

Technical Data
Back to top
Armament
For its self-protection the BMP-1KSh is armed with a PK 7.62 mm machine gun. The vehicle is always equipped with a one-man turret as the standard BMP-1, but the 76 mm cannon is removed and replaced by a larger telescopic antenna called HAWK EYE.
Design and protection
The layout of the BMP-1KSh is very similar to the Russian BMP-1 armoured infantry fighting vehicle. The hull of the BMP-1KSh is made of all-welded steel which provides a protection for the crew against small arms fire and shell splinters. The crew consists of three soldiers, the driver and two radio operators who are sit at the front of the vehicle. There is place at the rear of the crew compartment for four staff officers.
Propulsion
The BMP-1KSh is powered by a type UTD-20 6-cylinder in-line water-cooled diesel engine developing 300 hp at 2,000 rpm. The torsion bar suspension is the same as the standard BMP-1, which consists of each side of six rubber-tyred road wheels with the drive sprocket at the front, idler at the rear and three track-return rollers. The first and last road wheel stations have a hydraulic shock-absorber and the top of the track has a light sheet steel cover, which is normally removed when operating in snow.
Accessories
The BMP-1KSH is equipped with radio set R-137, R-140M or R-145BM, each with four of five radios. In addition, the vehicle has also telephone equipment, telegraph communication system, ventilation, TNA-3 navigation system and diesel generator which has the capacity to power the communication equipment. The generator is fitted at the top rear of the hull. Small antennas are fitted at the rear side of the crew compartment. The BMP-1KSh is fully amphibious being propelled in the water by its tracks.

Specifications
Back to top
Armament
On 7.62 mm machine gun
Country users
Russia and east countries
Designer Country
Russia
Accessories
Radio R-137, R-140M or R-145BM, P-111, P-124, power generator, telephone and telegraph communication system. NBC, night vision,
Crew
7 soldiers
Armor
Protection against small arms ans shell splinters.
Weight
13 000 kg
Speed
65 km/h on road, 7 km/h on water
Range
550 - 600 km
a
a
Dimensions
Length, 6.73 m; Width, 2.94 m; Height, 1.92 m

Details View

BMP-1KSh command post staff vehicle technical data sheet specifications information description pictures photos images intelligence identification intelligence Russia Russian army defence industry military technology tracked armoured

BMP-1KSh command post staff vehicle technical data sheet specifications information description pictures photos images intelligence identification intelligence Russia Russian army defence industry military technology tracked armoured
BMP-1KSh command post staff vehicle technical data sheet specifications information description pictures photos images intelligence identification intelligence Russia Russian army defence industry military technology tracked armoured

BMP-1KSh command post staff vehicle technical data sheet specifications information description pictures photos images intelligence identification intelligence Russia Russian army defence industry military technology tracked armoured BMP-1KSh command post staff vehicle technical data sheet specifications information description pictures photos images intelligence identification intelligence Russia Russian army defence industry military technology tracked armoured
