JSM Joint Strike Missile AGM-184.

Technical Data

• Design

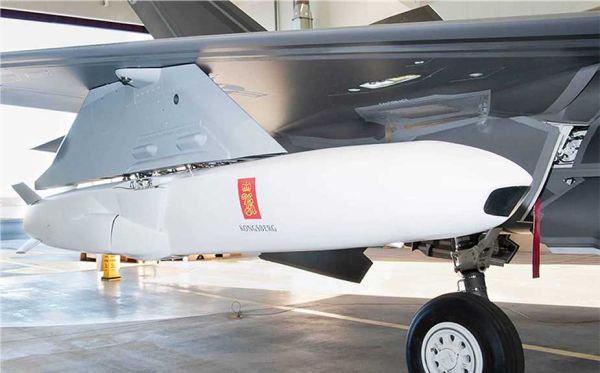

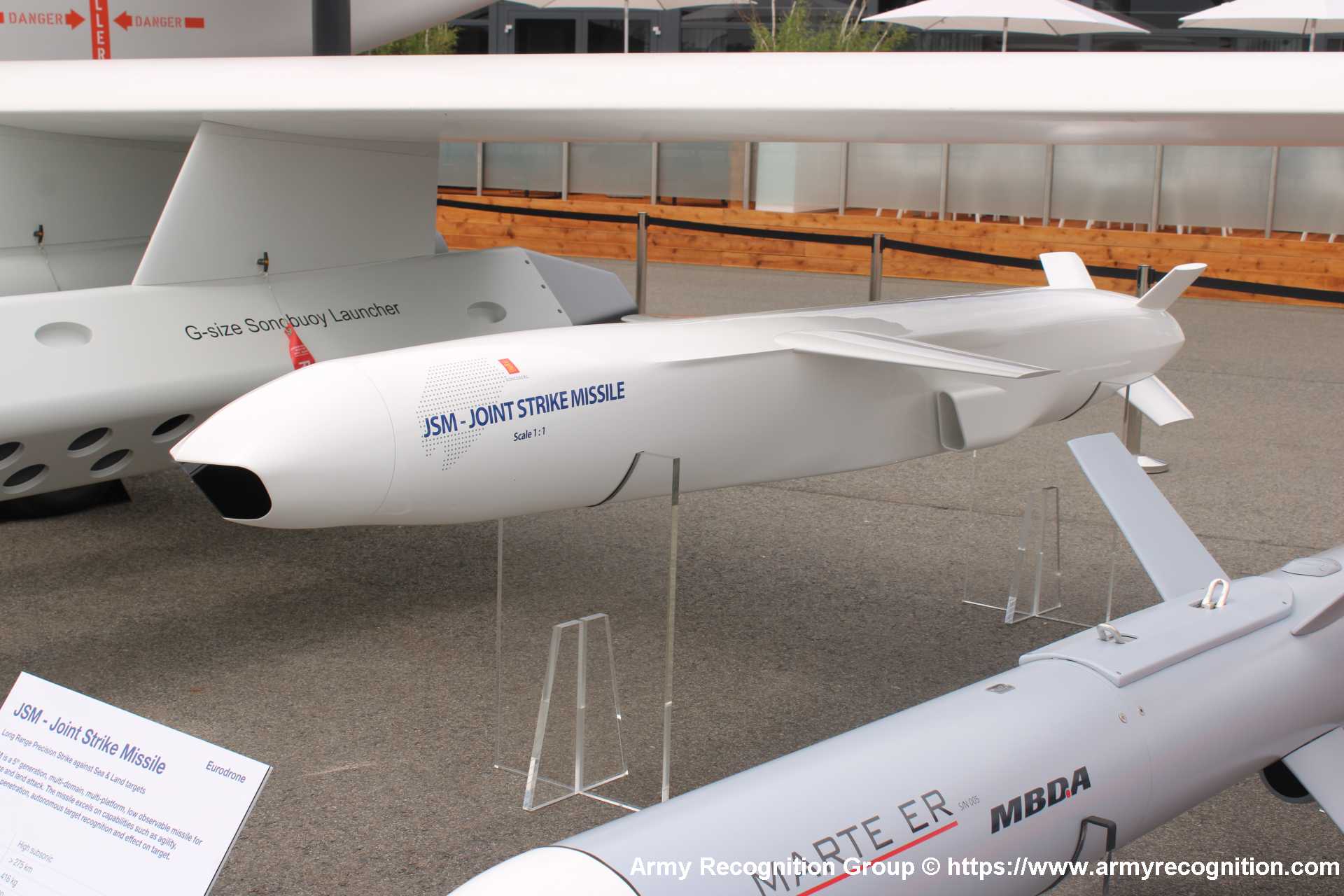

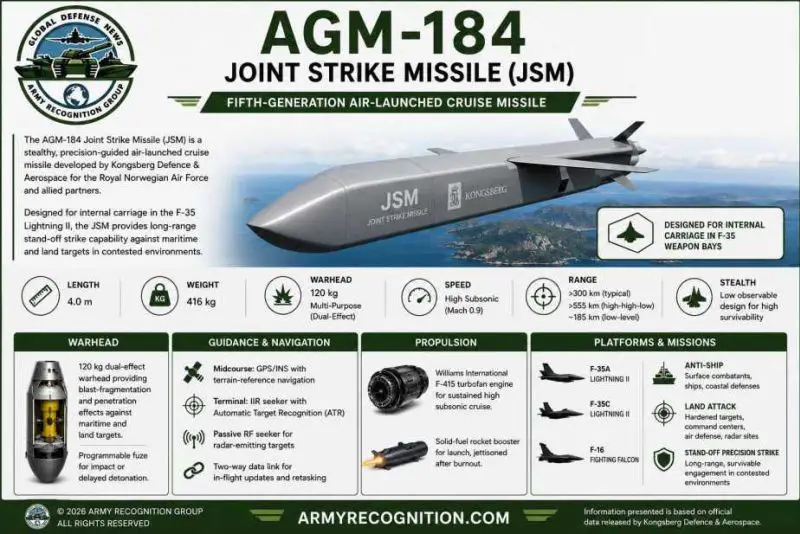

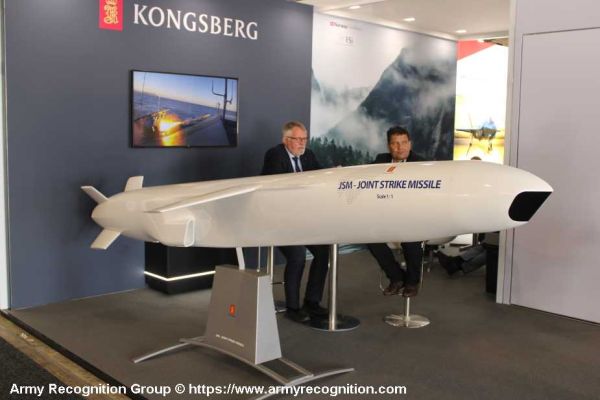

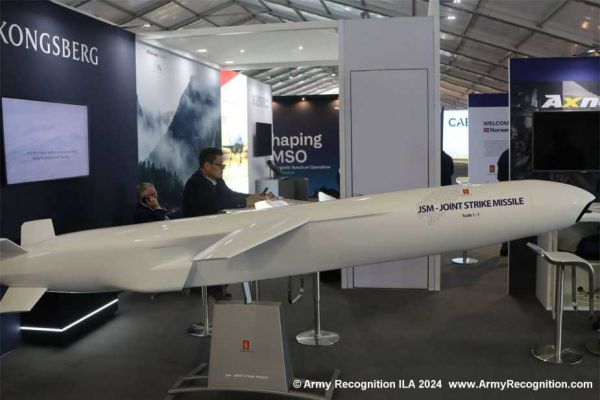

  The AGM-184A Joint Strike Missile (JSM) features a stealth-optimized airframe specifically engineered to minimize radar detectability and enhance survivability in contested operational environments. Derived from the Naval Strike Missile (NSM), the missile is primarily constructed from radar-absorbent composite materials and incorporates low-observable shaping to reduce its radar cross-section. Its dimensions have been carefully optimized for internal carriage within the weapons bays of the Lockheed Martin F-35A and F-35C Lightning II, allowing the aircraft to retain its stealth characteristics while carrying a long-range precision strike weapon. The missile measures approximately 4.0 m in length, with a stowed width of 0.48 m, a height of 0.52 m, and a launch weight of approximately 416 kg.

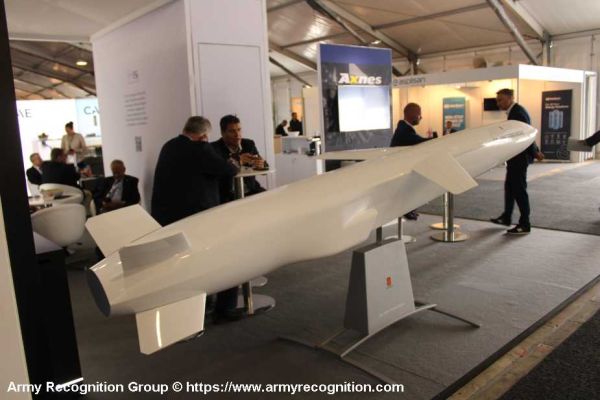

  Following launch, the AGM-184A/JSM deploys folding wings and tail control surfaces that provide aerodynamic efficiency, high maneuverability, and stable flight performance throughout the engagement profile. The missile is powered by a compact turbojet engine, enabling long-range stand-off strike missions against both maritime and land-based targets. To maximize survivability, the JSM is capable of conducting low-altitude sea-skimming flights over water and terrain-following flight profiles over land, significantly reducing the probability of detection and interception by enemy radar and air defense systems. Combined with advanced mission-planning capabilities and programmable terminal attack maneuvers, these design features enable the missile to penetrate heavily defended areas and engage high-value targets with a high probability of mission success.

• Warhead

  The AGM-184A Joint Strike Missile (JSM) is equipped with a multi-purpose dual-effect warhead weighing approximately 120 kg, designed to effectively engage a wide range of maritime and land-based targets. The warhead combines blast-fragmentation effects for the destruction of soft, semi-hardened, and area targets with penetrating capabilities intended to defeat reinforced structures, command facilities, and critical infrastructure. This versatility enables the missile to conduct both anti-ship and land-attack missions while maintaining a high level of target effectiveness.

  The warhead is integrated with a programmable intelligent fuze system that can be configured for multiple detonation modes, including instantaneous impact, delayed penetration, and optimized target-specific activation. These selectable fuze settings allow the missile to maximize destructive effects according to the target's construction, size, and vulnerability. Combined with the missile's advanced Imaging Infrared (IIR) seeker and Automatic Target Recognition (ATR) capabilities, the AGM-184A/JSM can precisely engage designated aim points to achieve maximum lethality while minimizing collateral damage and supporting modern precision-strike rules of engagement.

• Propulsion

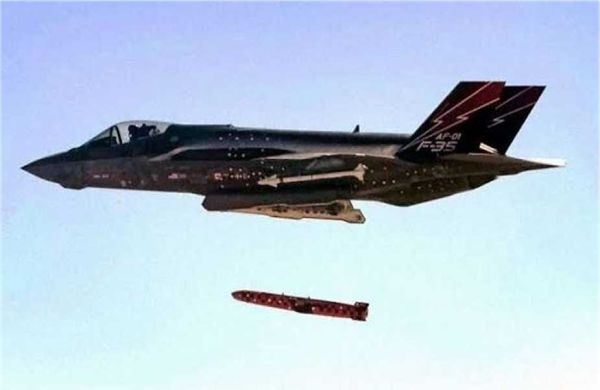

  The AGM-184A Joint Strike Missile (JSM) is powered by a Williams International F-415 small turbofan engine, providing efficient propulsion throughout its cruise phase and enabling sustained high-subsonic flight speeds approaching Mach 0.9. Following launch, the missile is accelerated by a solid-fuel rocket booster that provides the initial thrust required for separation and transition to powered cruise flight. Once the booster is expended and jettisoned, the turbofan engine assumes propulsion duties for the remainder of the mission, delivering the endurance and efficiency required for long-range precision strike operations.

  The propulsion system, combined with the missile's advanced flight-control architecture and optimized aerodynamic design, enables the AGM-184A/JSM to execute a variety of mission profiles against both maritime and land-based targets. Depending on launch conditions, flight trajectory, altitude, and operational requirements, the missile is capable of striking targets at distances exceeding 300 km. Utilizing a high-high-low flight profile, the maximum range can extend beyond 555 km, while a continuous low-altitude penetration profile typically provides a range of approximately 185 km. This flexibility allows operators to balance range, survivability, and mission effectiveness according to operational requirements.

  Designed to operate in heavily defended environments, the AGM-184A/JSM can perform low-altitude sea-skimming flights over water and terrain-following navigation over land, minimizing exposure to enemy radar systems and air defenses. Combined with its low-observable design, advanced guidance systems, and autonomous mission-planning capabilities, the missile's propulsion and flight performance characteristics enable highly survivable stand-off attacks against high-value targets in contested operational environments.

  Propulsion
• Guidance Systems

  The AGM-184A Joint Strike Missile (JSM) incorporates an advanced multi-mode guidance and navigation system designed to ensure highly accurate target engagement in complex and heavily contested operational environments. During the midcourse phase, navigation is provided by a combination of a Global Positioning System (GPS) and Inertial Navigation System (INS), supported by terrain-reference navigation and sophisticated mission-planning software. This integrated architecture enables the missile to follow pre-programmed routes, avoid known threats, and maintain accurate navigation even during long-range stand-off strike missions against maritime and land-based targets.

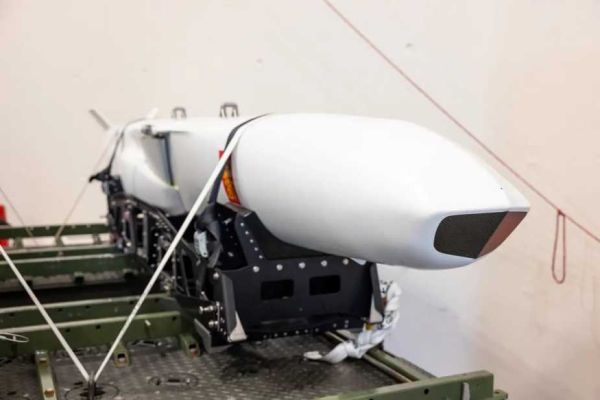

  In the terminal phase, the missile transitions to an advanced Imaging Infrared (IIR) seeker equipped with Automatic Target Recognition (ATR) technology. This capability enables the AGM-184A/JSM to autonomously detect, identify, classify, and prioritize designated targets based on a comprehensive onboard target library. The seeker is capable of discriminating between intended targets, decoys, and surrounding objects, significantly improving engagement accuracy while reducing the risk of collateral damage. The passive nature of the IIR seeker also enhances survivability by eliminating the need for active radar emissions that could reveal the missile's position.

  To further increase operational flexibility, the missile is equipped with passive Radio Frequency (RF) sensing capabilities that allow it to detect and engage radar-emitting targets. A secure two-way data link enables real-time mission updates, inflight target reassignment, and engagement monitoring, providing operators with the ability to adapt to changing battlefield conditions after launch. Combined with its low-observable design and autonomous decision-making capabilities, the AGM-184A/JSM guidance system delivers exceptional precision, target selectivity, and survivability in GPS-degraded, electronically contested, and anti-access/area-denial (A2/AD) environments.

• Combat Use

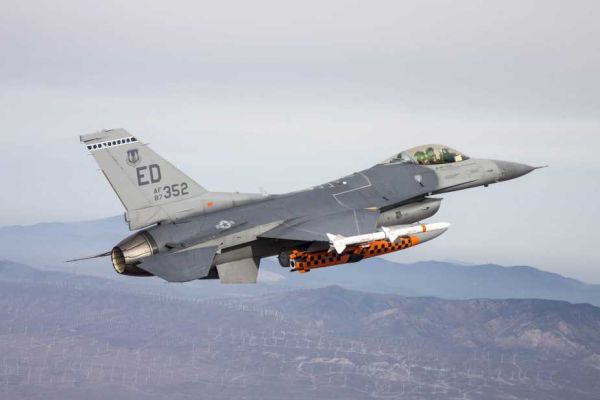

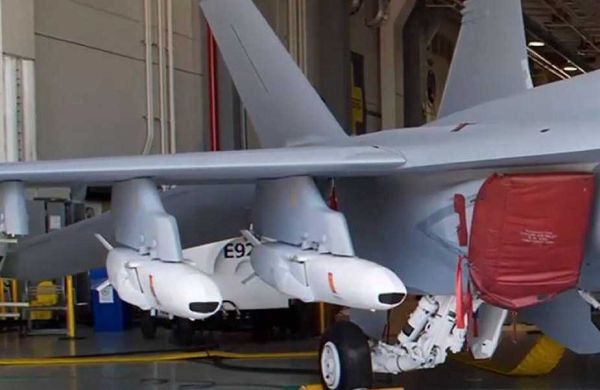

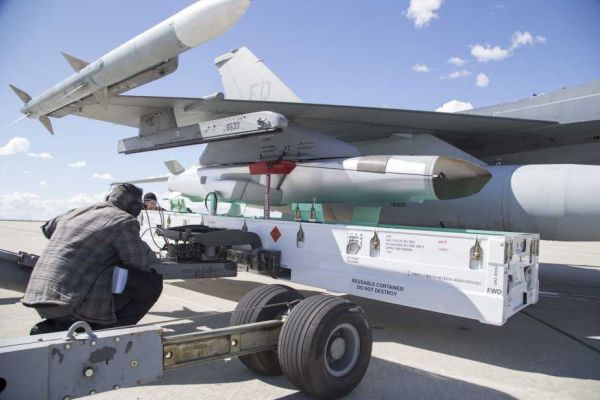

  In combat operations, the AGM-184A Joint Strike Missile (JSM) provides modern air forces with a highly survivable, long-range precision-strike capability against both maritime and land-based targets. Designed to be employed from advanced combat aircraft such as the F-35 Lightning II and F-16 Fighting Falcon, the missile enables operators to engage high-value targets from stand-off distances while remaining outside the effective engagement envelope of many enemy air defense systems. Its combination of stealth characteristics, autonomous target recognition, and advanced mission-planning capabilities makes it particularly effective in contested and anti-access/area-denial (A2/AD) environments.

  Following launch, the AGM-184A/JSM can execute a variety of flight profiles, including low-altitude sea-skimming operations over water and terrain-following navigation over land. These flight modes significantly reduce the missile's radar signature and detection range, enhancing survivability during penetration of defended areas. Using pre-programmed waypoints and dynamic mission updates transmitted through its two-way data link, the missile can adapt to evolving battlefield conditions and optimize its approach path to avoid threats and maximize mission effectiveness.

  Upon reaching the target area, the missile's Imaging Infrared (IIR) seeker and Automatic Target Recognition (ATR) system enable autonomous target acquisition, identification, and engagement. The AGM-184A/JSM is capable of distinguishing intended targets from surrounding objects, decoys, and civilian infrastructure, ensuring a high degree of target selectivity and precision. During the terminal phase, the missile can perform aggressive evasive maneuvers and execute selectable end-game attack profiles designed to complicate interception by enemy air defense systems and close-in weapon systems.

  The missile's advanced guidance architecture, low observability, passive sensing capabilities, and precision warhead make it particularly effective against high-value surface combatants, amphibious vessels, coastal defense sites, command-and-control centers, radar installations, mobile air defense systems, and fortified land targets. Its ability to coordinate timing with other weapons also enables synchronized strikes and multi-axis attacks, increasing the probability of mission success against heavily defended targets and complex battlefield objectives.
