Description

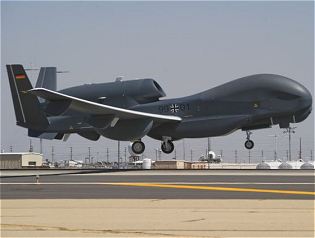

EURO HAWK® is an high-altitude, long-endurance (HALE), signals intelligence (SIGINT) unmanned aircraft system based on the RQ-4 Global Hawk produced by Northrop Grumman for the German Bundeswehr.
Within the context of a rapidly changing threat environment, the German and other NATO Military Forces have redefined their tasks and how they are being addressed. In future conflicts, achieving information superiority becomes increasingly challenging. The direct and unrestricted access to high performance ISR systems will be indispensable.
To answer this need, EADS and Northrop Grumman suggest a transatlantic solution to fill this capability gap within the European defence forces. A Euro Hawk system, tailored to the needs of the German and European customer will be based on,
- Global Hawk high altitude long endurance system developed by Northrop Grumman, flight-tested and combat proven with the US Air Force.
- German/European Sensor/mission system and exploitation technology provided by EADS. To support the system most efficiently, a European maintenance concept will be developed.


Variants
- RQ-4 Global Hawk: american version
- RQ-4 Block 20 (United States)
- RQ-4 Block 40 (United States)

Technical Data
 Back to top

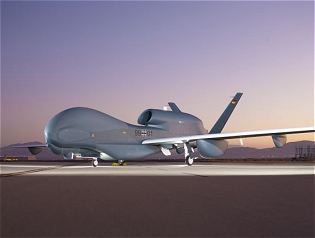

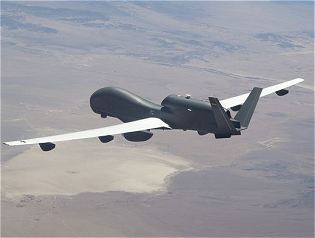

Design
The wings and tail of the aircraft are of graphite composite construction. The V-configuration of the tail, built by Aurora Flight Sciences, provides a low radar and infrared signature. The wings, constructed by Vought Aircraft Industries, have a span of 7.3 m, with hard points for external pods up to 1,000lb each. Vought and ATK are fabricating an enhanced wing, one of a number of system improvements to enable Global Hawk to carry an increased payload. The aluminium fuselage contains pressurised payload and avionics compartments. Honeywell Aerospace, Torrance, California, supplied the environmental control systems. The landing gear is supplied by Heroux Inc. of Quebec, Canada. The nose gear which is a derivative of the F-5 design is height adjustable to suit the runway characteristics. The landing gear automatically retracts at an altitude of 1,220 m.
Propulsion
The Rolls-Royce AE3007H turbofan core engine specifically developed for the Global Hawk program is a growth version of the AE3007 engine, currently in use in the Citation X and the Embraer Regional Jet. In the 8,000- pound thrust class, the engine is a high bypass, two spool, axial flow engine, flat rated at 7,580 pounds of thrust, uninstalled, sea level static to 113 degrees Fahrenheit ambient temperature.
Accessories
The system combines advanced technology sensors with extensive range and the endurance to remain on station for long periods of time. High-resolution sensors that can look through adverse weather day or night from an altitude of 65,000 ft, can conduct surveillance over an area the size of Austria and Croatia combined, in just 24 hours. These proven capabilities are paving the way for Global Hawk and other UAVs to assume missions suited for autonomous aircraft - augmenting manned aircraft and contributing to national security in ways not imagined a few years ago.
The EURO HAWK® will carry a new SIGINT mission system developed by EADS Deutschland GmbH (Cassidian) and integrated in Manching, Germany.
Combat use
Euro Hawk can carry out reconnaissance missions in all types of operations. The 14,000nm range and 42-hour endurance of the air vehicle, combined with satellite and line-of-sight communication links to ground forces, permits worldwide operation of the system. High-resolution sensors, including visible and infrared electro-optical systems and synthetic aperture radar, will conduct surveillance over an area of 40,000nm² to an altitude of 65,000ft in 24 hours.
The Raytheon Intelligence & Information Systems mission control ground station for the Euro Hawk UAS includes a shelter measuring 2.43 m × 2.43 m × 7.3 m housing the communications, command and control, mission planning and image processing computers with four workstations for the mission control staff and officers. The mission control centre has data up- and down-links to the Global Hawk vehicle directly and via the Ku satellite and the UHF satellite systems. The Raytheon launch and recovery ground station is housed in an 2.43 m x 2.43 m x 3 m shelter equipped with two workstations and the launch and recovery mission computers. The launch and recovery station has up- and down- data communications links to the Global Hawk vehicle and to the UHF communications satellite.
The complete mission control element (MCE) and the launch and recovery element (LRE) is transportable in a single load on the C-5B transporter aircraft and in less than two loads on the C-17 transporter.


Specifications
 Back to top
Type
High altitude long endurance Unmanned Aircraft System UAS
Country users
Germany
Designer Country
United States - Germany
Accessories
High-resolution sensors, including visible and infrared electro-optical systems and synthetic aperture radar
Operators
?
Engine
Rolls-Royce AE3007H turbofan
a
Weight
14,628 kg
Altitude
18,300 m
Endurance
30,5 hr
a

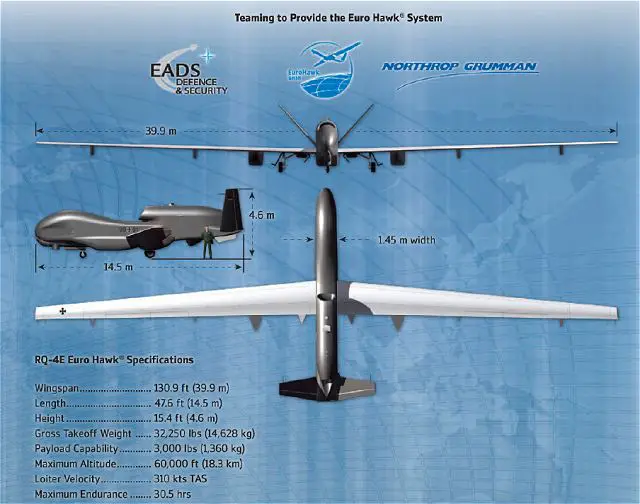

Dimensions
Length, 14,5 m; Wingspan, 39,9m; Height, 4,6 m
