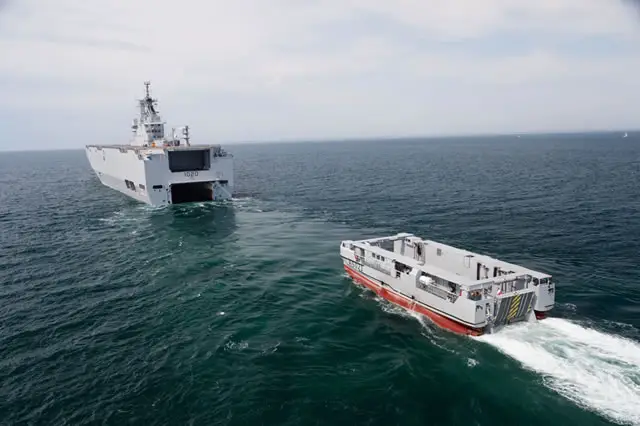

CNIM L CAT EDA R Landing Catamaran Craft French Navy top picture

Description

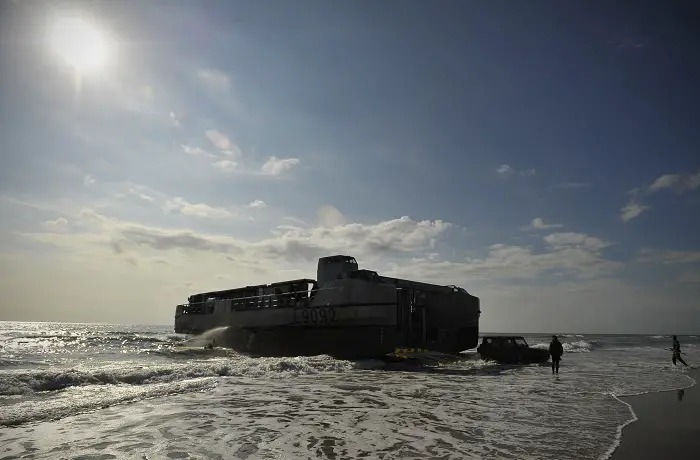

The L-CAT® Ship-to-Shore, manufactured by CNIM, a French company, is a fast and innovative landing craft. With its Ro-Ro design integrating a mobile loading platform in a catamaran hull, the L-CAT® Ship-to-Shore can unload men, armored vehicles and equipment in the absence of port facilities and in shallow water.

L-CAT® Ship-to-Shore is a sea & combat proven ship. It is in active service since 2011 in the French Navy and since 2016 in the Egyptian Navy. It proves each day its ability to support the Armed Forces on a global scale for both military and civilian assistance operations.

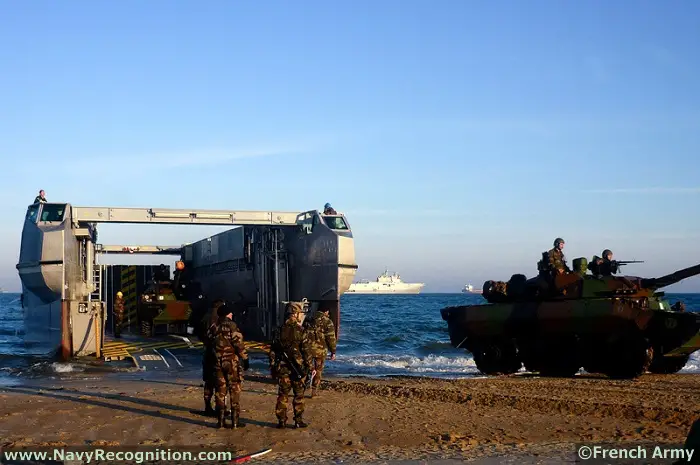

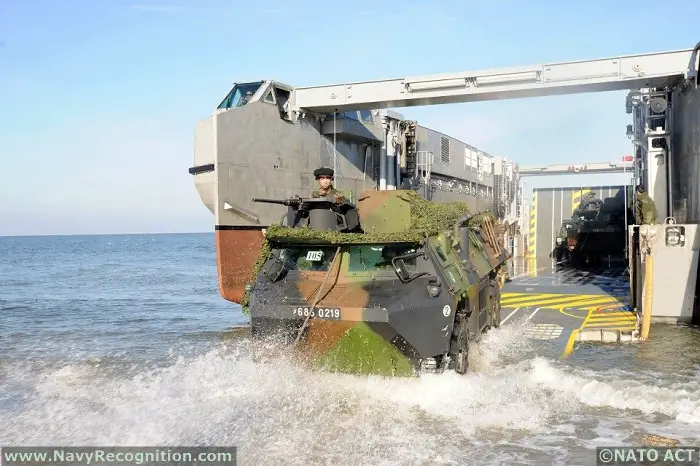

L-CAT® Ship-to-Shore can deploy either a fully motorized infantry platoon complete with its vehicles and equipment,a single heavy (M1, Leopard 2, Leclerc) Main Battle Tank, or 80 tons of military or disaster relief equipment.

Contact

CNIM Systèmes Industriels
35, rue de Bassano
75008 Paris, France
Phone: + 33 (0)1 44 31 11 53
Fax: + 33 (0)1 44 31 11 30
Click Here to send a request to CNIM


Technical Data
Back to top
Design
Measuring 30 meters long and 12.6 meters wide, the L-CAT® Ship-to-Shore offers a maximum payload capacity of 100 tons. It can reach speeds of up to 30 knots when empty, and 18 knots when loaded to maximum payload. During amphibious operations, it guarantees optimal transit speed, rapid loading and unloading of the deck, and thus a reduction of threat exposure time, while enabling a mother ship to remain a safe distance from the coastline if necessary.

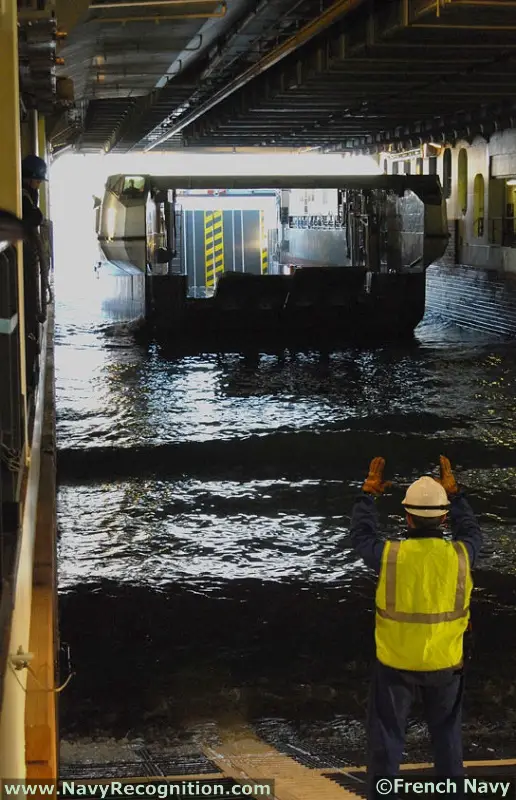

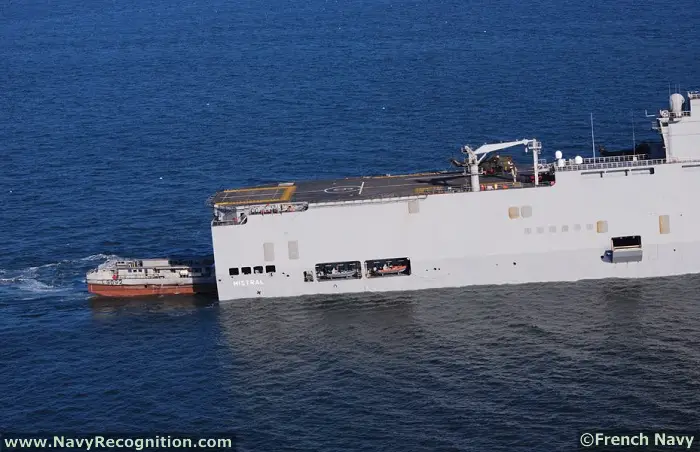

L-CAT® is a fast landing craft dockable adapted to modern LPD/LHD. With its patented lift platform, it is the only vessel able to accomplish amphibious operation with high payload in rough seas or shallow water, Chosen by the French Navy in 2009, L-CAT® is a new generation of expeditionary transport system for military purposes, humanitarian operations, and civilian logistics support.

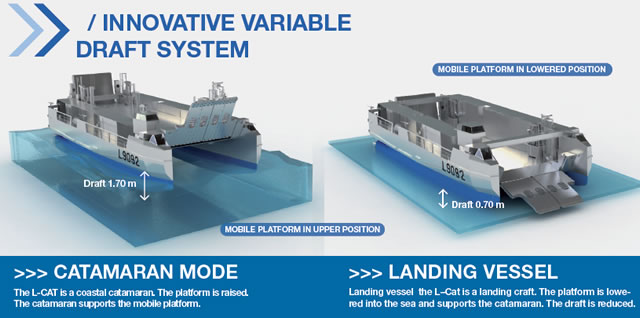

The L-CAT Ship-to-Shore offers an innovative variable draft system:

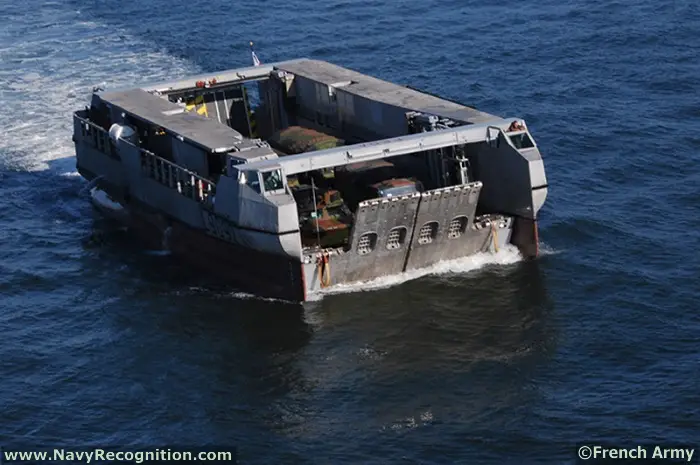

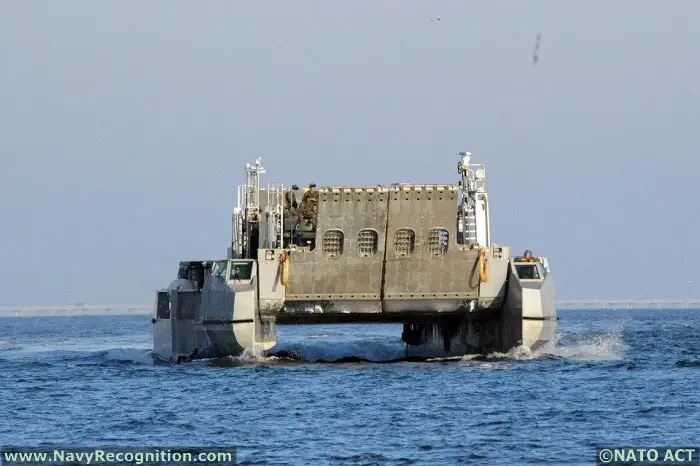

» In Catamaran mode, the L-CAT Ship-to-Shore acts as a coastal catamaran. The platform is raised. The catamaran supports the mobile platform.

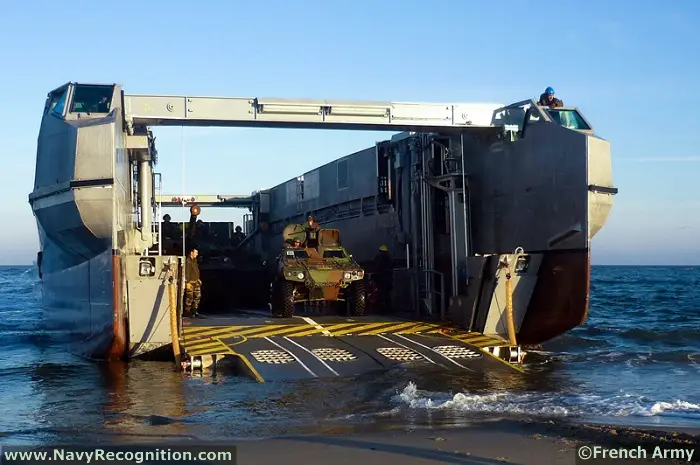

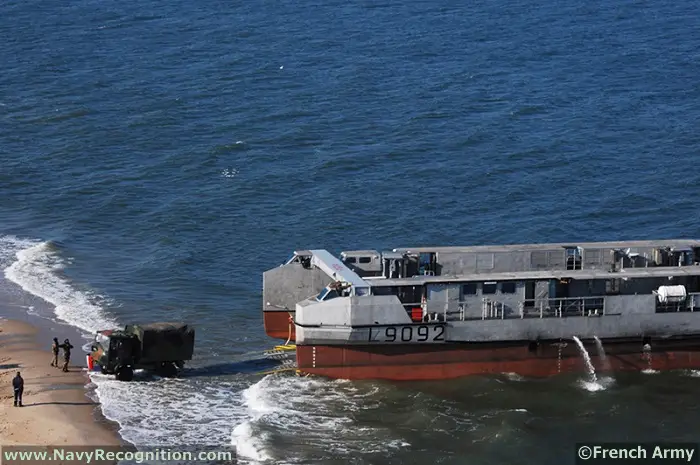

» In Landing Vessel mode, the L-CAT Ship-to-Shore acts as a landing craft. The platform is lowered into the water and supports the catamaran. The draft is reduced.

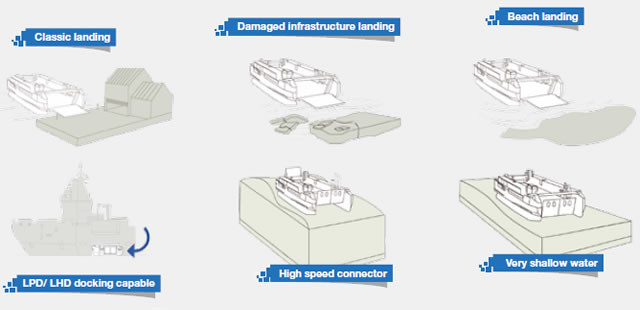

Missions
» Military:
Sea base connector for modern «over the horizon» amphibious operations

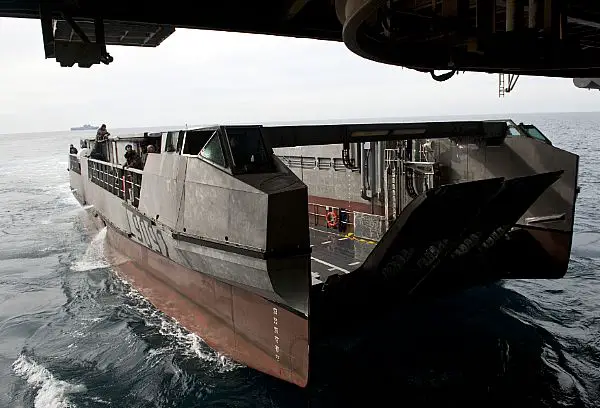

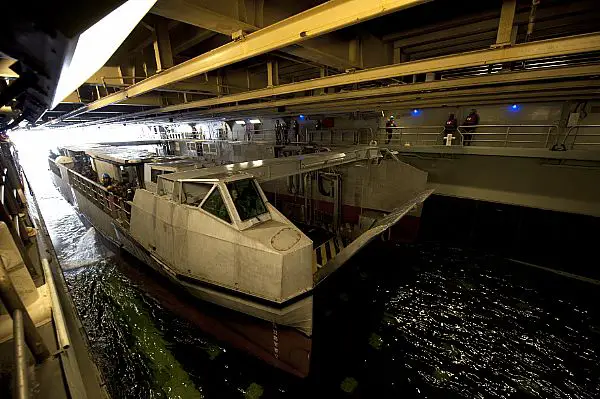

Fast landing craft dockable in any modern LPD or LHD
Twenty-four continuous hours of operational capability without refueling

» Logistics support:
Exceptional capacity, manoeuvrability, speed and endurance

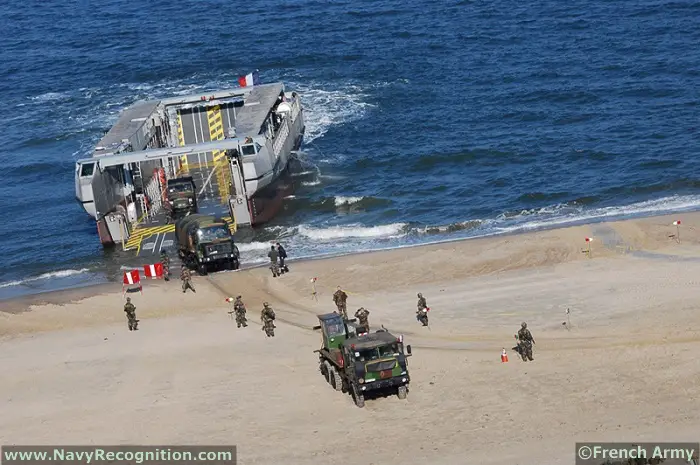

Transportation of goods and vehicles
Infrastructure independent
Payload : 80 metric tons

» Humanitarian:
Rescue and relief operations
L-CAT® is a fast landing craft dockable adapted to modern LPD/LHD. With its patented lift platform, it is the only vessel able to accomplish amphibious operation with high payload in rough seas or shallow water, Chosen by the French Navy in 2009, L-CAT® is a new generation of expeditionary transport system for military purposes, humanitarian operations, and civilian logistics support.
Advantages
L-CAT® Ship-to-Shore is a fast and innovative landing craft whose characteristics are adapted to the necessities of modern amphibious warfare :

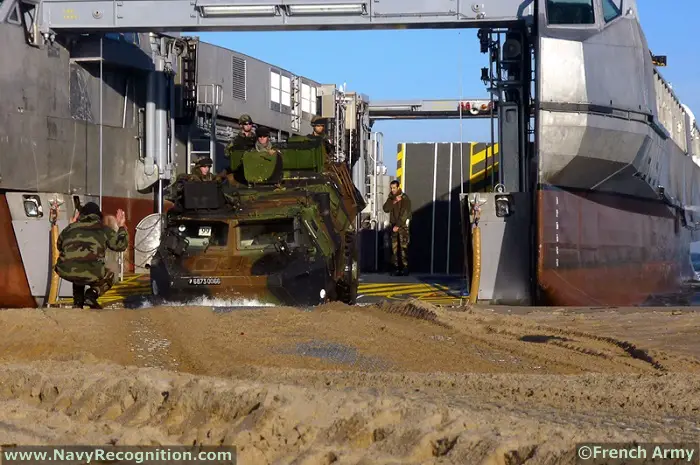

» Speed for rapid loading/unloading to and from itsbase ship and quick maneuver to the objective,allowing for a faster pace of operations.
» Autonomy for over-the-horizon maneuver,allowing the base ship to remain safely beyond the horizon without compromising operational success.
» Payload capacity to carry any relevant tacticalpackage to the objective in an efficient manner
The L- CAT® Ship-to-Shore is low-maintenance thanks to its design incorporating robust materials and technologies. Critical equipment is easy to access and commercially available off-the-shelf (COTS).
Sensors, Electronics, Weapons
Several tactical systems may be fitted according to customer requirements such as sensors, RHIB handling systems or remote weapon systems.
Accomodations and Capacities

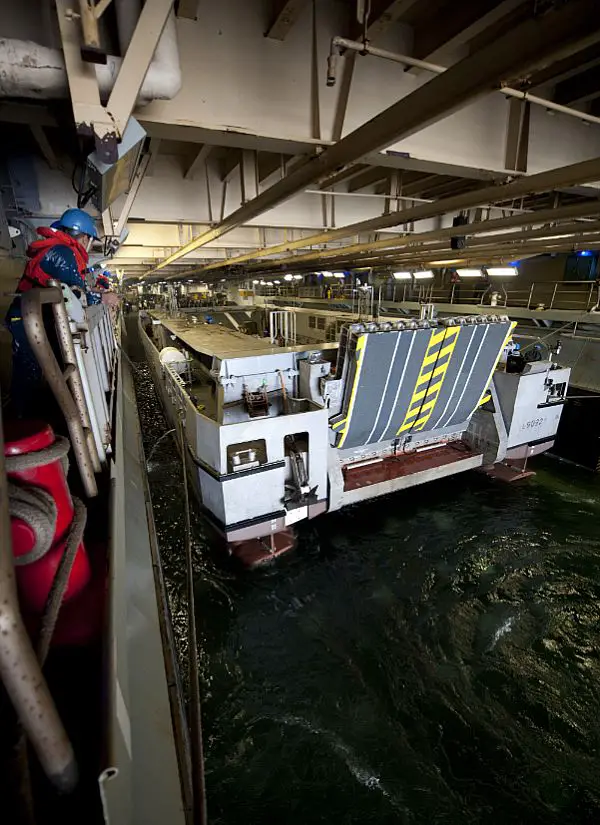

Wheelhouse: The wheelhouse is of a retractable type for docking purposes.
HVAC: 3 autonomous independent conditioners are provided in crew areas and wheelhouse.
Capacities:
Fuel: 22 m3
Fresh water: 0.4 m3
Black / Grey water: 0.5 m3
Provisions: 2 metric tons
Engines/Propulsion/Power
Engine: 4x MTU 12V 2000 M93 engines
Power per engine: 1340 kW@ 2450 rpm
Propulsion : 2x2 steering reversible MJP 650 water jets
Genset: 2 x 65 kVA
Electricity: Standard 60Hz 400 - 440V distribution.

Specifications
Type
Landing Catamaran
Crew
4 to 8 sailors.
Operators
French Navy
Performance
Maximum speeds (light ship): 30 kts
Cruise speed (loaded): 18 kts
Loeaded range: 500 nm (ligh ship: 700 nm)
Endurance: 24 hours
Draft
Lightship catamaran: 1.8 m / 5.9 ft
Lightship landing: 0.8 m / 2.5 ft
Fully loaded catamaran: 2.4 m / 7.9 ft
Fully loaded landing: 0.95 m / 3.1 ft
Beaching capacity: up to a gradient of 2%

Designer / Builder
CNIM
Displacement
N/A
Propulsion
Water jets
Dimensions

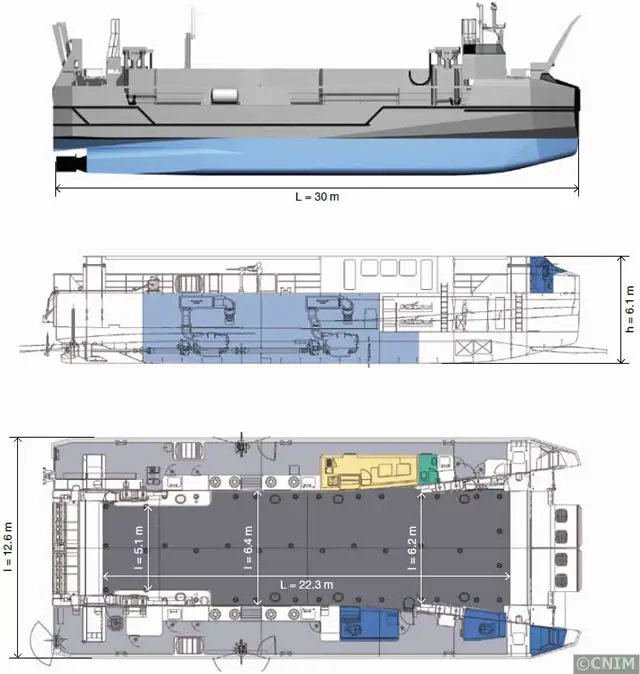

Length overall: 30 m / 98 ft
Beam overall: 12.60 m / 41.3 ft
Beam of hulls: 2.90 m / 9.5 ft
Depth (to main deck): 4 m / 13 ft

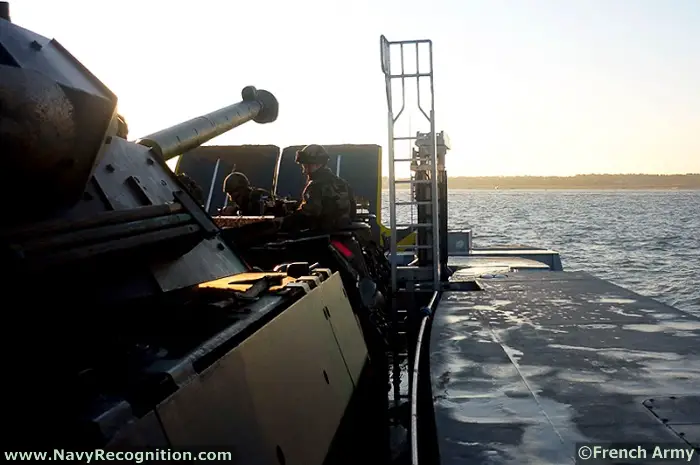

Platform
Safe working load: 80 metric tons
Clear passage height: 4.4 m / 14.4 ft
Clear passage width: 6.2 m / 21 ft
Truck / car lane: 2 x 22 m / 2 x 72 ft
Loading area: 127 m² / 1367 ft²
Maximum axle loads: 13.1 metric tons /axle

Detailed View
L-CAT® is a fast landing craft dockable adapted to modern LPD/LHD. With its patented lift platform, it is the only vessel able to accomplish amphibious operation with high payload in rough seas or shallow water, Chosen by the French Navy in 2009, L-CAT® is a new generation of expeditionary transport system for military purposes, humanitarian operations, and civilian logistics support.

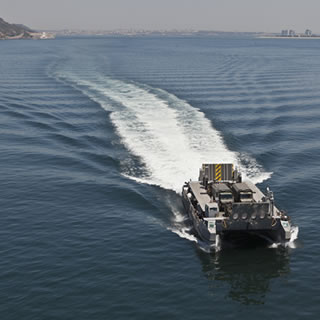

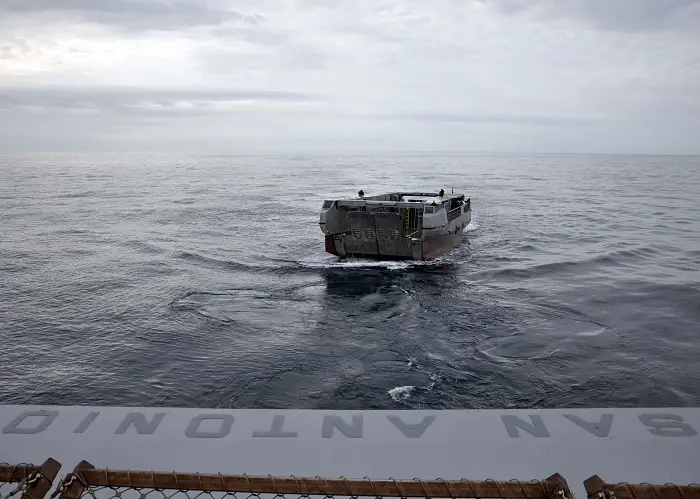

L-CAT Landing Catamaran / Landing Craft / EDA-R

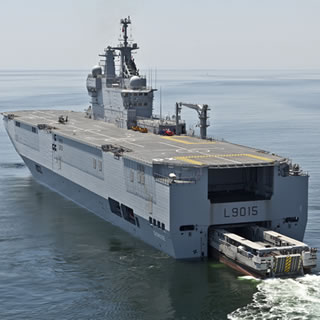

L-CAT Landing Catamaran / Landing Craft / EDA-R
