C Sword 90 Stealth Corvette
(CMN - Constructions Mecaniques de Normandie) |
|||||||||||||||||||
 |
|||||||||||||||||||
|
|
|||||||||||||||||||
|

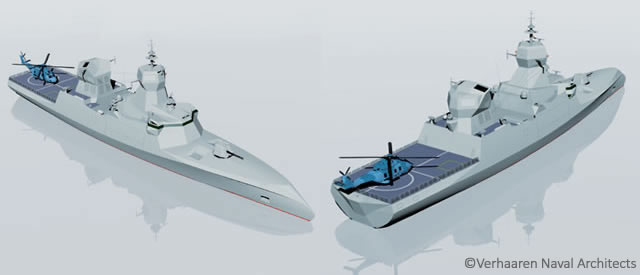

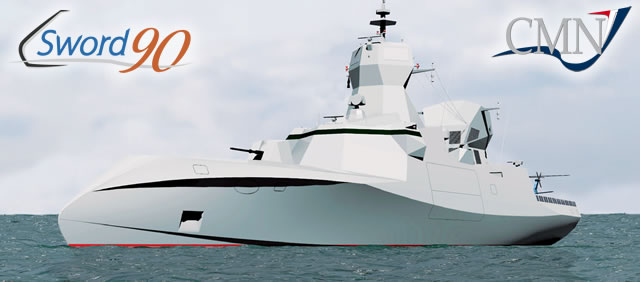

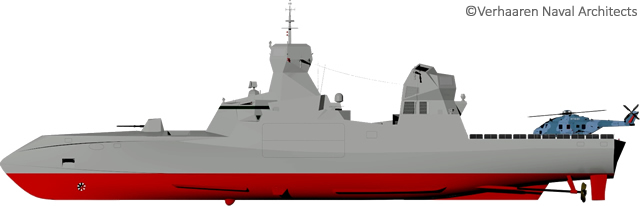

C Sword 90 is a stealthy corvette. She is designed and armed for deterrent missions and to operate in multiple theatres of operations and more especially, for littoral warfare defence operations against submarine, air and surface threats. The vessel features stealthy hull and superstructure design with sloped surface and highly integrated equipment. |
|||||||||||||||||||
|
Contact
|
|||||||||||||||||||
| CMN 51 Rue de la Bretonnière - BP 539 50105 Cherbourg Cedex - FRANCE Phone: +33 (0)2 33 88 30 00 Fax: +33 (0)2 33 88 30 00 |
|||||||||||||||||||
|
Variants
|
|||||||||||||||||||
|
- N/A
|
|||||||||||||||||||
| Technical Data | |||||||||||||||||||
 Back to top |
|||||||||||||||||||
| Performance and Competitive Features | |||||||||||||||||||
|
» A maximum speed up to 28 knots
» A minimum operating range of 5,000 NM at 14 knots or 7000 NM at 12 knots » Presence at sea increased » Optimized for easy maintenance » Inversed stem for enhanced propulsive efficiency and sea keeping » Multipurpose according to mission modules » Round bilge hull shape allows: » Operating in strong wind and rough seas » High autonomy due to reduced fuel consumption » Ready to receive additional payload through two containers » Helicopter platform Level 1 Class 3 (day & night) » UUV, UAV and SUV operations |
|||||||||||||||||||
| Missions | |||||||||||||||||||
|
» Coastal and off-shore patrolling Intelligence, Surveillance & Reconnaissance (ISR)
» Naval and law enforcement application » Integration to a naval task force for Anti-submarine and Anti-Surface Warfare » Exclusive Economic Zone (EEZ) monitoring & surveillance » Scouting around littoral tactical areas » Deterrent strike operations and stabilization operations » Support to Land Forces actions operations » 10t class helicopter operation |
|||||||||||||||||||
| Typical Mission Systems | |||||||||||||||||||
|
» One CMS with Tactical Data Link |
|||||||||||||||||||
| Main Equipment & Auxiliaries | |||||||||||||||||||
|
» Three main generating sets
» One emergency generating set » Two propulsion diesel engines » Two Controlled Pitch Propellers (CPP) |
|||||||||||||||||||
| Specifications | |||||||||||||||||||
|
|||||||||||||||||||
 |
|||||||||||||||||||
|
|||||||||||||||||||
