K130 Braunschweig Class Corvette - German Navy




The German Navy Braunschweig class corvettes (K130) were designed and built by the Class 130 Consortium led by Blohm + Voss. Five built ships have the primary task of surface surveillance, reconnaissance, surface target engagement, humanitarian missions, countering asymmetric threats and operating mainly in the littorals.
 © German Navy / Wolff Rosengarten
Description
The German Navy Braunschweig class corvettes (K130) were designed and built by the Class 130 Consortium led by Blohm + Voss. Five built ships have the primary task of surface surveillance, reconnaissance, surface target engagement, humanitarian missions, countering asymmetric threats and operating mainly in the littorals.

The platform features an x-shape RCS-reducing hull with significant IR-suppression measures with no funnels and hot spots and sea-water injection in horizontal exhaust ducts complemented by a sophisticated Integrated Monitoring and Control System (IMCS) with over 7000 measuring points.

Shiplist
Name
Hull Number
Launched
Commissioned
Braunschweig
F260
04/2006
04/2008
Magdeburg
F261
09/2006
09/2008
Erfurt
F262
03/2007
02/2013
Oldenburg
F263
06/2007
01/2013
Ludwigshafen am Rhein
F264
09/2007
03/2013

Variants
- TKMS offers a variant available for export
Technical Data
Back to top
Missions
» Littoral Patrol and surveillance
» Protection of EEZ
» Search and Rescue
» Reconnaissance
» ASUW
Aviation Facilities
K130 corvettes have spacious landing decks for a 12 ton helicopter ( Sea Kings, Lynx or NH-90) and hangar space for two S-100 Camcopter vertical take off UAVs
Weapons
Guns:
» 1x Oto Melara 76/62 Compact Rapid-Fire (main gun)
» 2x Rheinmetall MLG 27 27mm
Missiles:
» 4x SAAB RBS-15 Mk. III Anti-ship missiles (4 launchers with 1 missiles each) to be replaced with Mk. IV
» 2x Mk49 mod 3 Guided Missile Launcher (21x RIM-116 RAM block A1 missiles per launcher)
Sensors, Electronics, Decoys
  • Combat Management and Information Systems:
    Thales TACTICOS
  • Optronics:
    Thales MIRADOR
  • Radars and Sensors:
    1x TRS-3D multifunction radar
    2x Navigation radars
    UL 5000 K ESM suite
    UL 5000 K ECM suite
  • Decoys/Counter measures/Jammers:
    2x Jammers
    2x Rheinmetall MASS Decoy launchers
  • Communications:
    Link 16
    Link 11
    MSSR 2000 i IFF system
    Indra TNX-100 satcom terminal
Engines/Propulsion/Power
Propulsion type: CODAD (Combined diesel and diesel)
Diesel engines: 2x MTU 20V 1163 TB 93 (7,400 kW)
2x Shafts with variable pitch propellers

Specifications
Type
Corvette
Crew
65
Operators
German Navy (Deutsche Marine)
Performance
Speeds: 26+ kts (max)
Range: 4,000 nm @ 15 kts
Endurance: 7 days at sea (21 with ressuply)
Designer / Builder
Blohm + Voss, Lürssen-Werft , TKMS

Displacement
1,840 tons (full load)
Aviation
Helipad for medium helicopter, Hangar for VTOL UAV
Dimensions

Length: 89.12 m
Beam: 12.44 m
Maximum Draft: 3.40 m

Detailed View

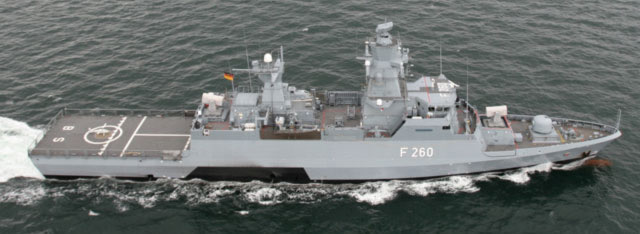

K130 Braunschweig Class Corvette - German Navy

K130 Braunschweig Class Corvette - German Navy		 K130 Braunschweig Class Corvette - German Navy

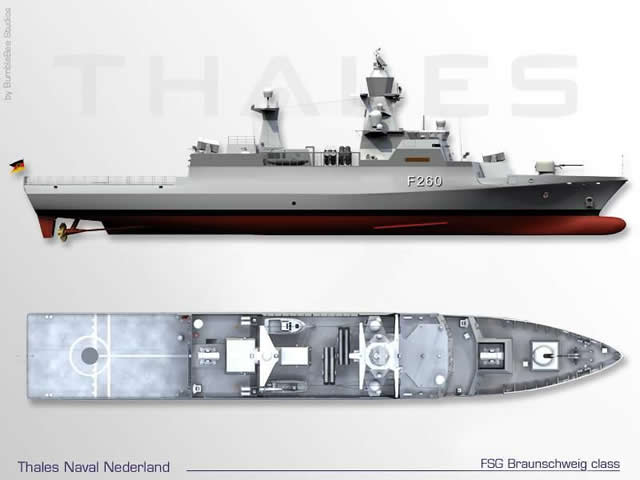

K130 Braunschweig Class Corvette - German Navy
