Admiral Gorshkov-class (Project 22350) Frigate - Russian Navy




The Admiral Gorshkov-class (Project 22350) frigate is designed to fight surface warships and submarines in coastal area as well as in the high seas and repel air attacks both independently and within a formation.

Description
The Admiral Gorshkov-class (Project 22350) frigate is designed to fight surface warships and submarines in coastal area as well as in the high seas and repel air attacks both independently and within a formation.

The first ship of the class "Admiral Gorshkov" was laid in February 2006 and launched in October 2010. There are currently 3 other frigates of the class under construction at the St Petersburg shipyard: "Fleet Admiral Kasatonov" laid down in November 2009, "Admiral Golovko" laid down in February 2012 and "Admiral of the Fleet of the Soviet Union Isakov" laid down in November 2013.

Shiplist
Name
Hull Number
Launched
Commissioned
Admiral Gorshkov
417
10/2010
-
Admiral Kasatonov
-
12/2014
-
Admiral Golovko
-
2016
-
Admiral Isakov
-
-
-
Admiral Yumashev
-
-
-

Variants
- An export variant exists, named Project 22356
Technical Data
Back to top
Missions
» Strike against land targets
» Long range patrol and surveillance
» Escort of high value assets
» ASW, AAW, ASUW, EW
Design
The Admiral Gorshkov class is designed as a multirole surface combatant to replace the soviet era Krivak classes of frigates. The design is based on the Talwar / Krivak IV Class frigate developed by Russia for the Indian Navy and incorporates some stealth features such as use of alloy and specific hull and superstructure shapes to lower radar cross section. The Project 22350 frigate is flush-decked and has a three-island superstructure, a tower mast and a steel tube.
Aviation Facilities
The Admiral Gorshkov class have spacious landing deck and hangar for a 10 to 12 ton helicopter (Ka-26 or Ka-31).
Weapons
Guns:
» 1x Amethyst/Arsenal A-192M 130mm (main gun)
» 2x Palash CIWS 30mm (2x guns each + 8x Sosna-R SAM each)
» 2x 14.5mm MTPU machine guns
Missiles:
» 16x UKSK vertical launch system cells for P-800 Oniks (SS-N-26) and Kalibr (SS-N-27) missiles
» 32x REDUT vertical launch system cells for S-400/9M96 series of long range SAM or S-350/9M100 short range SAM (quadpacked)
Torpedoes:
» 2x Quadruple 330mm torpedo launchers
Sensors, Electronics, Decoys
  • Combat Management and Information Systems:
    Sigma 22350
  • Optronics:
    2x MTK-201M
    2x 5P-520
  • Radars and Sensors:
    Furke-4 5P-27 air/surface search radar
    Poliment 5P-20K 4 faced active phased array search, tracking and guidance radar
    Monolit 34K1 surface search
    Puma 5P-10 fire control radar
    3x Pal-N navigation radars
  • Sonars:
    Zarya M hull mounted sonar
    Vinyetka towed array sonar
  • Decoys/Counter measures/Jammers:
    2x PU KT-308 decoy launchers
    8x PU KT-216 decoy launchers
    Paket-NK anti-torpedo decoys
    Prosvet-M EW suite
  • Communications:
    Vigstar Centaurus-NM/Tsentavr-NM-1 satellite communication system
Engines/Propulsion/Power
Propulsion type: CODAG (Combined diesel and gas)
Diesel engines: 2x 10D49
Gas turbines: 2x M90FR
Total power: 65,000 shp (48,000 kW)
2x shafts with fixed pitch propellers

Specifications
Type
Frigate
Crew
180 to 210
Operators
Russian Navy
Performance
Speeds: 29+ kts (max)
Range: 4,500 nm @ 14 kts
Endurance: 30 days at sea
Designer / Builder
Severnoye Design Bureau / Severnaya Verf

Displacement
4,550 tons (normal)
Aviation
Helipad and hangar for medium helicopter (Ka-27)
Dimensions

Length: 135.00 m
Beam: 16.40 m
Maximum Draft: 4.50 m

Detailed View

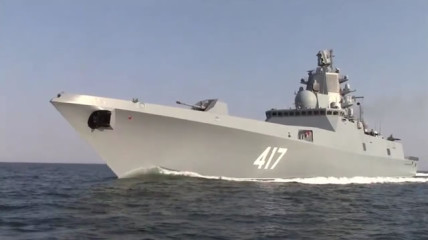

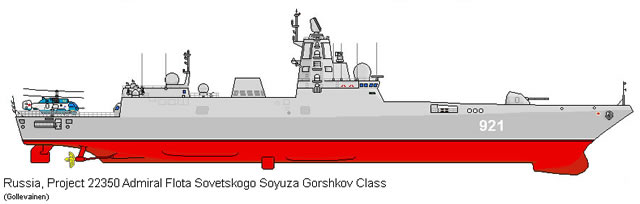

Admiral Gorshkov class (Project 22350) Frigate - Russian Navy

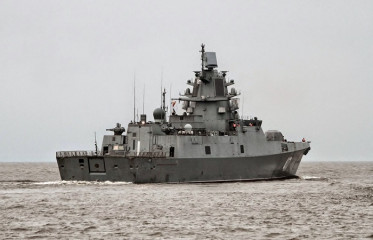

Admiral Gorshkov class (Project 22350) Frigate - Russian Navy

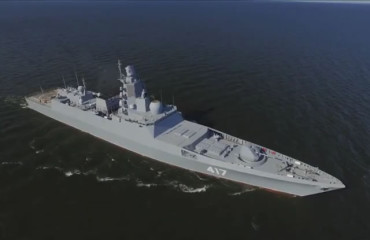

Admiral Gorshkov class (Project 22350) Frigate - Russian Navy

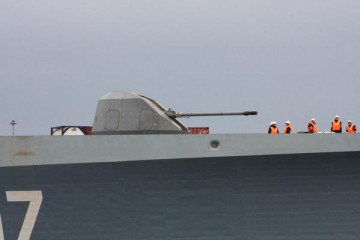

Admiral Gorshkov class (Project 22350) Frigate - Russian Navy

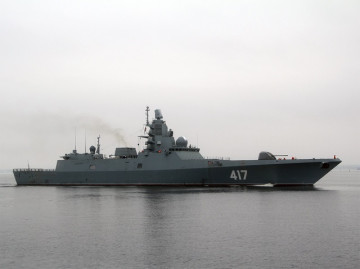

Admiral Gorshkov class (Project 22350) Frigate - Russian Navy

Pictures - Video
Back to top
