Ocean Eagle 43 Ocean Patrol



a
Ocean Eagle 43 Ocean Patrol Trimaran
(CMN - Constructions Mecaniques de Normandie)

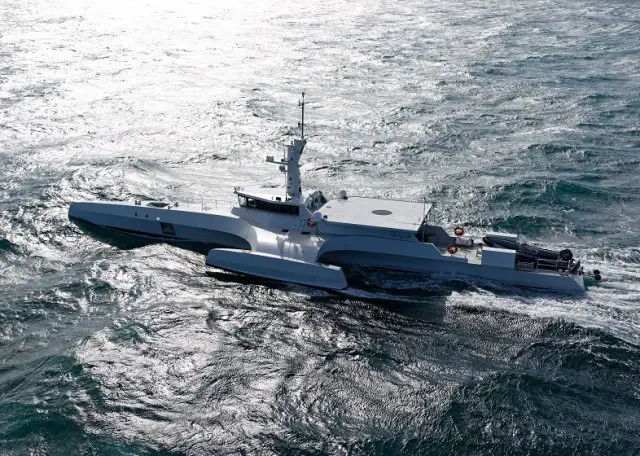

OCEAN EAGLE 43 MH is the mine hunting version of the Ocean Eagle 43. The mine warfare operating mode is based on the use of autonomous or remote operated vehicles
Description

The Sea proven OCEAN EAGLE 43 is an ocean patrol trimaran combining a very slender hull with two small floats designed to maintain the required stability. This combination reduces the fuel expenditure, increases speed and autonomy, while ensuring a good level of comfort even in moderate to rough sea conditions.


Contact

CMN
51 Rue de la Bretonnière - BP 539
50105 Cherbourg Cedex - FRANCE
Phone: +33 (0)2 33 88 30 00
Fax: +33 (0)2 33 88 30 00
This email address is being protected from spambots. You need JavaScript enabled to view it.

Variants
Technical Data
Back to top
Design
» Low Magnetic and Acoustic Signature
» Very high fuel economy compare to existing mine hunting vessels
» High reliability and straightforward maintenance
» An excellent ratio of “(surface area covered + performance) / operational costs”
Missions
» Maritime police and state action at sea
» Surveillance of exclusive economic and fishing zones
» Monitoring of marine environment
» Fight against piracy, trafficking, smuggling and illegal immigration
» Search And Rescue (SAR)
» Ocean Eagle 43 can also be adapted for special operations support as well as for anti-submarine operations
Performance and Competitive Features
» A high speed of 30 knots combined with a very low fuel consumption compared with usual patrol vessels for equivalent cruising speeds
» Large modularity adapted to the full range of maritime surveillance tasks
» High reliability and straightforward maintenance
» An excellent ratio of “(surface area covered + performance) / operational costs”
» UAV capabilities increasing largely the line of sight
Typical Mission Systems
» One Command and Control system
» One 20 mm remote-controlled weapon station
» One light weight SAM or SSM system
» One electro-optical observation system
» Two 12.7 mm side guns
» One radio direction finder
» One Satcom system for data link
» One UAV (rotary or catapult) (NATO class I & II)
Main Equipment & Auxiliaries
» Four diesel engines
» Two Controlled Pitch Propellers (CPP)
» One 6.50 m RHIB
» Two main generators
Engines/Propulsion
n/a

Specifications
Type
Patrol Vessel
Crew
13
Operators
-
Performance
Speed: 30 kts
Range: 3,000 nm @ 18 kts/5,000 nm @ 11 kts
Endurance: n/a
Fuel
21 t
Fresh water
2 t
Hull & Superstructure
Composite Materials

Dimensions

Length: 43.60 m
Bream: 15.20 m
Maximum Draught: 1.60 m

Detailed View

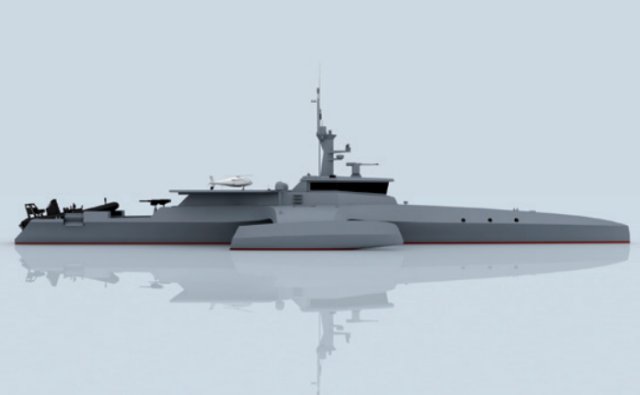

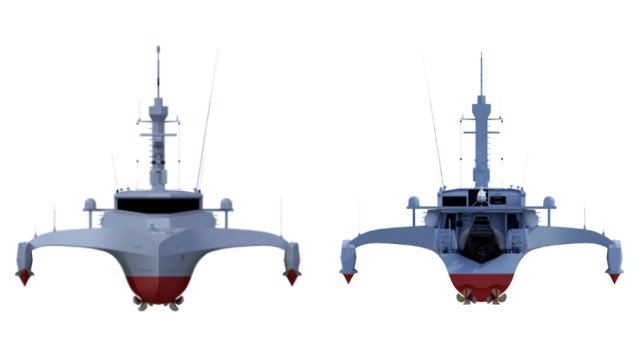

OCEAN EAGLE 43 MH is the mine hunting version of the Ocean Eagle 43.
OCEAN EAGLE 43 MH is the mine hunting version of the Ocean Eagle 43.
