Hurricane ZH935 MACH II



a
Zodiac Hurricane ZH935 MACH II
Special Forces RIB - Zodiac Milpro




The Zodiac Hurricane MACH II (Military Air Channeled Hull II) was created by Zodiac Milpro to offer a high speed fully versatile boat that is at ease in all activities and all sea conditions. The patented MACH hull design reduces resistance and enhances directional stability for increased speed, fuel economy and safety.
Description
The Zodiac Hurricane MACH II (Military Air Channeled Hull II) was created by Zodiac Milpro to offer a high speed fully versatile boat that is at ease in all activities and all sea conditions. The patented MACH hull design reduces resistance and enhances directional stability for increased speed, fuel economy and safety. When combined with either an inflatable or DuraRIB foam collar, these features provide the superior seaworthiness, shock mitigation, stability and maneuverability required to operate reliably and effectively in extreme conditions.

The exceptional speed and performance of the ZH 935 arises from Zodiac’s unique patented MACH II step hull design. The air channelled hull reduces water resistance while its deep V configuration combines with it to provide a low centre of gravity. These features result in increased speed and directional stability together with greater manoeuverability and improved fuel economy.

The ZH 935 is currently used by the French Navy onboard L'Adroit OPV. It is launched and recovered by a stern ramp system.

Variants

- ZH-630 CDO IO
- ZH-733 IO
- ZH-753 OB
- ZH-920 CDO OB
- ZH-920 OB / CABIN
- ZH-933 SAR IO
- ZH-933 CDO OB
- ZH-1010 CDO IO

- ZH-1110 CDO IO
- ZH-1110 IO / CABIN

Technical Data
Back to top
Missions
» Special Operations
» Reconnaissance
» Intelligence
» Search & Rescue
» Boarding party projection
Design
Hull and deck:
» Aluminium MACH II Hull (stepped, air channel hull) & deck
» Self draining deck with non skid adhesive, grey or black
Collar:
» Inflatable Zodiac Hybride Durarib foam collar (patent pending)
» Removable collar with slide on attachment
Console :
» 2 person console with windscreen
» Handrails side and front
Seating:
» 2 pilot/navigator shock mitigation seats
» 6 shock mitigation seats
Accessories
Stainless steel bow eye and two heavy-duty stainless steel transom tie-downs
Mooring/towing – two transom cleats aft and bow post
Foldable antenna/light mast with radar platform
Foldable aft gate

The French Navy fitted a SAGEM Vigy Observer at the top of the mast to help improve contact detection and identification.
Propulsion
Twin outdrive diesel pre-rig with gauges and controls
Hydraulic steering

Specifications
Type
Special Forces RIB
Crew
2 (pilot, navigator) + 8 - Crew Capacity: 16 people
Operators
French Navy
Performance
Speed: 55 kts (max)
Range: 200+ nm @ 40 kts
Max Rated Power: 900 hp
Designer / Builder
Zodiac Milpro

Weight
Maximum: 7500 kg - Lightship Weight: 4500 kg
Payload
Crew, Gear & Fuel : 3000 kg
Dimensions

Length: 9.39 m
Beam: 3.10 m
Maximum Draft: n/a

Detailed View

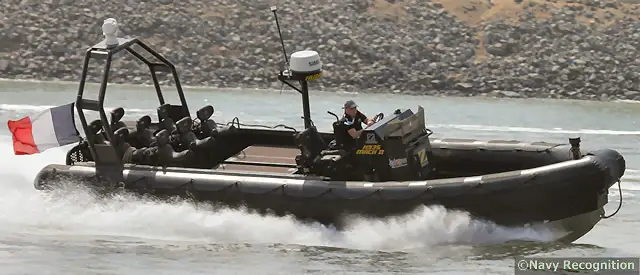

The Zodiac Hurricane MACH II (Military Air Channeled Hull II) was created by Zodiac Milpro to offer a high speed fully versatile boat that is at ease in all activities and all sea conditions. The patented MACH hull design reduces resistance and enhances directional stability for increased speed, fuel economy and safety.

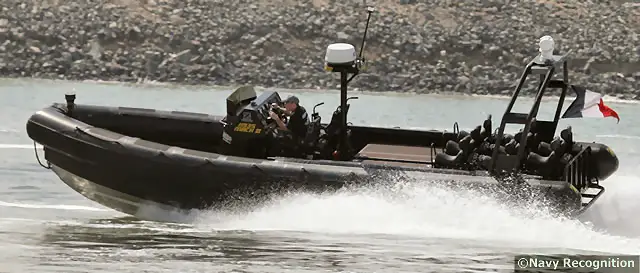

The Zodiac Hurricane MACH II (Military Air Channeled Hull II) was created by Zodiac Milpro to offer a high speed fully versatile boat that is at ease in all activities and all sea conditions. The patented MACH hull design reduces resistance and enhances directional stability for increased speed, fuel economy and safety.

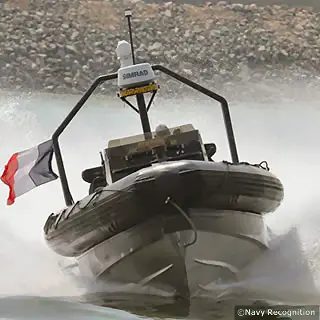

The Zodiac Hurricane MACH II (Military Air Channeled Hull II) was created by Zodiac Milpro to offer a high speed fully versatile boat that is at ease in all activities and all sea conditions. The patented MACH hull design reduces resistance and enhances directional stability for increased speed, fuel economy and safety.

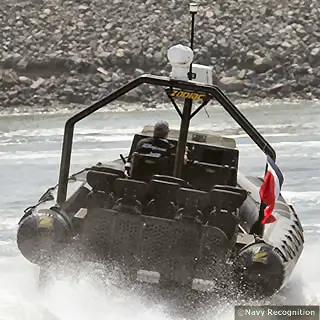

The Zodiac Hurricane MACH II (Military Air Channeled Hull II) was created by Zodiac Milpro to offer a high speed fully versatile boat that is at ease in all activities and all sea conditions. The patented MACH hull design reduces resistance and enhances directional stability for increased speed, fuel economy and safety.
