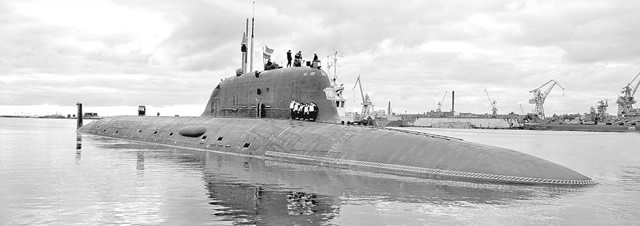

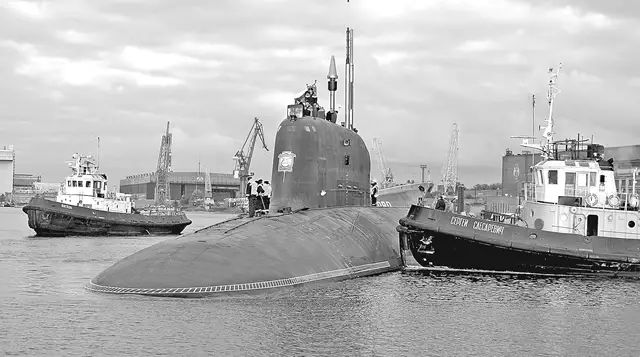

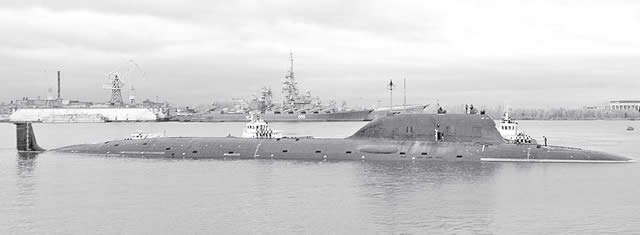

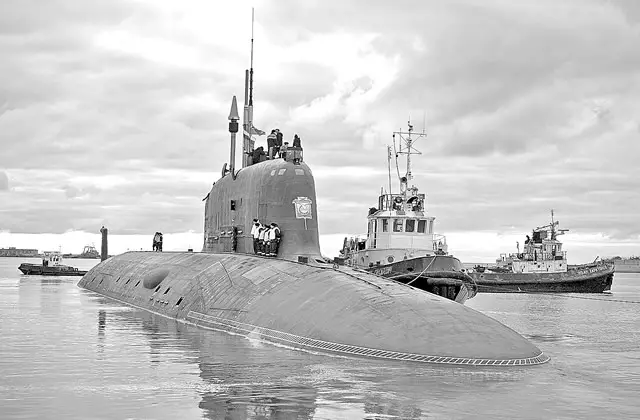

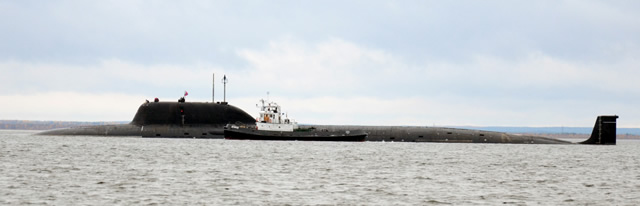

Project 885/Yasen class/Graney/Severodvinsk SSN
|
| |
| |
| |
|
|
| |
|
|
|
|
|
|
|
The Yasen class, developed by the St. Petersburg Malakhit design bureau and built by Sevmash shipyard, is a fourth-generation multirole attack nuclear-powered submarine.
The head of class, Severodvinsk took 17 years to build and the sub was officially launched in June 2010.
Yasen class nuclear submarines are designed to launch a variety of long-range cruise missiles (up to 3,100 miles or 5,000 km), with conventional or nuclear warheads, and effectively engage submarines, surface warships and land-based targets.The submarine's armament includes 24 cruise missiles and eight torpedo launchers, as well as mines and anti-ship missiles.
The second vessel of the Graney class, the Kazan, is being built at Sevmash shipyard while the construction of the third submarine will begin by the end of 2011.
The Russian Navy plans to receive up to 10 Graney class subs by 2020.
After numerous delays due to Financing Problems the Severodvinsk (head of class) is expected to enter service with the Russian Navy by the end of 2011.
The Russian Navy announced that they intend to buy at least 10 of these fourth-generation multirole attack nuclear-powered submarine to gradualy replace both Oscar and Akula submarines.
|
| |
| Shiplist |
|
Name
|
Project
|
Commissioned
|
Hull Number
|
|
Severodvinsk
|
885
|
Late 2011
|
K-329
|
|
Kazan
|
885-M
|
TBD
|
K-561
|
|
Novosibirsk
|
885-M
|
TBD
|
K-573
|
|
Krasnoyarsk
|
885-M
|
TBD
|
TBD
|
|
Arhangelsk
|
885-M
|
TBD
|
TBD
|
|
TBD
|
885-M
|
TBD
|
TBD
|
|
TBD
|
885-M
|
TBD
|
TBD
|
|
TBD
|
885-M
|
TBD
|
TBD
|
|
| |
| Variants: |
Project 885: Original variant used for Severodvinsk, head of class.
Project 885-M: Improved version of Project 885, All Yasen class submarines from second ship of the class (Kazan) will be based on this version.
|
| |
| Technical Data |
 Back to top |
| Design |
|
Hull made of low-magnetic steel.
8 VLS tubes (vertical launch system).

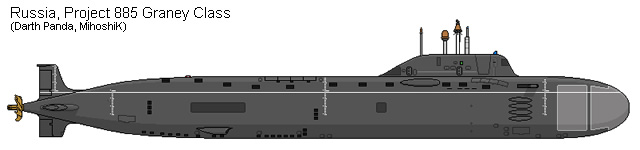

The Severodvinsk submarin has a single-shaft 1.5-hulled configuration. The inner hull is made from high strength steel. Provision is made for a releasable chamber for the whole crew. Arranged in the central portion of the hull is a missile compartment with 8 universal silos.
|
| Weapons (To be confirmed) |
|
|
| Sensors, Electronics and Decoys |
| The submarine is fitted with a new spherical sonar having a high search potential designated "Irytysh". |
| Propulsion |
| Pressurized water reactor OK-650V, 1 shaft, 1 screw |
| |
| Specifications |
|
|
|
Type
|
|
Multirole Nuclear-Powered Attack Submarine
|
|
Crew
|
|
90 (including 32 officers)
|
|
Operators
|
|
Russian Navy
|
|
Performance
|
|
Top Speed: 31+ kts
Range: N/A
Endurance: 100 days
|
|
|
Displacement submerged
|
|
11,800 tons submerged (8,600 surfaced)
|
|
Depth
|
|
600 meters
|
|
Engines
|
|
Pressurized water reactor OK-650V
|
|
Dimensions
|
|
Length: 119 m
Breadth: 15 m
Maximum Draft: 9.4 m
|
|
|
| |
|
|
|
|
|
|
| |
|
|
| Pictures: JSC PO Sevmash |
|
|
