SMART-S Mk2 Medium to Long Range (S-Band) Solid State Surveillance Radar
|
||||||||||||||
|
||||||||||||||

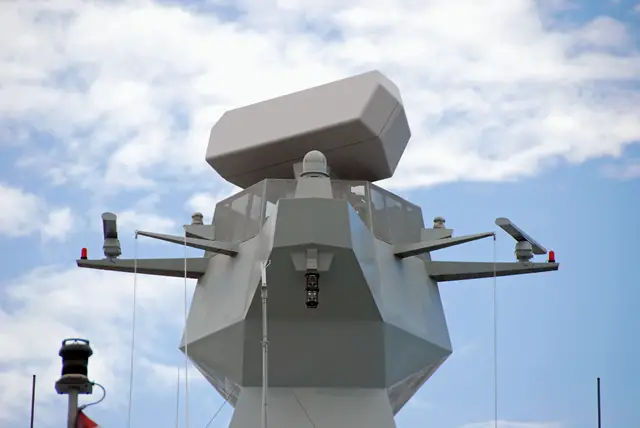

SMART-S Mk2, the newest Thales Naval 3D multibeam radar, is optimized for medium-to-long range air and surface surveillance and target designation. This state-of-the-art radar is an excellent performer in complex littoral environments with their mix of sea, land, rain, thunderstorms and targets such as multiple small surface ships, helicopters and anti-ship missiles. |
||||||||||||||
Technical Data | ||||||||||||||
Back to top | ||||||||||||||
Technology and design | ||||||||||||||
Through the use of Doppler processing SMART-S Mk2 can detect even the stealthiest of targets in a cluttered
environment by measuring radial speed directly. As a multibeam radar SMART-S Mk2 offers the long dwell time per target required for good radial speed measurements. SMART-S Mk2 is designed for ease of maintenance and can support maintenance free missions. This is achieved by reducing single points of failures (graceful degradation), high MTBF per component, low MTTR and solidstate transmit modules. SMART-S Mk2 is easy to install on board. The antenna uses electronic stabilization. The solid state transmit modules are integrated in the antenna meaning no separate transmitter cabinet and waveguide are required. Foot print reduction is achieved through the use of powerful processing boards housed in a single processing cabinet. The total system weight is comparable to that of 3D G-band radars! |
||||||||||||||
Missions | ||||||||||||||
SMART-S Mk2 is an optimal sensor for target indication to a fire control tracking system. By providing 3D tracks the radar supports correct classification and rapid acquisition. The elevation accuracy is high (even in case of multipath by using receive beams below the horizon) and suited to directly launch fire and forget missiles. SMART-S Mk2 is well suited for detection of helicopters due to dedicated rotor hub detection capabilities. For guidance of helicopters and UAVs it can use very short pulses, providing a short minimum range.
Functional Aspects: • 3D Air Surveillance with Fast Target alerts • Surface Surveillance • Surface Gun Fire Support • Jammer Surveillance • IFF Interrogation Support |
||||||||||||||
Features | ||||||||||||||
» Excellent performance in the Littoral environment
» Supports full performance of ESSM » Solid State Transmitter integrated in the Antenna » Low antenna sidelobes » Very small below deck footprint; just 2 small sized cabinets » Easily integrated with many CMS systems, both Thales and non-Thales » Short-range capabilities for surface detection, helicopter and UAV control » IFF antenna and optional integration with IFF system. » Fully automatic detection and tracking » Dedicated ECCM techniques » Two operating modes: medium range up to 150 km at 27 RPM and long range up to 250 km at 13.5 RPM |
||||||||||||||
Specifications | ||||||||||||||
|
||||||||||||||
Processing
|
||||||||||||||
Digital beamforming, resulting in 12 simultaneous receive beams
Multipath suppression using a beam under the horizon Digital pulse compression Doppler processing using FIR filters, radial speed determination & automatic thresholding of clutter & jamming Advanced CFAR techniques Multiple hypothesis tracking based on multiple target models Classification support |
||||||||||||||
|
||||||||||||||
|
||||||||||||||
