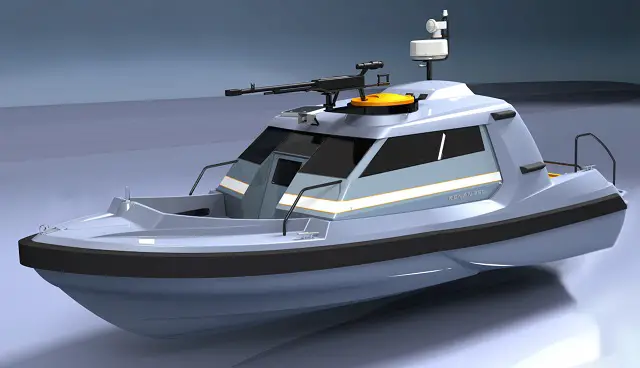

The Konan 750BR crew compartment is armored against
bullets. The ship is designed as a self-righting boat. It can be fitted
with a manned 12.7 mm machine gun.
General Specifications of the ship:
Length overall, m (with motor) 8.0
Body length 7.5 m
Maximum width, 2.7 m
Displacement hull maximum, 0.6 m
Power outboard max., Hp 1x290
The speed at maximum power, knots. 40-43
The angle of deadrise at the transom, hail. 22
The angle of deadrise amidships, hail. 25
Maximum capacity, pers. 6
The maximum number of seats, pcs. 5
Unladen weight, kg 2400
Load capacity, kg 1000
Weight, kg 3400
The volume of fuel, 400 liters
Cruising range with the Max speed, 130 miles
Cruising range with Cruies speed. 22 knots., 250 miles
|
