Japan MHI launched the Second 25DD/Asahi-class ASW Destroyer "Shiranui" for JMSDF
|
|||
|
Mitsubishi Heavy Industries (MHI) Nagasaki shipyard held the launch ceremony for the second (and last) 25DD/Asahi-class ASW Destroyer. The vessel, named "Shiranui" (hull number DD-120) will join first ship of the class "Asahi" in Japan Maritime Self Defense Force (JMSDF) service. Asahi started sea trials in July 2017.
|
|||
|
|
|||

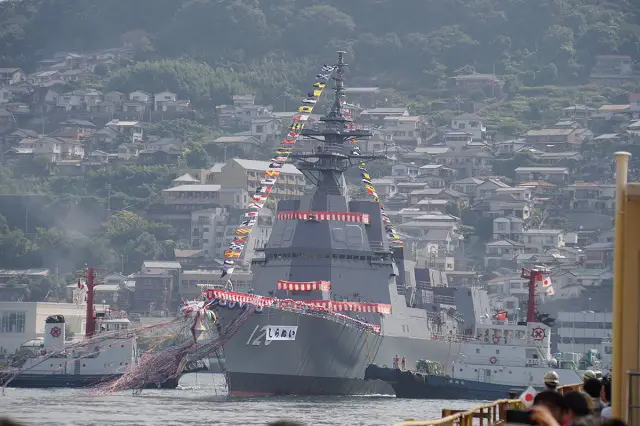

 25DD-class ASW Destroyer Shiranui (hull number 120) was launched during a ceremony at MHI Nagasaki shipyard. Picture via ship spotter colleague @toma_san |
|||
|
|
|||
|
The Asahi-class is an anti-submarine warfare (ASW) class of destroyers based on the existing Akizuki-class (19DD) of destroyers which is more focused on AAW. The vessel displaces over 5,000 tons for a length of 151 meters, a width of 18.3 meters and a draft of 5.4 meters.
|
|
|
|||

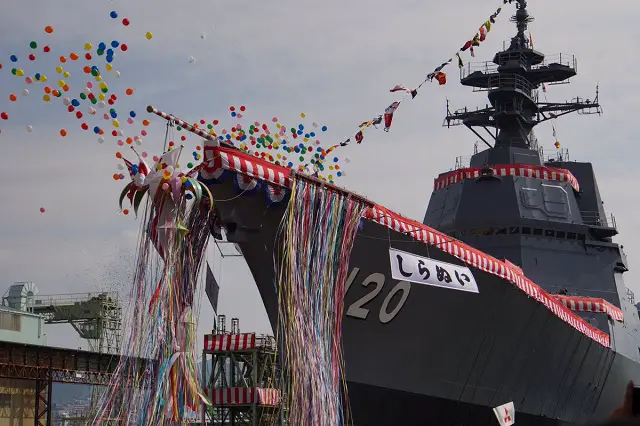

 25DD-class ASW Destroyer Shiranui (hull number 120) was launched during a ceremony at MHI Nagasaki shipyard. Picture via ship spotter colleague @tamotaro |
|||
|
|
|||
|
The Asahi-class is uniquely fitted with a COGLAG (combined gas turbine electric and gas turbine) propulsion system, with two GE LM2500IEC turbine engines connected to two 2.5 MW/3,400 hp electric motors. This is a first for a JMSDF surface combatant. The benefit of the COGLAG configuration is is that it provides sufficient power at greater efficiency for current and future weapon systems.
Another key feature that makes the Asahi-class unique: its sensor suite. To our knowledge, Asahi is Japan's first warship (and the world's second after the German F125 and its TRS-4D) to be fitted with an operational GaN-AESA (gallium nitride - active electronically scanned array) Multifunction Radar. Asahi's radar is based on the FCS-3A AESA radar system but uses GaN technology for improved performances. FCS-3A comes with 4x C-band and 4x X-band arrays (two forward and two aft for each). The sonar suite consists in the OQQ-24 hull mounted sonar and OQR-4 variable depth sonar. In terms of weapon systems, the Asahi-class is fitted with 32x Mk41 VLS cells forward for ESSM SAM and Type 07 VL-ASROC, 8x Type 90 anti-ship missile launchers and 2x triple torpedo launchers. Future weapon systems "may" include the XSSM anti-ship missile, the XRIM-4 surface to air missile (in development in Japan to replace ESSM, it features an AESA seeker), a long range naval gun ammunition currently under research and the new Type 12 light weight torpedo (project G-RX 5). |
|||
|
|
|||

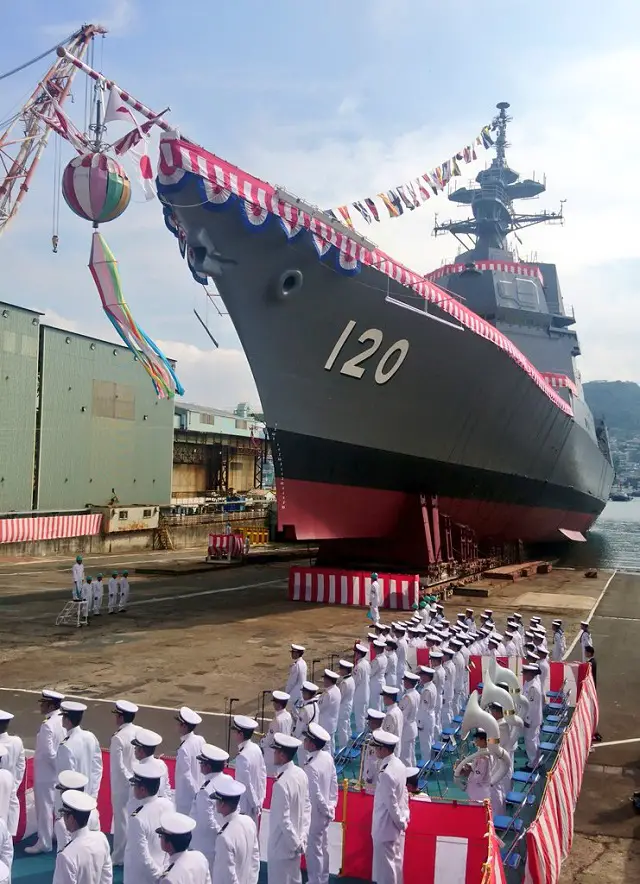

 25DD-class ASW Destroyer Shiranui (hull number 120) was launched during a ceremony at MHI Nagasaki shipyard. Picture via ship spotter colleague @toma_san |
|||
|
|
|||
|
From a shipbuilding perspective, the 25DD-class was designed with a focus on reducing acquisition cost while ensuring future developability and growth. For this reason, the hull form and vessel design is similar to 19DD-class.
Commissioning of Asahi with the JMSDF is expected for March 2018. It should be home ported at Sasebo naval base and be affiliated to the Escort Flotilla 2 / Escort Squadron 2 of the JMSDF. The second vessel of the class is set to be launched in October this year. Following the two Asahi-class (25DD) destroyers, Japan is set to built the 33DD destroyers designed by Kawasaki Heavy Industries. The lead ship of 33DD will be budgeted in FY2021 and launched in 2024. It is set to be slightly heavier than 25DD with an integrated mast and feature a CFRP hull. Thank you to the following sources: @tamotaro and @tam_san |
|||
