Harbin's new Z-20J shipborne helicopter strengthens anti-submarine and patrol capacities of Chinese Navy.


On November 8, 2024, the People’s Liberation Army Navy's (PLAN) Z-20J shipborne helicopter made its first public appearance by landing at Zhuhai International Airport as part of the Zhuhai Air Show. This variant of the Z-20 helicopter, a medium utility aircraft produced by the Harbin Aircraft Industry Group, is expected to perform a flight demonstration during the airshow.
Follow Army Recognition on Google News at this link

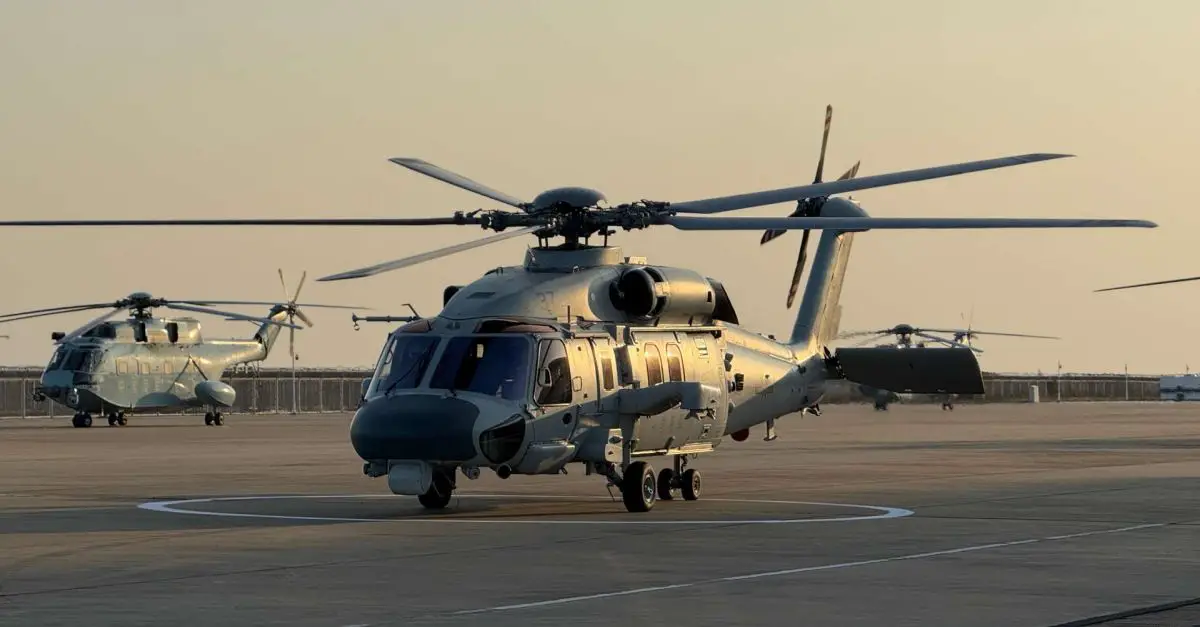

Known for its operational debut a month prior, the Z-20J’s appearance at Zhuhai marks the first time this specific naval variant has been publicly displayed. (Picture source: Weibo)


The Z-20 is a 10-ton general-purpose helicopter first flown on December 23, 2013, and officially entered service around 2019. It is manufactured by the Harbin Aircraft Industry Group with Deng Jinghui as the chief designer. The Z-20 has an estimated production that exceeds 80 units by December 2020, with projections suggesting over 3,000 units in total production. The Z-20 fulfills various roles in the Chinese military, operating within the army, navy, air force, and armed police. Designed for high-altitude performance, the Z-20 addresses a longstanding need for an all-terrain helicopter capable of operating in mountainous areas, initially identified by the People’s Liberation Army Air Force (PLAAF) as early as the 1980s.

The Z-20 was developed in response to restricted access to U.S.-made S-70 Black Hawk helicopters following political events in 1989, which curtailed further sales of this model. The initial Z-20 model was observed during testing at the Harbin Aircraft Industry Group facility in 2013, with early production models joining the Chinese armed forces in 2019. The helicopter made a notable appearance at the military parade marking the 70th anniversary of the People’s Republic of China on October 1, 2019. A naval version, painted in gray and designated as the Z-20J, was observed at the China International Helicopter Expo that same year.

Structurally, the Z-20 uses a five-rotor design, distinct from the four-rotor S-70 Black Hawk, and incorporates a fly-by-wire control system. It employs composite materials and is equipped with radar warning receivers, missile approach warning systems, and chaff launchers for defensive purposes. The Z-20’s rotor blades utilize electric heating anti-icing technology, an improvement for operating in cold or high-altitude environments. The helicopter’s T800 carbon fiber beams and other locally produced components support its domestically manufactured design. This model is powered by the WZ-10 turboshaft engine, providing 1,600 kW, which allows it to operate at altitudes above 4,000 meters. Its cockpit design features five multi-function LCD displays and a laser anti-collision radar installed under the nose, with newly designed, shock-absorbing seats inside.

The Z-20 also includes a sea-based model, the Z-20F, intended for anti-submarine warfare (ASW). The Z-20F’s equipment includes a sea search radar, magnetic anomaly detector, and sonar capabilities. For armament, the Z-20F can carry sonar buoys, light torpedoes, and anti-ship missiles, with a reported maximum external load of 4 tons and a flight duration of 5 hours. The Z-20F version incorporates fiber-optic avionics and a radio-frequency communication system, differentiating it from the land-based version by features that include a notch in its stabilizer and foldable main rotor blades for storage on naval vessels.

Other notable variants include the Z-20K for the PLAAF, which is optimized for night flights with additional radar and missile warning systems, and the Z-20KS, a search and rescue variant equipped with high-power xenon searchlights, winches, and thermal imaging. The Z-20KA, an assault model, supports anti-tank missiles and can transport special forces. Each variant adapts to specific operational requirements, with models spanning from logistics and patrol functions to transport and armed missions.

The Z-20 shows notable structural and design differences from the Black Hawk, including a more angular tail-fuselage joint, a five-rotor configuration, and a tail-mounted fairing likely accommodating satellite navigation systems. With enhanced payload and endurance, the Z-20 has been configured to carry heavier loads and sustain operations at high altitudes.

Anti-submarine capabilities are significant for China in protecting its sovereignty, securing key maritime trade routes, improving naval combat capacity, and addressing regional security concerns amid rising submarine activity from neighboring countries. These capabilities support China’s monitoring and response to underwater threats, ensuring the safety of extensive maritime areas and sustaining economic interests tied to maritime trade. Recent advancements, like the Z-20J naval helicopter shown at the Zhuhai Airshow in 2024, illustrate China’s ongoing development in naval aviation, aligning with its objectives for military modernization and enhancing its anti-submarine monitoring and response capabilities.
