i-Provide provides heavy duty window regulators for armoured vehicles
i-Provide’s heavy-duty window regulator features impressive performance, user-friendly installation and easily adjustable windowpane end positions. But one of its most striking characteristics is a highly compact footprint. That gives vehicle engineers the space they need to fit armor panels into the cramped interiors of doors.
Follow Army Recognition on Google News at this link

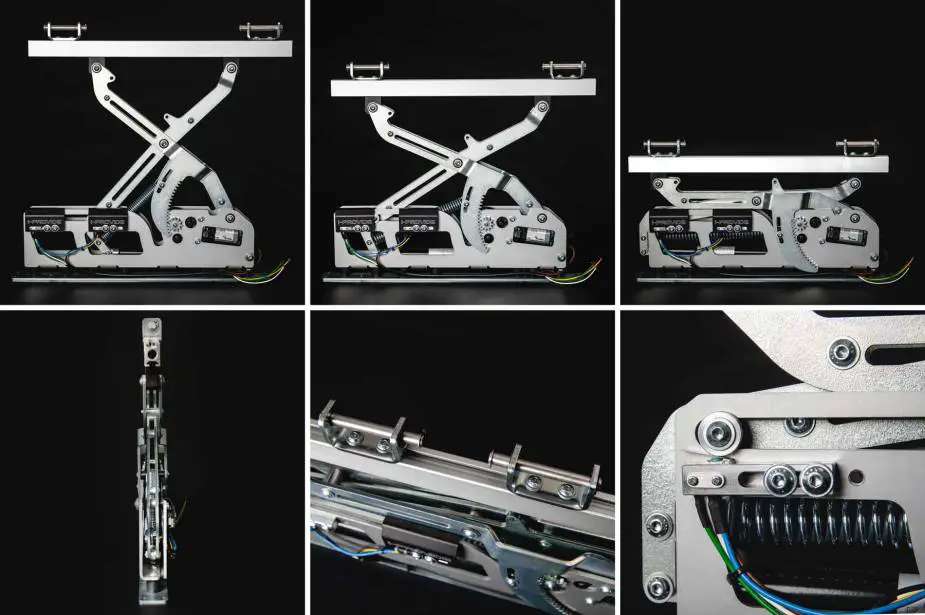

i-Provide’s heavy-duty window regulator features impressive performance, user-friendly installation and easily adjustable windowpane end positions (Picture source: i-Provide)
i-Provide’s window regulator is designed for rugged use, reliable operation and easy modification if desired. Customers thus receive a premium product tailored to their exact needs. I-Provide can provide 3D models in a neutral data format if needed to verify the installation situation.
• Fits virtually all common vehicles
• Small footprint: 54 mm wide at the widest point
• Can lift up to 80 kg
• Window glass opening width up to 200 mm
• Rapid window closing time <=2.5 s for 200 mm
• Easily adjustable shut-off at limit, without extra limit switches
• Connects directly. For 12 – 24 V system voltage
• Rugged, reliable construction. Thoroughly tried and tested
i-Provide supplies world-leading providers of armored vehicles with premium German-engineered products. In addition to a catalog of standard products, i-Provide specializes in crafting custom solutions to high quality and reliability standards. Since the company “excels at adaptability”, it identifies deeply with the customer’s needs and can present solutions based on profound industry expertise and implement them quickly, accurately and professionally for prototypes and mass production.
(Picture source: i-Provide)

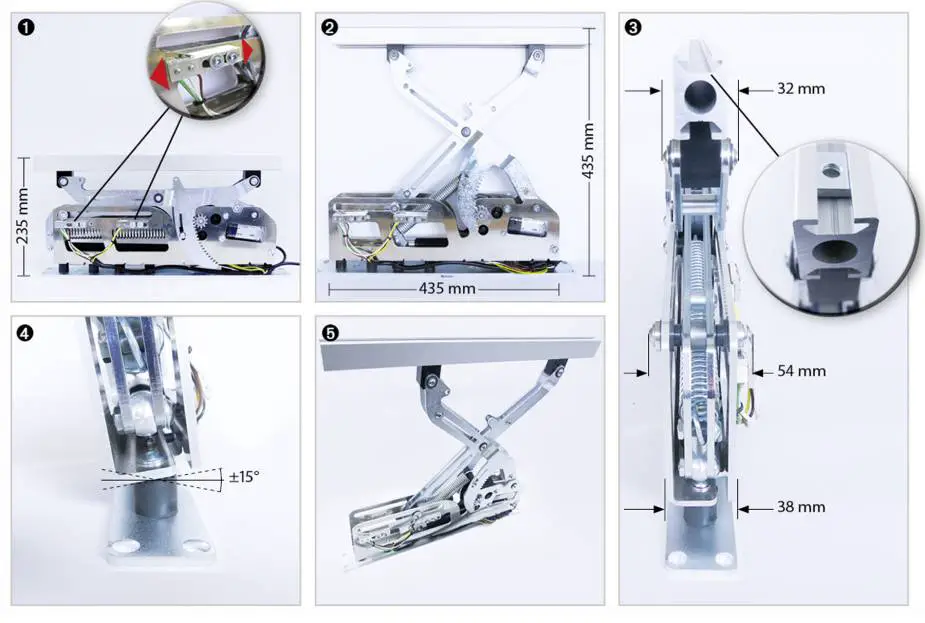

Technical Data
1-2- The open/closed window position can be adjusted to any position using movable terminal switches. All bearing points run "dry", meaning no lubrication is required.
3- On the window-side fastening, push-in slot nuts allow easy installation of the window pane.
4- The lifting mechanism is fitted with rubber elements onto the door-side fastening rail. These have a shock-absorbing effect and also allow tilts to be compensated.
5- The frame size is unaffected by the lifting force and does not change even with heavy window panes.
Specifications
Width: 435 mm
Height expanded: 435 mm
Height collapsed: 235 mm
Maximum depth: 54 mm
Window lowering: 200 mm
Closing time with the window fully open: 2.5 s
Window pane weight: up to 80 kg
Net weight: 4.8 kg
Connection voltage: 12 V/24 V
Window lifter protection class: IP44
To check the installation situation, 3-D models are available in neutral data format.
(Picture source: i-Provide)
