Description

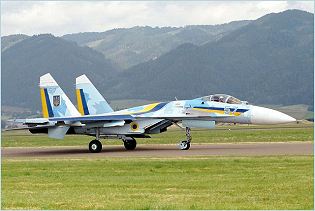

The Sukhoi Su-27 (NATO reporting name: Flanker) is a twin-engine fighter aircraft designed by the Russian Company Sukhoi. There are several related developments of the Su-27 design. The first 'Flanker-A' prototypes flew on May 20, 1977 and entered service as the 'Flanker-B' in 1984. The development of the Su-27 fighter plane was completed in the early 1980s, and the plane subsequently set more than 40 world records of altitude and take-off-speed. The Sukhoi Su-27 is in service not only in Russia but also in China and Vietnam. China also bought a license for the production of its own Su-27 fighters. Sukhoi in 1997 signed an estimated $180-million contract with Vietnam to supply six Su-27 (of which two Su-27SK and four Su-27UB).


Main Variants


Su-27S (Flanker-B) : Initial production single-seater with improved AL-31F engine.

Su-27P (Flanker-B) : Standard version but without air-to-ground weapons control system and wiring and assigned to Russian Air Defence Forces units.

Su-27UB (Flanker-C) : Initial production two-seat operational conversion trainer.

Su-27SK : Export version of Su-27, single seat.

Su-27SKM : Single-seat multi role fighter for export. It is a derivative of the Su-27SK but includes upgrades such as advanced cockpit, more sophisticated self-defense electronic countermeasures (ECM) and an in-flight refuelling system.

Su-27UBK : Export version Su-27UB, two seats.

Su-27M (su-35/Su-37, Flanker-E/F) : Improved demonstrators for an advanced single-seat multirole Su-27S derivative

Technical Data
Back menu
Design

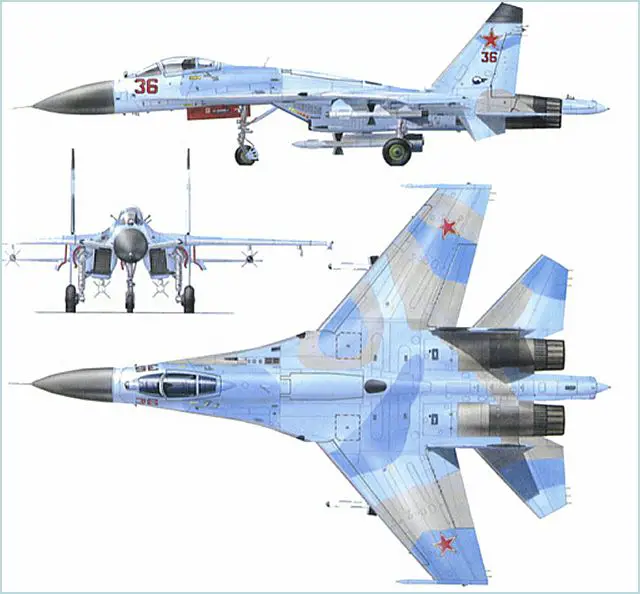

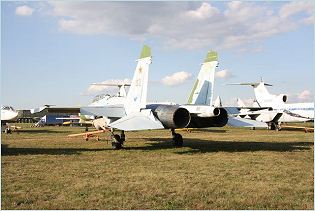

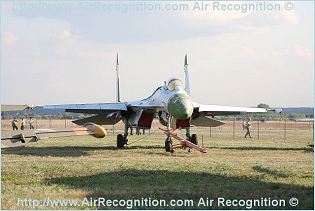

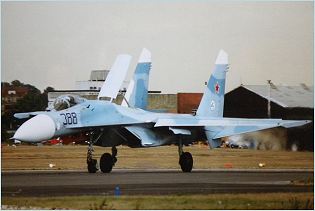

The Su-27's basic design is aerodynamically similar to the MiG-29, but it is substantially larger. It is a very large aircraft, and to minimise its weight its structure has a high percentage of titanium (about 30%, more than any of its contemporaries). No composite materials were used. The swept wing blends into the fuselage at the leading edge extensions and is essentially a cropped delta (the delta wing with tips cropped for missile rails or ECM pods). The Su-27 is also an example of a tailed delta wing configuration, retaining conventional horizontal tailplanes, though it is not a true delta. It has two vertical tailfins outboard of the engines, supplemented by twofold-down ventral fins for additional lateral stability.
Avionic
The Su-27 is equipped with a Phazotron N001 Zhuk coherent pulse-Doppler radar with track-while-scan and look-down / shoot-down capability. The fighter also has an OLS-27 infrared search and track (IRST) system in the nose just forward of the cockpit with a 80–100 km range, which also incorporates a laser rangefinder. This system can be slaved to the radar, or used independently for "stealthy" attacks with infrared missiles (such as the R-73 and R-27T/ET). It also controls the cannon, providing greater accuracy than a radar sighting mode.
Propulsion
The Su-27SK is powered by two AL-31F turbofan engines, designed by the Lyulka Engine Design Bureau (NPO Saturn). Each engine has two air intakes: a primary wedge intake and a louvred auxiliary air intake. An Su-27 fitted with AL-41F1 engines being developed by NPO Saturn took its first flight in March 2004. The uprated engine provides a thrust of 145kN (33,000lb).
Armament
The Su-27 is armed with a single 30 mm Gryazev-Shipunov GSh-30-1 cannon in the starboard wingroot, and has up to 10 hardpoints for missiles and other weapons. Its standard missile armament for air-to-air combat is a mixe of Vympel R-73 (AA-11 Archer), Vympel R-27 (AA-10 'Alamo') weapons, the latter including extended range and IR guided models. More advanced Flanker variants (such as Su-30, -35, -37) may also carry Vympel R-77 (AA-12 Adder) missiles. Armament for air-to-ground missions include: 100kg, 250kg and 500kg freefall and retarded aerial bombs; 500kg incendiary devices; 25kg and 500kg RBK cluster bombs; and C-8, C-13 and C-25 unguided aerial missiles.

Specifications
Type
Supersonic fighter aircraft
Country user
Angola, Belarus,China, Eritriea, Ethiopia, Indonesia,Kazakhstan,Russia, Syria, Ukraine,Uzbekistan, Vietnam.
Country producer
Russia
Crew
1
a
a
Engine
2 × Saturn/Lyulka AL-31F turbofans
Speed
2,500 km/h maximum
Range
3,530 km maximum
a
a
Weight
30,450 kg takeoff
Avionic
Phazotron N001 Zhuk coherent pulse-Doppler radar , OLS-27 infrared search and track (IRST) system, laser rangefinder.
Dimension

Length: 21.9 m; Wing span:14.7 m; Height: 5.92 m
