2B23 Nona-M1



2B23 Nona-M1 120mm mortar system



a
NONA-M1 2B23 120mm mortar technical data sheet specifications information description pictures photos images video intelligence identification Russia Russian army defence industry military technology

Description

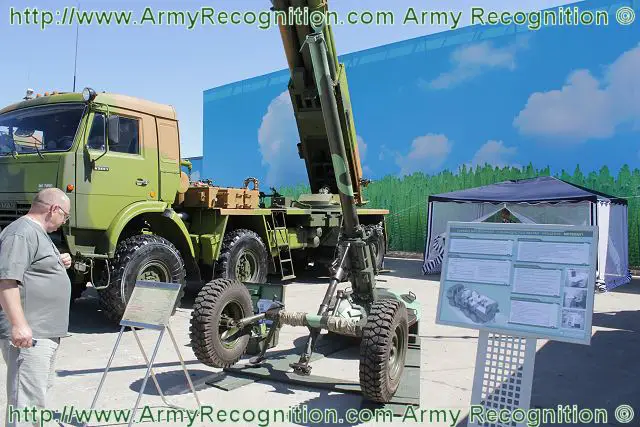

At IDEX 2011 defense exhibition in Abu Dhabi, the Russian Company Tsniitochmash has presented for the first time to the public its new 120mm towed semi-automatic breech-loaded Nona-M1 2B23 mortar. The Nona-M1 mortar provides indirect fire from any ground day and night in any season, engaging enemy personnel and fire means on the open or sheltered positions and on the gradual reverse slopes.

Variants
No variants at this time.

Technical Data
Back to top
Design

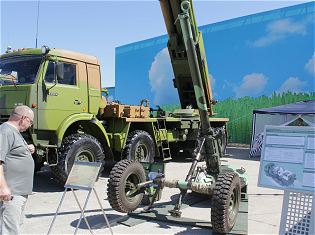

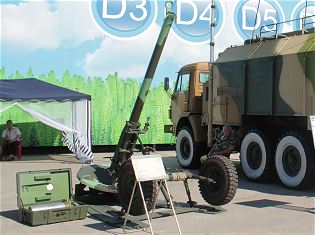

The 2B23 NONA-M1 mortar uses a single tube of 120mm caliber mounted on two wheels single axle carriage system. In firing position, the wheels are raised from the ground. A large circular base plate is fixed to the rear of the firing tube to assist in retarding the recoil effects and one anchoring foot is mounted beside each wheel. This mortar uses a breech-loading system that allows firing from shelter and provides crew protection. The wheels could also serve the gunnery crew well when relocating over short distances or turning their weapon against a target area as needed. The 2B23 NONA-M1 uses an automatic breech opening and locking system with an automatic change-over of the barrel for loading.
NONA-M1 2B23 120mm mortar technical data sheet specifications information description pictures photos images video intelligence identification Russia Russian army defence industry military technology
Ammunition
The 2B23 NONA-M1 120 mm mortar can fire the mortar ammunition 3OF74 high explosive projectile, used with the 3VOF119 propelling charge. This mortar ammunition claimed to be twice as effective as current 120 mm mortar bombs and is capable of producing a crater 4.1 m to 4.5 m in diameter to a depth of 1.1 m to 1.6 m depending on soil conditions. It is possible to use the whole range of 120 mm mortar bombs and projectiles
Mobility

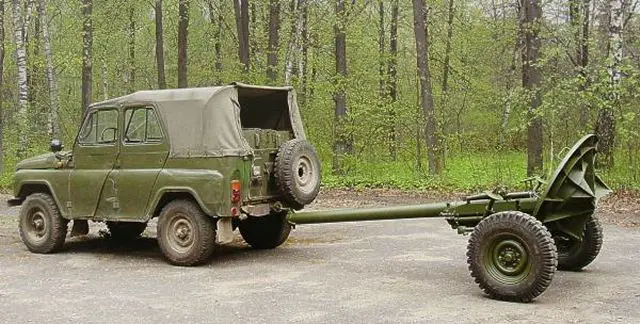

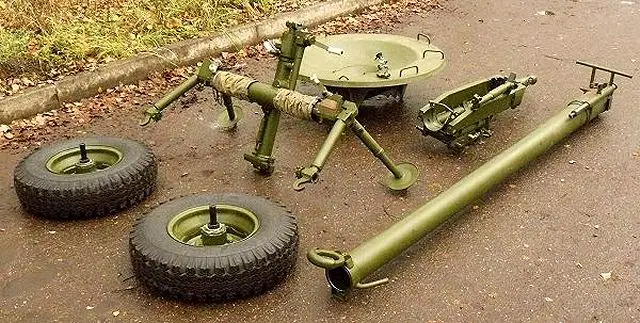

The 2B23 NONA-M 120mm mortar system can be carried by any military vehicle of a light tactical vehicle. If disassembled it can be carried by all means of transportation including horses, camels and by the crew members. In towed position, the vehicle which tows the mortar can run at a maximum speed of 80km/h maximum.
NONA-M1 2B23 120mm mortar technical data sheet specifications information description pictures photos images video intelligence identification Russia Russian army defence industry military technology
Operations
The 2B23 NONA-M1 120mm mortar has a maximum range of 8.8 km and a minimum range of 900 m with high explosive projectile. The rate of fire with high explosive rocket projectile is 9 rds/min and 11 rds/min with an explosive bomb. The 2B23 NONA-M1 has a maximum traverse laying angle of +8° and elevating angle from +42° to +85°.

Specifications
Back to top
Armament
One 120mm single tube
a
Country users
Russia
a
Designer Country
Russia
Accessories
Optical sight
Crew

5

Mobility
80 km/h maximum towed speed by truck
Ammunition
High Explosive projectile (HE), high explosive rocket projectile, high explosive bomb
Weight
507 kg (traveling position)
415 kg (firing position)
Rate of fire
70 rds/min
Range
12,800 m max. with high explosive rocket projectile
Accuracy
Range: 27.0 m
Direction : 7.2 m
Dimensions (travelling)
Length, 2.61 m; Width, 2.12 m; Height, 3.7 m
