1RL257 or Krasukha-4 Jamming Station
1RL257 Krasukha-4
Truck-mounted broadband multifunctional jamming station - Russia
Description
The 1RL257 or Krasukha-4 is a Russian-made mobile electronic warfare system designed and manufactured by the Company Bryansk Electromechanical Plant (KRET). The Krasukha-4 is intended to neutralize Low-Earth Orbit (LEO) spy satellites, ground-based radars, and airborne radars (AWACS) at ranges between 150 to 300 kilometers. The system is also able to cause damage to the enemy's EW (Electronic Warfare) systems and communications. In November 2013, Russia’s Defense Ministry has received the first electronic warfare system Krasukha-4. The stations, which will complement Krasukha-2 units already in use by the Russian army, will provide the military with powerful radar jamming capability. More specifically, the Krasukha-4 has been described as a tool against “flying radars,” such as the USAF E-8 Joint STARS aircraft, or reconnaissance satellites - like the United States’ Lacrosse satellite - and a means of protection against surveillance and combat unmanned aerial vehicles, otherwise known as drones.
1RL257 Krasukha-4 variants:
No variants
Technical Data
Equipment |

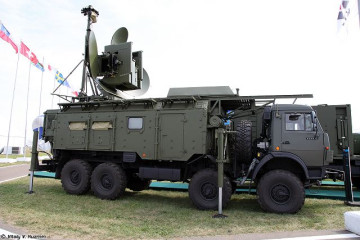

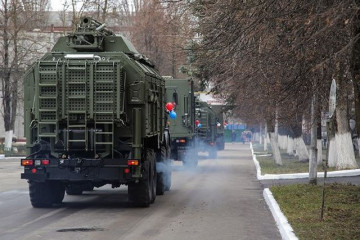

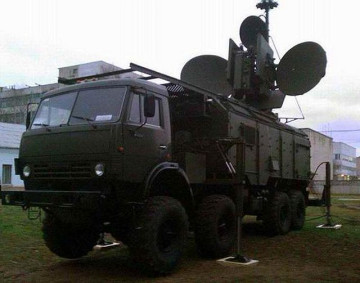

A large turret is mounted at the top of a shelter mounted at the rear of an 8x8military truck chassis. Two circular antennas are mounted on each side of the turret. A telescopic mast with another antenna is fitted at the rear of the turret. In travel position, the turret is stored inside the shelter. In combat position, two hydraulic stabilizers are lowered on the ground-mounted on each side of the shelter.
|
Design |
The 1RL257 Krasukha-4 vehicle is fitted with a crew cabin at the front and one shelter mounted at the rear of the truck chassis. The cab can be fitted with a class 5a armor which provides protection against the firing of small arms AKM 7.62mm.
|
Mobility |
The 1RL257 Krasukha-4 is based on a Kamaz 6350 8x8 military truck chassis. The truck is motorized with the KamAZ-740.50-360 diesel engine developing 360hp. The truck can run at a maximum speed of 95 km/h with a maximum road range of 1,000 km. the truck design ensures the fording depth of 1.75m. |
Combat use |
Mobile electronic warfare systems "Krasuha-4" suppress spy satellites, ground-based radars,, and airborne systems AWACS (Airborne Warning and Control System). The Krasukha-4 system works by creating powerful jamming at the fundamental radar frequencies and other radio-emitting sources. Krasukha-4 is able to effectively shield objects on the ground against radio-locating surveillance satellites, ground-based radars, or aircraft-installed Airborne Warning and Control Systems (AWACS). According to the manufacturer. Interference caused by Krasukha-4 will render radio-controlled missile attacks ineffective. The system has been designed to counter attacks from enemies possessing advanced technologies. |
Specifications
Type | Armor |
Broadband multifunctional jamming station, mobile electronic warfare system | Protection against the firing of small caliber 7.62mm weapons |
Country users | Weight truck |
Russia | 12,450 kg |
Designer Country | Speed truck |
Russia | 95 km/h |
Accessories | Range truck |
One spare wheel, an additional power supply is mounted at the rear of the shelter. | 1,000 km |
Crew | Dimensions |
3 | Length: 9.87 m; Width: 2.78 m; Height: 3.26 m |
