U.S. Tests F-22 Raptor with Stealth Fuel Tanks and Sensor Pods for Long-Range Missions in Contested Airspace.

On March 21, 2026, aviation photographer Jarod Hamilton captured the clearest public images yet of an F-22A Raptor flying with stealth-shaped external fuel tanks and faceted mission pods, including one with an apparent infrared or electro-optical sensor aperture. The images reveal a concrete upgrade to the U.S. Air Force’s premier air-superiority fighter, aimed at extending survivable range and enabling passive target detection in high-threat environments.

This configuration reinforces a concept first highlighted on February 24, 2026, when Army Recognition reported on a Lockheed Martin model featuring similar low-observable tanks and sensor pods. The new imagery now places that design in an operationally credible context, moving it beyond concept into apparent real-world testing. It directly addresses two of the F-22’s key constraints, endurance and passive sensing, without compromising its low observable profile. The result is a more persistent and lethal platform built for long-range missions in contested airspace.

Read also: Lockheed Martin's F-22 Raptor Model Features Low-Observable Fuel Tanks and Infrared Sensor Pods.

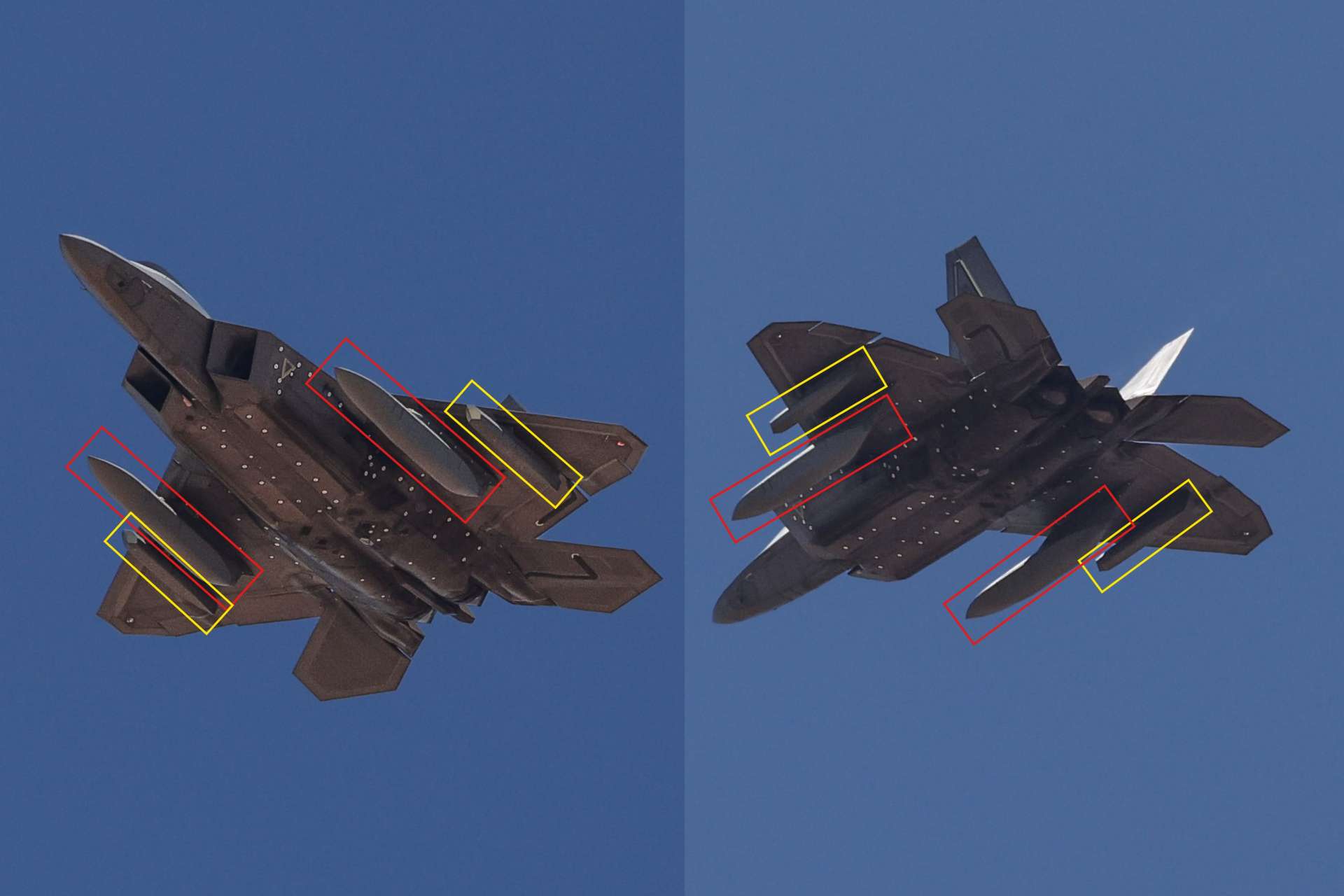

New images show an F-22 Raptor flying with stealth fuel tanks and sensor pods, signaling a U.S. push to extend range and boost passive detection in high-threat air combat (Picture Source: Jarod Hamilton on X)

The F-22 remains the United States’ flagship air-dominance platform because it combines very low observability, supercruise, high-altitude kinematics, sensor fusion, and exceptional maneuver performance in a single airframe. The U.S. Air Force has long defined the aircraft around a first-look, first-shot, first-kill logic in which stealth and integrated avionics compress an adversary’s reaction window while speed and altitude expand the jet’s usable battlespace. That baseline matters because the newly photographed configuration does not alter the Raptor’s core identity so much as it remedies two enduring constraints in its employment model: combat persistence and passive target acquisition.

The low-observable external tanks are arguably the most immediately consequential feature. Lockheed Martin has publicly indicated that the new tanks are intended to replace legacy external tanks that impose a more pronounced radar signature and are treated largely as transit accessories rather than true combat enablers. Reporting from the 2026 AFA Warfare Symposium indicates that the redesigned tanks are meant to stay on the aircraft even during combat operations, giving the Raptor additional fuel without forcing crews to accept the traditional survivability penalty associated with external carriage. In practical terms, this would give the aircraft more time on station, greater flexibility in route planning, and more fuel-state margin for offensive counter-air, defensive counter-air, escort, and barrier combat air patrol missions.

That endurance gain is especially relevant in today’s threat environment, where air operations are increasingly constrained by long-range surface-to-air missile envelopes, tanker vulnerability, counter-ISR pressure, and the requirement to operate from dispersed or politically constrained bases. A stealth fighter able to push farther forward with a lower-observable external fuel configuration gives planners more freedom in how they shape ingress routes, tanker offsets, and persistence over contested sectors. In a Pacific scenario, that translates into greater operational elasticity across vast maritime distances. In Europe or the Middle East, it means longer patrol windows, more resilient defensive counter-air postures, and improved ability to sustain air superiority without exposing support assets too close to hostile engagement zones. The value of these tanks is therefore not simply extra range, but extra survivable range.

The mission pods may prove even more strategically meaningful. One of the pods visible in the latest imagery appears to include a forward transparent section consistent with an infrared search and track function or another electro-optical sensing role. Even if the exact payload remains undisclosed, the operational logic is compelling. A meaningful passive infrared or electro-optical search capability would significantly improve the F-22’s ability to detect, classify, and maintain tracks on airborne targets without immediately revealing its own position through active radar emissions. In a battlespace shaped by electronic warfare, emissions control, and long-range missile engagements, passive sensing is no longer a secondary attribute. It is a decisive contributor to survivability, target-quality track generation, and beyond-visual-range lethality.

From a tactical aviation perspective, the combination of stealth tanks and passive sensor pods broadens the Raptor’s utility well beyond the classic image of a pure penetration fighter tasked only with sweeping hostile aircraft from the sky. The aircraft can already exploit altitude, speed, low-observable shaping, and high-end radar performance to gain positional and temporal advantage in contested airspace. With survivable external fuel and an apparent IRST-type capability, it becomes better suited for long-dwell hunter-killer patrols, forward sensor picket missions, and cooperative engagements in dense anti-access and area-denial environments. This is where comparison with the F-35 becomes particularly relevant. The Lightning II entered service with a more mature electro-optical architecture, whereas the F-22 was optimized first and foremost for air dominance through stealth, speed, altitude, and radar-enabled situational awareness. These pods suggest a deliberate effort to expand the Raptor’s passive sensing toolkit without compromising the performance characteristics that still make it one of the most formidable air-combat platforms in the American inventory.

The strategic implications are substantial. Lockheed Martin’s broader F-22 modernization work already includes the integration of the Infrared Defensive System, a distributed TacIRST-based architecture intended to strengthen survivability and lethality, and the new tank-and-pod arrangement fits logically within that larger effort to keep the Raptor relevant well into the coming decade. What the new imagery signals is that the United States is not relying solely on future sixth-generation promises to maintain its air-superiority edge. It is refining the F-22 now, adding reach, persistence, and passive targeting capacity to an aircraft already optimized for winning the opening phases of a high-end fight. For allies, that signals continued U.S. commitment to preserving an air-dominance margin in contested theaters. For competitors, it signals that the Raptor is not being allowed to drift into obsolescence while next-generation platforms are still taking shape.

What these photographs ultimately show is not a cosmetic test fit, but a serious attempt to close two of the most visible gaps in the F-22’s combat employment model. By pairing lower-signature external fuel with an apparent step toward stronger passive sensing, the United States is making its premier air-superiority fighter more durable, more flexible, and more dangerous in the kinds of air campaigns that matter most now. In a battlespace defined by long-range detection contests, compressed warning timelines, and dense missile threats, an F-22 that can stay stealthy longer and see more without speaking first is a powerful reminder that American air dominance is still being actively refined, not merely preserved.
