Can Ukraine create an alternative to the U.S. Patriot air defense missile system with Germany?.

Ukraine and Germany have possibly launched a joint initiative to assess the feasibility of developing an alternative to the American MIM-104 Patriot air defense system, to address critical interceptor shortages and reduced U.S. supply commitments.

This effort, involving Ukrainian company Fire Point and German industry partner Diehl Defence, focuses on building a medium-term anti-ballistic capability capable of sustaining Ukraine’s high-intensity air defense operations and reducing reliance on external supply chains. Army Recognition decided to examine the Patriot key factors, including performance, interceptor production, radar development, and system integration, to determine whether a comparable anti-ballistic capability can be achieved within operationally relevant timelines and under current industrial constraints.

Related topic: Germany unveils IRIS-T SLM/X air defense missile system with 100 km range to challenge U.S. Patriot

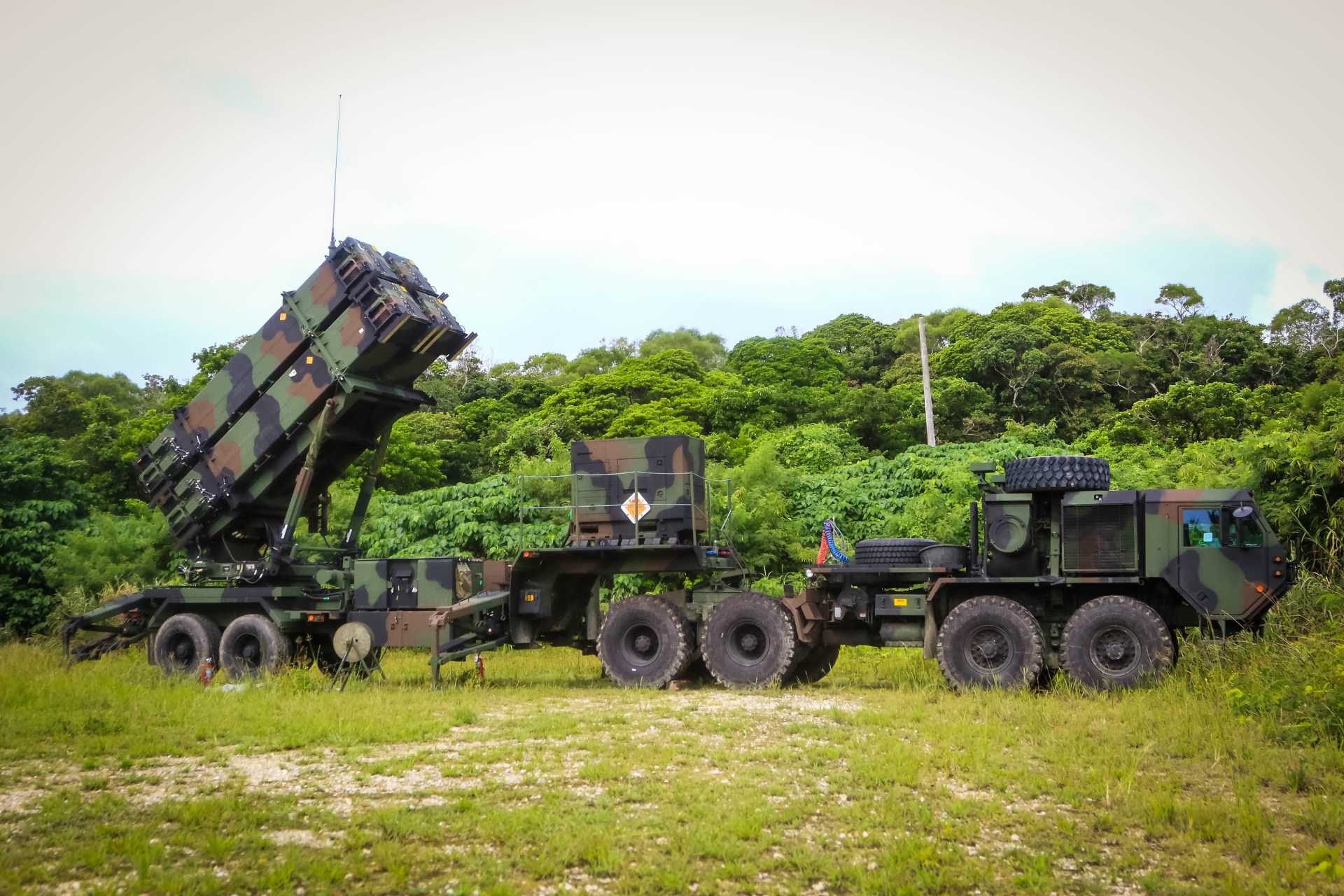

Ukrainian forces currently depend heavily on the MIM-104 Patriot for intercepting ballistic threats, as it remains the only consistently effective system against such targets. (Picture source: US Army)

According to German Aid to Ukraine on April 15, 2026, Ukraine likely initiated a structured effort with Germany to examine the development of an alternative to the MIM-104 Patriot, due to the constrained availability of interceptors and reduced U.S. supply commitments. Since 2023, Patriot batteries transferred by five countries (the U.S., Germany, Romania, Israel, and the Netherlands) have formed the core of Ukraine’s ballistic missile defense, providing the only system capable of consistently intercepting high-speed ballistic threats in operational conditions. The new initiative is embedded in a bilateral strategic declaration that prioritizes an accelerated development of anti-ballistic capabilities, with the industrial participation of Fire Point and German partners, including Diehl Defence.

The program is not structured as an immediate replacement but as a medium-term capability shift intended to reduce dependence on external supply chains. However, Army Recognition found that, at its core, lies the central issue of whether the Patriot's capabilities can be replicated within the immediate conflict timeframe or only after several years of development. Ukraine’s air defense is defined by the performance envelope of the Patriot, particularly its PAC-3 interceptor designed for hit-to-kill engagements against ballistic targets. These interceptors operate against targets in the Mach 5 to Mach 10 range during terminal reentry, requiring high closing velocities and precise guidance.

The European IRIS-T and SAMP/T air defence systems are present in Ukraine’s inventory but in limited quantities, which constrains their contribution to national coverage. Patriot batteries integrate radar, launchers, and fire control into a system capable of tracking more than 100 targets simultaneously and engaging multiple ballistic threats within a single engagement window. Engagement timelines typically fall within 10 to 15 seconds from detection to interceptor launch, requiring continuous tracking updates at millisecond-level latency. This performance baseline defines the minimum threshold for any alternative system, as it would require not only the development of the missile launcher but also the integration of real-time software systems of comparable complexity.

For now, Patriot interceptor supply has become the immediate limiting factor in Ukraine’s air defense operations, with demand exceeding available inventory under current engagement rates. A German-led procurement effort targeting 35 PAC-3 interceptors did not meet its objective, leaving a persistent shortfall in available munitions. U.S. supply reductions have further constrained resupply, while competing demand from other operational theaters, especially near Iran, continues to absorb the Patriot missile's production capacity. Each PAC-3 interceptor has a unit cost estimated between $3 million and $5 million, which limits procurement volumes and restricts sustained firing rates during high-intensity engagements.

This cost structure forces prioritization of ballistic threats over cruise missiles or unmanned systems, as stockpile limitations directly influence engagement doctrine, reducing flexibility in layered defense strategies and increasing risk in saturation scenarios. For Ukraine, this combination of high unit cost and limited production capacity is one of the key structural constraints driving the search for alternative solutions. The industrial structure of the proposed system is based on distributed development, with Fire Point acting as the primary Ukrainian integrator and German firms contributing specialized subsystems. Fire Point has set a target of producing an initial prototype within approximately one year, a timeline that diverges significantly from historical development cycles for comparable systems.

Still, a cooperation with Diehl Defence indicates a gain of time for interceptor design, guidance systems, and integration support, while companies such as Hensoldt are relevant for radar and sensor development. The absence of a single prime contractor increases the complexity of system integration, particularly in synchronizing hardware interfaces and software architectures across multiple contributors. Data exchange standards, latency requirements, and encryption protocols must be harmonized to ensure interoperability between subsystems. This distributed model can accelerate subsystem development but introduces the integration risk as a primary factor in overall program timelines.

Coordination across national industrial bases also introduces dependencies related to export controls and regulatory compliance under current laws. From a technical point of view, a Patriot-class battery integrates six primary subsystems operating within a tightly synchronized engagement loop. These subsystems include the phased-array radar (25–30% of the whole Patriot development cost), interceptor missiles (20–25%), fire control stations (15–20%), communications mast groups (10–15%), launcher units and power generation systems (5–10%). The engagement cycle for ballistic targets requires detection, tracking, decision-making, and launch execution within 10 to 15 seconds, leaving minimal tolerance for delays. Radar-to-interceptor data links must maintain continuous updates at millisecond-level latency throughout the intercept phase to ensure guidance accuracy. This means that the integration and software accounts for the remaining 25–35% development cost.

The alternative Patriot system must support simultaneous surveillance and engagement, tracking over 100 targets while coordinating multiple interceptors in flight. The software layer required to manage these processes involves millions of lines of real-time code, developed and refined over decades in existing Patriot systems. Integration requires full compatibility between radar waveform processing, fire control algorithms, and missile seeker logic. Multinational development increases the complexity of achieving this compatibility, particularly in aligning technical standards across different industrial contributors. Radar and sensor development represents another critical bottleneck, particularly in achieving the precision required for ballistic missile interception.

Patriot radars, such as the AN/MPQ-53 and AN/MPQ-65, use phased-array configurations with more than 5,000 transmit and receive elements, operating in the 4 to 8 GHz frequency range. These allow detection ranges between 150 and 300 km for ballistic targets, depending on trajectory and radar cross-section. Tracking accuracy must be maintained within meters to generate a viable intercept solution, requiring both high-resolution signal processing and continuous target updates. Certainly, modern air defense systems increasingly rely on AESA technology using GaN-based modules (like the LTAMDS), which offer higher power density and improved resistance to electronic countermeasures such as jamming and deception.

Ukraine currently lacks the industrial capacity for a large-scale AESA production, necessitating the reliance on external suppliers such as Hensoldt. Sensor-to-shooter latency must remain below 1 to 2 seconds to maintain engagement viability against targets exceeding Mach 5. Additional requirements include resilience against anti-radiation missile threats targeting radar emissions and the ability to operate under electronic warfare conditions. Fire Point is aiming for a missile interceptor cost below $1 million per unit. This target significantly contrasts with the $3 million to $5 million cost of PAC-3 interceptors, which achieve velocities of at least Mach 4 to Mach 5 and sustain lateral acceleration exceeding 30 to 50 g during terminal maneuvering to intercept targets traveling at Mach 5 to Mach 10.

Therefore, every hit-to-kill engagement requires an impact accuracy within centimeters, necessitating advanced seeker technologies such as Ka-band radar or dual-mode radar and infrared systems. The guidance architecture must integrate midcourse updates from ground radar via datalink with terminal autonomous tracking and discrimination capabilities. Achieving these requirements within the targeted cost constraint implies reductions in seeker complexity, propulsion performance, or divert thruster capability. Such reductions directly affect engagement range, interception probability, and overall system effectiveness. No existing interceptor combines a sub-$1 million cost with high-end ballistic missile interception capability, indicating a significant technological gap between current objectives and available solutions.

Even creating a FrankenSAM system combining the Patriot missile and Ukrainian radars, such as the 80K6, seems out of reach at present. The Patriot system required 15 to 20 years from initial development to operational deployment, while the PAC-3 upgrade required more than 10 years to achieve hit-to-kill capability. Contemporary air defense programs typically require 10 to 15 years to reach initial operational capability due to integration, testing, and validation requirements. Fire Point’s objective of delivering a prototype within one year reflects an urgency but diverges from established development timelines for comparable systems.

Ukraine’s wartime industrial base faces limitations in testing infrastructure, including the ability to conduct repeated live intercept trials necessary for system validation. Supply chains for advanced electronics, particularly GaN-based radar components, remain dependent on external sources and are vulnerable to disruption. Multinational cooperation introduces additional constraints through export controls, regulatory frameworks, and funding coordination across partners. A more realistic projection suggests a prototype within 3 to 5 years if existing technologies are leveraged, with operational capability emerging in the late 2020s to early 2030s under sustained funding and coordinated industrial effort.
