China officially deploys new Type 100 tank as race with US over future warfare accelerates.

China has indirectly confirmed the operational deployment of its new Type 100 (ZTZ-100) main battle tank after releasing training footage on May 4, 2026, marking its entry into active service following its first public appearance in 2025. The Type 100 signals a shift toward lighter, sensor-driven armored warfare, prioritizing survivability through detection and interception rather than heavy armor, and positioning the platform as a key element in future high-intensity, networked combat against technologically advanced adversaries such as the U.S.

The Type 100 combines an unmanned turret, hybrid propulsion, and advanced sensor fusion with active protection systems to create a highly mobile, digitally integrated combat node capable of engaging threats beyond traditional line-of-sight ranges. Its design reflects a broader transition toward multi-domain operations, where tanks operate as part of a connected battlefield ecosystem, enhancing reaction speed, counter-drone defense, and long-range targeting in increasingly contested environments.

Related topic: China says new Type 100 tank may strike targets beyond visual line of sight

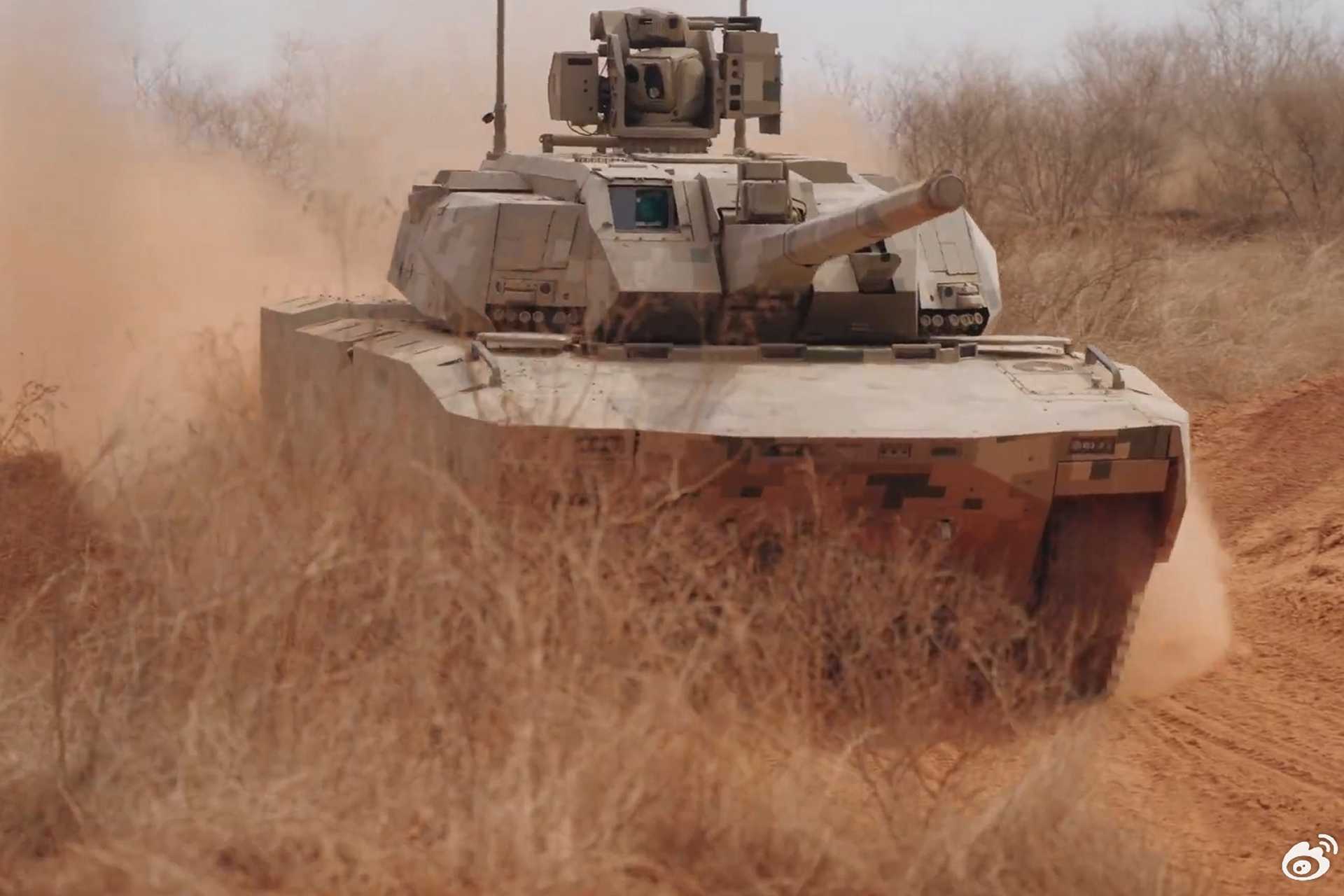

The Type 100 tank uses sensors, active protection, digital systems, and network connections with drones and other units to detect threats earlier, share information in real time, and engage targets at longer distances while reducing exposure of its crew. (Picture source: Chinese MoD via Weibo/@太湖军|名)

On May 4, 2026, China released training footage of the new Type 100 main battle tank, confirming it has entered service with the People’s Liberation Army Ground Force, following its first public exposure during the Victory Day Parade in Beijing on September 3, 2025. The tank, also known as ZTZ-100, was developed by the 201st Research Institute and manufactured by the Baotou Tank Plant under Inner Mongolia First Machinery Group, with production starting around 2025 and limited to a low-rate initial batch with slightly more than four units observed.

The new Chinese tank has an estimated combat weight potentially ranging from 35 to 45 tonnes, depending on modular armor configuration, and is operated by a crew of three personnel housed in a forward armored compartment within the hull. Its role centers on sensor integration, active protection systems, and networked warfare, with Chinese classification identifying it as a fourth-generation main battle tank, a category without international standardization. The tank layout integrates a fully remote-operated unmanned turret, with the driver, commander, and gunner relocated to a sealed armored compartment in the forward hull, eliminating the loader position through the use of an autoloader.

This layout physically separates the crew from ammunition stored in the turret, reducing vulnerability in case of penetration, while blow-out panels and venting systems are said to be integrated into the turret structure to manage overpressure events and internal explosions. The configuration reduces the overall vehicle profile, with an estimated height between 2.2 and 2.5 meters, and contributes to survivability by isolating critical components and limiting crew exposure. Development of this tank is assessed within the 2016 to 2022 timeframe, and the design configuration aligns with those implemented on the Russian T-14 Armata and experimental Western concepts like the AbramsX, but without implying equivalent performance outcomes.

According to available information, the main armament of the Type 100 consists of a 105 mm smoothbore gun mounted in the unmanned turret and equipped with an autoloader, with an estimated firing rate between 8 and 12 rounds per minute, which corresponds to typical autoloader performance envelopes. The gun fires armor-piercing fin-stabilized discarding sabot (APFSDS) rounds with a reported muzzle velocity of about 1,706 m/s, which is claimed to offset the smaller caliber compared to 120 mm NATO and 125 mm Russian guns and achieve similar penetration levels through improved propellant.

The ammunition load is estimated at 30 to 40 rounds, stored within the turret volume made available by the unmanned configuration, and likely includes high-explosive, high-explosive anti-tank, and programmable munitions, while no confirmed gun-launched anti-tank guided missiles have been identified to date. Effective engagement range remains within 2 to 4 km for direct fire, with extended engagement beyond 5 km possible through networked targeting and indirect cueing. Secondary armament includes a 7.62 mm QJY-201 coaxial machine gun and a 12.7 mm remote weapon station equipped with thermal and optical sights, and this RWS is configured primarily for counter-drone and air defense roles.

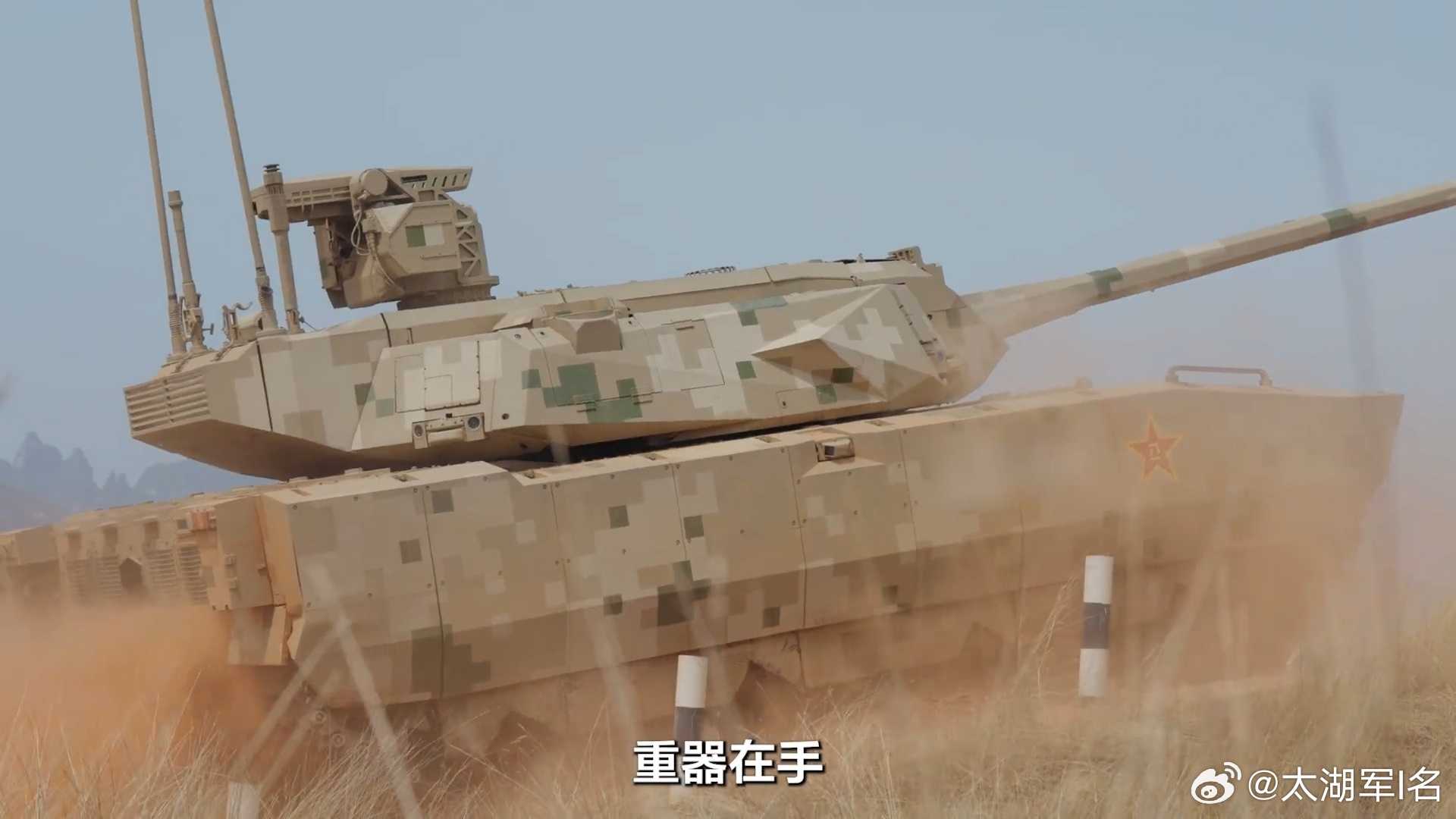

Development of the Type 100 is assessed to have occurred between 2016 and 2022, and its conceptual approach is similar to the T-14 Armata and the AbramsX, emphasizing crew protection and automation rather than traditional turret-based operation. (Picture source: Chinese MoD via Weibo/@太湖军|名)

The sensor suite is built around four phased-array radar panels installed on the turret corners, likely operating in the millimeter-wave frequency band and providing continuous 360-degree coverage, including detection of elevated and top-attack threats. These radars are possibly combined with optical day cameras, infrared and thermal imaging sensors, ultraviolet detection arrays, and laser warning receivers, enabling detection across both visible and non-visible spectra and maintaining functionality in degraded visual environments. Detection capability includes anti-tank guided missiles at distances of several kilometers and unmanned aerial vehicles at low altitude within a range of about 1 to 5 km, depending on size and signature.

All sensor data is processed in real time and fused into a unified interface displayed to the crew, with the additional capability to integrate external sensor feeds from unmanned aerial systems and other networked vehicles, resulting in a sensor density and coverage level exceeding earlier Chinese tanks such as the Type 96 and Type 99. The crew of the Type 100/ZTZ-100 is equipped with augmented reality helmet systems that provide a composite 360-degree visual environment by combining external camera feeds, radar data, and sensor inputs into a single display, effectively replacing traditional periscopes and optical sights.

These helmets present targeting information, navigation overlays, and vehicle status data directly within the operator’s field of view, while head-tracking functionality allows the turret or remote weapon station to align with the operator’s line of sight, reducing engagement time. This configuration reduces reliance on mechanical controls and shifts operational workload toward digital interface management, increasing cognitive demand related to data processing and situational awareness. Estimated improvements in reaction time range between 20 and 40 percent compared to legacy optical systems due to reduced latency and direct sensor-to-operator linkage, although this also increases dependence on electronic systems and data integrity under combat conditions.

The defensive architecture of the Type 100 is centered on active protection systems rather than heavy armor, with two GL-6 APS mounted on the turret, each equipped with four launch tubes for a total of eight interceptors ready for immediate use. These systems are designed to intercept threats such as anti-tank guided missiles, rocket-propelled grenades (RPGs), top-attack munitions, and loitering munitions at distances between 10 and 30 meters, using radar tracking combined with laser warning receivers and optical detection arrays. The systems are capable of engaging threats approaching from high angles, addressing vulnerabilities associated with top-attack weapons and drone-based munitions.

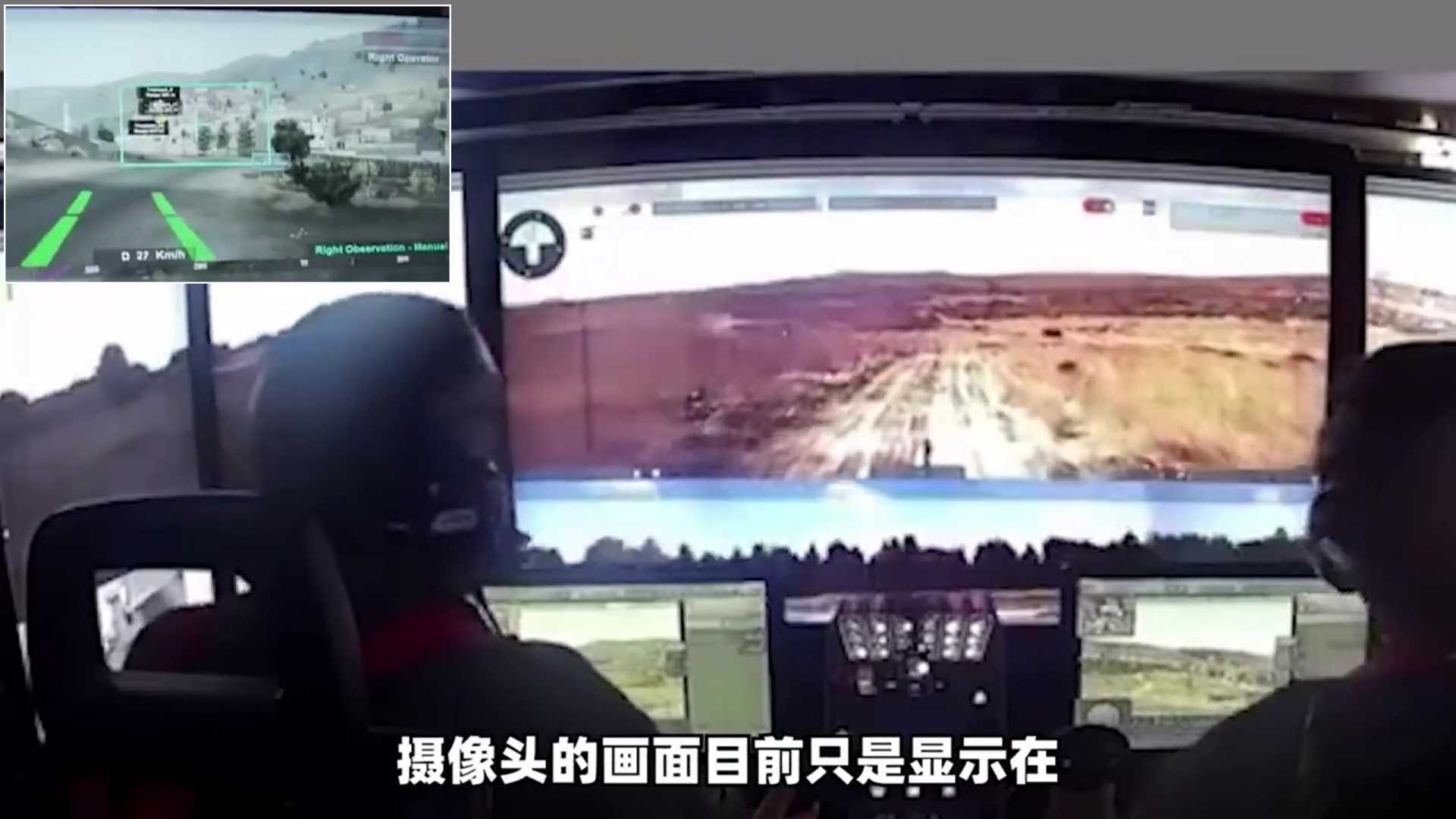

Crew vision is based on augmented reality helmet systems that provide a composite 360-degree view, effectively replacing traditional periscopes and analog controls, by integrating targeting data, navigation overlays, and external camera feeds. (Picture source: Chinese MoD)

Passive protection likely consists of classified composite armor with modular add-on packages, with the overall protection concept relying on detection and interception rather than increased armor thickness, reflecting a shift from traditional protection approaches used on tanks such as the Type 99. Mobility is provided by a hybrid diesel-electric propulsion system generating about 1,500 horsepower through a combination of a diesel engine, generator, battery system, and electric motors, resulting in a power-to-weight ratio estimated between 33 and 40 horsepower per tonne. The tank can achieve road speeds of about 80 km/h and off-road speeds of about 50 km/h, with improved acceleration compared to older tanks due to the instant torque provided by electric motors.

The propulsion system supports both hybrid and electric-only modes, allowing silent movement with reduced acoustic and infrared signatures, enabling operational modes such as silent watch and silent approach in reconnaissance or ambush scenarios. The operational range of the Type 100 is estimated between 400 and 600 km on diesel power, with electric-only movement limited to shorter distances measured in tens of kilometers, and the system is said to provide sufficient electrical output to power onboard sensors and electronic systems without continuous reliance on the combustion engine.

The Type 100 is also configured as a networked combat node, integrating data links that connect it to reconnaissance drones, artillery, multiple launch rocket systems, aviation units, and electronic warfare assets, enabling coordinated multi-domain operations. The engagement model follows a sequence of detection, data fusion, target allocation, and engagement, allowing the tank to participate in beyond-visual-range engagements using external targeting data rather than relying solely on onboard sensors. This capability was said to be demonstrated during combined-arms exercises conducted in 2025, where tank commanders coordinated external fire support and engaged targets beyond direct line of sight.

This could represent a shift from traditional engagement distances of about 2 to 3 km toward extended-range operations enabled by networked targeting and distributed sensor systems. A supporting variant, the Type 100 fire support vehicle, uses the same chassis and hybrid propulsion system with a similar weight of about 40 tonnes and is equipped with an autocannon in the 30 to 35 mm range for engaging light armored targets and providing direct fire support. The vehicle carries reconnaissance drones mounted at the rear for surveillance and target identification and includes a capacity for a small infantry element of three to four personnel in addition to its crew.

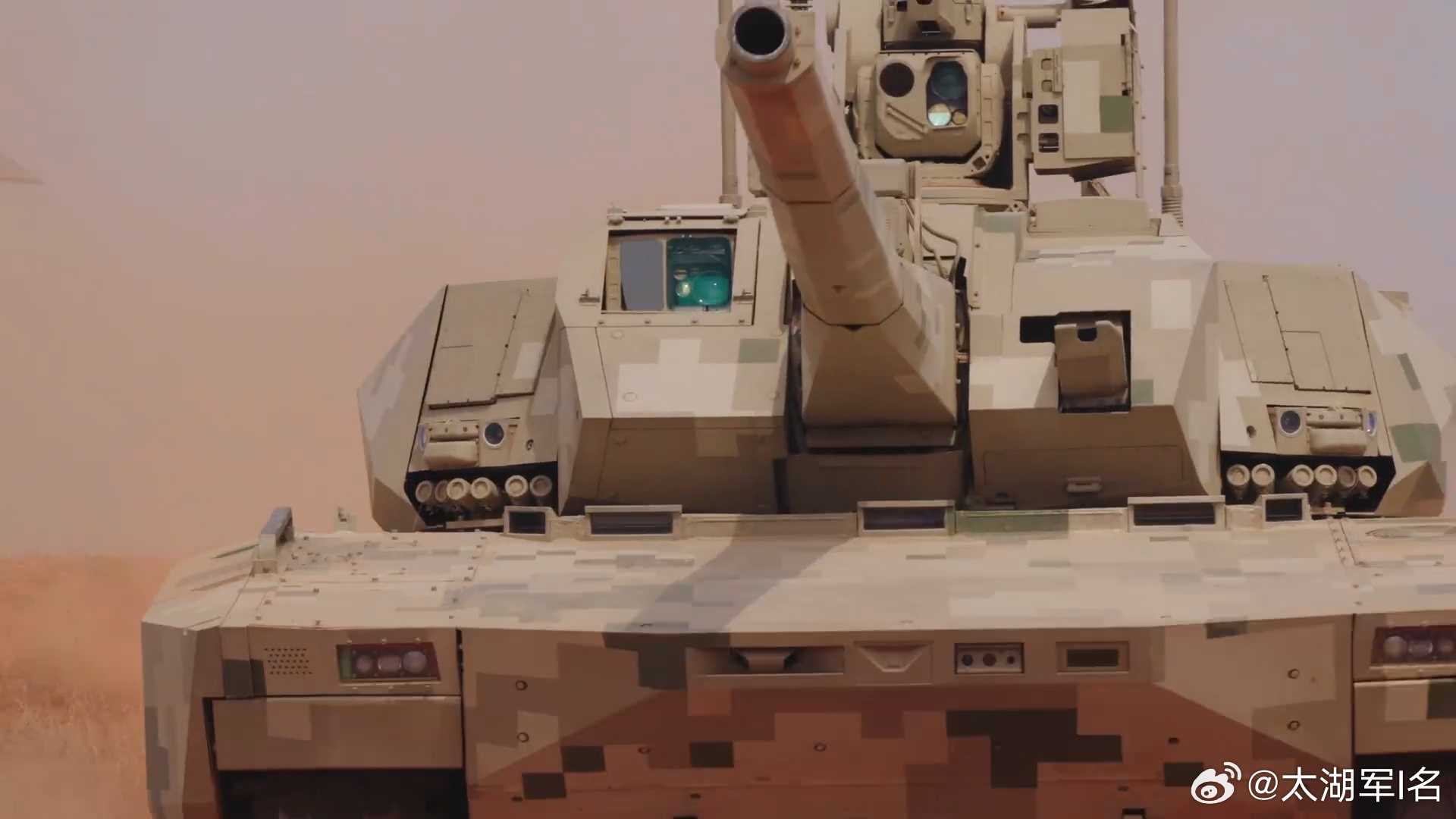

The sensor suite is a central element of the design, incorporating four phased-array radar panels positioned at the corners of the turret, likely operating in the millimeter-wave spectrum to provide full 360-degree detection coverage including elevated threats. (Picture source: Chinese MoD via Weibo/@太湖军|名)

The Type 100 FSV is equipped with an active protection system similar in architecture to that of the main tank and is intended to operate in conjunction with the Type 100 in paired formations, supporting reconnaissance, target designation, and close support roles. This combined approach integrates armored firepower, drone reconnaissance, and limited infantry capability within a coordinated operational framework. Production and industrial context indicate that the Type 100 is currently in a low-rate initial production phase, with gradual scaling expected rather than immediate large-scale deployment, with manufacturing conducted by Inner Mongolia First Machinery Group at the Baotou Tank Plant.

Estimated dimensions include a length of about 9 to 10 meters with the gun forward, a width of 3.3 to 3.5 meters, and a height of 2.2 to 2.5 meters, reflecting the reduced profile enabled by the unmanned turret configuration. The Type 100 is expected to operate as a medium tank alongside existing Chinese armored vehicles such as the Type 99A heavy tank and the Type 15 light tank within a mixed fleet structure, supporting different operational requirements. The ZTZ-100 also aligns with broader trends in Chinese military modernization, focusing on hybrid propulsion, sensor-intensive systems, and integration of electronic warfare capabilities.

Unit cost estimates for the Type 100 are not officially disclosed, and current estimates are derived from subsystem-level cost decomposition and comparison with existing Chinese and foreign main battle tanks of similar weight and technological content. These analyses place the Type 100 between $4.5 million and $7.5 million per vehicle during low-rate production, with potential reduction to between $3.5 million and $6 million under higher production volumes, reflecting industrial efficiencies and domestic supply chains.

Cost distribution is estimated at 15 to 20 percent for the hybrid propulsion system, 20 to 25 percent for sensors and data fusion systems, 10 to 15 percent for active protection systems, 10 to 15 percent for electronics and augmented reality interfaces, and 25 to 35 percent for the hull, armor, and mechanical components. Comparative benchmarks place the Type 99A at $2.5 to $4 million, the Russian T-90M at $3 to $4.5 million, the South Korean K2 Black Panther at $8 to $10 million, and the U.S. M1A2 SEPv3 at more than $10 million per unit, positioning the Type 100 in a mid-tier cost range globally. Long-term cost considerations include consumption and replacement of active protection interceptors, lifecycle management of battery systems, and maintenance of high-density sensor and electronic components.
