Air Defense Vehicles.

Talash Air Defense System.

The Talash Air Defense System is an Iranian-developed long-range mobile surface-to-air missile (SAM) system, designed to counter a wide array of aerial threats. Unveiled in November 2013, this system plays a significant role in enhancing Iran's air defense capabilities. The Talash was developed to address Iran's need for a self-sufficient, mobile defense system that could effectively engage both high-speed and low-altitude threats.

Country users: Iran

Description

The Talash Defense System is an Iranian-made advanced long-range mobile surface-to-air missile (SAM) system, primarily designed to engage high-speed aircraft, missiles, and drones across a range of altitudes. After its unveiling in 2013, the system underwent rigorous testing before being inducted into the Iranian Air Defense Forces by 2017. Its development aimed to enhance Iran's capability to defend critical infrastructure and strategic assets, operating as part of a broader, integrated air defense network alongside systems like the Mersad and Bavar-373.

The Talash system serves multiple roles within Iran's broader defense strategy, with its main missions being defensive air operations and integrated air defense. It is tasked with protecting military infrastructure, critical facilities, and strategic assets from a wide array of airborne threats such as hostile aircraft, bombers, cruise missiles, and drones. Moreover, while its primary mission focuses on air defense, the Talash system can also engage short- to medium-range ballistic missiles, adding another layer of defense. This dual role enhances its value within Iran's air defense strategy, which emphasizes a multi-layered, interconnected approach to counter aerial and missile threats.

Talash Air Defense system variants:

- Talash-1: It is a mid-to-high altitude surface-to-air missile (SAM) system, primarily using the Sayyad-2 missile. It was unveiled in 2015 and entered into service in January 2016. This system has a detection range of up to 150 km but its tracking range is not specified. The Talash-1 is capable of engaging targets at a minimum range of 35 km, with a maximum firing range of 75 km. The maximum engagement altitude is not available. This version is intended to protect high-value assets and is used by the Islamic Republic of Iran Air Defense Force (IRIADF). It can be integrated with the S-200’s K-1 Square Pair engagement radar, which has a detection range of 270 km, enhancing its operational capability.
- Talash-2: It is another mid-to-high altitude SAM system, which uses both the Sayyad-2 and the more advanced Sayyad-3 missiles. It was unveiled in July 2017 and entered into service shortly thereafter. The system has a detection range of 150 km, and its maximum firing range extends from 75 km to 200 km depending on the missile variant in use. The minimum firing range is 35 km, and it is capable of engaging targets at an altitude of 25 to 27 km. This variant enhances Iran’s air defense capabilities and is actively used by the IRIADF.
- Talash-3: It is a mid-to-high altitude SAM system that utilizes the Sayyad-2 and 5V21 missiles (the latter from the S-200 series). It is not officially unveiled, but it is believed to be an upgraded version of the older S-200 system, with enhanced radar and missile capabilities. The Talash-3 has a detection range of 150 km and a maximum firing range of 75 km. The minimum firing range is 35 km, and the system can engage targets at an altitude of up to 25 km. This variant is used by the IRIADF to bolster Iran’s layered defense against aerial threats.
- Talash-4: It is a mid-to-high altitude SAM system that utilizes the advanced Sayyad-3C missile. Unveiled in July 2017, this variant is likely a precursor to the 15th Khordad system. It has a minimum firing range of 35 km and a maximum firing range of 120 km. The maximum engagement altitude is 27 km, making it highly effective against high-altitude threats. The Talash-4 includes the Ofogh fire-control radar, which allows it to engage low-radar-cross-section (RCS) targets, such as stealth aircraft. Additionally, the Sayyad-3C missile is equipped with both semi-active and active radar homing modes, enabling more precise targeting. The Talash-4 is believed to be capable of intercepting ballistic and semi-ballistic missiles, further enhancing its combat capabilities. This variant is used by the IRIADF and can replace older systems like the S-200.

Back to top

Technical Data

  • Launcher Unit

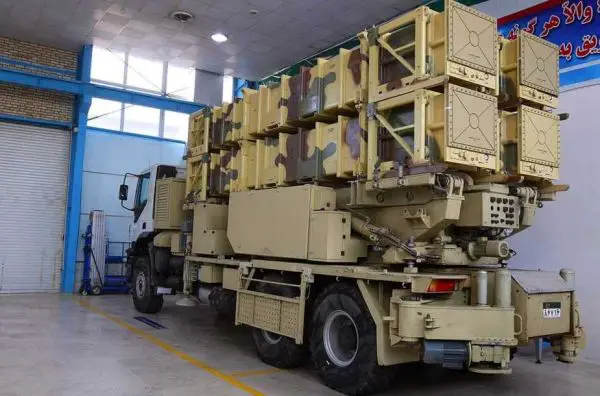

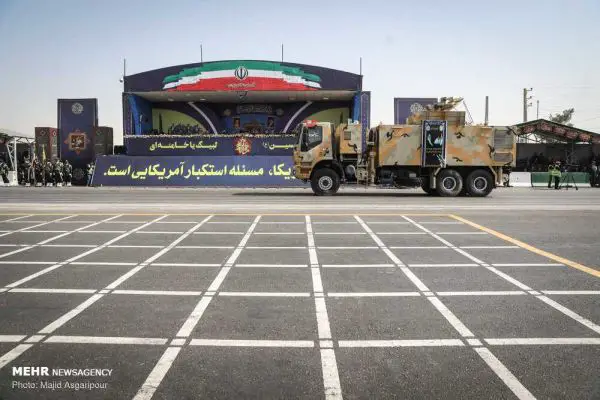

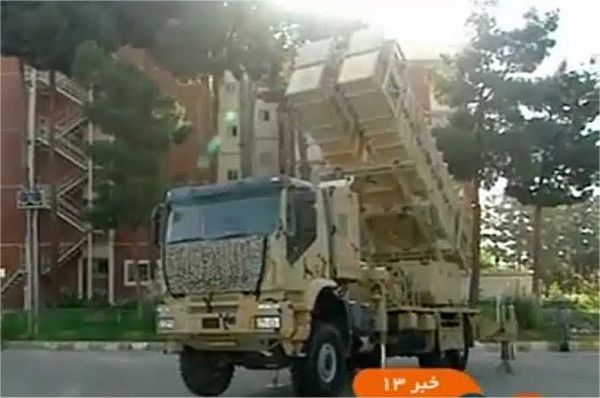

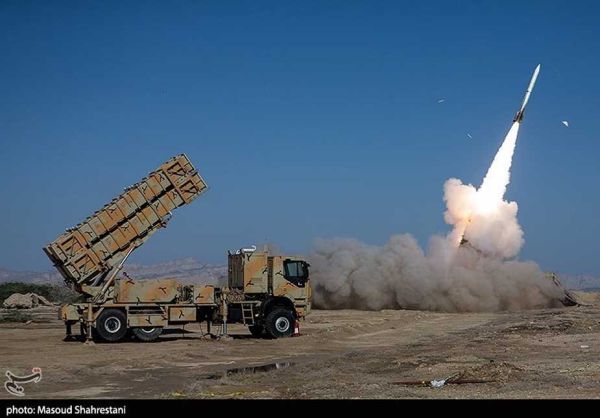

    The Talash missile launcher is mounted on a 6x6 truck chassis, providing excellent mobility and stability. The crew cab is located at the front of the vehicle, housing the personnel responsible for operating the launcher and controlling the missile system. Immediately behind the crew cab is a shelter that houses the vital power and control systems required for the operation of the Talash system, ensuring that the missile launcher can function autonomously in the field.

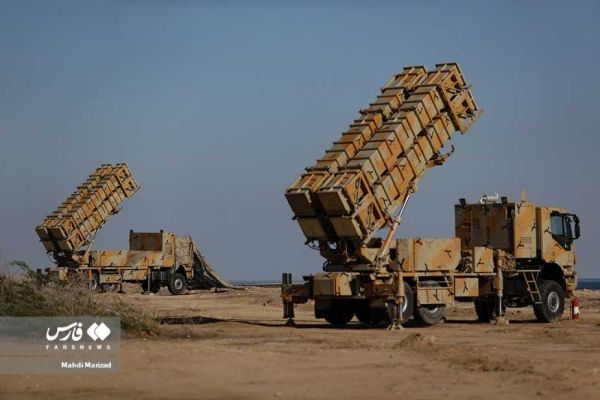

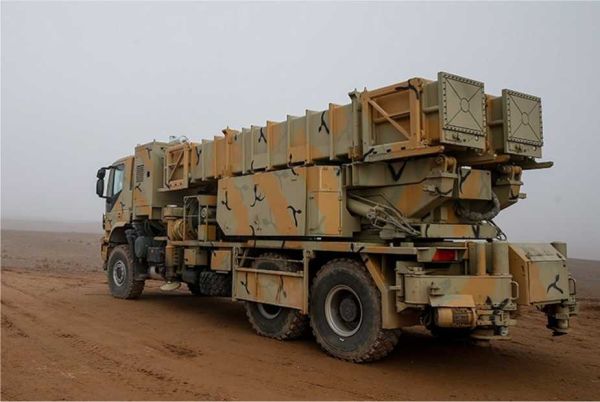

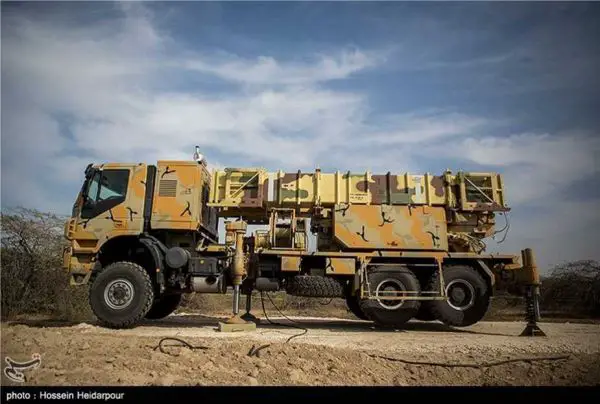

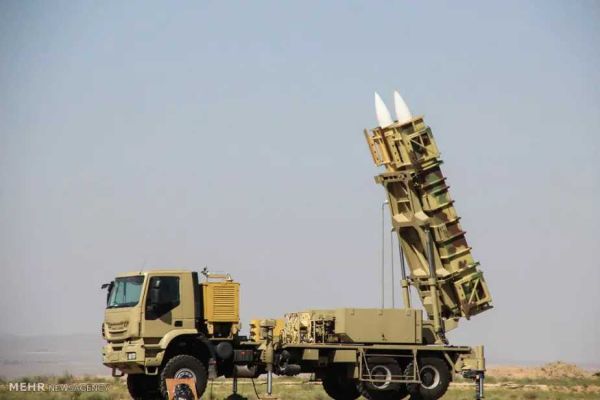

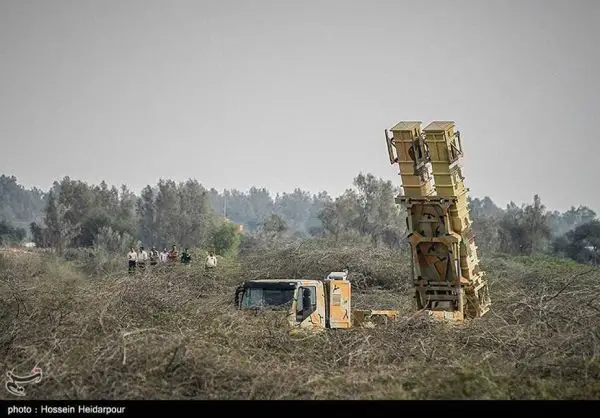

    The launching station itself consists of four containerized, rectangular missile tubes arranged in two rows of two, securely housing the Sayyad-2 or Sayyad-3 missiles. These tubes are designed for rapid missile deployment and can be reloaded or replaced as needed. In its firing position, the system uses two hydraulic jacks, one on each side of the truck chassis, which are lowered onto the ground to provide stability during missile launches. This feature ensures that the launcher remains secure and accurately aligned when engaging targets. The entire setup allows for quick deployment and swift repositioning, with the 6x6 chassis enabling the Talash system to move across a variety of terrains while maintaining operational readiness. The launcher’s design prioritizes both efficiency and flexibility, allowing it to rapidly switch between movement and combat modes, delivering a fast-response air defense solution.

  • Missiles

    The Talash system uses the Sayyad-2 surface-to-air missile as its primary armament, although it is also compatible with the Sayyad-3 missile, which offers a longer range and enhanced targeting capabilities. The Sayyad-2 missile is designed for medium-to-long-range interception and has an effective range of up to 150 kilometers. It is equipped with a high-explosive fragmentation warhead. It utilizes an active radar homing system for terminal guidance, which ensures it can strike high-speed aerial targets accurately, even in contested environments with electronic countermeasures.

    The more advanced Sayyad-3 missile extends the engagement range to 200 kilometers and offers improved guidance and interception capabilities. With speeds reaching Mach 4, the Sayyad-3 missile is faster and more maneuverable, enabling it to intercept high-speed targets at both high and low altitudes. The warhead and guidance system of the Sayyad-3 are also enhanced, ensuring higher accuracy and lethality against fast-moving aircraft and missiles. Both missile variants have the ability to engage multiple targets simultaneously, increasing the Talash system’s effectiveness in defending against multiple threats.

  • Mobility

    The Talash Air Defense System is based on a 6x6 truck chassis, providing it with excellent mobility for both tactical and operational movements. The chassis design features a crew cab at the front, ensuring that the personnel operating the system have easy access to the necessary controls. The vehicle configuration includes one axle at the front and two axles at the rear, which offers a stable platform for the launcher while maintaining the flexibility needed to operate across various terrains. This 6x6 setup enhances the Talash's ability to traverse rough, off-road environments as well as paved roads, making it well-suited for diverse operational conditions.

    The chassis ensures that the Talash system can move rapidly between deployment sites, maintaining a high level of mobility, with a top speed of around 80-100 km/h on highways. Off-road, it retains good maneuverability, allowing it to reposition quickly to counter threats and avoid detection. With a range of 500-600 kilometers, the Talash can be redeployed over large distances, providing responsive and flexible coverage for key assets and installations.

  • Command and Control Systems

    The Talash Air Defense System operates with a sophisticated command and control (C2) network that ensures coordination between various elements of the air defense battery. This includes the missile launchers, radar vehicles, and command vehicles, all of which are linked to allow for real-time communication and situational awareness.

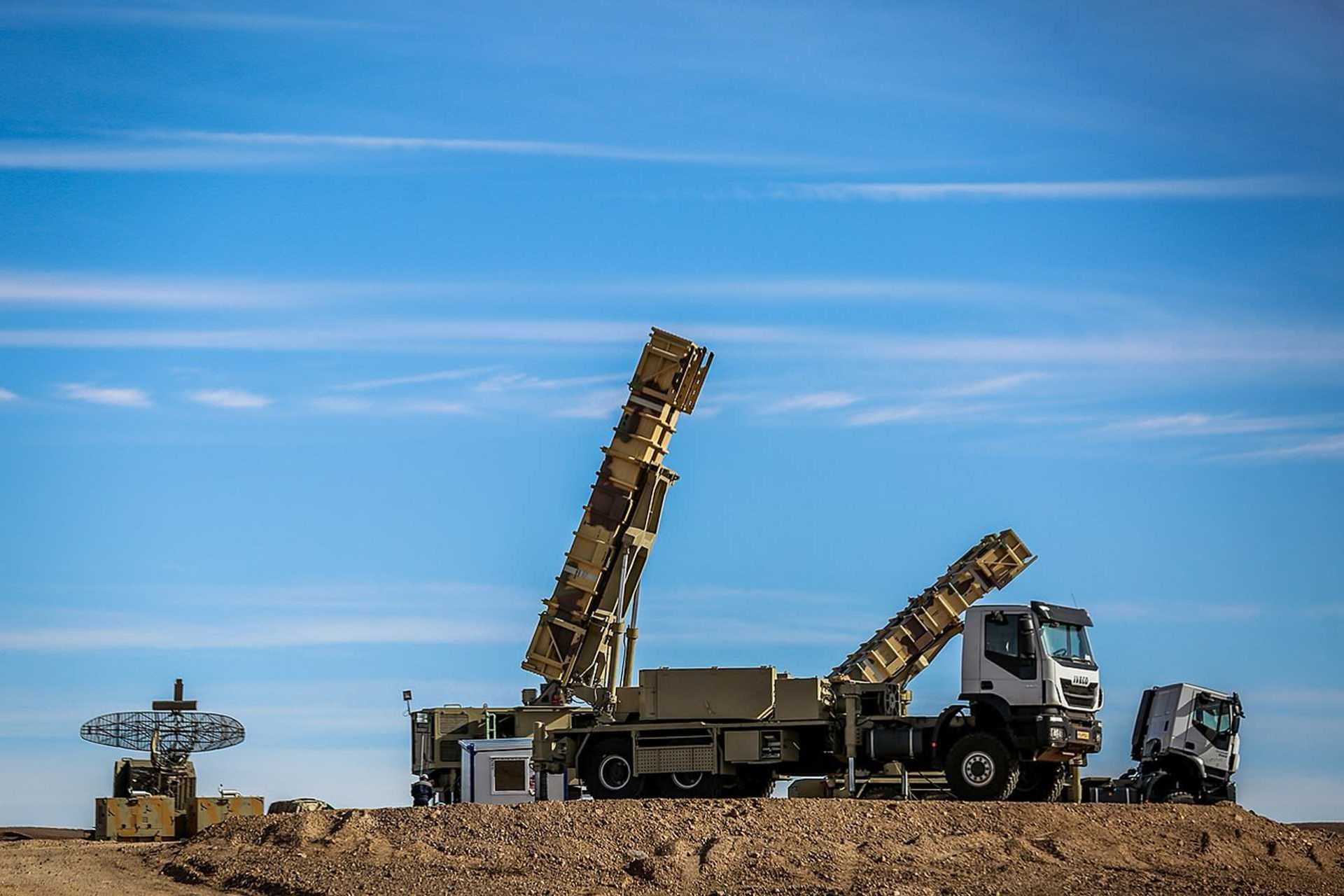

    A typical Talash battery includes a command vehicle, responsible for managing the overall operation and coordination of the system, including the radar units and missile launchers. The command vehicle ensures that targeting data is efficiently distributed to the appropriate launchers and that engagement decisions are made in real-time. The Hafez 3D phased array radar vehicle is a key component of the Talash system, capable of tracking multiple aerial threats simultaneously at ranges of up to 200 kilometers. This radar system feeds information directly to the command vehicle, which then communicates with the missile launchers to provide targeting data for engagement.

    Each Talash unit is also equipped with automated systems that enable the missile launchers to rapidly process incoming threat data and launch missiles with minimal human intervention. The integration of these systems within a battery creates a highly efficient, rapid-response air defense capability, capable of engaging multiple threats simultaneously across a broad operational area.

  • Combat Use

    The Talash Air Defense System is primarily tasked with intercepting and destroying a wide range of aerial threats, including fighter aircraft, bombers, cruise missiles, and unmanned aerial vehicles (UAVs). The system is capable of defending both military assets and vital infrastructure from airborne threats, making it a critical part of Iran’s air defense network.

    The Talash has a long engagement range, capable of intercepting targets at distances of 150-200 kilometers depending on the missile variant used. This allows it to engage threats well before they can strike high-value targets, ensuring a robust first line of defense against airstrikes. The system is equipped with active radar homing and advanced guidance systems that allow it to hit high-speed targets with high accuracy, even in complex combat scenarios involving multiple threats.

    In terms of destructive power, both the Sayyad-2 and Sayyad-3 missiles are equipped with high-explosive fragmentation warheads, designed to neutralize air targets by destroying them with powerful explosions upon impact. These warheads are capable of effectively taking down fighter jets, bombers, cruise missiles, and drones by damaging critical components such as engines, wings, and control surfaces. The Talash system has proven to be effective in a variety of operational scenarios, where its long-range capabilities and multi-target engagement features make it a formidable asset in defending against advanced aerial threats.

    With its mobility, long-range engagement capability, and advanced radar and guidance systems, the Talash Defense System has become an essential element of Iran's integrated air defense architecture, contributing significantly to the nation's ability to defend against diverse aerial threats and to maintain air superiority in a contested region.

Back to top

Specifications

  • Type

    Mobile Long-Range Surface-to-Air Missile (SAM) System

  • Country users

    Iran

  • Designer Country

    Iran (Developed by the Iranian Ministry of Defense)

  • Armament

    Up to four Sayyad-2 and Sayyad-3 Surface-to-Air Missiles

  • Missile Weight

    - Sayyad-2: Approx. 250 kg
    - Sayyad-3: Approx. 400 kg

  • Missile Range

    - Sayyad-2: 75 km
    - Sayyad-3: 200 km

  • Missile Guidance Systems

    - Sayyad-2: Semi-active radar homing
    - Sayyad-3: Semi-active radar homing and Active radar homing

  • Launcher Unit

    6x6 heavy-duty tactical truck chassis, likely modified from Mercedes-Benz.

  • Type of targets

    - Aircraft (including bombers and fighters)
    - Cruise missiles
    - Unmanned Aerial Vehicles (UAVs)
    - Short- to Medium-range Ballistic Missiles (for certain variants)
    - Low-Radar-Cross-Section (RCS) targets (e.g., stealth aircraft)

  • Dimensions

    Length: 12.0 m; Width: 3.0 m; Height: ? m
