Air Defense Vehicles.

IRIS-T SLS.

The IRIS-T SLS is a short-range, surface-launched air defense missile system developed by the German Company Diehl Defence, a leading German defense manufacturer. It is designed to provide rapid and highly mobile protection against a variety of aerial threats, including fixed-wing aircraft, helicopters, unmanned aerial vehicles (UAVs), and cruise missiles. As the short-range component of the IRIS-T Surface-Launched (SL) family, the SLS version serves as a cost-effective and efficient air defense solution by leveraging the IRIS-T air-to-air missile in a ground-based role.

Country users: Estonia, Germany, Norway, Sweden,

Description

The IRIS-T SLS is classified as a short-range air defense (SHORAD) system, utilizing an advanced infrared-guided missile originally designed for air-to-air combat but adapted for surface-launched applications. Developed by the German Company Diehl Defence, this system represents an effective and cost-efficient means of implementing modern short- and very-short-range air defense. The key advantage of the IRIS-T SLS is its ability to use existing IRIS-T missiles already in service with air forces, extending their operational scope by integrating them into ground-based air defense units. When loaded onto the launcher, the missile is automatically reconfigured with adapted software to ensure optimal performance in the surface-to-air role.

The development of the IRIS-T SLS was initiated to fulfill an operational need for a mobile, rapidly deployable air defense solution capable of engaging aerial threats in contested environments. Diehl Defence leveraged the proven IRIS-T missile technology while integrating it into a highly mobile launcher platform that allows for 360-degree engagement capability. Entering service in the 2010s, the IRIS-T SLS has since been acquired by multiple Northern European countries, with versions designed for both mobile and stationary deployments.

The main roles and missions of the IRIS-T SLS focus on providing immediate and reliable air defense protection for both stationary infrastructure and maneuvering ground forces. It is primarily tasked with securing military convoys, command posts, and logistics hubs from air attacks, effectively filling the gap in short-range air defense within multi-layered systems. The system also plays a crucial role in defending high-value assets from precision-guided munitions and aerial threats, ensuring that forces remain protected in both peacetime and combat scenarios.

The IRIS-T SLS air defense missile system is a highly mobile, cost-effective, and technically advanced solution for short-range air defense. By utilizing the proven IRIS-T missile in a surface-to-air role, it offers high lethality against aerial threats while maintaining seamless integration within modern air defense networks. Its rapid deployment capability, combined with its high-precision targeting and all-weather operability, makes it a vital component of contemporary air defense strategies. As air threats continue to evolve, the IRIS-T SLS remains a key system for nations seeking a reliable and adaptable short-range air defense solution.

IRIS-T SLS variants:

No variants for this specific version in the IRIS-T family.

Back to top

Technical Data

  • Launcher Unit

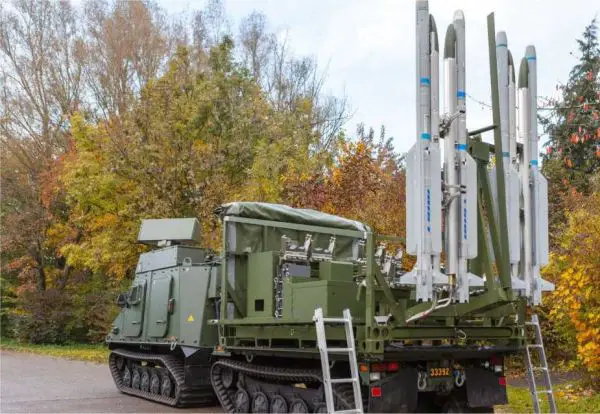

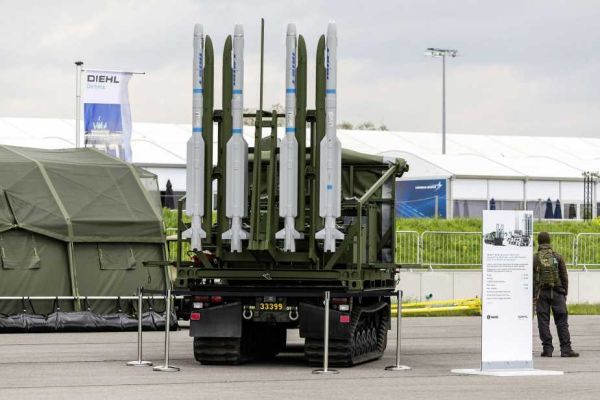

    The IRIS-T SLS launcher is a lightweight, modular system designed for high mobility and rapid deployment. It is housed in a 10-foot ISO frame, making it compatible with a variety of military vehicle platforms and enabling easy transportation and integration into different operational settings. The launcher can accommodate between four and six IRIS-T surface-to-air missiles in ready-to-fire canisters, providing a high rate of fire and rapid reloading capability. Positioned on a rotating platform, the launcher allows for full 360-degree engagement, ensuring comprehensive protection from threats approaching from any direction. The system is remotely operated and connected to a central command unit, which issues fire control commands and coordinates engagements within a networked air defense environment.

  • Missile

    The IRIS-T missile used in the SLS system is a highly maneuverable, infrared-guided interceptor with exceptional accuracy and resistance to countermeasures. It features an advanced imaging infrared seeker that enables precise target acquisition and tracking, even in environments where electronic jamming or countermeasures such as flares are deployed. The missile is approximately 2.9 meters in length, has a diameter of 127 mm, and weighs around 87 kg. Its high-explosive fragmentation warhead is optimized for aerial targets, ensuring a high probability of direct hit and effective destruction upon impact.

    With an effective range of up to 12 km and an altitude coverage of 8 km, the IRIS-T SLS provides robust defense against low- and medium-altitude threats. The missile’s thrust-vector control system allows for exceptional maneuverability, enabling it to engage highly agile targets such as fighter jets and drones. The system operates on a fire-and-forget principle, meaning the missile does not require further guidance after launch, allowing operators to engage multiple threats simultaneously. Its all-weather capability ensures effective operation in diverse climatic conditions, making it a highly versatile asset in modern air defense.

  • Mobility

    The IRIS-T SLS missile launcher station is mounted on various high-mobility military platforms to ensure rapid deployment and operational flexibility. It is commonly integrated onto high-mobility trucks such as the MAN HX series or Unimog platforms, which provide excellent off-road capability while maintaining high-speed maneuverability on paved roads. According to a picture released on X on February 8, 2025, the IRIS-T SLS used by the Ukrainian army is based on Italian-made Iveco Eurocargo 4x4 chassis. These vehicles are configured in 4x4, 6x6, or 8x8 setups depending on mission requirements, offering an operational range of over 600 km and a top speed of approximately 90 km/h. This mobility allows the system to quickly reposition in response to evolving threats, ensuring continuous air defense coverage for maneuvering ground forces.

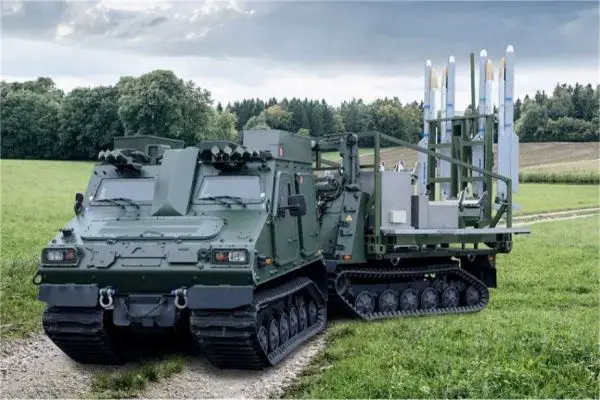

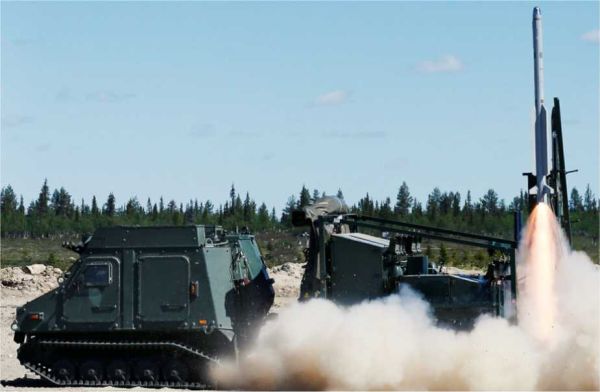

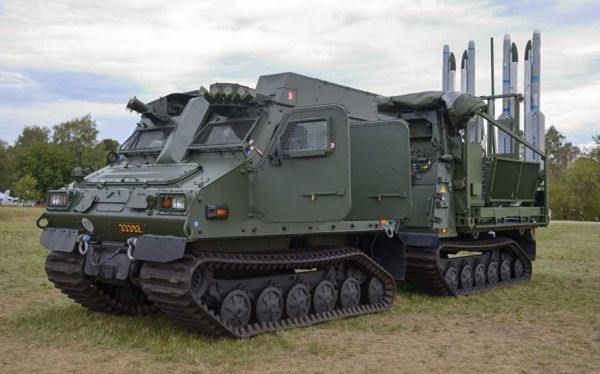

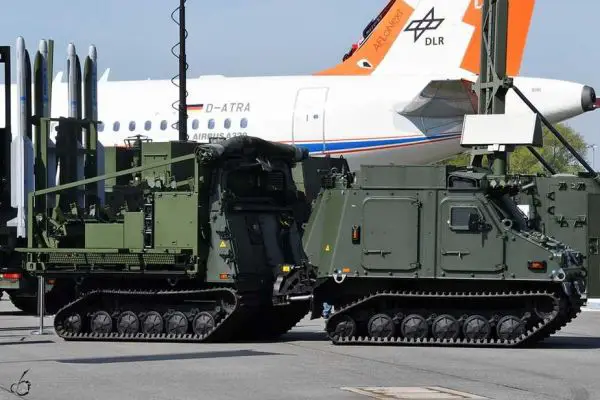

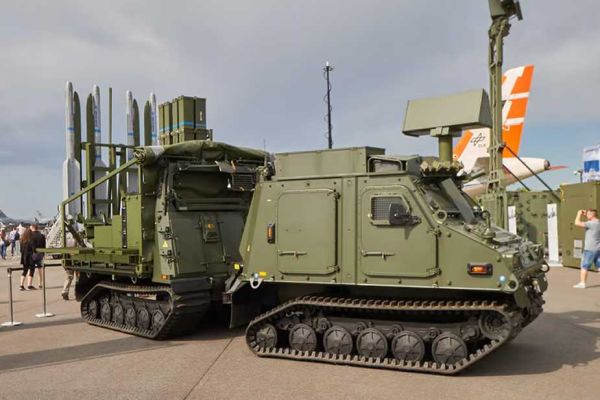

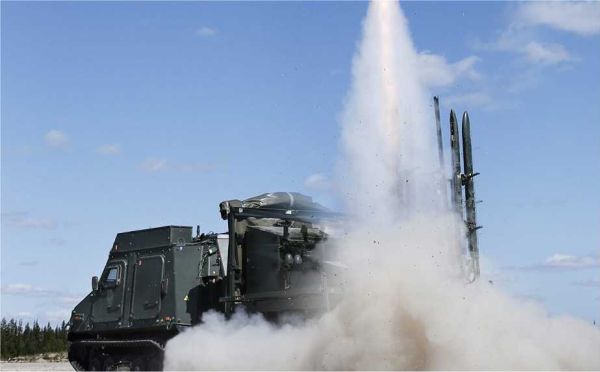

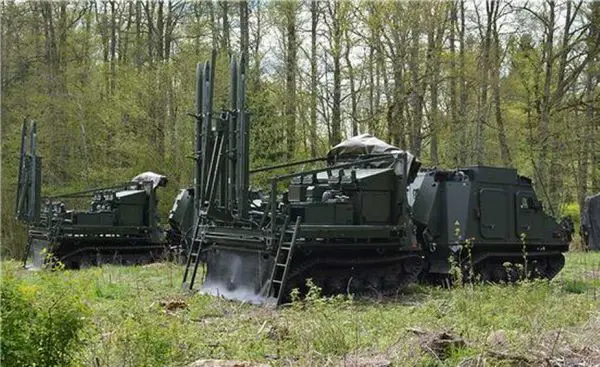

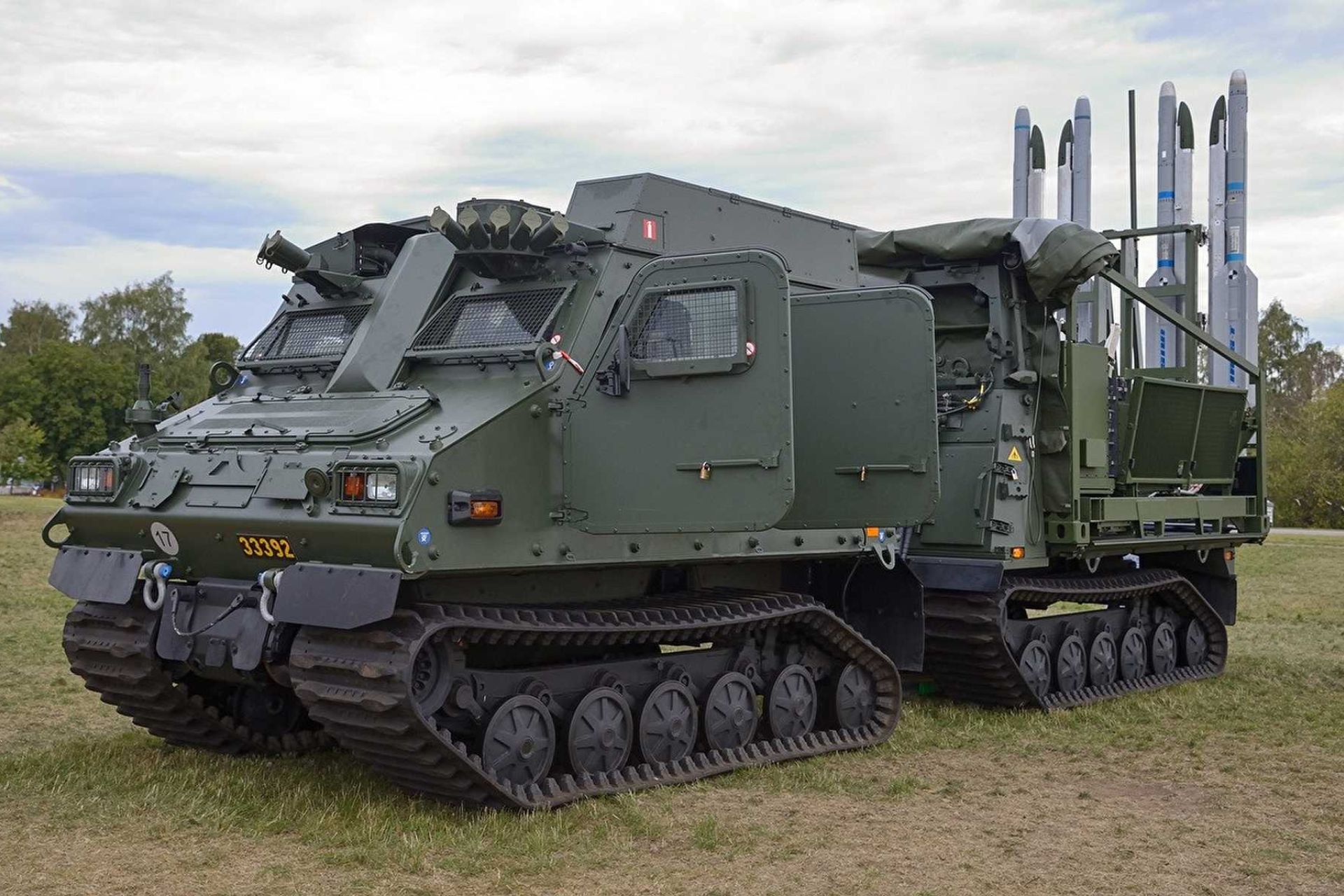

    In addition to truck-mounted configurations, the IRIS-T SLS missile launcher station can also be mounted on the BvS10 all-terrain tracked amphibious vehicle, which consists of a two-section articulated platform designed for extreme mobility in challenging terrains such as snow, swamps, and mountainous regions. The BvS10 features a front crew compartment and a rear cargo unit, with the IRIS-T SLS launcher mounted on the rear section. This configuration enables deployment in amphibious operations, Arctic warfare, and other difficult environments where wheeled platforms may be limited. The combination of wheeled and tracked vehicle integration ensures that the IRIS-T SLS can be deployed in diverse operational scenarios, from conventional battlefield environments to specialized terrains.

  • Command and Control Vehicles

    The IRIS-T SLS is fully integrated into networked air defense architectures, utilizing advanced command and control (C2) systems for fire coordination and threat management. The system operates within a mobile command post, typically housed in an armored vehicle for protection, where operators receive target data and engage threats in real time. The IRIS-T SLS is compatible with modern 3D radar systems, such as the TRML-4D and Giraffe 4A, which provide high-resolution target tracking and engagement support.

    The fire control system is fully automated, allowing for rapid target acquisition and engagement with minimal operator input. Additionally, the system is designed to function within NATO-standard data link frameworks, including Link 16 and SAMOC, ensuring seamless interoperability with allied air defense networks. An IRIS-T SLS battery typically consists of multiple launchers, a radar unit, and a mobile command center, forming a complete short-range air defense system capable of defending key operational areas.

  • Combat Use

    The IRIS-T SLS is designed for flexible deployment in a variety of combat scenarios, offering high responsiveness and adaptability to dynamic battlefield conditions. In a layered air defense strategy, it operates as a key component of short-range air defense, complementing medium-range systems such as the IRIS-T SLM and long-range systems like Patriot or NASAMS. The system is particularly effective in point-defense roles, where it protects critical assets such as military bases, airfields, and logistics centers from aerial attacks.

    In mobile operations, the IRIS-T SLS provides escort protection for mechanized ground forces, ensuring that convoys and tactical formations remain shielded from air threats. The system’s high firing rate and rapid response time enable it to engage multiple incoming targets simultaneously, making it highly effective against swarm attacks or coordinated air assaults. Its fire-and-forget capability further enhances its efficiency, allowing operators to engage threats without continuous tracking or illumination.

    With its combination of mobility, network integration, and high lethality, the IRIS-T SLS is a crucial asset for modern military forces seeking reliable short-range air defense. Its ability to operate in all weather conditions, along with its resistance to electronic countermeasures, ensures that it remains highly effective in contemporary and future combat environments.

Back to top

Specifications

  • Type

    Short-range surface-to-air defense system (SHORAD)

  • Country users

    Germany, Sweden, Norway, Estonia

  • Designer Country

    Germany (Diehl Defence)

  • Armament

    4 to 6 × IRIS-T infrared-guided missiles (surface-launched version)

  • Warhead Missile

    High-explosive fragmentation warhead

  • Guide Systems Missile

    Imaging infrared (IIR) seeker with thrust-vector control, fire-and-forget capability

  • Range Missile

    Up to 12 km

  • Altitude Missile

    Up to 8 km

  • Speed Missile

    Over Mach 3

  • Command and Control Vehicles

    TRML-4D radar, Giraffe 4A radar, mobile command post vehicles with NATO-standard data links
