Sentinel TRV IAG




Sentinel TRV IAG

Wheeled 4x4 Armored Tactical Response Vehicle  - Canada

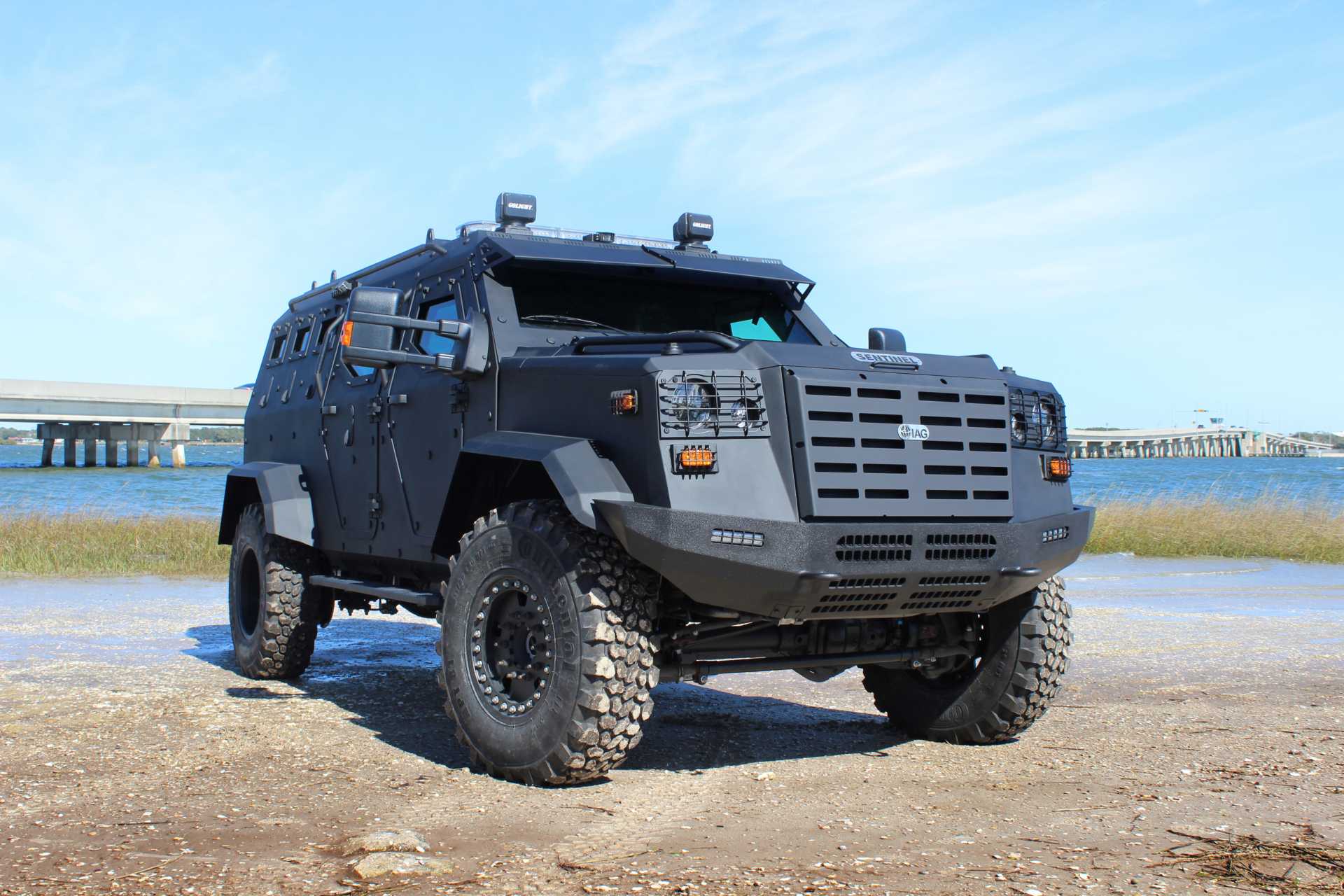

Sentinel TRV 4x4 wheeled tactical response vehicle IAG UAE 925 001

Description

The IAG Sentinel is a 50-state emission-compliant Armored Tactical Response Vehicle (TRV), designed primarily for use by Police, SWAT, SRT, and law enforcement agencies throughout North America. Based on the heavy-duty Ford F550 chassis some of the Sentinel highlights include:

• .50 cal/CEN B7 / NIJ IV full vehicle protection (with add-on armor)
• High hardened military spec ballistic steel monocoque body with laminated ballistic glass offering the same level or protection as the armored hull

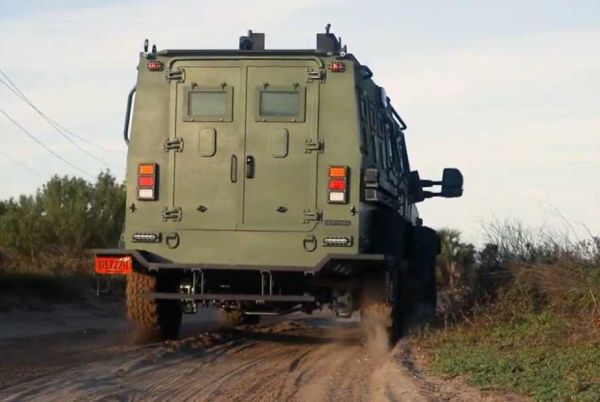

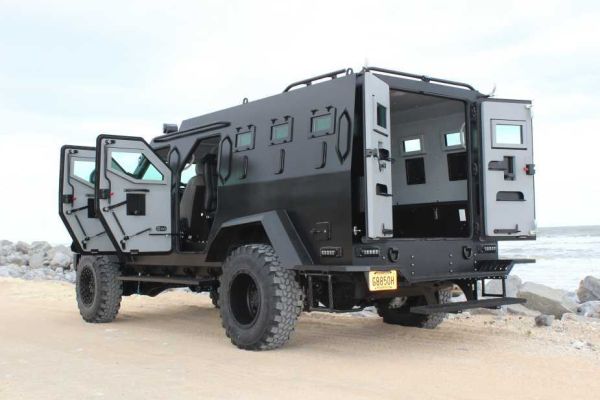

• Five (5) access points – 4 side doors and 1 rear
• Configurable interior with 2 + 8 seating (driver, front passenger, and 8 rear)
• 360-degree IR/thermal surveillance system
• Remote-controlled spotlights
• Bespoke off-road suspension system, including big body Coilover, shocks with custom mounts, heavy-duty front coil/rear leaf springs, front and rear sway bars, rubber springs and reinforced axles
• Military-spec steel wheels and tires with run-flat inserts and internal bead lock system

IAG Sentinel TRV variants:

- Sentinel TRV capable of seating 10 personnel and Sentinel XL TRV capable of seating up to 14 personnel


Technical Data

Armament
The IAG Sentinel can be fitted with various gun mounts available, spring-loaded gun ports, rotational turret
Design and protection
The Sentinel TRV has been specifically designed by IAG to meet the needs of the modern day SWAT and Special Response Teams (SRT). Design features have been derived based on feedback from various SWAT teams and police departments. Offering protection against .50cal rounds and 7.62x51mm AP rounds including the glass, the Sentinel is the only vehicle on the market that is rated to stop multiple AP hits. The easily removable add-on armor allows to minimize the vehicle weight when needed and for easy repair in case of a hit. Seating configurations can be customizable, however, the standard configuration includes driver and commander in the front, two individual bucket seats behind, and two bench row seats for a crew of 6. All seats are equipped with 4-point harnesses. The extended version, the Sentinel XL, offers seating for a crew of 14. The heavy-duty adaptive suspension has been specifically designed and tuned for the Sentinel weight distribution, center of gravity, and GVWR. The shocks with external oil reservoirs allow the user to control the compression and rebound and adjust the ride based on the terrain. The high vehicle ground clearance enables the Sentinel to traverse easily over any terrain and also be used in disaster relief efforts to access victims or remove obstacles.
Mobility
The lightweight design of the IAG Sentinel offers enhanced off-road capability and handling. The IAG Sentinel Tactical Response Vehicle is available in 4x4 wheel drive and can be motorized by a 6.7L V8 Diesel (300hp/660lb-ft) or by a 6.8L V10 Petrol (352hp/457lb-ft). Installed at the front of the vehicle, those engines can be coupled either to a 5-speed automatic or to a 6-speed automatic transmission. Vehicle components such as suspension and braking systems are designed and tuned to enhance off-road capabilities even at full load. The high-capacity wheel and tire assembly also feature a built-in run-flat and bead lock system.
Onboard Equipment
The IAG Sentinel can be fitted with a 360° rotational turret, fire suppression system, tactical wheels and tires, electric winch, police lights package, breaching ram with gas insertion system, LRAD, SCBA, Multi-gas and radiation detection equipment, communication systems, 360° video surveillance package with IR and thermal imaging capability.

Specifications

Armament Armor
Spring-loaded gun ports, optional rotational turret with ballistic view glasses that can be armed with 7.62 or 12.7mm machine or automatic grenade launcher. CEN B6 , B6+/NIJ (7,62 x 51mm protection) / B7/NIJ (.50 cal) capable with add-on armor
Country users Weight
North America, South America, Europe 7,500 kg
Designer Country Speed
UAE / Canada 120 km/h
Accessories Range
360° rotational turret, fire suppression system, electric winch, police lights, breaching ram with gas insertion system, LRAD, SCBA, Multi-gas and radiation detection, communication systems, 360° video surveillance package with IR and thermal imaging capability 800 km
Crew Dimensions
2 + 8 (2 + 12 for XL) Length: 6.22 m; Width: 2.89 m; Height: 2.41 m

Details View

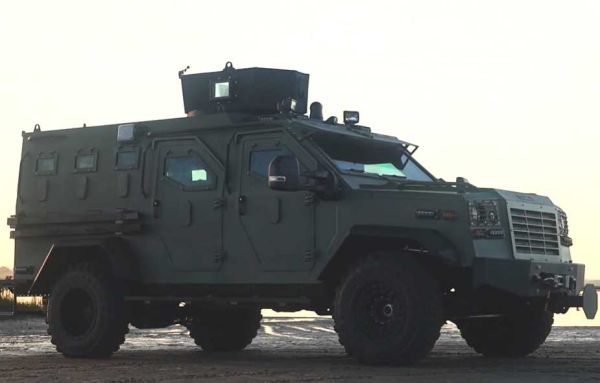

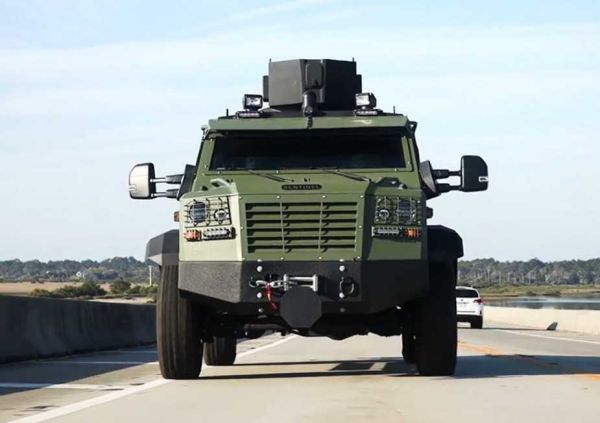

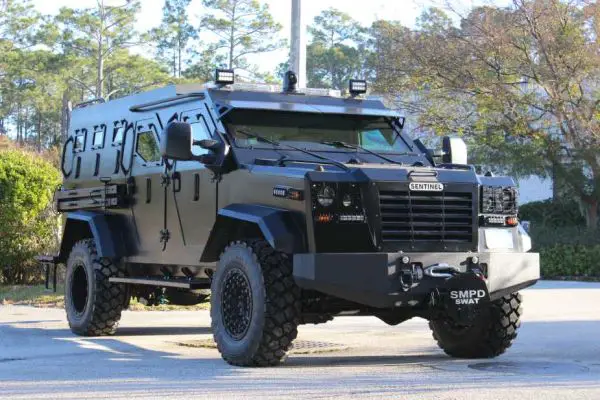

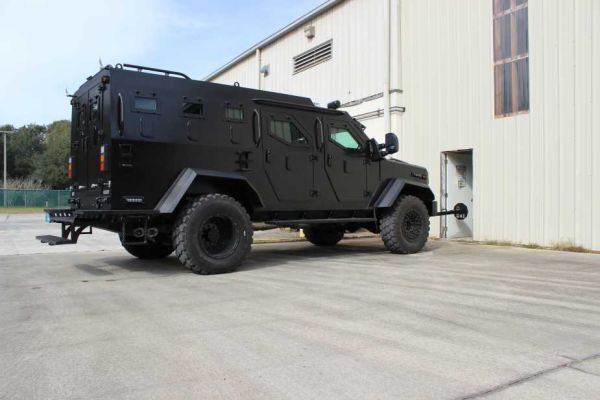

Sentinel IAG Armored Tactical Response Vehicle

Sentinel IAG Armored Tactical Response Vehicle Sentinel IAG Armored Tactical Response Vehicle
