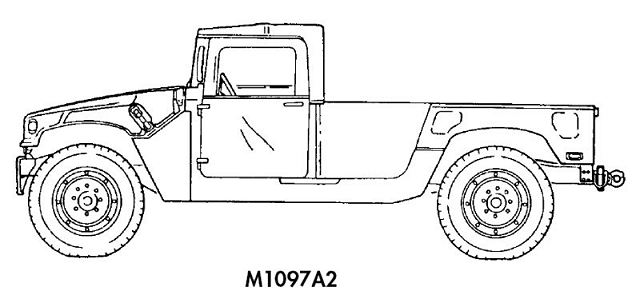

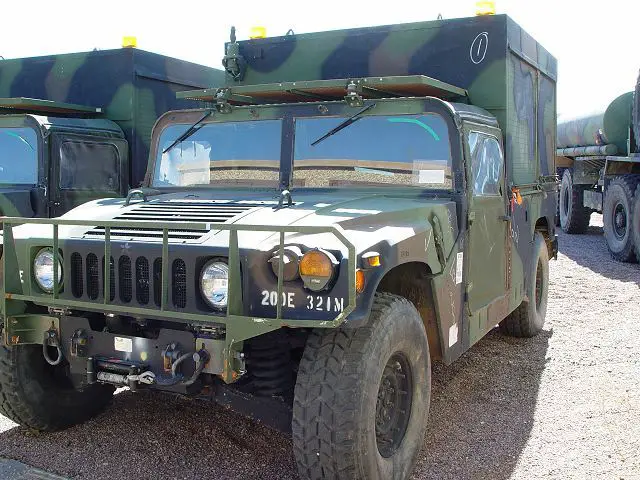

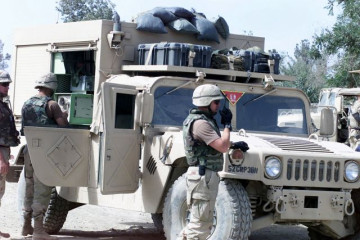

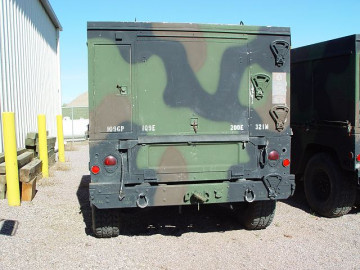

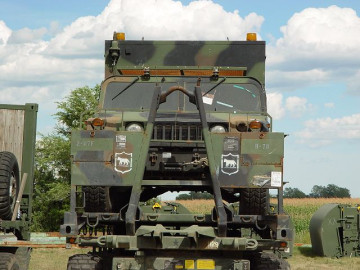

M1097 A1 A2 HMMWV Humvee heavy shelter carrier




M1097 A1 A2 HMMWV Humvee heavy shelter carrier technical data sheet specifications information description intelligence identification pictures photos images video information US Army United States American AM General defence industry military technology

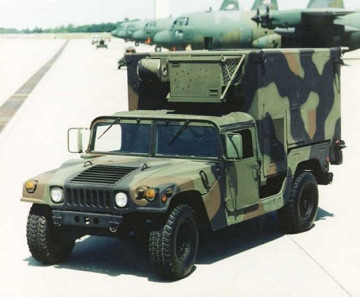

Description

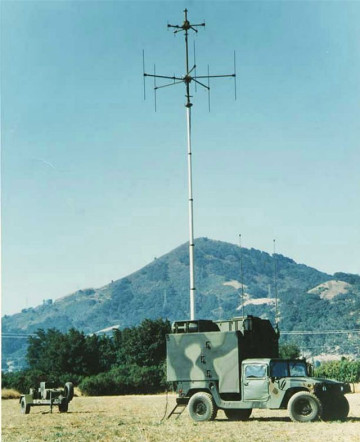

The M1097A2, Heavy HMMWV will replace the M1037, M1042, M1097 and M1097A1 heavy shelter variants. It is designed to carry heavy electronic systems or weapons platforms. This variant may be configured to act as a command post shelter from which battlefield traffic may be monitored and a communication center from which personnel may monitor incoming and outgoing radio and telecommunication traffic during operations. The M1097A2 may also be configured as a troop carrier.

Variants
- M1097
- M1097A1

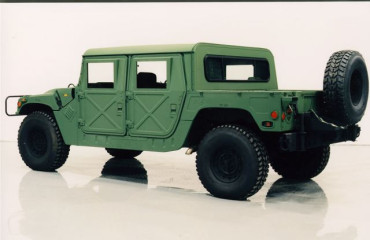

There is also a large range of variants with shelter, troop carrier, communication vehicle and more.

Technical Data
Back to top
Armament
No armament for the basic variant of the vehicle, but some versions can be equipped with a ring mount weapon station armed with a 12.7mm machine gun.

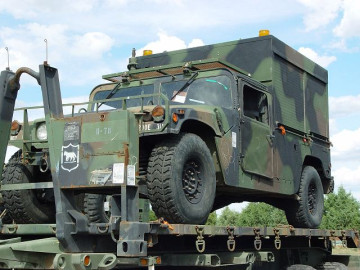

Design and protection
The layout of the M1097A2 is similar to the basic variant of the HMMWV with the engine at the front, crew compartment in the middle and large cargo area at the rear which is used mainly to carry a shelter. The M1097 series were equipped with basic armor and used to transport equipment, materials, and/or personnel, like the M998/M1038 series, except with a higher payload capacity. The heavy variant cargo carrier was able of transporting a payload with crew of around 2,000 kg. The shelter version of M1097 series is designed to carry heavy electronic systems or as a weapons platforms. The M1097 series could be configured to act as a command post shelter from which battlefield traffic could be monitored and a communication center from which personnel might monitor incoming and outgoing radio and telecommunication traffic during operations.

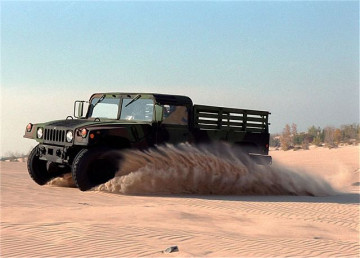

Mobility
The chassis, mechanical components and general performance are the same as other models of the standard Humvee M998 series. The M1097 A2 is motorized with a GEP 6500 V8, naturally aspirated diesel engine coupled to an 4-speed automatic transmission, maximum input torque rating of 451 lb.-ft (612 N•m), electronically controlled. The M1045A2 can climb 40% slopes and traverse a side slope of up to 30% fully loaded. The M1097A2 can ford hard bottom water crossing up to 76 cm without a deep water fording kit and up to 1.52 m with the kit.
Accessories

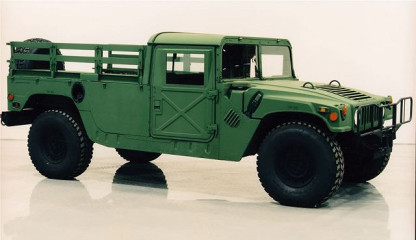

The M1097 series use a troop seat kit for troop transport operations, a 200 ampere umbilical power cable to power shelter equipment, and stowage racks for ammunition and equipment. To accommodate the higher payload capacity, the vehicles were equipped with a re-inforced frame, cross-members, lifting shackles, heavy duty rear springs, shock absorbers, reinforced control arms, heavy duty tires and rims, and a transfer case and differential with modified gear ratio. M1097A2 models, in addition to having all the other A2 series improvements, had new bumpers, which made the vehicles slightly longer. A 4,085 kg winch was also available for the M1097A2 models as an option.

Specifications
Back to top
Armament
One
Country user
United States
Designer Country
United States and other countries in the world.
Accessories
One self-recovery winch.
Troop seating
1 + 1
Armor
Basic armor
Weight
4,672 kg
Speed
70 km/h maximum speed on road
Range
300 km
Dimensions
Lenght, 4.84 m; Width, 2.55 m; Height, 1.88 m

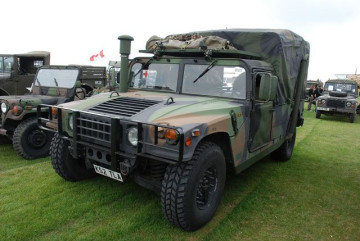

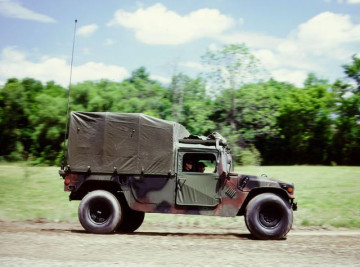

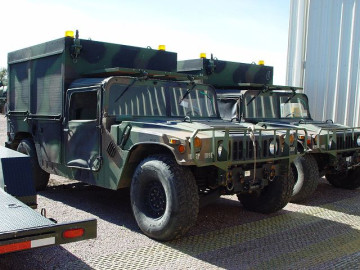

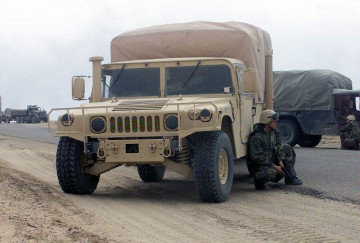

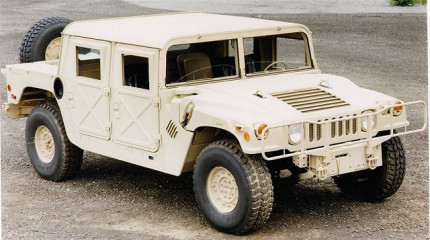

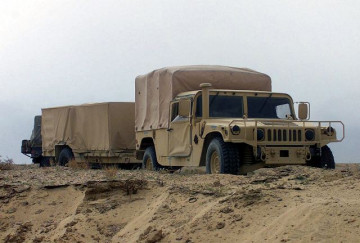

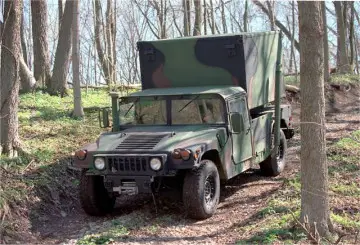

Details View

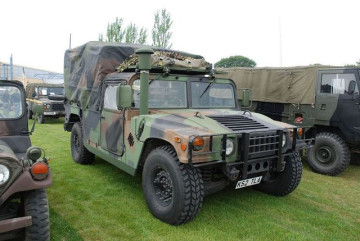

M1097 A1 A2 HMMWV Humvee heavy shelter carrier technical data sheet specifications information description intelligence identification pictures photos images video information US Army United States American AM General defence industry military technology

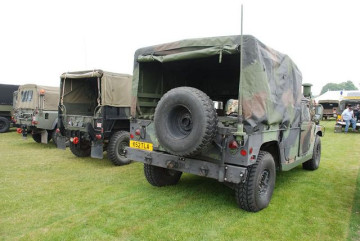

M1097 A1 A2 HMMWV Humvee heavy shelter carrier technical data sheet specifications information description intelligence identification pictures photos images video information US Army United States American AM General defence industry military technology

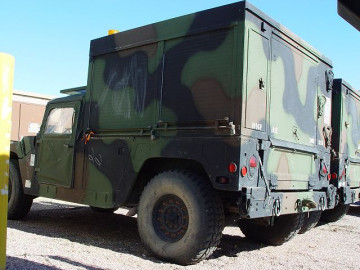

M1097 A1 A2 HMMWV Humvee heavy shelter carrier technical data sheet specifications information description intelligence identification pictures photos images video information US Army United States American AM General defence industry military technology

M1097 A1 A2 HMMWV Humvee heavy shelter carrier technical data sheet specifications information description intelligence identification pictures photos images video information US Army United States American AM General defence industry military technology M1097 A1 A2 HMMWV Humvee heavy shelter carrier technical data sheet specifications information description intelligence identification pictures photos images video information US Army United States American AM General defence industry military technology
