Armored Water Cannon riot control truck IAG

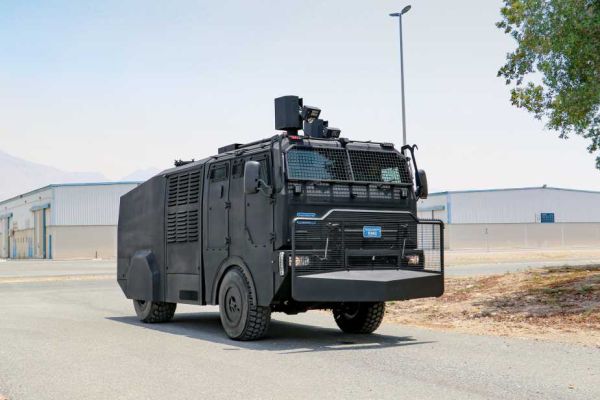

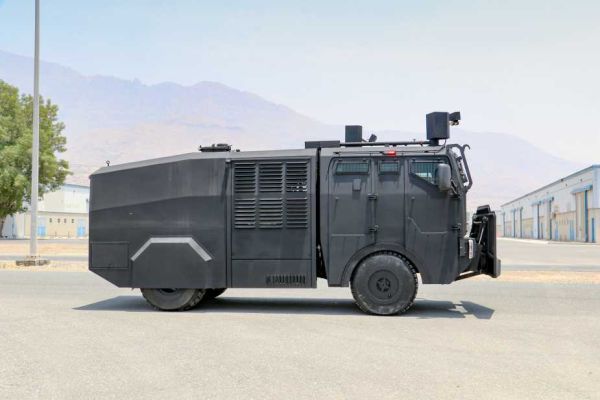

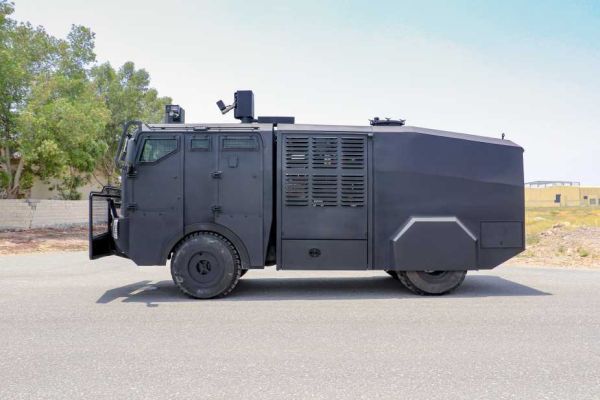

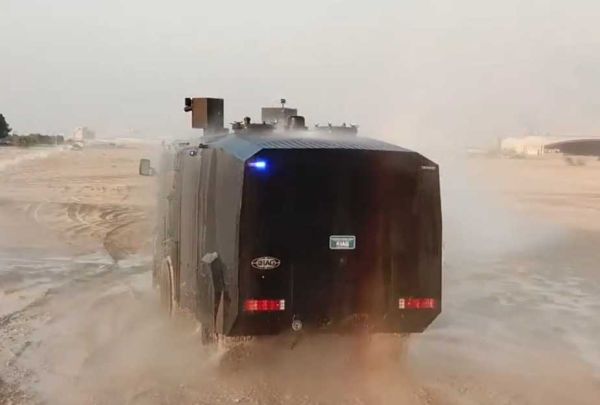

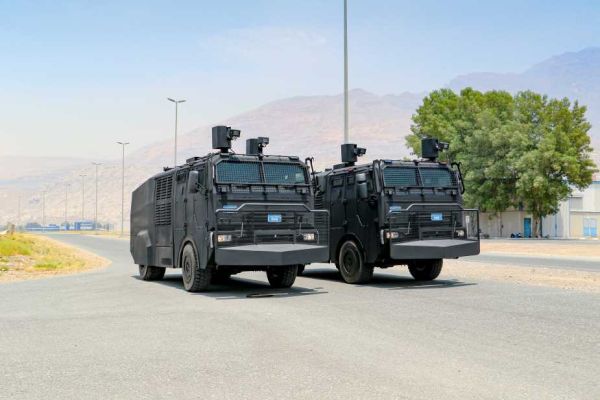

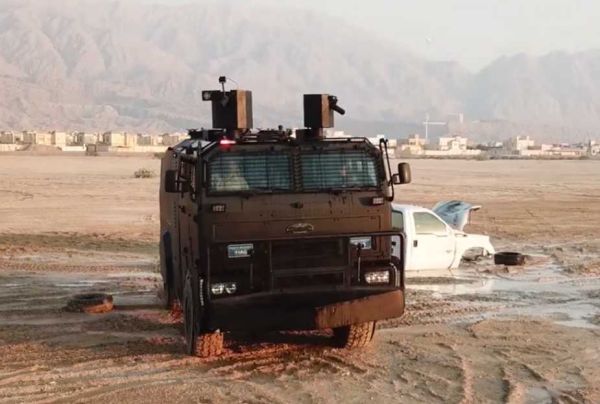

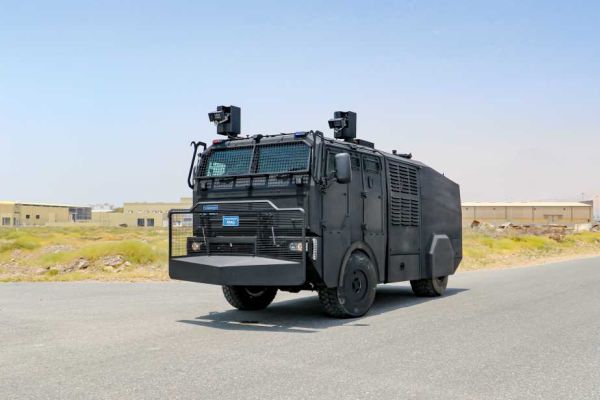

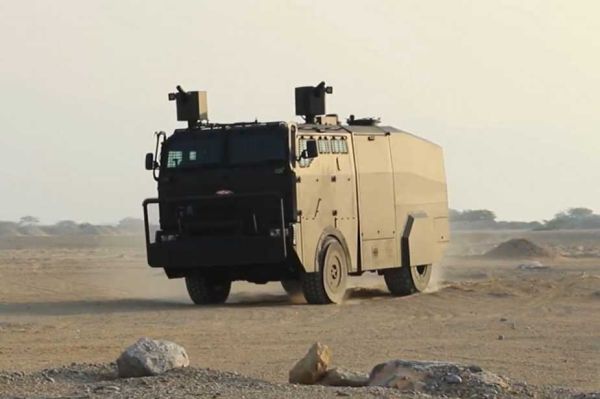

IAG Armored Water Cannon

Anti-riot security vehicle 4x4 / 6x6 configurations - UAE


IAG Armored Water Cannon anti riot security vehicle UAE 925 001

Description

The IAG Armored Water Cannon anti-riot vehicle is an excellent solution for riot control, firefighting, and for preserving peace and order. It is available in both 4x4 and 6x6 configurations and can hold up to a 14,000Lt corrosion-free water tank with high-pressure water jet systems with a 65m throw range. It also features a water spray system to protect the roof, cabin sides, tire shield and underbody from various burning objects, Molotov cocktails, or other dangerous liquids and gases. The vehicle body is fully armored to defeat multiple hits from high-power rifles and light machine guns. Key components such as the engine bay and fuel tank are also protected with armor enclosures. The mechanical components such as the suspension and braking systems have been designed for superior handling as well as to support the armor and water tank weight. The armored Water Cannon has a maximum seating capacity of up to 5 personnel which is fully customizable with various options including individual bucket seats and jump seats. This vehicle is designed to operate in tropical zones at high temperatures and in a salt-laden, high-humidity atmosphere to provide ease of operation, safety, reliability, and accessibility for repair and maintenance.

IAG Armored Water Cannon variants:

- -4x4 and 6x6 with manual or automatic transmission


Technical Data

Armament

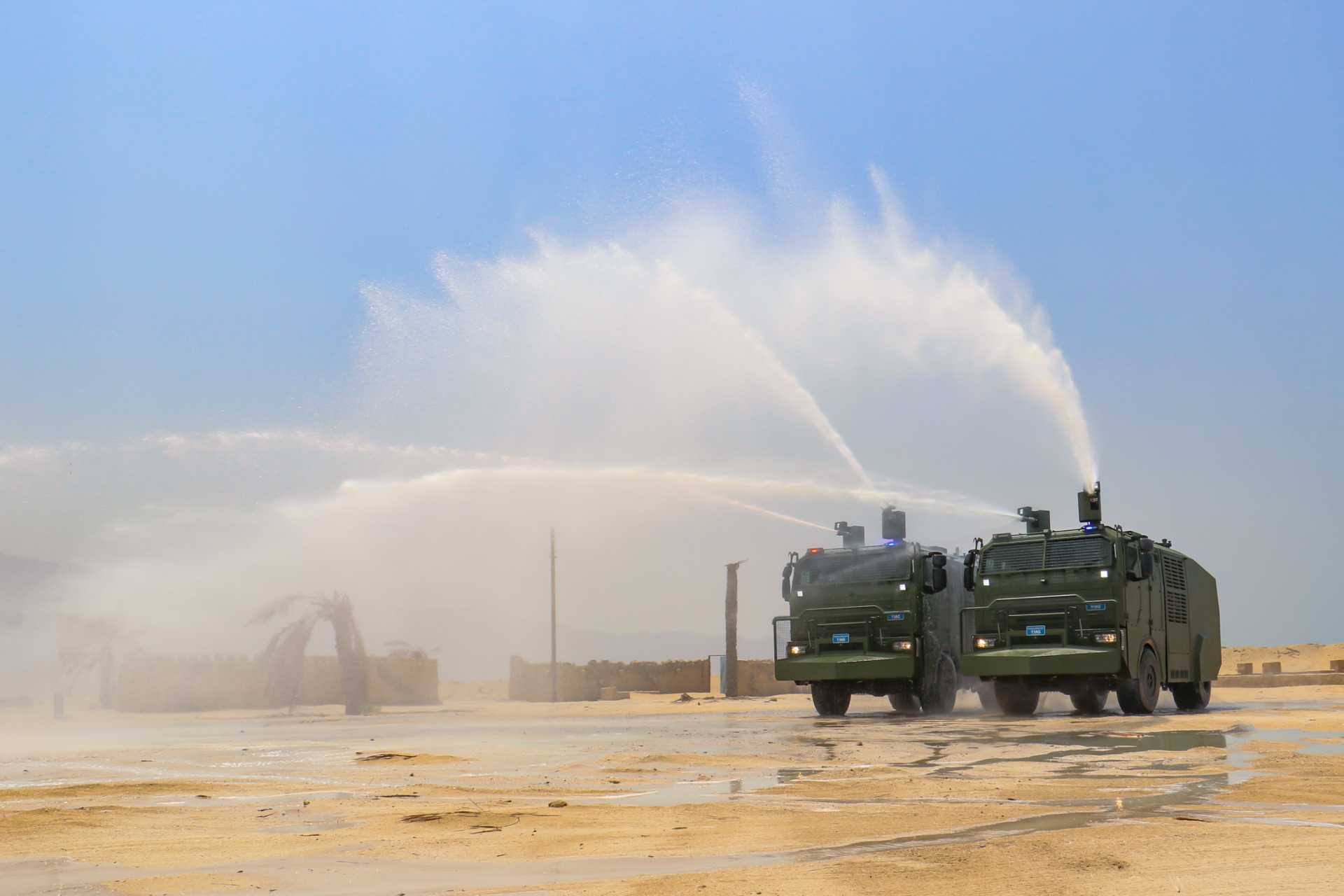

The IAG Armored Water Cannon holds a 14,000Lt corrosion-free water tank with high-pressure water jet systems with a 65m throw range. The vehicle also features a water spray system to protect the roof, cabin sides, tire shield and underbody from various burning objects, Molotov cocktails, or other dangerous liquids and gases. The armored water cannon comes equipped with a state-of-the-art Command Control System that holds an integration of surveillance cameras, night vision capabilities, PA system with strobe lights, roof monitors as well as an integrated fire suppression system. IAG’s Armored Water Cannon offers a comfortable, reliable and efficient solution for matters of crowd control, rioting, and the preservation of peace and order.
Design and protection

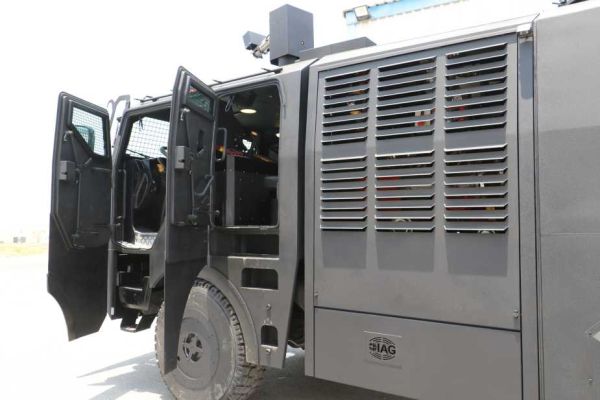

The IAG Armored Water Cannon is engineered with a fully armored cabin up to CEN B7/ NIJ IV and STANAG 4569 Level II that provides complete ballistic, mine-blast, and IED (Improvised Explosive Device) protection. The driver and all passengers are completely protected against all ballistic and explosive threats by the 360-degree armoring. The vehicle can accommodate up to 6 people. The unique engineering and construction of the armor design utilized in the vehicle allows the weight of the doors to be transmitted directly onto the vehicle structure and distributes weight in such a way as to allow the use of heavy-duty steel door hinge components without the risk of excess stresses. Doors are also protected against external removal attempts. In addition to the blast-resistant floor, an internal heavy-duty aluminum checkered floor has been installed for durability and easy cleaning.
Mobility
Engine:
- Type: Euro 3 Diesel, 6 cylinders, with turbocharger and intercooler
- Displacement: 12880 cm³
- Max. power (ISO): 440 HP at 1900 rpm
- Max. torque (ISO): 2100 Nm at 900-1500 rpm
- Cooling system: water cooling system for tropical areas
- Air cleaner: dry air filter for dusty road and off-road conditions, vertically installed
Transmission:
- Gearbox: 16 forward, 2 reverse speeds fully automatic shift with manual shift select possibility
- Distributor gearbox: 2-speed range change with differential lock controlled by ADM Switch
Onboard Equipment
Standard equipment of IAG Armored Water Cannon includes a central tire inflation system (CTIS), audio entertainment system, roof escape hatch, gun ports, holders, wire mesh grilles, public address system, searchlights, integrated suppression system, 4 Channel DVR system, command control system, air conditioning system.

Specifications

Armament Armor
Water cannon, water spray nozzles, foam spray nozzles, tear gas, and pigment spray nozzles - CEN B6/NIJ III (7.62 x 51mm M80)
- CEN B7/ NIJ IV ( 7.62 x 51 AP)
- STANAG Level I
- STANAG Level II
Country users Weight
Worldwide 23,000 kg
Designer Country Speed
UAE / Canada 90 km/h
Accessories Range
Central tire inflation system (CTIS), audio entertainment system, roof escape hatch, gun ports, holders, wire mesh grilles, public address system, searchlights, integrated suppression system, 4 Channel DVR system, command control system, and air conditioning system. Contact the manufacturer for additional accessories. 1,050 km
Crew Dimensions
2 +  4 people Length: 7.73m; Width: 3.33m; Height: 3.5m
