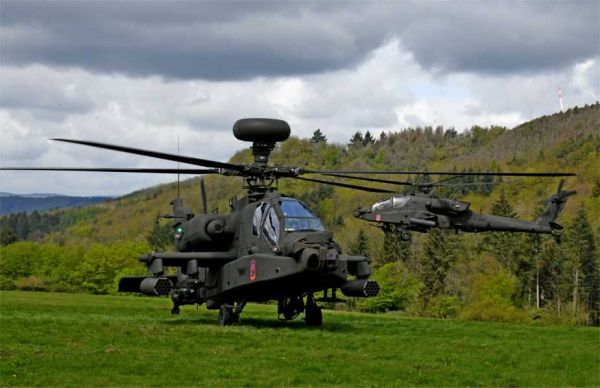

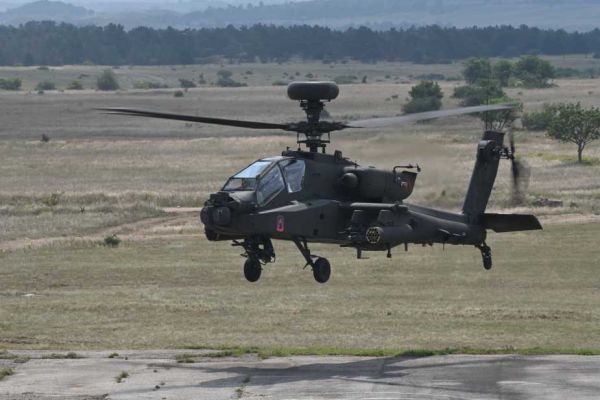

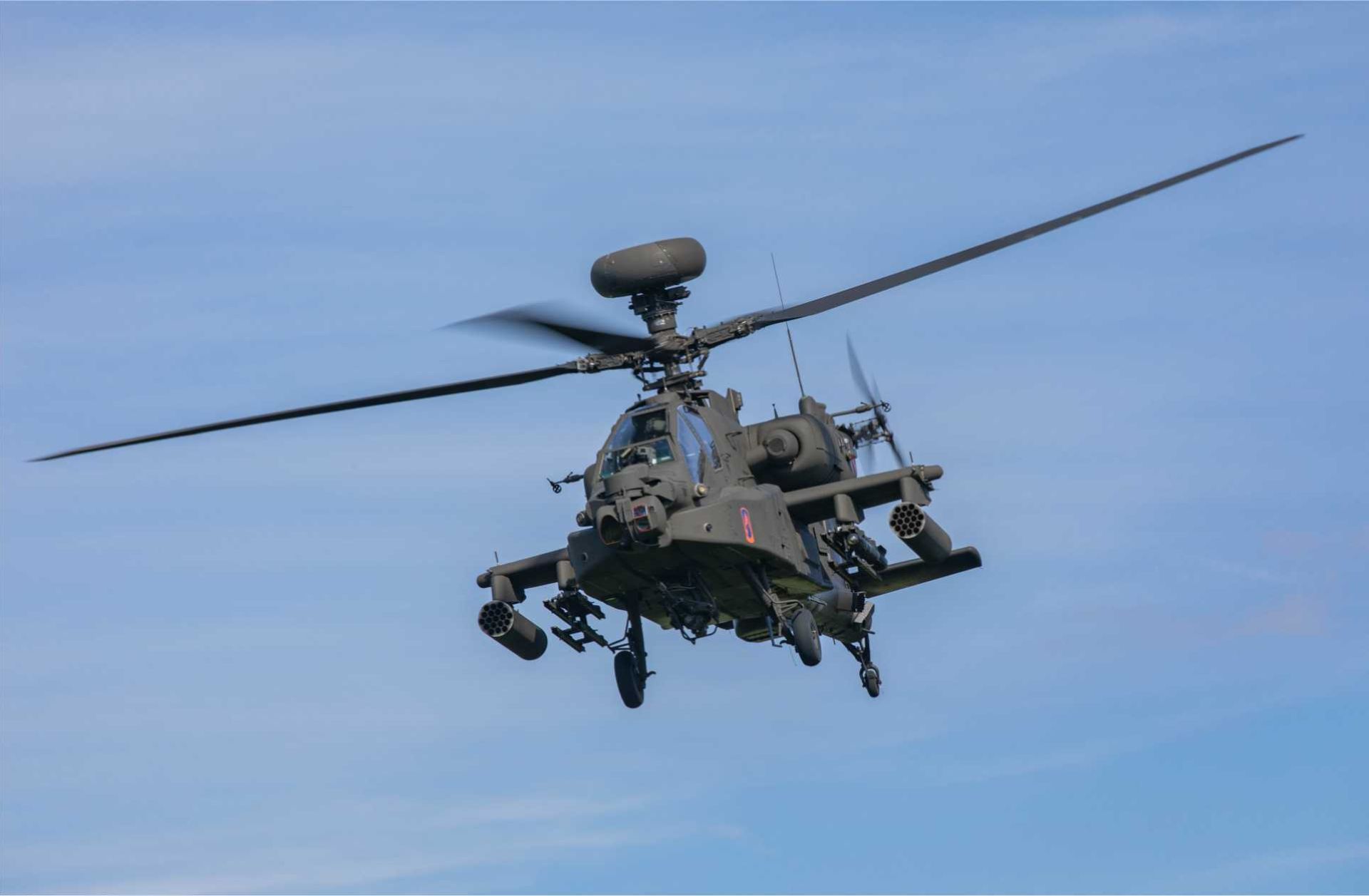

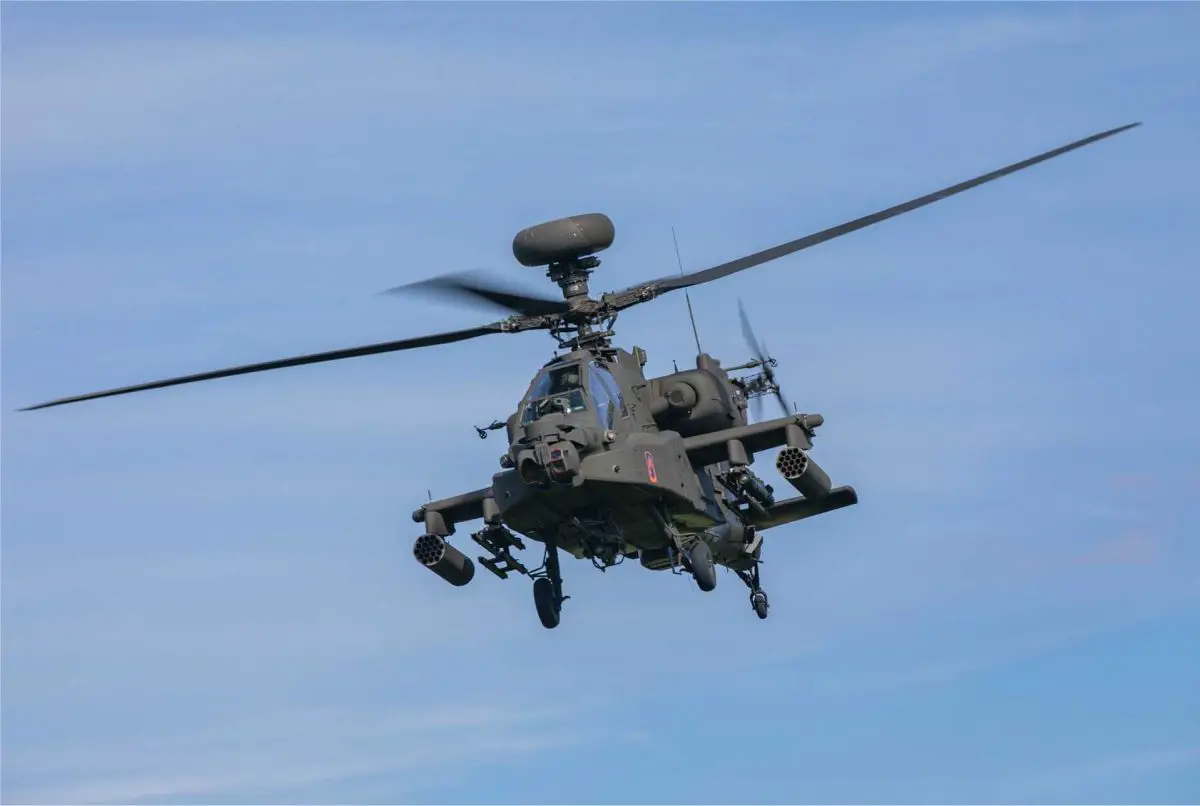

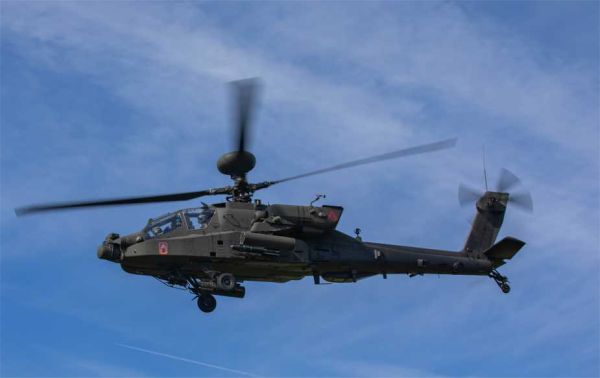

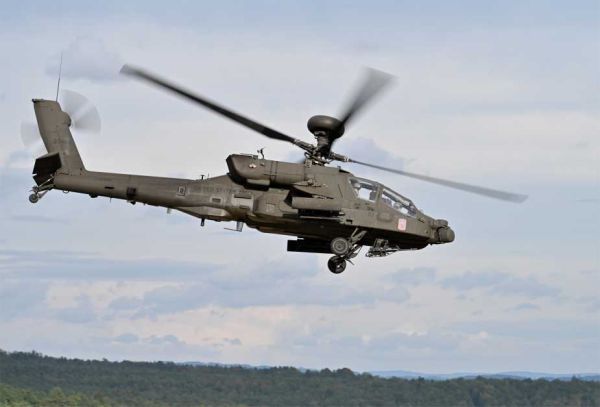

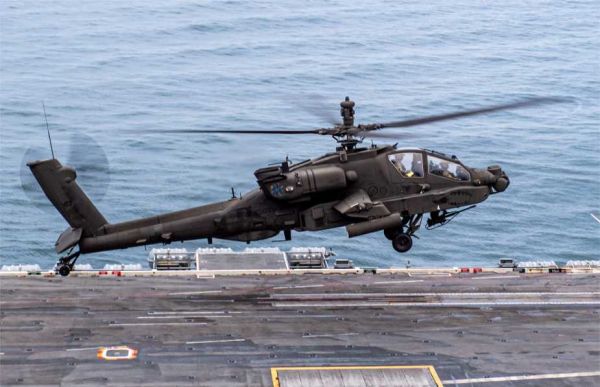

AH-64E Apache Guardian.

Technical Data

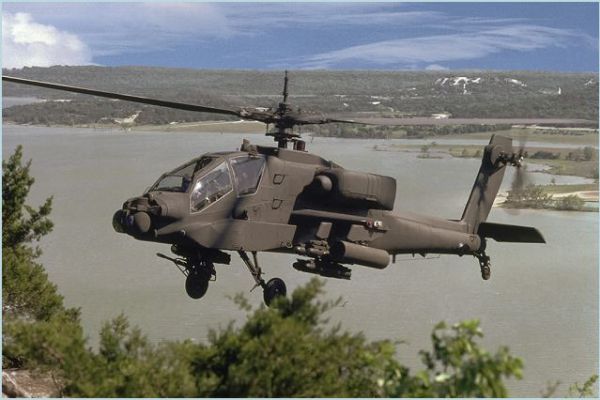

• Design

  The AH-64E is built around a tandem cockpit configuration, with the co-pilot/gunner (CPG) seated in the forward cockpit and the pilot in an elevated rear cockpit, providing superior visibility and battlefield awareness while maintaining a narrow frontal cross-section. Both crew stations are fully equipped with flight and weapon controls, ensuring redundancy in combat scenarios. The cockpits are protected by layered composite armor incorporating Kevlar and boron carbide, and separated by structural bulkheads to improve survivability in case of penetration. Energy-absorbing, crashworthy seating further enhances crew protection during hard landings or impact events.

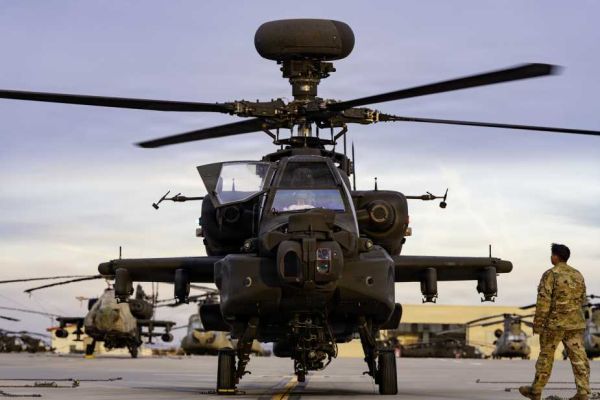

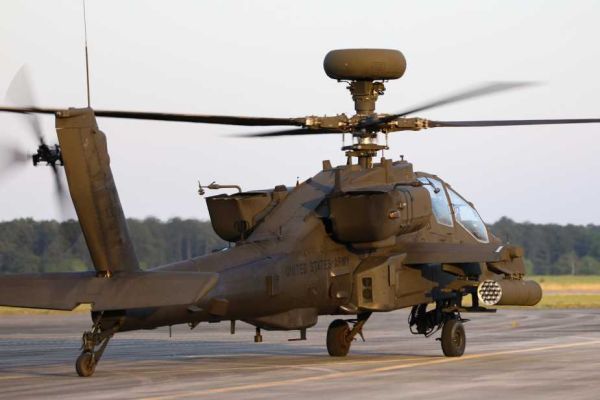

  The forward fuselage houses the Target Acquisition and Designation Sight (TADS) and Pilot Night Vision Sensor (PNVS) within a chin-mounted turret assembly, enabling independent line-of-sight targeting regardless of aircraft orientation. Above the rotor mast, radar-equipped configurations feature the AN/APG-78 Longbow fire control radar dome, allowing target acquisition while the helicopter remains masked behind terrain.

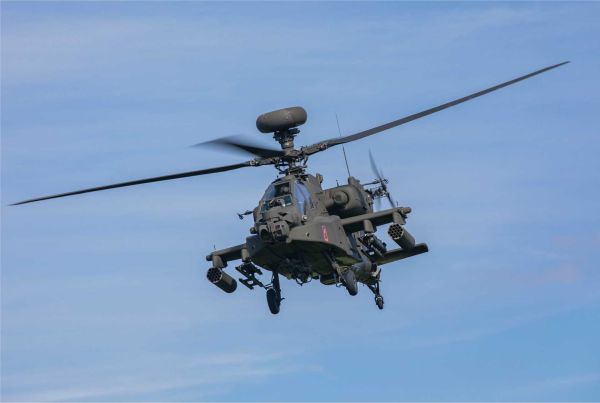

  The central fuselage integrates avionics bays, fuel cells, and the M230 chain gun turret, while also serving as the attachment point for the stub wings. Each wing includes two hardpoints for a wide range of stores, including guided missiles, rocket pods, and auxiliary fuel tanks. These wings also contribute to lift during forward flight, reducing rotor load and improving efficiency.

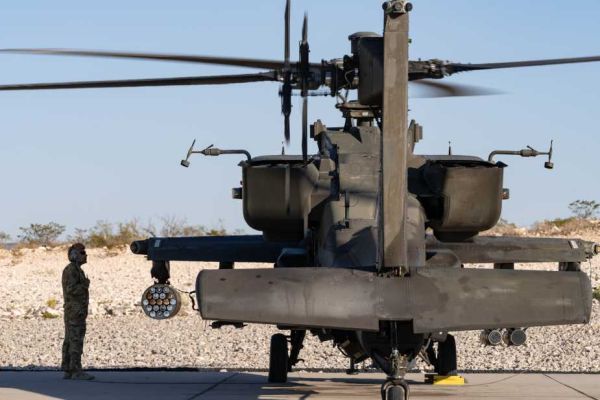

  The aft fuselage accommodates the twin-engine installation, with each engine mounted in separate nacelles to reduce vulnerability to single-hit catastrophic failure. The engines are connected to a reinforced transmission system driving a four-blade composite main rotor with swept tips, designed to increase lift and reduce vibration. The tail boom supports a four-blade tail rotor and incorporates protected drive systems with redundancy and ballistic tolerance.

• Armament

  The AH-64E’s primary gun system is the M230 30 mm chain gun, mounted on a flexible chin turret capable of wide azimuth and elevation movement. It is slaved to the crew’s helmet-mounted IHADSS system, allowing rapid target engagement based on head movement.

  The helicopter’s primary precision strike capability is provided by the AGM-114 Hellfire missile family, including radar-guided (AGM-114L) and laser-guided variants. These are supplemented by the AGM-179 Joint Air-to-Ground Missile (JAGM), which features dual-mode guidance (millimeter-wave radar and semi-active laser), significantly improving effectiveness against moving, concealed, or aerial targets such as UAVs.

  Additional armament includes Hydra 70 mm rockets, which can be deployed in unguided form or as APKWS laser-guided munitions for precision engagements. For aerial threats, the AH-64E can be equipped with AIM-92 Stinger missiles, enabling it to counter helicopters and unmanned systems.

• Avionics and Onboard Equipment

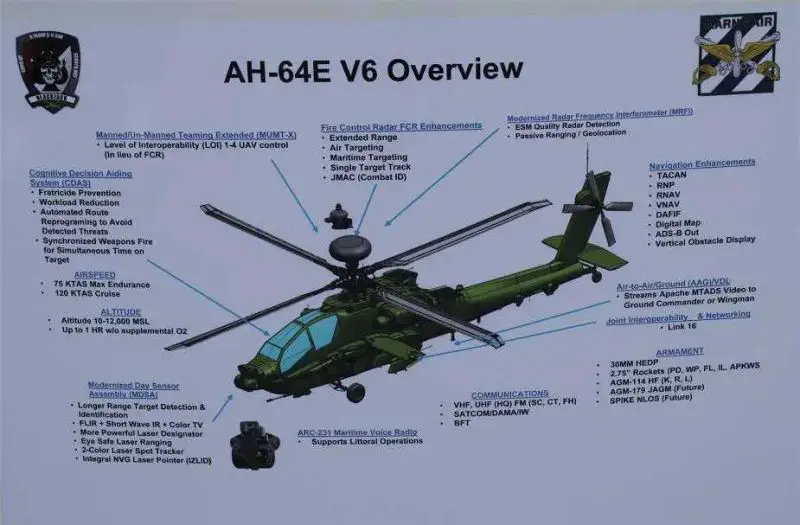

  The AH-64E features a fully integrated avionics suite designed for sensor fusion, real-time data sharing, and survivability in contested environments. The AN/APG-78 Longbow radar provides all-weather detection, classification, and prioritization of targets, while the Modernized TADS/PNVS system delivers high-resolution thermal imaging, day optics, and laser designation.

  The cockpit is equipped with the IHADSS-21 helmet-mounted display system, projecting flight and targeting data directly onto the crew’s visor, enabling heads-up operation in all visibility conditions. The aircraft is integrated with Link 16 and advanced tactical data links, allowing seamless communication with ground forces, aircraft, and unmanned systems. The MUM-T interface enables control and sensor exploitation of UAVs, significantly expanding situational awareness and engagement reach.

  Survivability systems are deeply embedded within the avionics architecture and include the AN/AAR-57 Common Missile Warning System (CMWS) for detecting incoming infrared-guided threats, the AN/APR-48 radar warning receiver (RWR) for identifying radar emissions, and the AN/ALQ-144 infrared countermeasure system for disrupting missile guidance. The platform can also integrate Directional Infrared Countermeasures (DIRCM) and other electronic warfare systems, providing layered defense against modern air defense threats. Additional features such as chaff and flare dispensers, infrared signature suppression, and ballistic-tolerant systems routing further enhance battlefield survivability.

• Engine

  The AH-64E is powered by two General Electric T700-GE-701D turboshaft engines, each producing approximately 2,000 shaft horsepower, enabling improved performance under high-load and extreme environmental conditions. These engines are paired with an upgraded transmission system capable of handling increased torque, directly translating into enhanced lift and maneuverability.

  The helicopter achieves a maximum speed of approximately 300 km/h, with a combat radius of around 476 km, extendable through external fuel tanks. It demonstrates strong performance in hot-and-high environments, with improved hover ceiling and climb rate compared to earlier variants.

  In combat, the AH-64E excels in nap-of-the-earth (NOE) flight, using terrain masking to evade detection while maintaining sensor coverage and targeting capability. Its advanced flight control systems and stabilized sensor platforms enable accurate weapons employment even during aggressive maneuvering. Combined with its network integration and MUM-T capability, the AH-64E operates as a highly adaptable and survivable strike platform within modern multi-domain operations.
